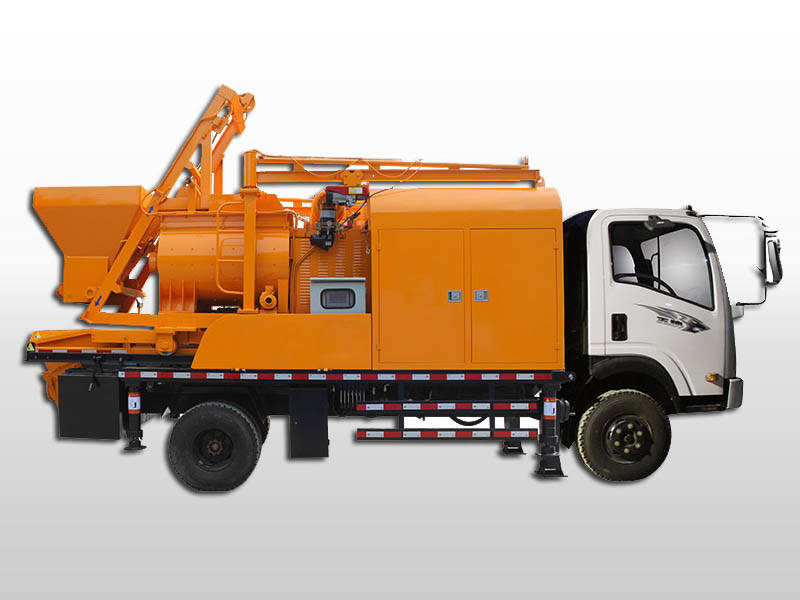

JBC40 L1 Truck mounted Concrete mixer pump is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process.

Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.
Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.

1. Weichai 100KW Generator.
2. Mixer and pump in one machine.
3. Transfer concrete through pipeline. It is fast and safe.
4. It has small size and suitable for more special environment.
5. Optional part: Hydraulic leg, Telescopic rail, Cement boom. This is easy to operate.
6. Flexible mixer and batch: Original creation, Keep truck balance in center, convenient maintenance.
7. Batcher: Increase the feeding speed and production efficiency.
8. Cement hanger: Reduce labor intensity and save manpower.



Pumping system
Max. theoretical Pumping Output	40m3/h
Outlet Pressure	7Mpa
Max. Conveying Distance (Horizontal )	300m
Max. Conveying Distance (Vertical)	70m
Type of Distribution Valve	S valve
Main motor	37Kw
Generator	Weichai 100Kw
Voltage	380V
Main oil pump	Domestic / Kawasaki 112
Delivery cylinder * stoke	200*1000mm
Main oil cylinder/ rod * stroke	100/70*1000mm
Oil tank capacity	300L
Discharge hopper capacity	600L
Concrete outlet diameter	200mm
Diameter of delivery pipe	125mm
Mixing system
Mixer type	JS350
Max. theoretical mixing Output	18m3/h
Hopper capacity	800L
Mixing motor power	15Kw
Hoist motor	4.5Kw
Water pump	0.75Kw
Max. aggregate size	Cobblestone 40mm Gravel 30mm
Materials filling height	1200mm
Batching system
Hopper capacity	1.2*2 m3
Hydraulic outrigger	2pcs
Load cell	8pcs
Operation interface	Touch screen in English
Compressor	3bar
Flexible	Yes (manually)
Mini printer	1pc
Wireless remote control	yes
The whole machine
Total weight	8500KG
Size (Without batcher)	7300*2210*2580mm
Size (Driving with batcher)	8400**2210*2580mm
Size (Working with batcher)	10200**2210*2580mm
