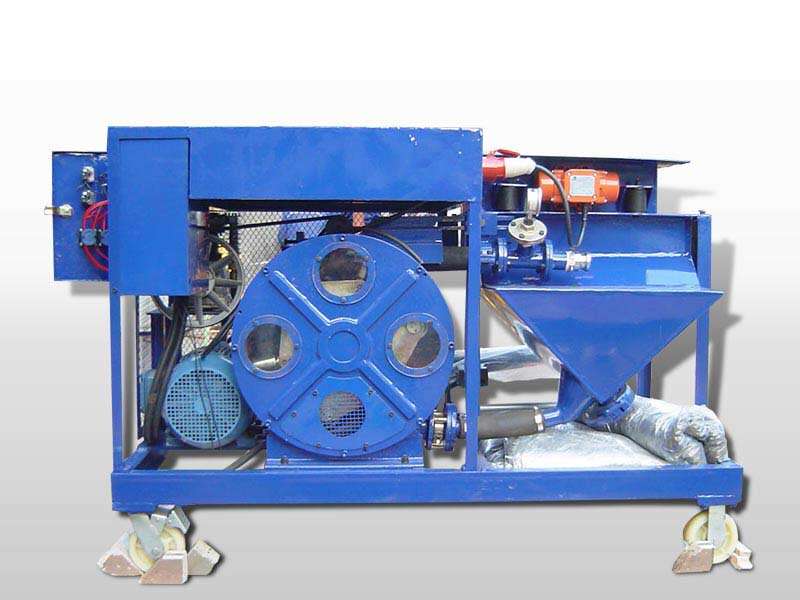

This mortar plaster pump is designed as the combination of GH38-430 hose pump (peristaltic type), mini air compressor and frequency converter.
Note:1,the gearbox is heavy -duty Helical-bevel gear 2,*WEG or China domestic electric motor
■ Application
GMP40/10-H Mortar Plaster Pump is successfully used for spraying mortar in construction and 3D Panel, etc.
■ Features
1. Rigid tooth flank helical gear;
2. Nozzle specially design to get continuous spaying flow;
3. Mini air compressor;
■ Technical data
Item
Description
Remarks
Rotor Dia.(D)
430mm
Hose ID
38mm/1.5inch
Rotor Rev.
15-33rpm
Rated Output/Flow
18-40L/min
Rated pressure
10 bar
Motor Power
3 KW /4hp, 3 phase, 380v, 50 Hz,IP55
*
Suck lift
5 meter
Hose material
NR(Natural Rubber)
Overall Dimension
1600x800x1060mm
Weight
440kg
Mini air compressor output
300L/min
Mini air compressor pressure
7bar
Note: 1.The gearbox is heavy-duty Helical-bevel gear.
2.*WEC or China domestic electric motor.
