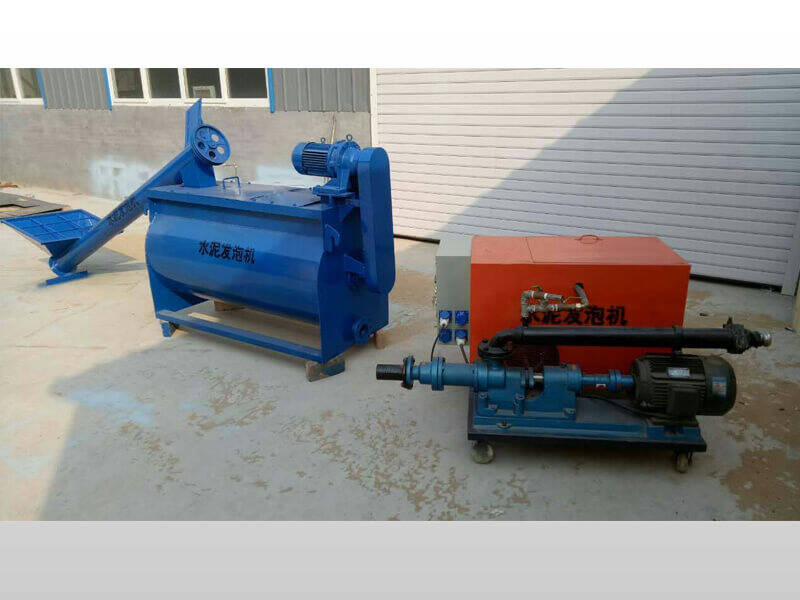

GF10A Cement foam concrete unit is a kind of small foam concrete machine according our many years of working experience. It includes a feeder, a mixer, a set of foaming system and a pump. This machine capacity is 10 cubic meter per hour which is special design for village and county market. It can put directly on the truck for working.

1. Cement foam concrete unit for foam concrete block;
2. Light weight concrete making equipment for floor/roof casting construction;
3. Foam concrete machine for framed wall and house structure casting;
4. CLC machine for subway and coal mining backfill.

Features of cement foam concrete unit:
1. Split design and easy to move;
2. Low electrical consumption, which special suitable for village usage, and also can working with the 15kw electrical generator;
3. Each machine single controller , easy to operate;
4. The machine use high pressure screw pump, can convey max height of 30meters;
5. The machine compare similar machine save about 50-100kg concrete per cubic meter;
6. The machine good design ,low weight machine can delivery by manual forklift.

Model	GF10A

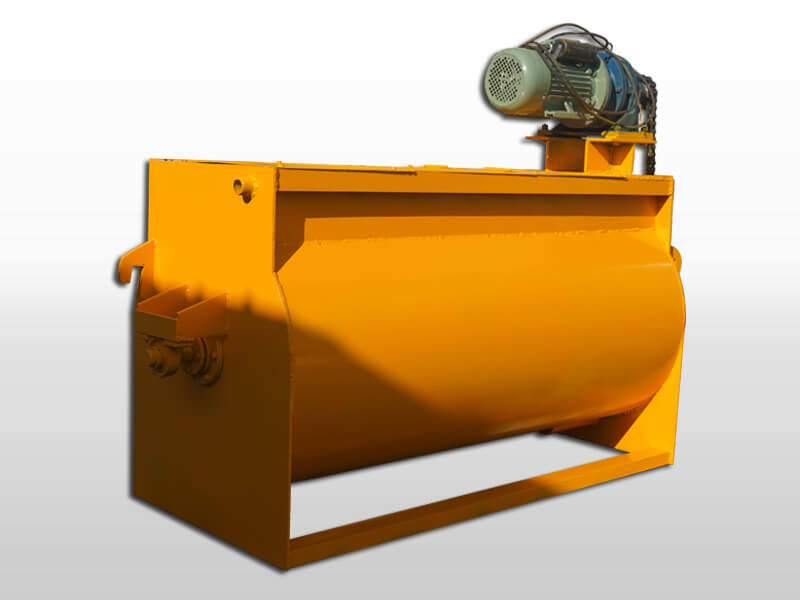

Mixer and feeder system
Maximum capacity	5-10m3/h
Rotate speed	35r/min
Motor power of mixer	3kw
Dimension of mixer	1500x500x900mm
Motor power of feeder	2.2kw
Length	2.5meter
Diameter of feeder	φ220mm

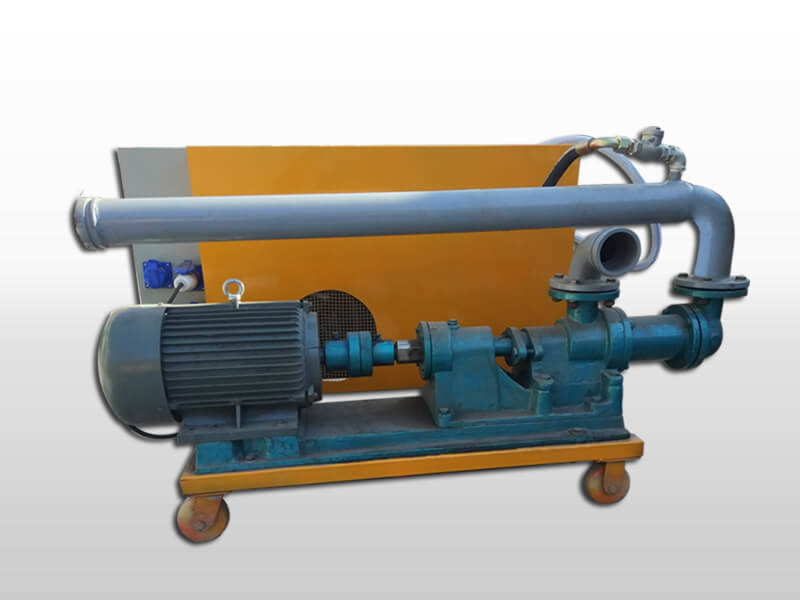

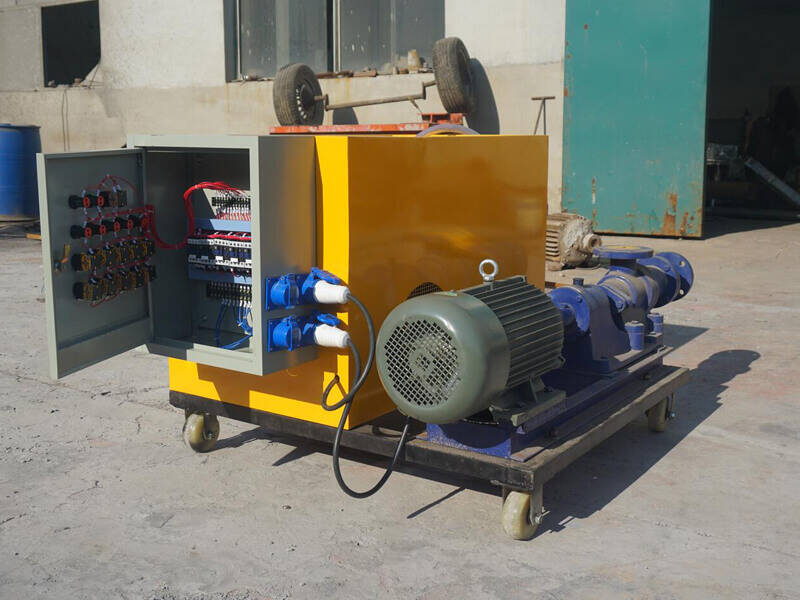

Pump and foam system
Maximum output	10m3/h
Motor power of foam concrete pump	5.5kw
Motor power of water pump	3kw
Conveying distance	80meters
Maximum vertical distance	40meters
