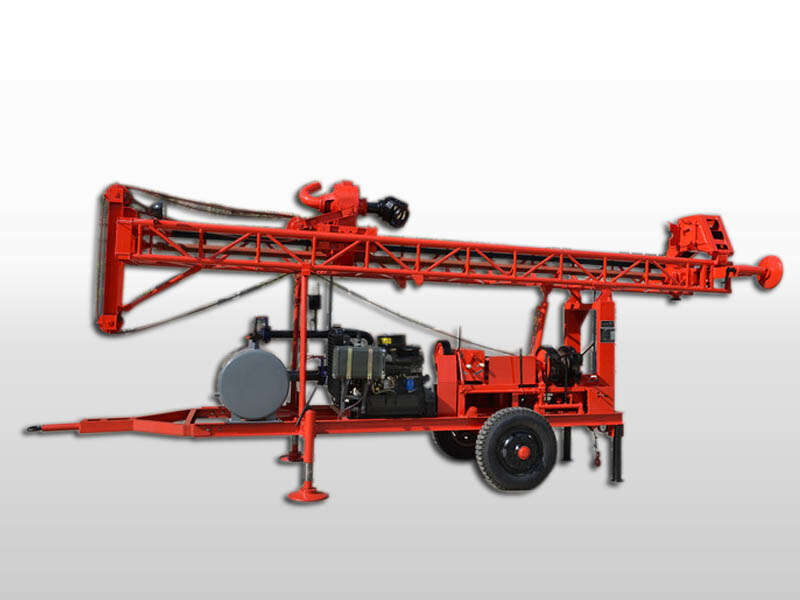

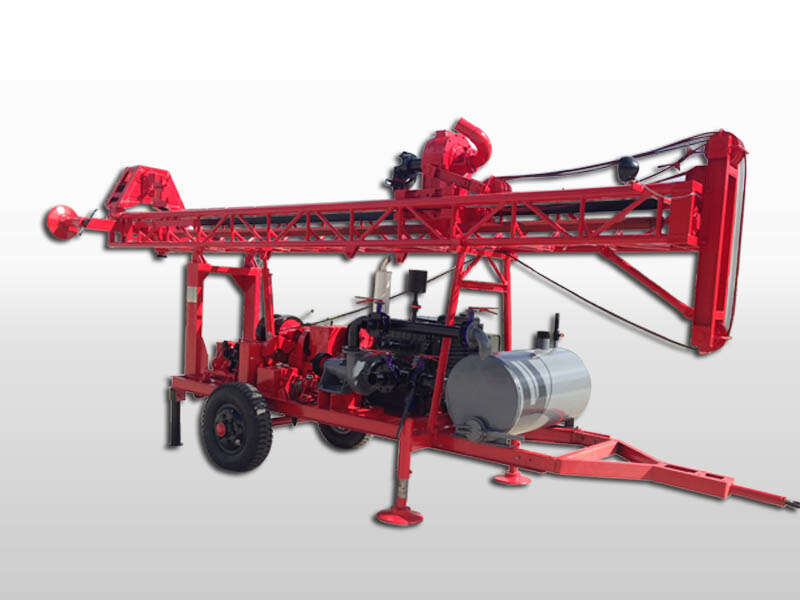

GSD series drill is mechanical drill head type well drilling machine, which is independently researched&developed and manufactured by our company. It can be applied for different geological situation, with these characteristics as portability, high efficiency and multi-function.

1. Drilling geothermal pump wells
2. Drilling wells for urban and rural life
3. Drilling wells for agricultural irrigation and industries
4. Drilling for geotechnical survey
5. Drilling construction engineering holes

1. It can be moved through the tractor or automobile and equipped with the device of hydraulic up-down tower, efficient and convenient;
2. Diesel engine driven; it can also be equipped with three-phase ac generators according to customer’s demands;
3. It can adopt both mud drilling and air drilling technology, and suitable for clay layer, sand layer and rock;
4. Power head with large torque and lifting force, easy operation, low cost and high yield.

Model	GSD-II
Drill hole diameter (mm)	90-1200
Hole depth (m)	200
Drill rod length (m)	3-6
Drill rod diameter (mm)	Φ60,φ73,φ89,φ95,φ133
Inside diameter of power head(mm)	Φ35,φ60,φ80,φ120
Dimension(mm)	working:4910*2020*6650
(L×W×H)	transporting:6700*2020*2750
Weight (kg)	4200
Drilling method	Normal and Reverse circulation for both Mud&Air drilling
Down the hole hammers	Middle-High air pressure
Power head lifting speed (m/s)	0.25, 0.15
Power head lifting force(T)	15
Main Hoist Lifting Force(T)	2.5
Feed thrust (T)	2
Power head rotating speed (r/min)	A(Normal:13-22-48)( reverse:10-17-36)
	B(Normal:48-84-184)( reverse:37-65-142)
Mud pumps	LBN20Normal and Reverse circulation pump group
Pump flow (m3/h)	80
Power unit	Diesel engine
Rated power (kW)	40
Supporting form	Mechanical Screw
Mask up-down	Hydraulic Unit
Chassis	Trailer-type with two wheels
