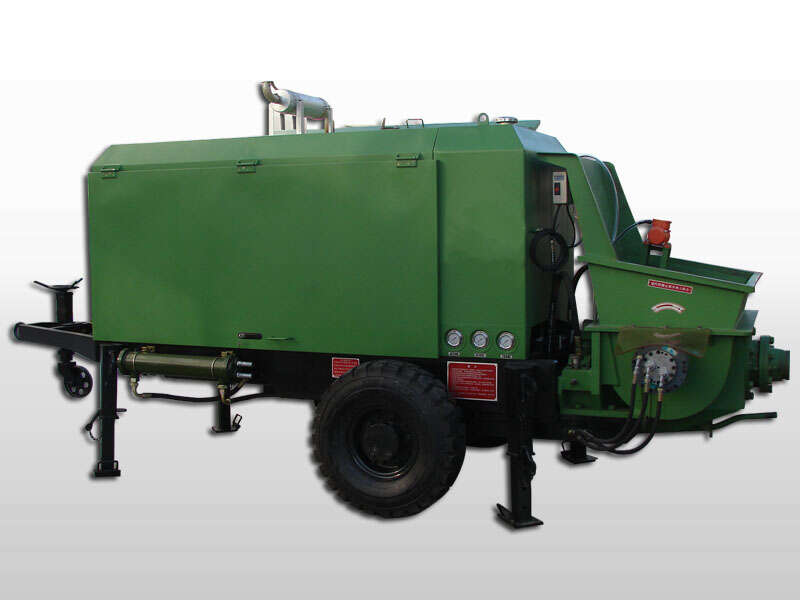

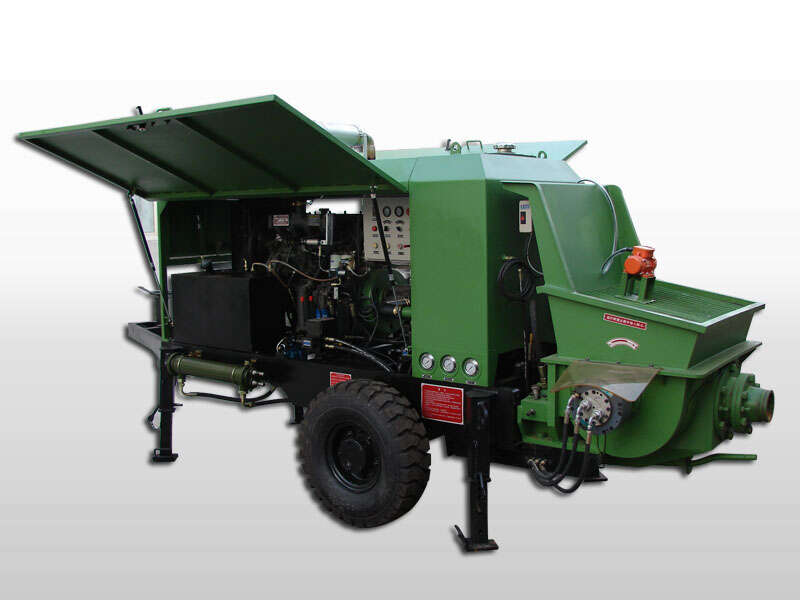

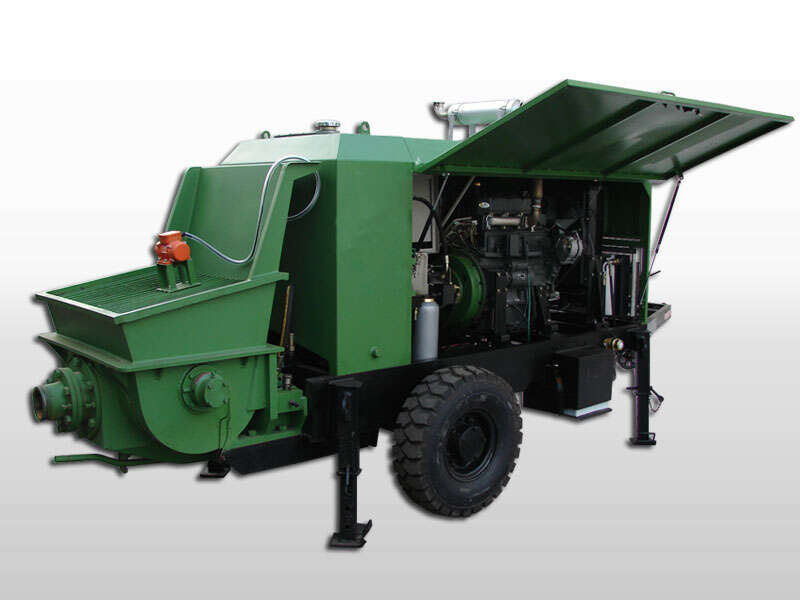

GWR Wet gunning refractory pump
Parameter:
GWR-15/11 Unit
Rated output:
3-15m³/h
Pressure:
10MPa
Distributing valve form :
S tube valve
Max. aggregate particle :
30mm
Slump :
12~20cm
We're here to help:
Easy ways to get the answers you need.
(※ Click this button to inquiry)
download:
Share with:
Description
Application
Features
Technical data
■ Description
The wet-mix refractory spraying machine insists of push mechanism, hopper, mixing system, distributing valve, rack, running gear, mechanic transmission, hood, oil tank, hydraulic system, electric system, etc.
■ Application
The wet-mix refractory spraying machine is mainly used for refractory spraying of blast furnace or shaft furnace.
■ Features
1. Hydraulic pumping method: high efficiency, reliability and stability.
2. High pressure. Variable output.
3.Low dust, low rebound, environment friendly.
4. Automatic centralized lubrication system.
5. Convenient operation, low maintain cost, durable wearing parts.
■ Technical data
Parameter
Unit
GWR-15/11
GWR-25/14
Rated output
m³/h
3-15
3-25
Pressure
MPa
10
14
Distributing valve form
S tube valve
S tube valve
Max. aggregate particle
mm
30
30
Slump
cm
12~20
12~20
Rebound rate
%
≦15
≦15
Dust density (near machine)
mg/m³
≦10
≦10
Conveying cylinder ID *stroke
mm
Ф140*1000
Ф140*1000
Diesel engine model
R4105D2
R4105D7
Diesel engine power
kw
50.6
61.6
Rated rotation
rpm
1800
1500
Hydraulic oil tank volume
L
350
350
Fuel tank volume
L
60
60
Charging height
mm
1200
1200
Overall dimension
mm
4550*1680*1950
4550*1680*1950
Weight
kg
2850
3000
