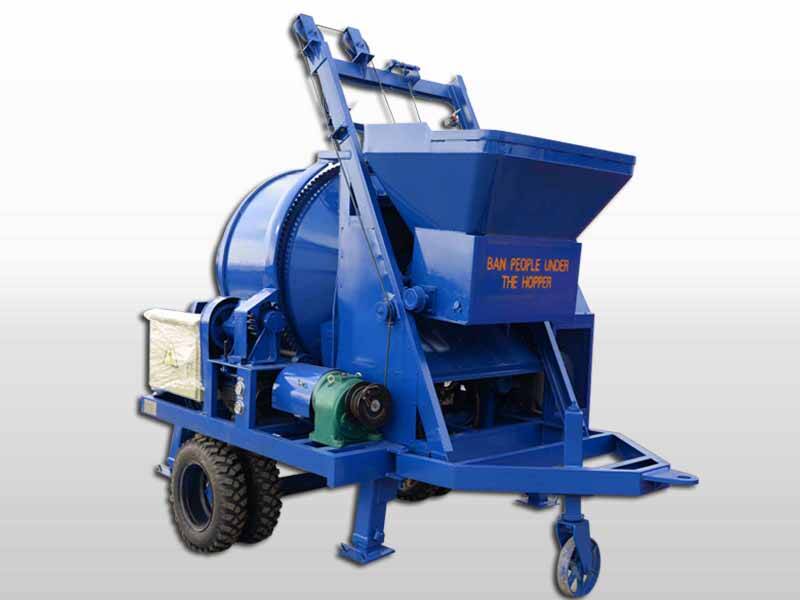

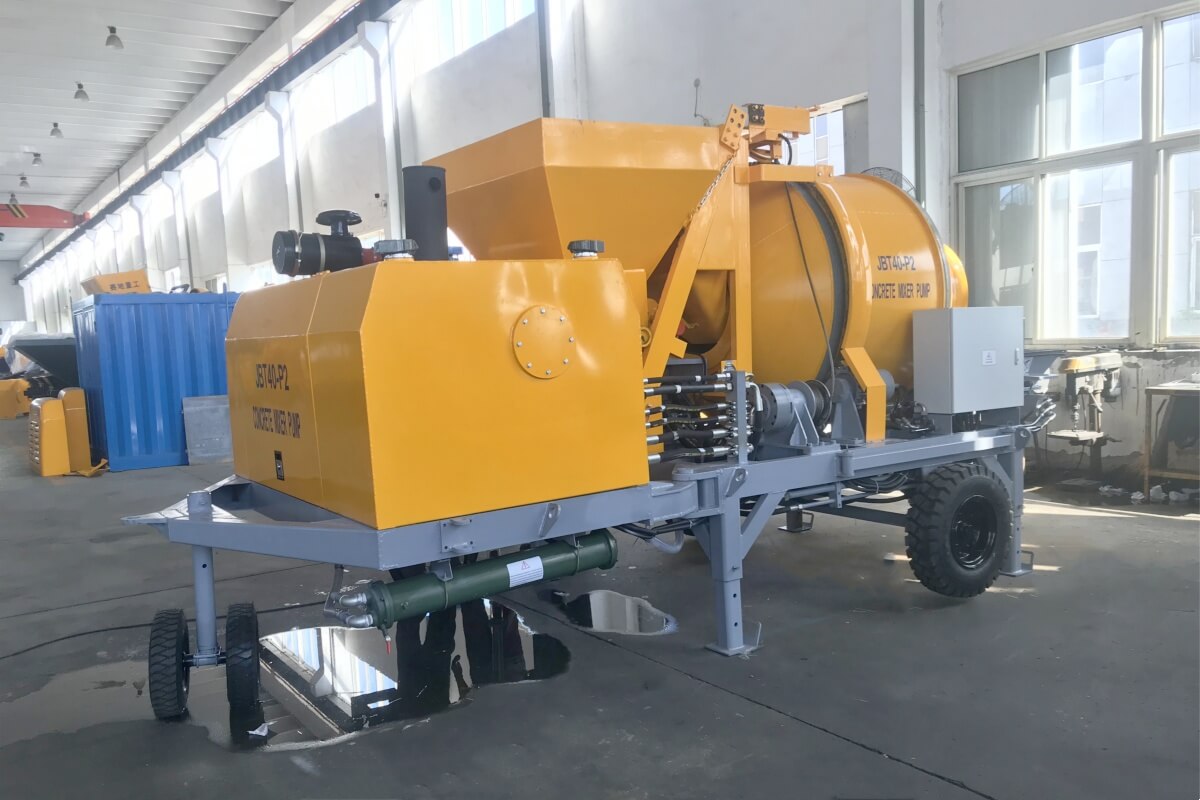

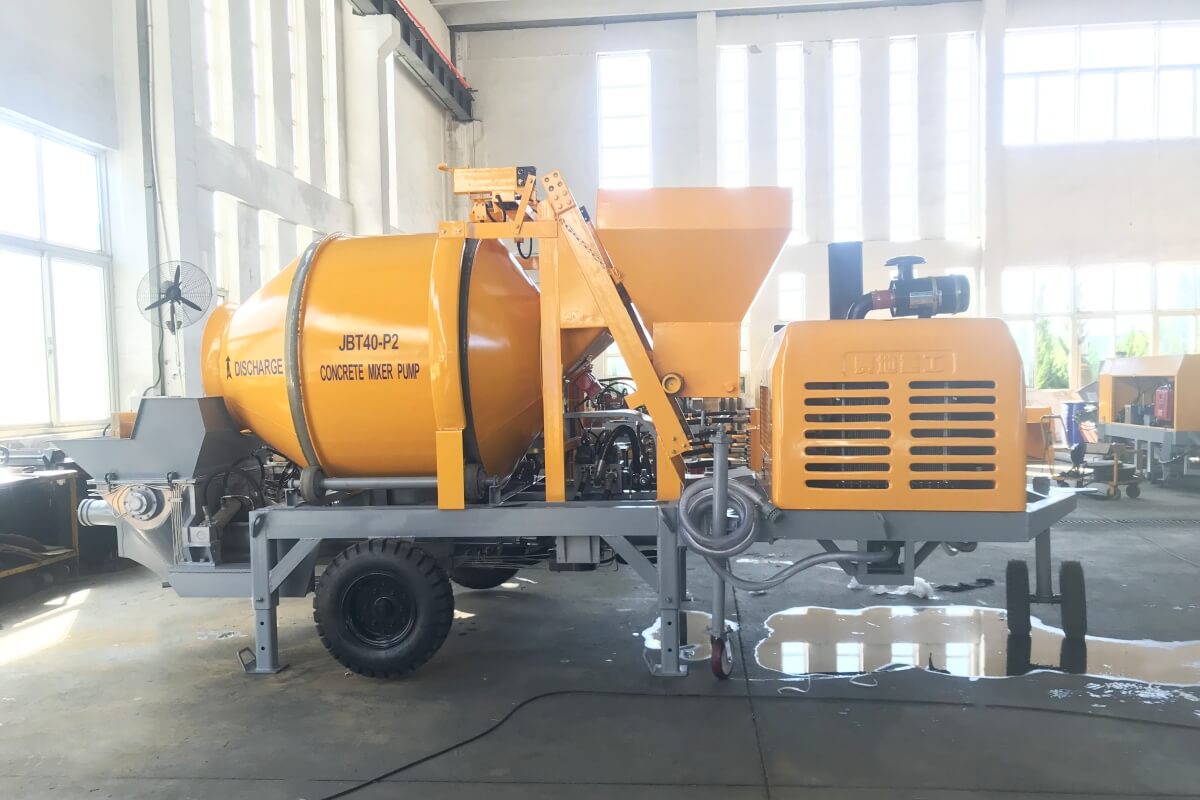

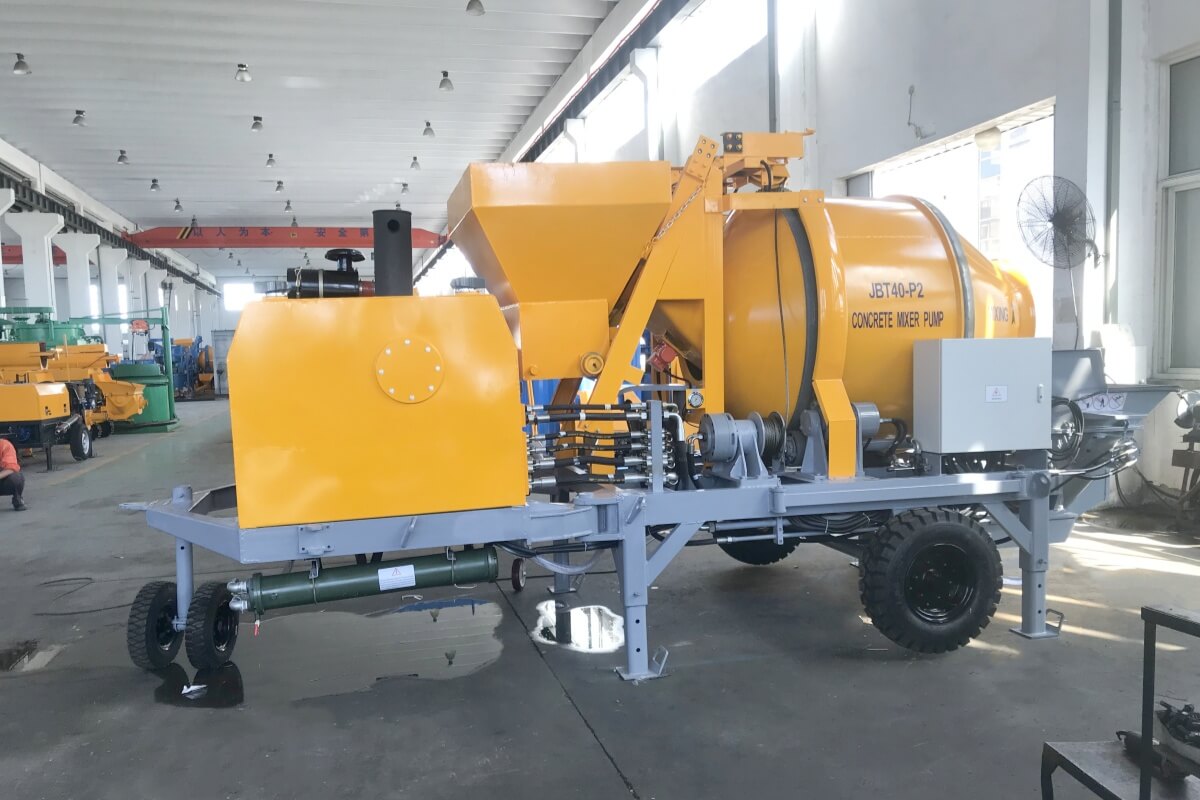

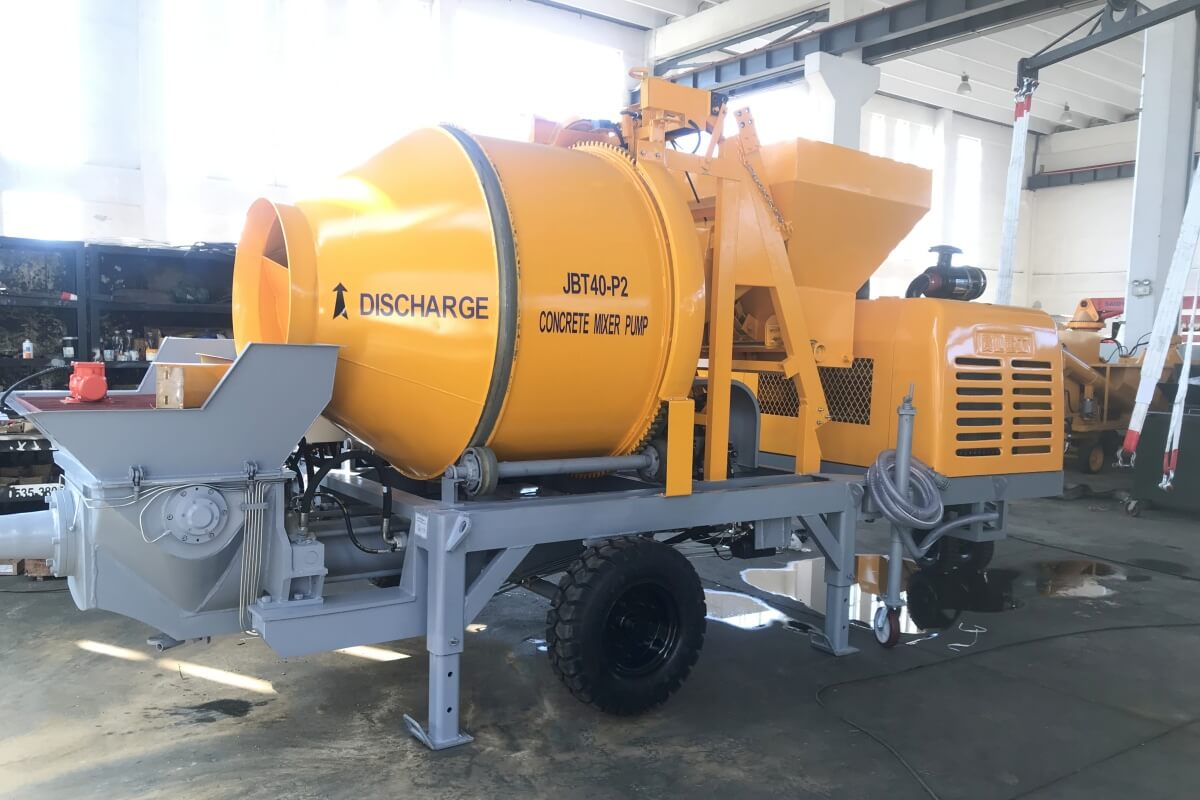

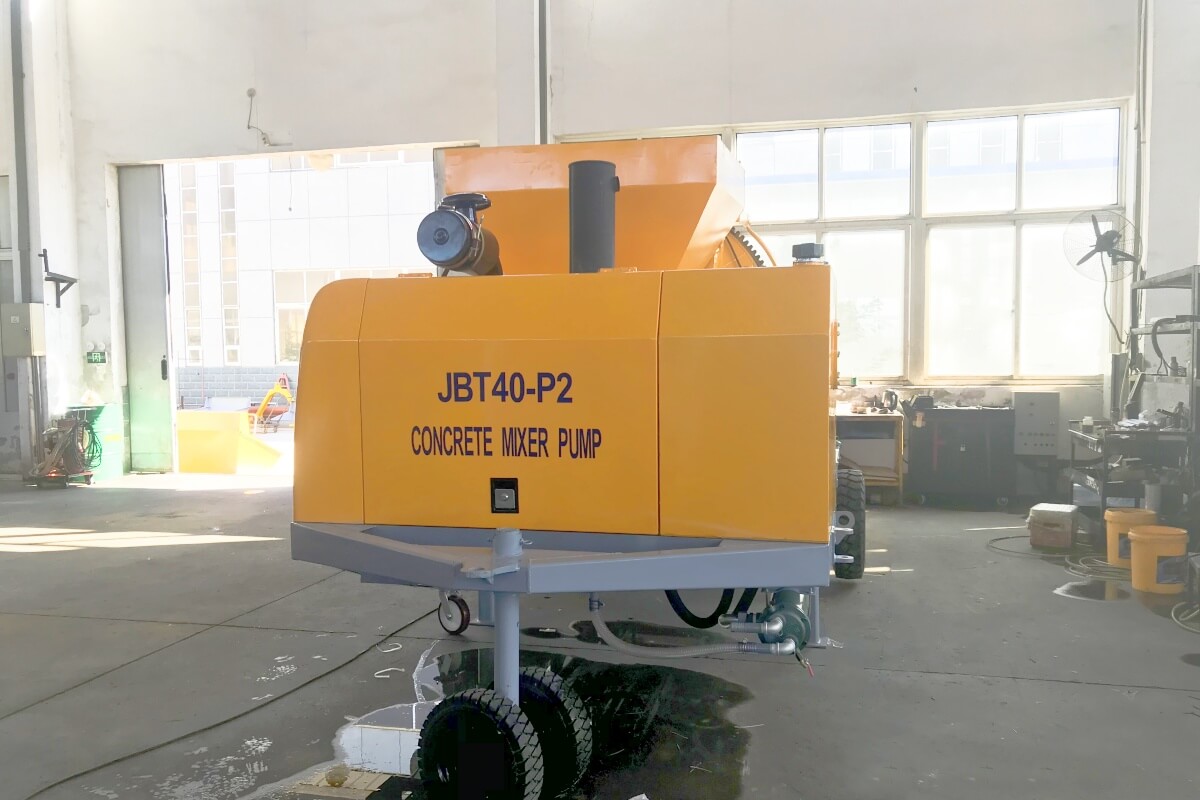

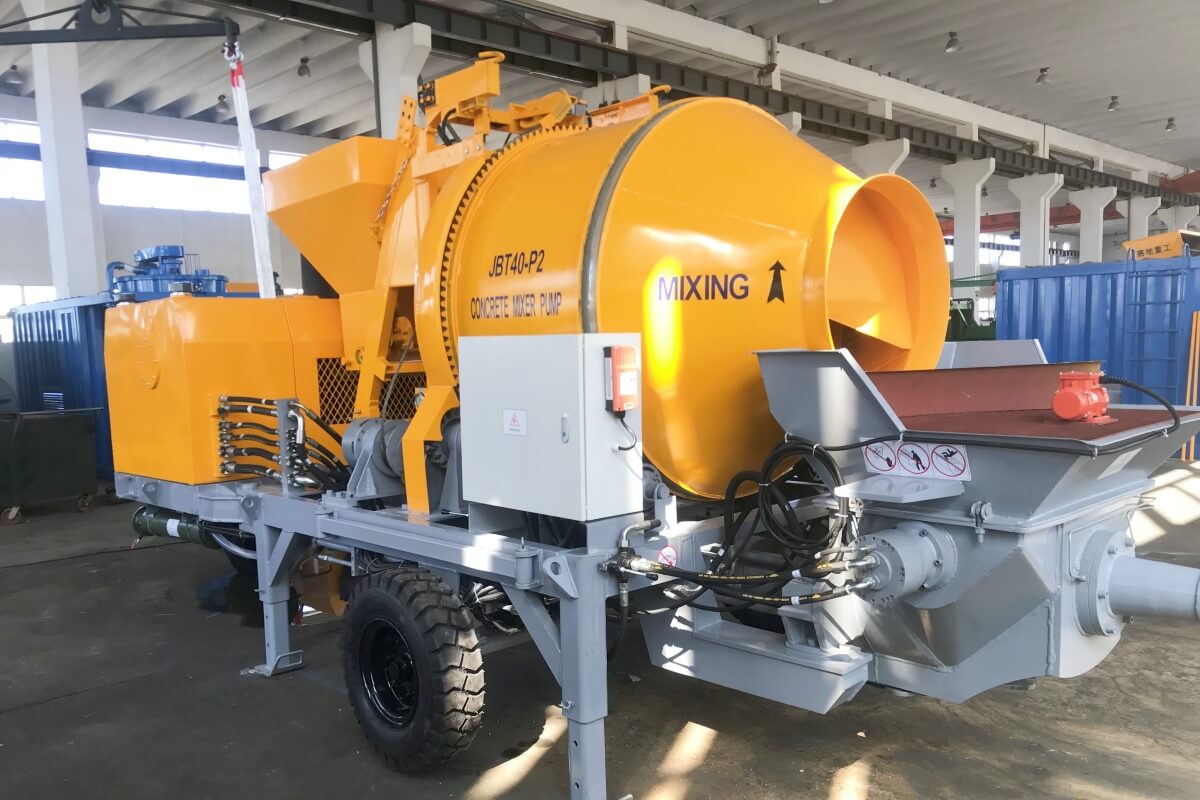

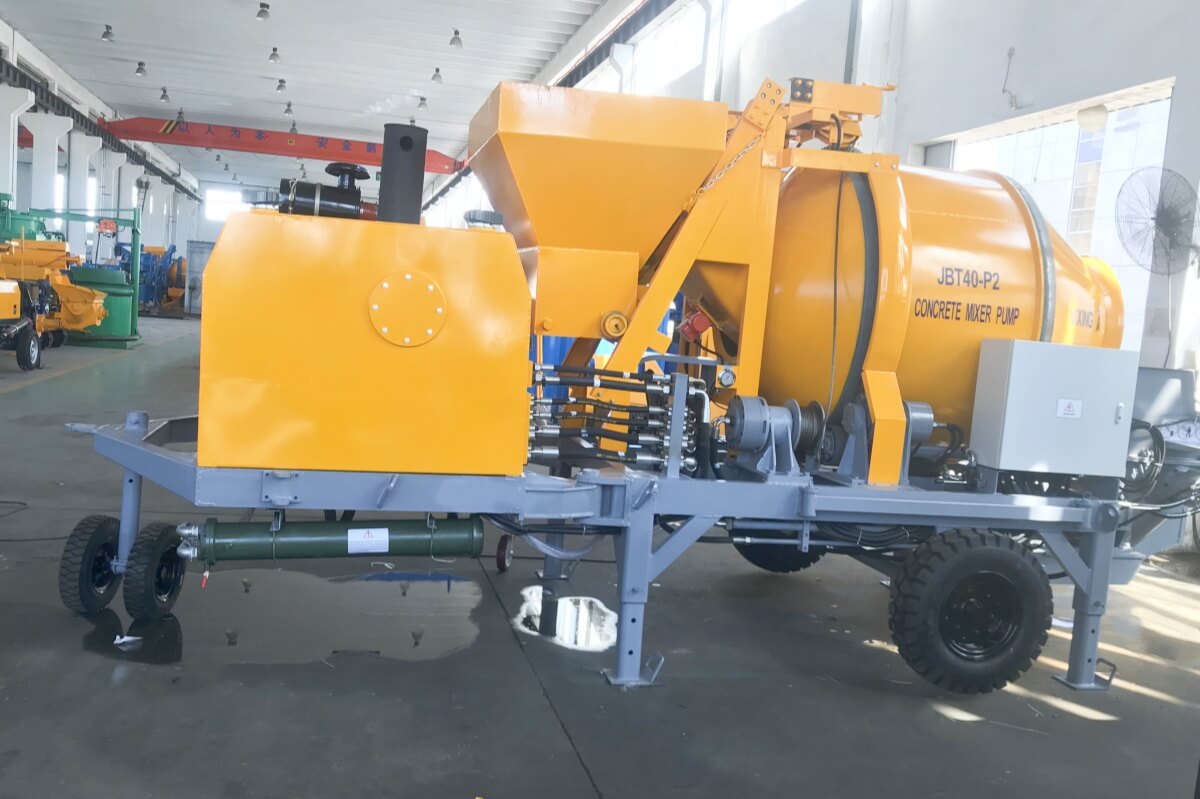

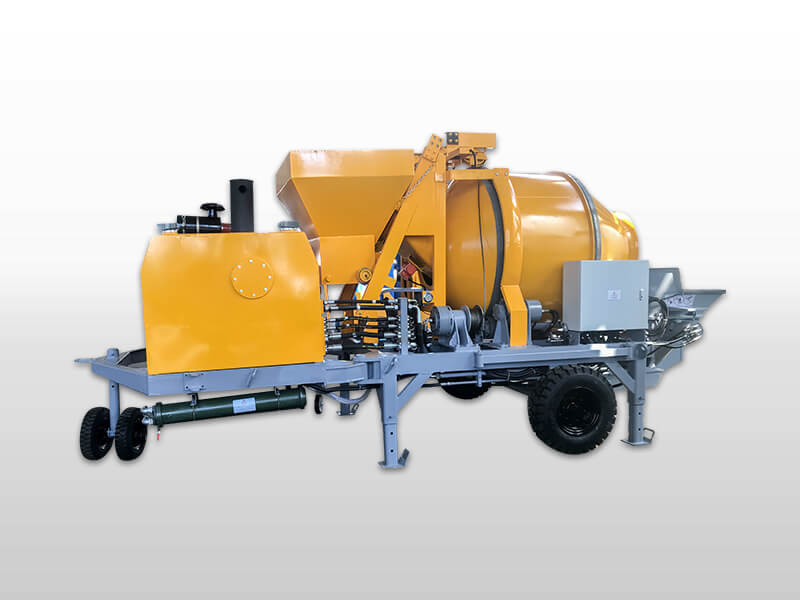

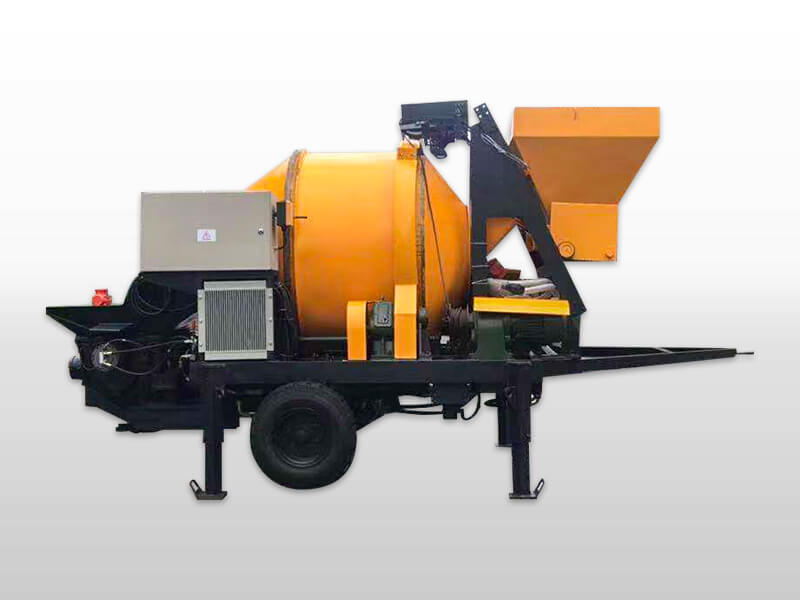

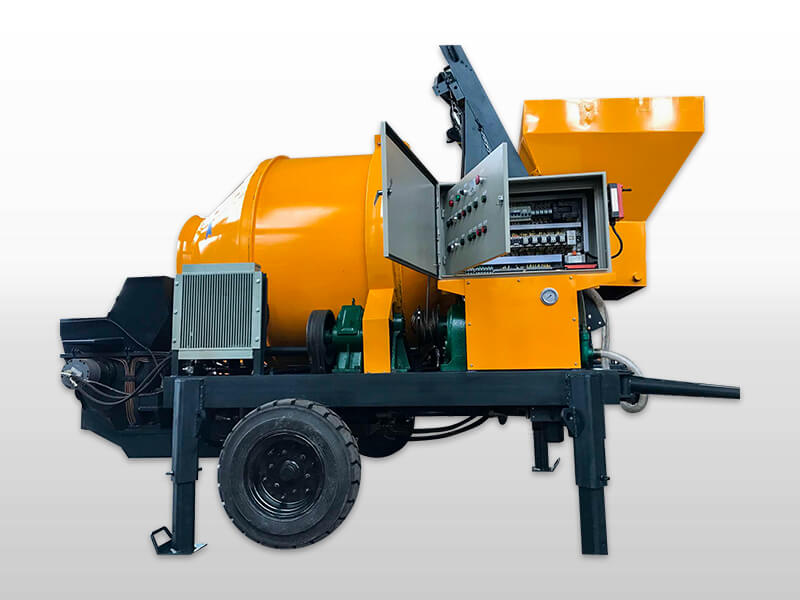

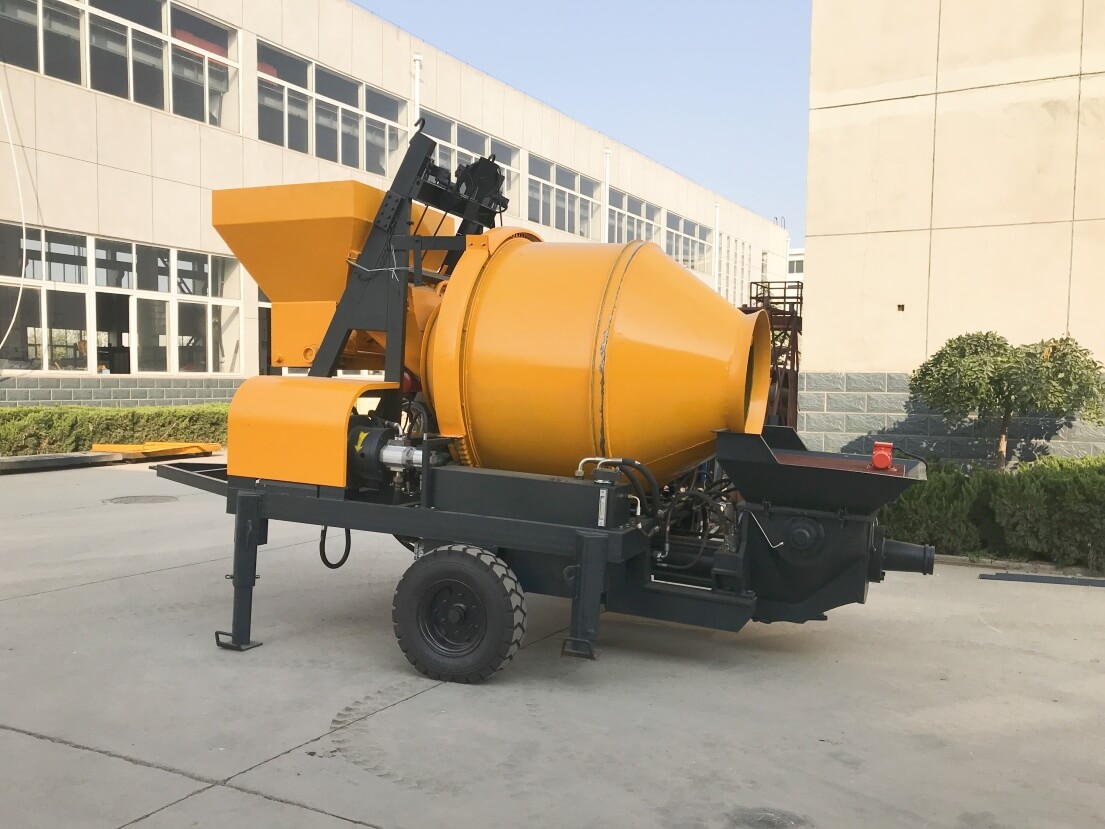

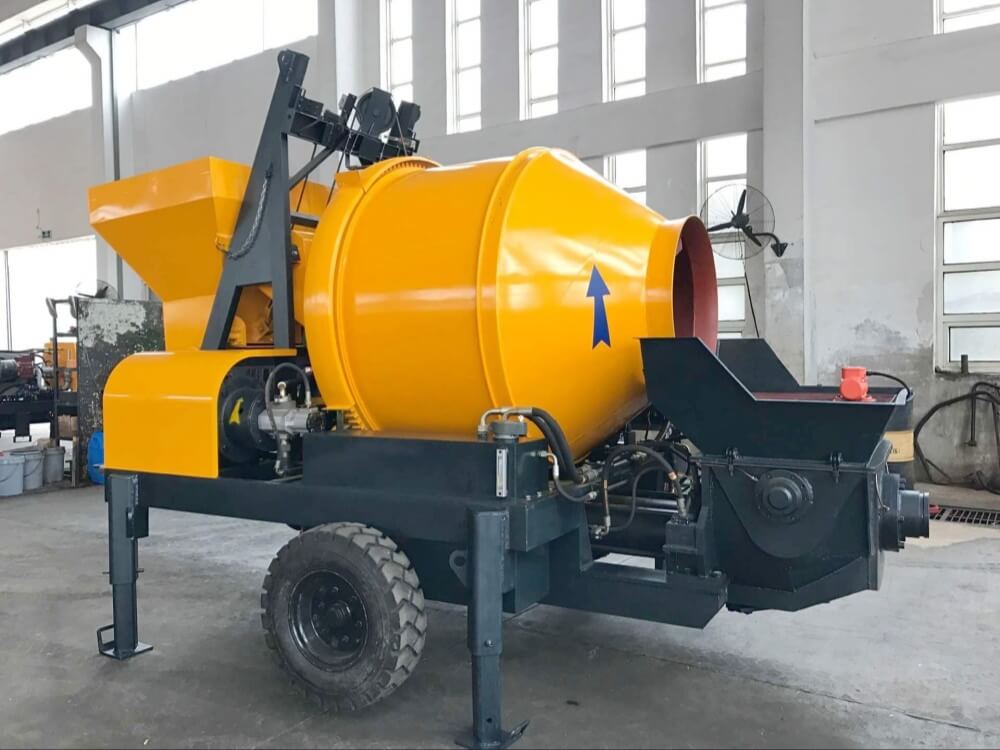

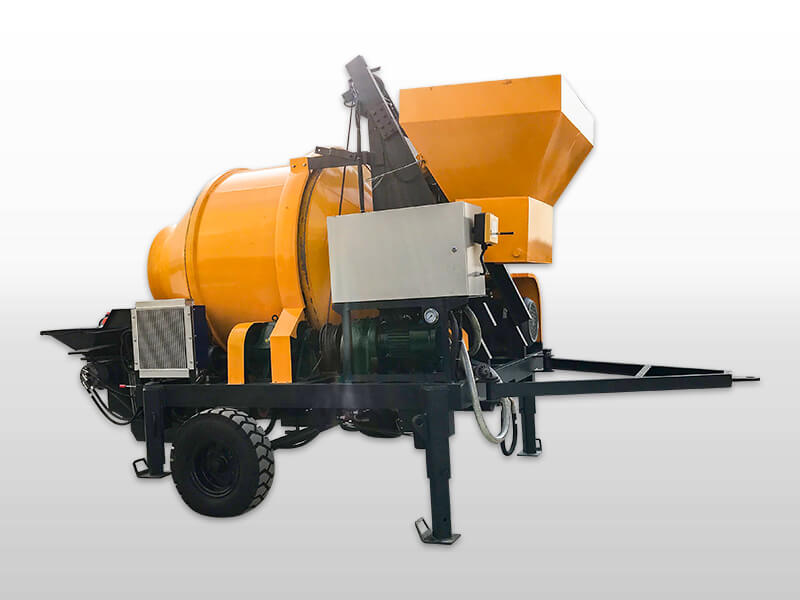

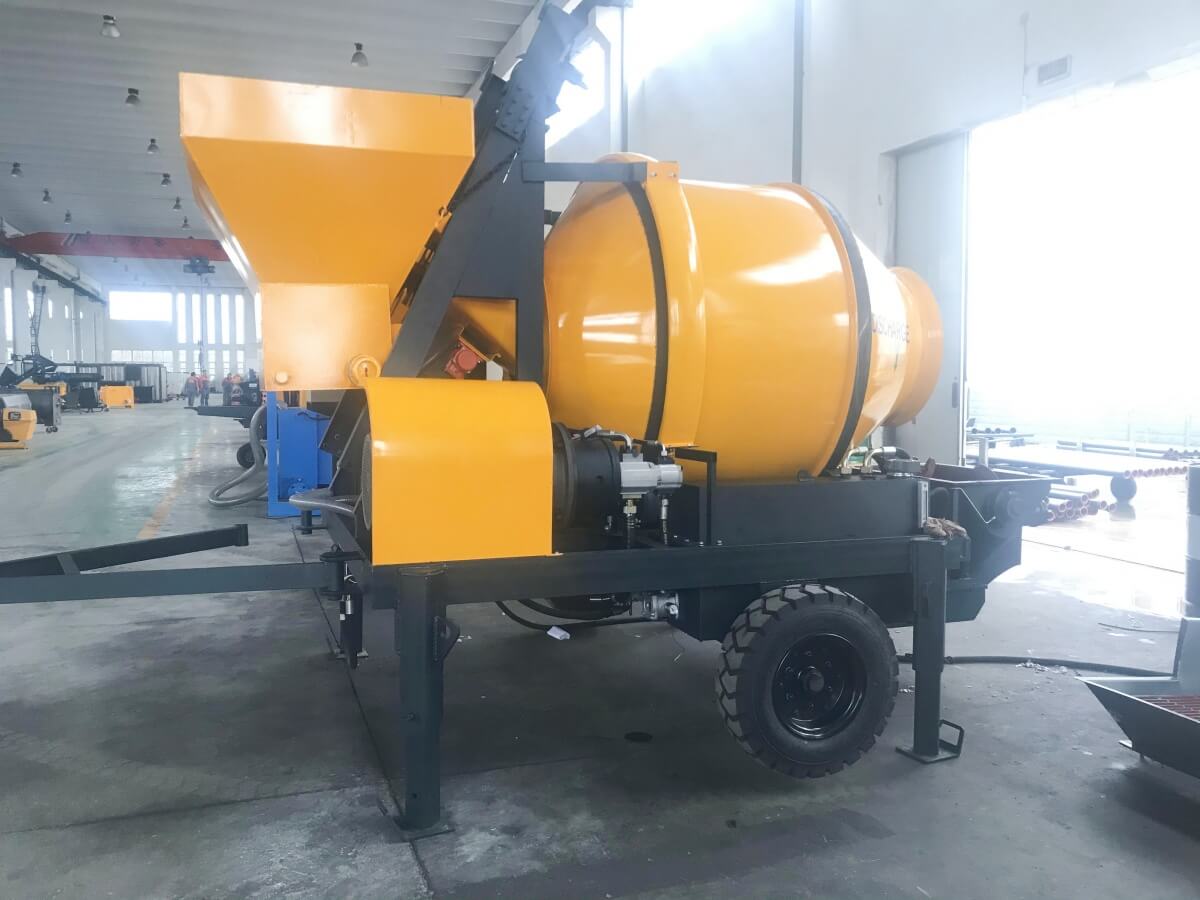

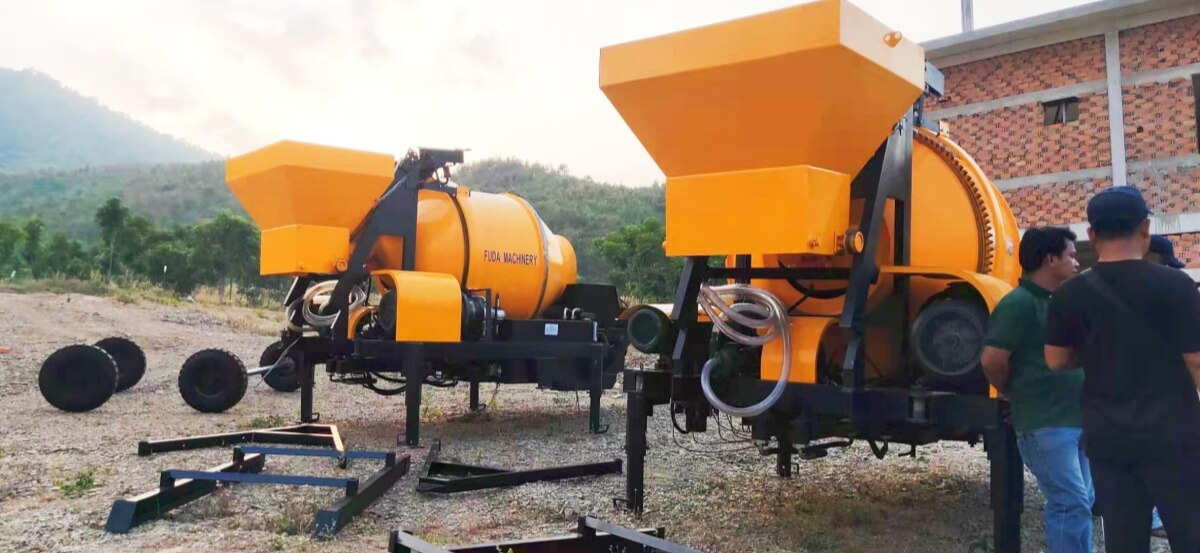

JBT40 Electric concrete mixer pump is combined by the traditional concrete pump and the mixer together. JBT40 concrete pump with mixer achieves full automatic during concrete construction process.

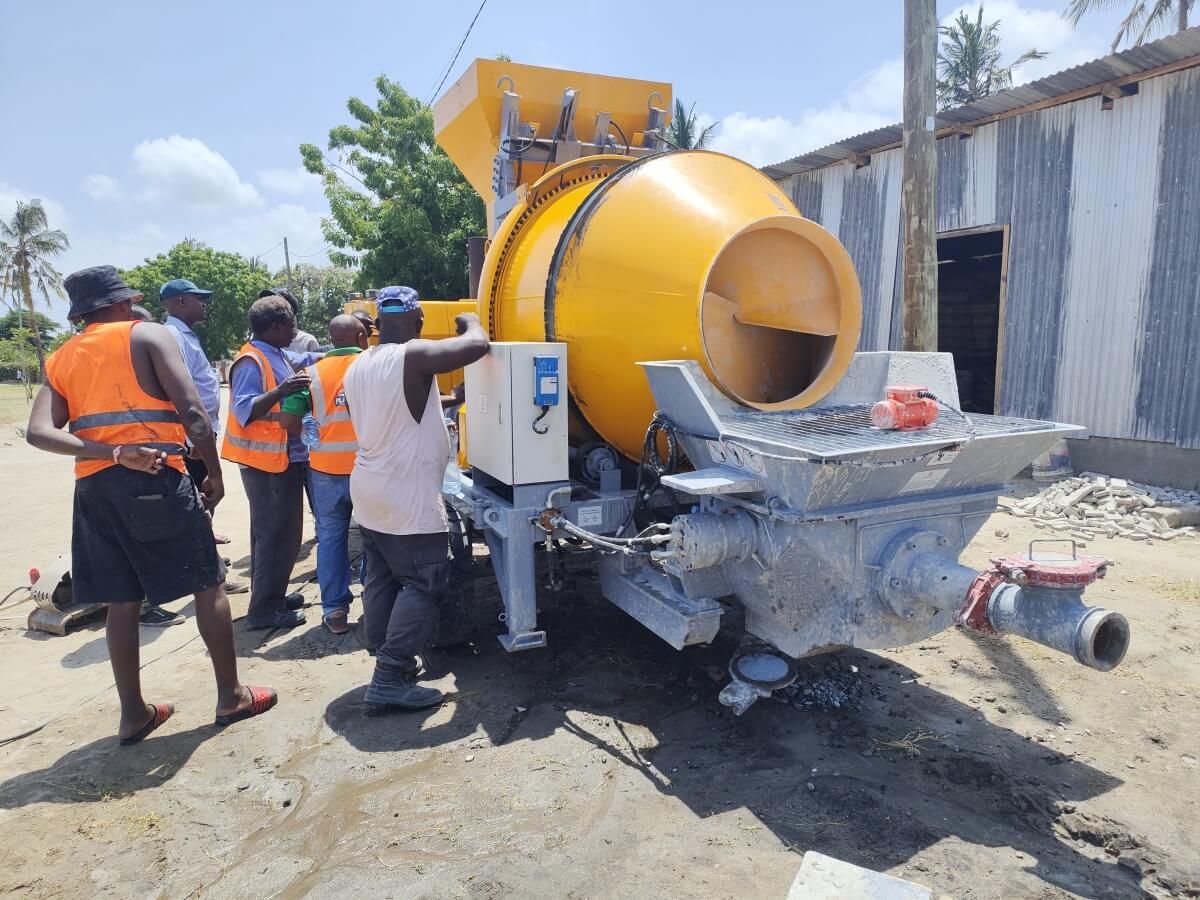

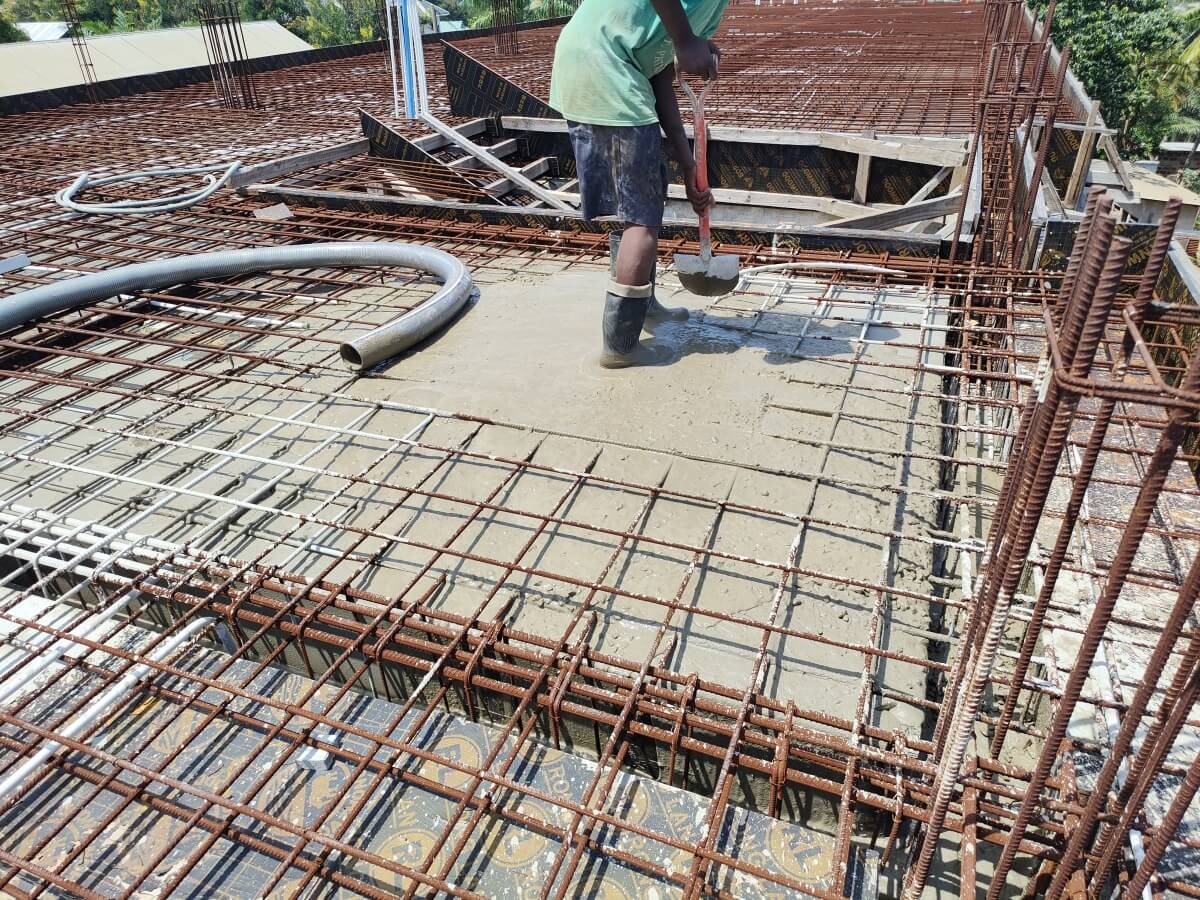

The electric power concrete pump with mixer combines the concrete mixer and the concrete pump to realize the integration of the pumping station. It is used for houses and commercial buildings under 10 storeys, small bridges, water, electricity and communications, which are scattered and require on-site mixing. The overall layout is more scientific and the power type is more advanced, including hydraulic, electric, and oil pumps. With fast and flexible, easy to move, fast, labor-saving and other advantages.

1. Electric concrete mixer pump can convey greening soil in ecological environment construction.

2. Electric concrete mixer pump can convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.

3. Electric concrete mixer pump can convey all kinds of engineering construction in the plain concrete, fiber concrete.

4. Electric power concrete pump is most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.

Features of electric concrete mixer pump:
1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.
1. Compact structure, flexible movement, easy operation and simple maintenance.
2. Electric concrete mixer pump with large valve changing direction, makes the main pumping loop quick response, small leakage, good stability, high reliability and high resist contaminative capability.
3. Electric power concrete pump with remote control with high automatic degree and easy operation, saving labor cost.
4. Electric power concrete pump with mixer is equipped with wired remote controller, easy to operate.
5. Hydraulic system has safe relief protection, at the same time, when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
6. Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
7. Cone sealing of all pipes make the pipe joints seal reliably.
8. Independent mixing system with even mixing performance and high working efficiency.
9. The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
10. Electric concrete pump adopts emulsification technology of initiative and passivity recovery integration.
11. Centralized lubrication system, low consumption of equipment parts, less maintenance cost.

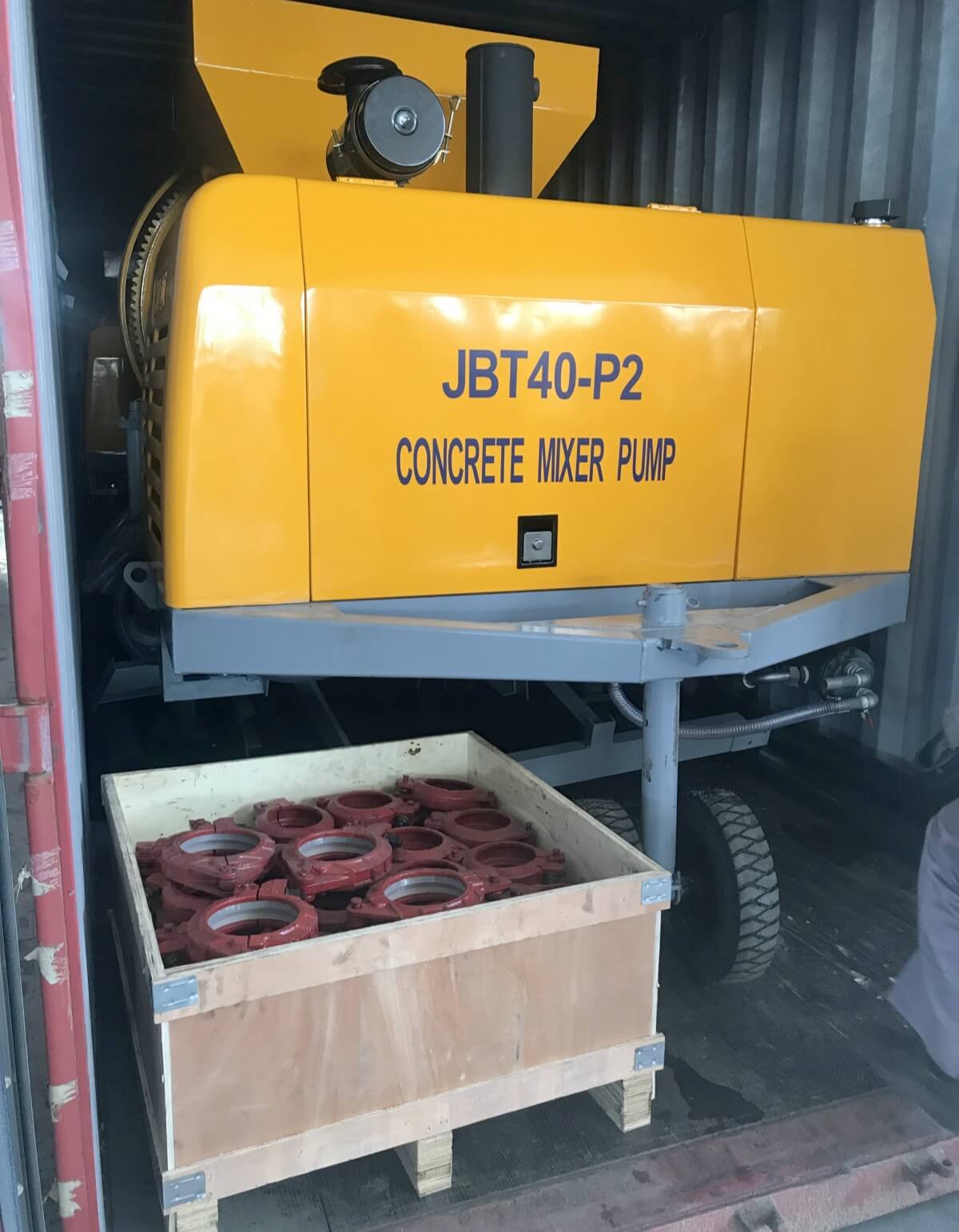

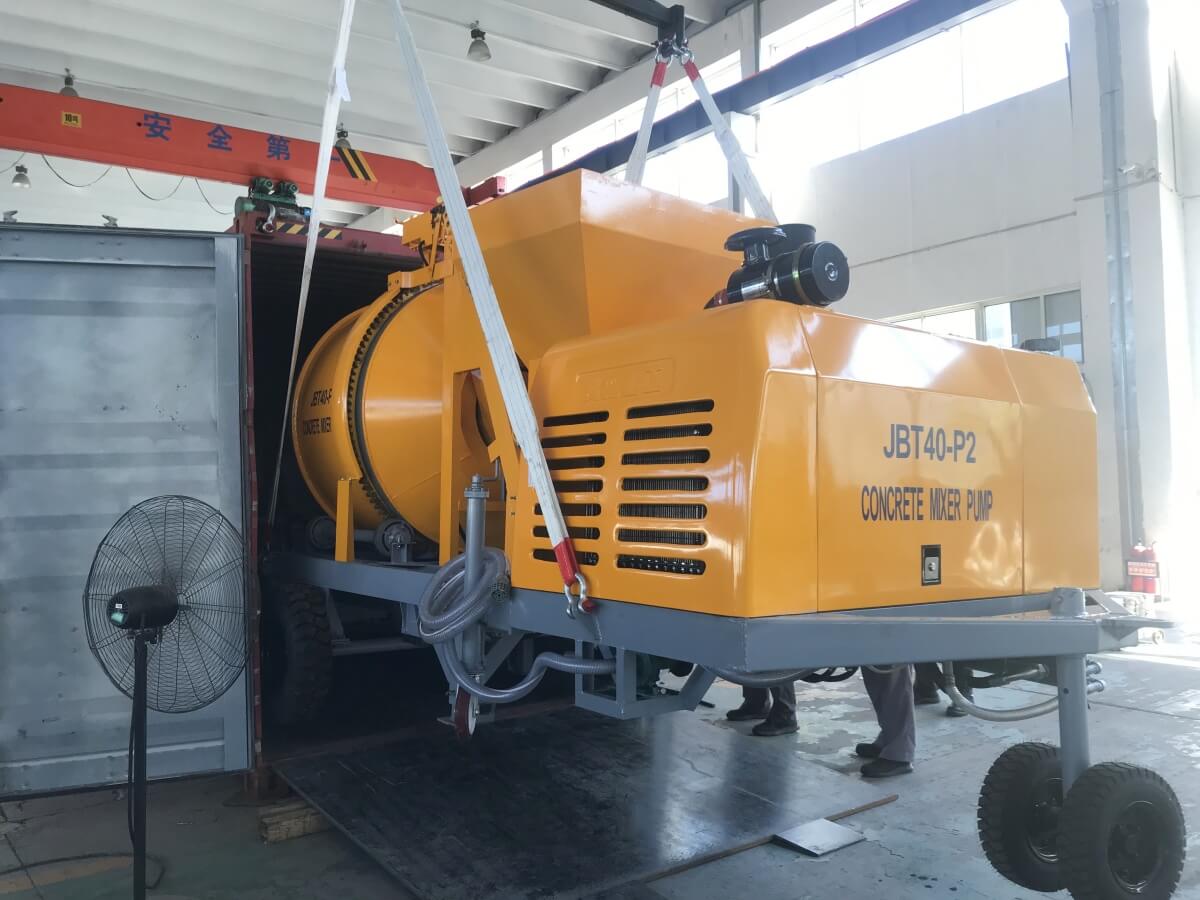

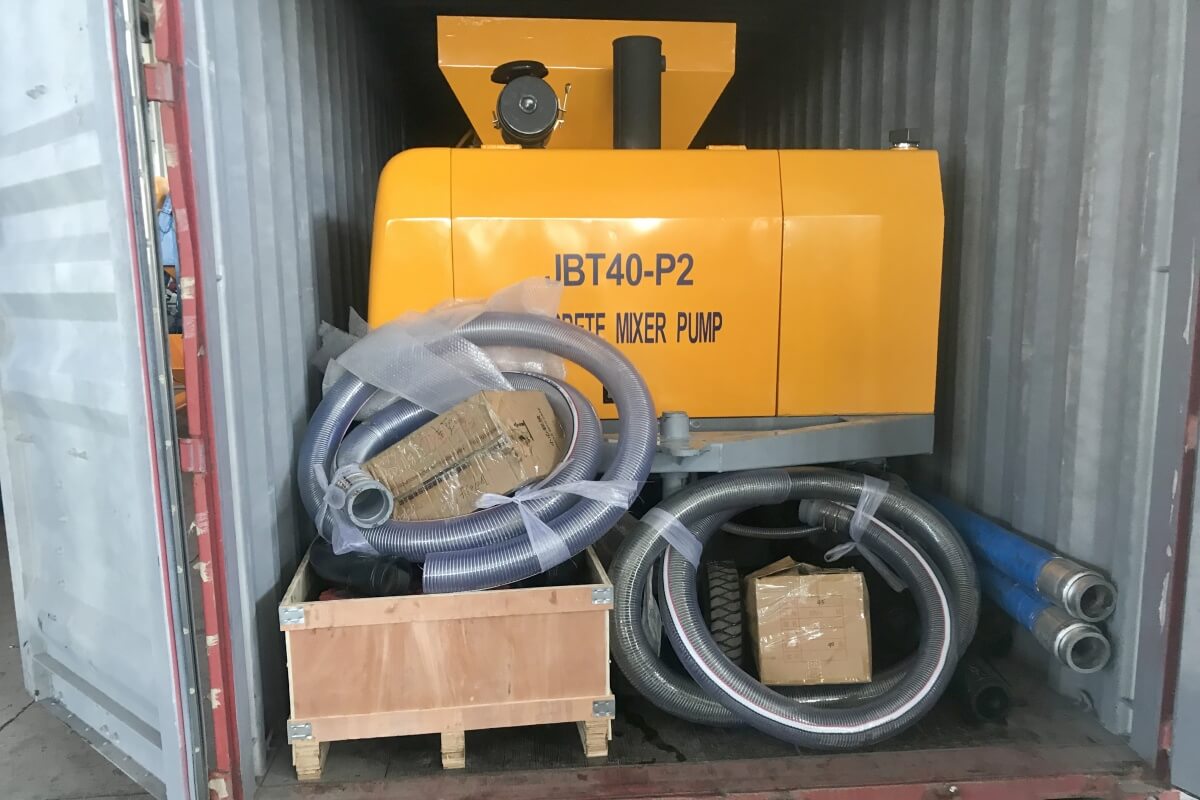

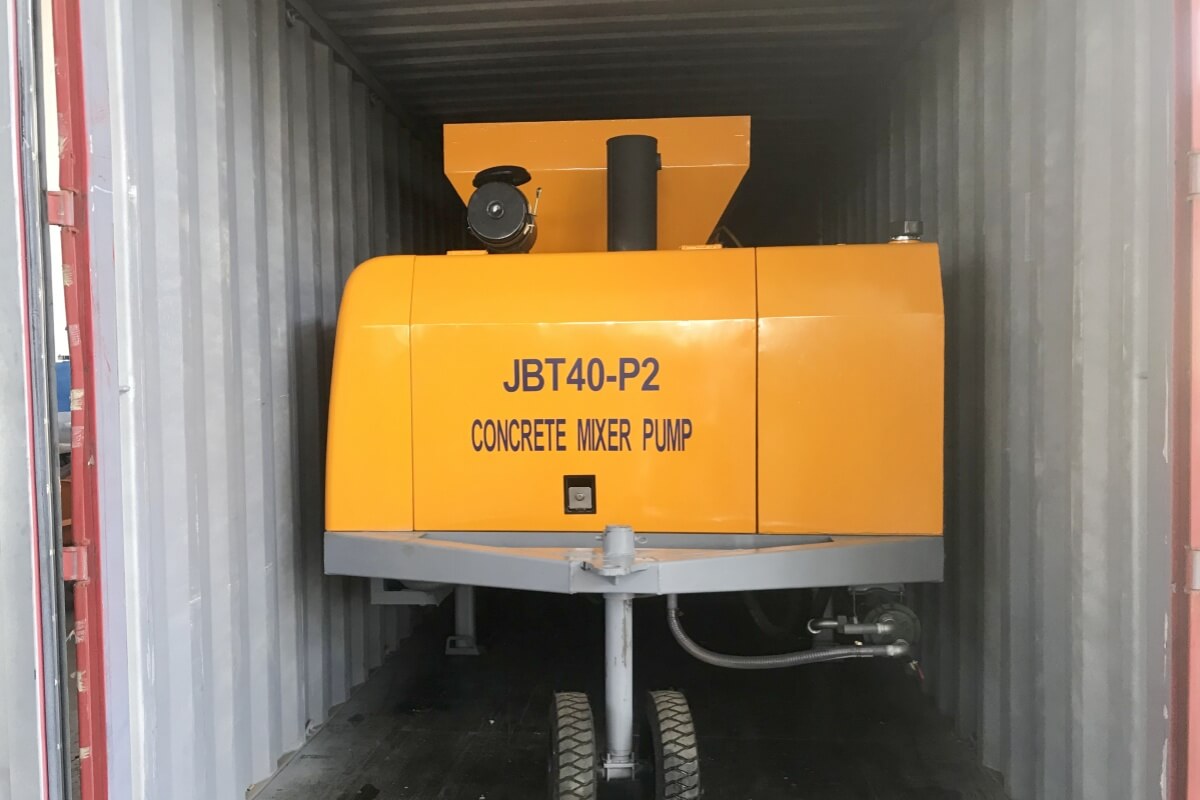

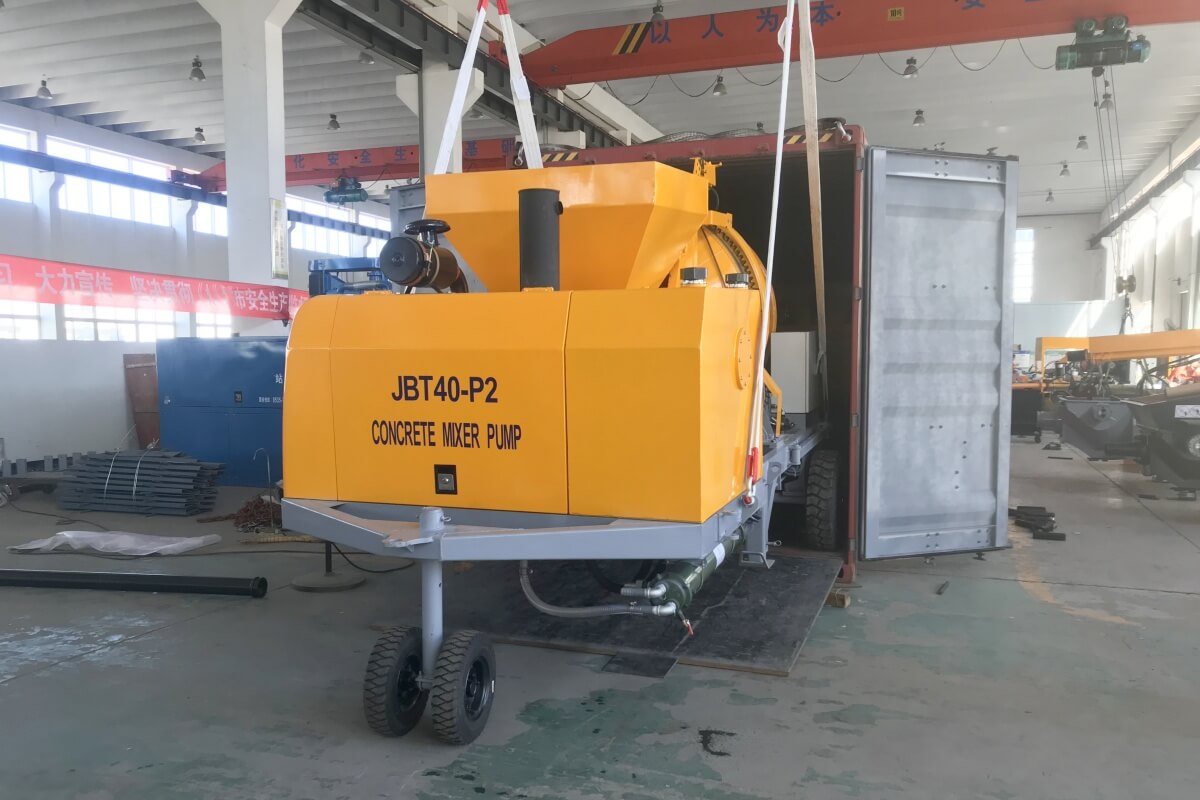

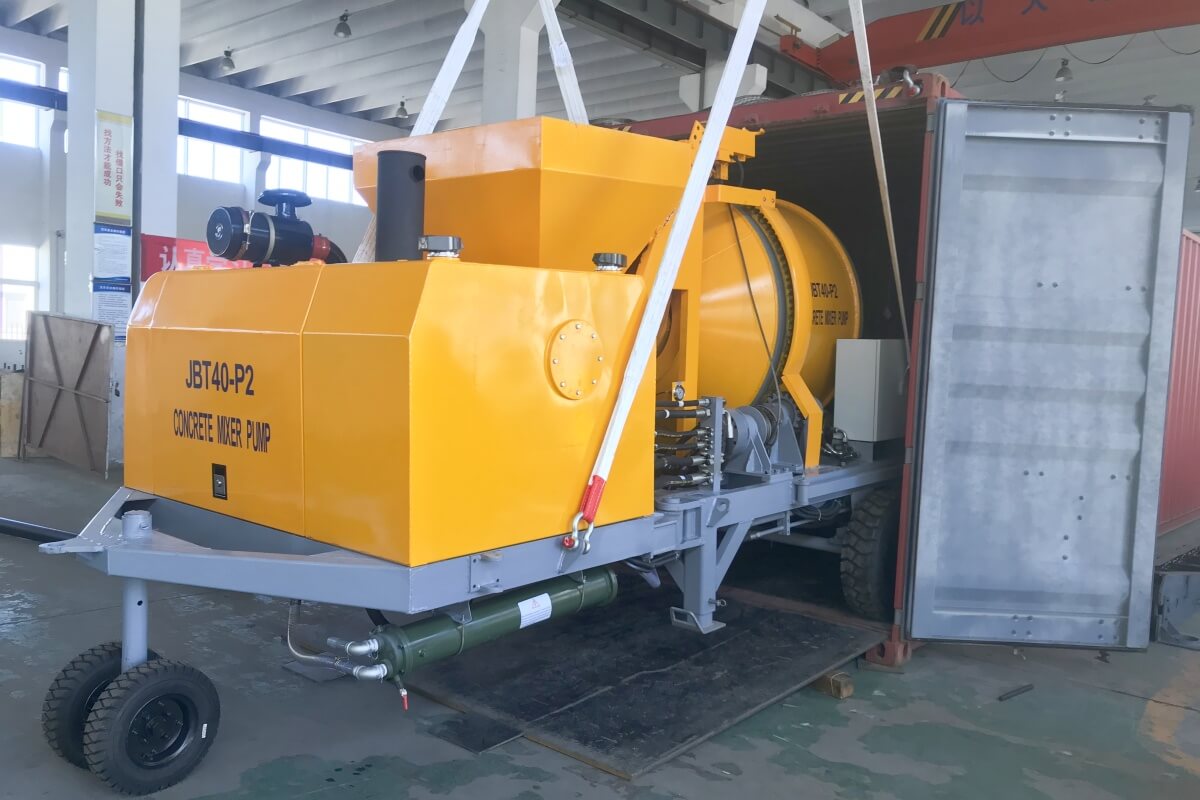

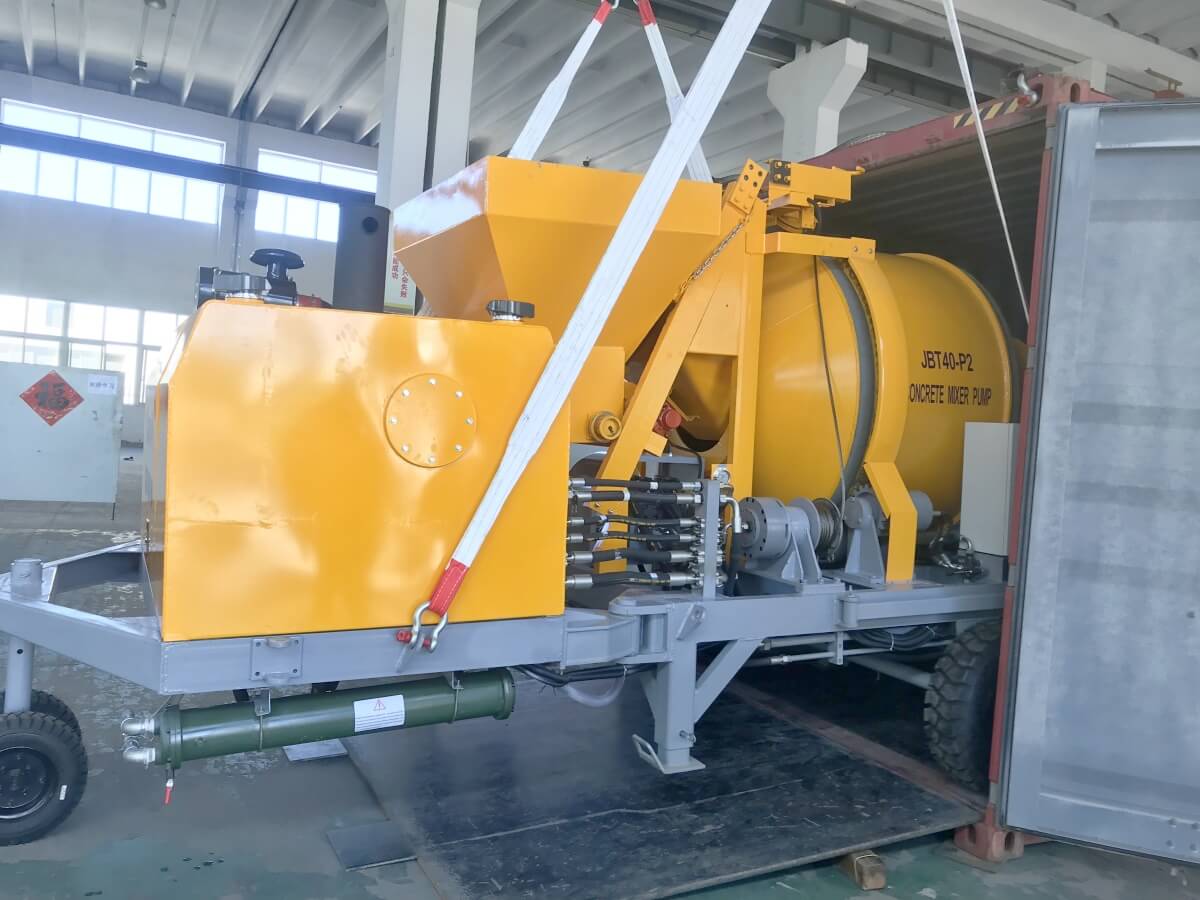

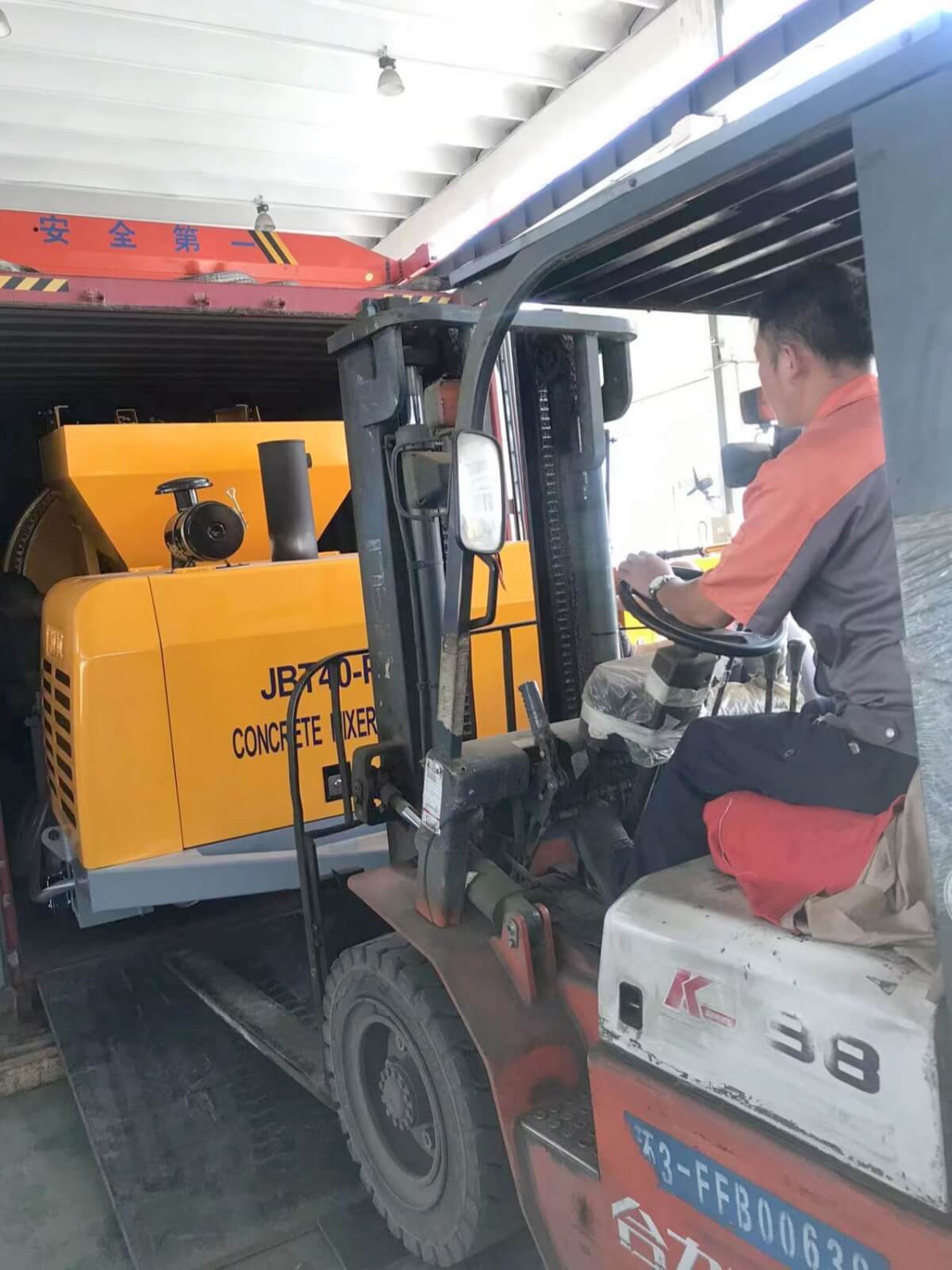

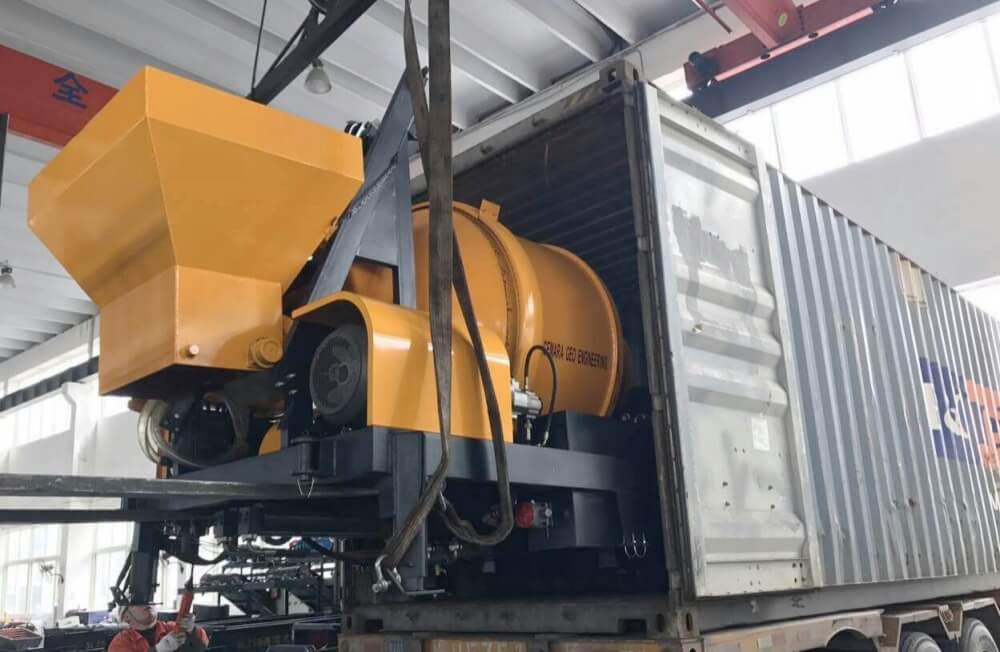

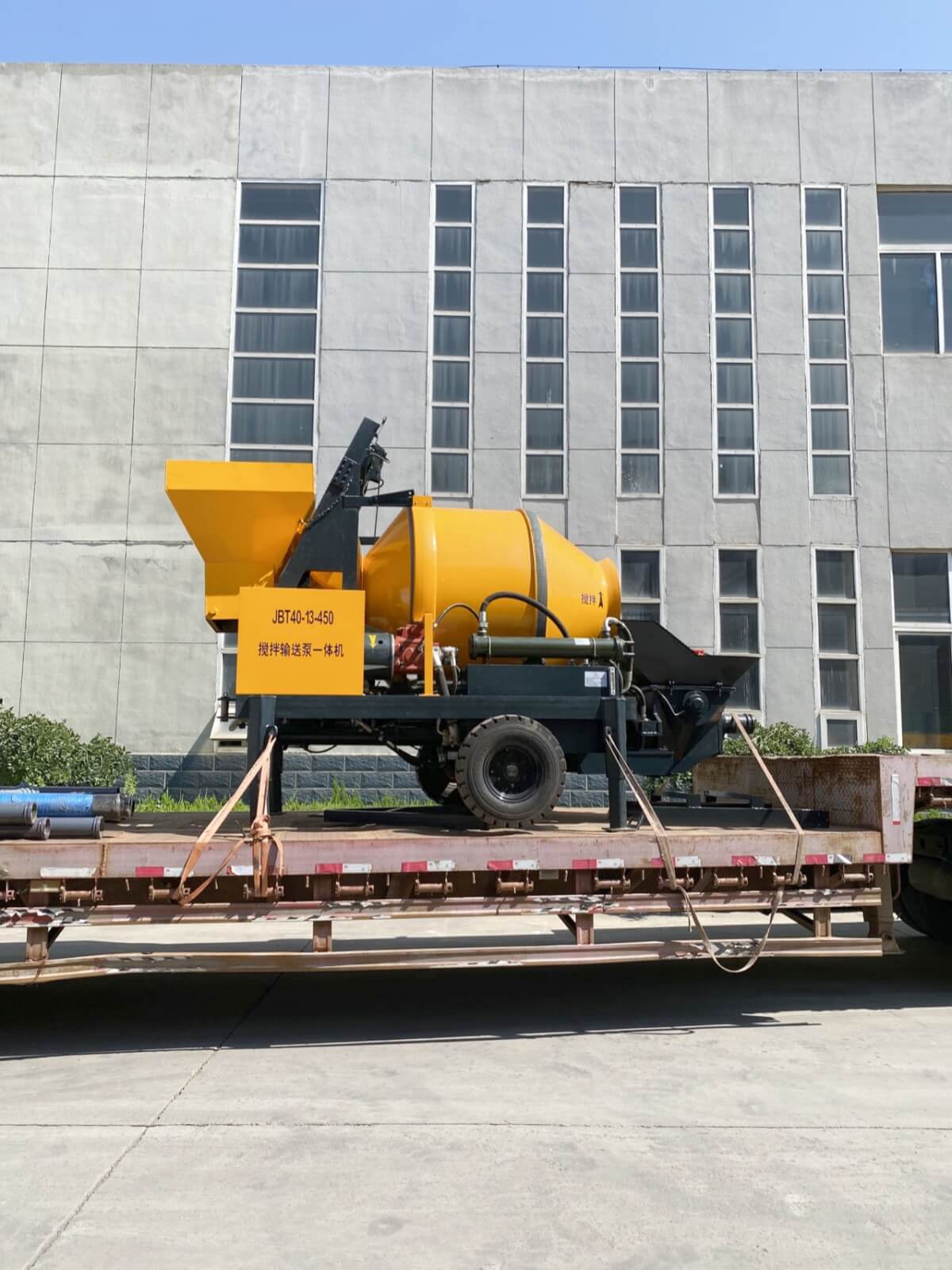

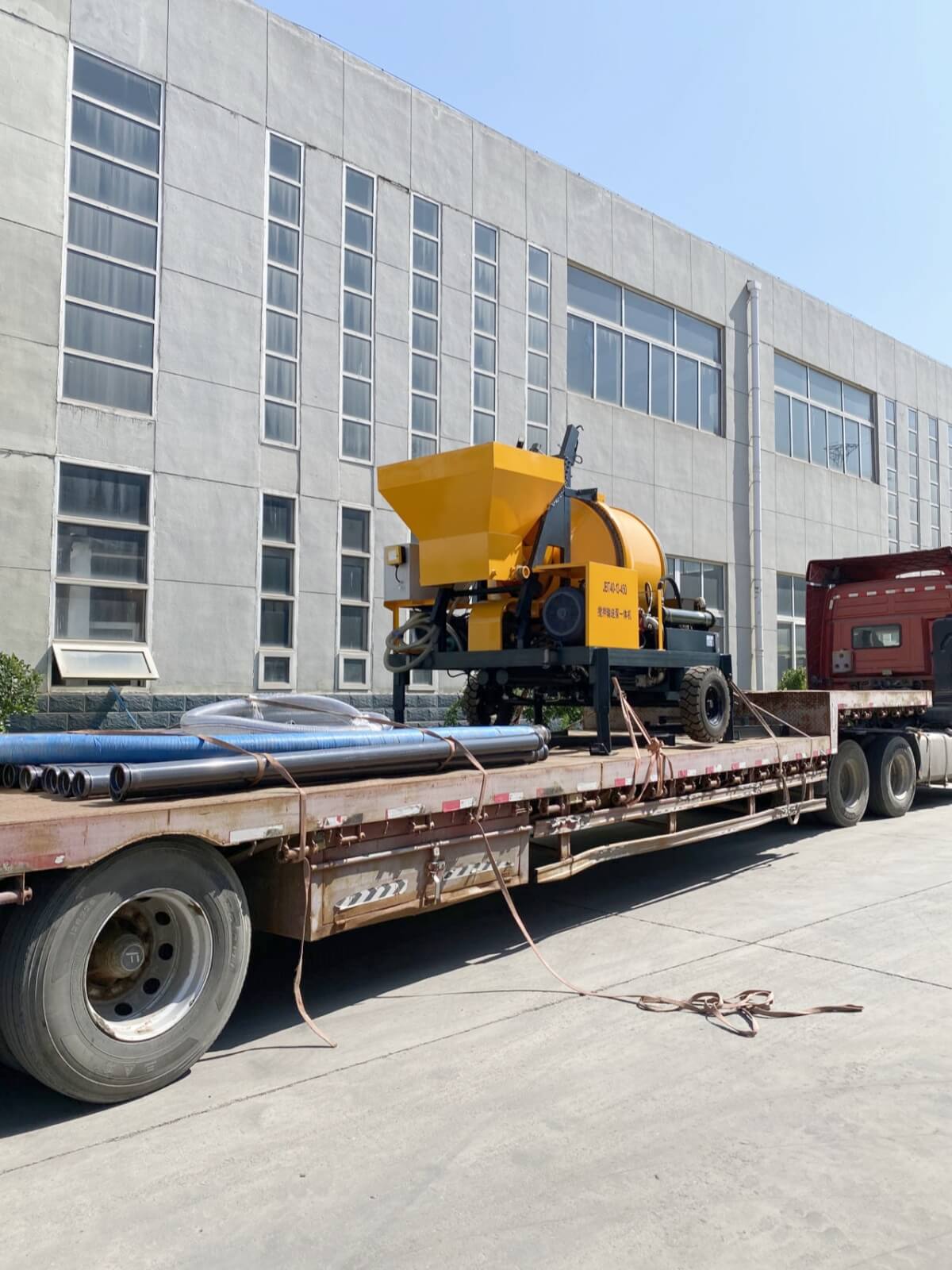

Concrete mixer pump packaging and delivery:

Items		Units	Parameters
			JBT40
Whole performance of machine	Max. theo. concrete output (L./H.)	m3/h	40
	Max.concrete pumping pressure (H. /L.)	MPa	8
	Distribution valve type		S Valve
	Concrete cylinder diameter×stroke	mm	Ф160×1000
	Hopper capacity×feeding height	L×mm	450×1000
	Outlet diameter	mm	Ф133
	Inside diameter of delivering pipe	mm	Ф108
	Allowable maximum aggregate size	mm	Pebble: 35
	The biggest transportation is away from vertically / Level	m	120/300
	Lubrication system		Automatic electric lubrication
	High and low pressure conversion		No
	Remote control		Wireless remote control
Power system	Pumping motor	kW	37
	Motor for mixer	kW	5.5
	Lifting motor	kW	4.5
	Water pump	kW	0.75
Hydraulic system	Circuit type		Open circuit
	Displacement of main oil pump	mL	63
	Pumping system pressure	MPa	18
	Mixing system pressure	MPa	12
	Capacity of oil tank	L	160
Other parameters	Dimensions: length×width×height	mm	5000×2280×2900
	Host weight	kg	4000
	Total weight	kg	5500
