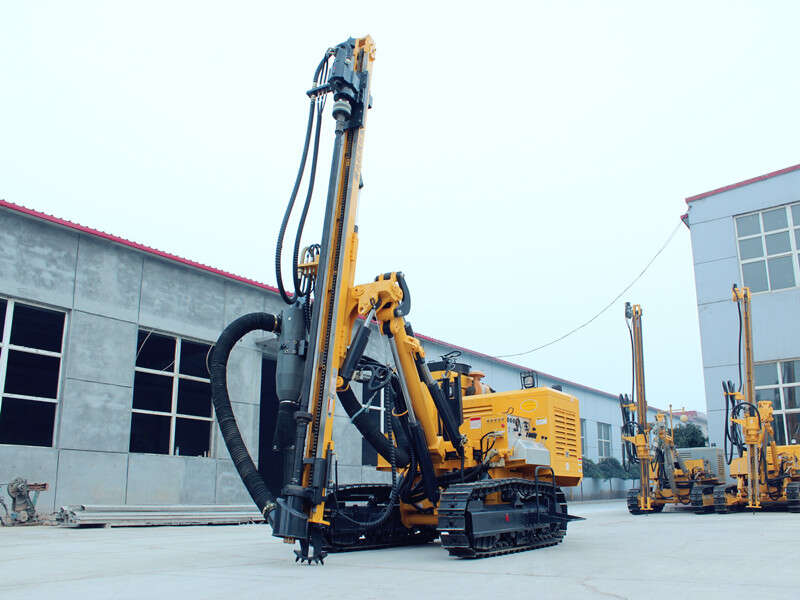

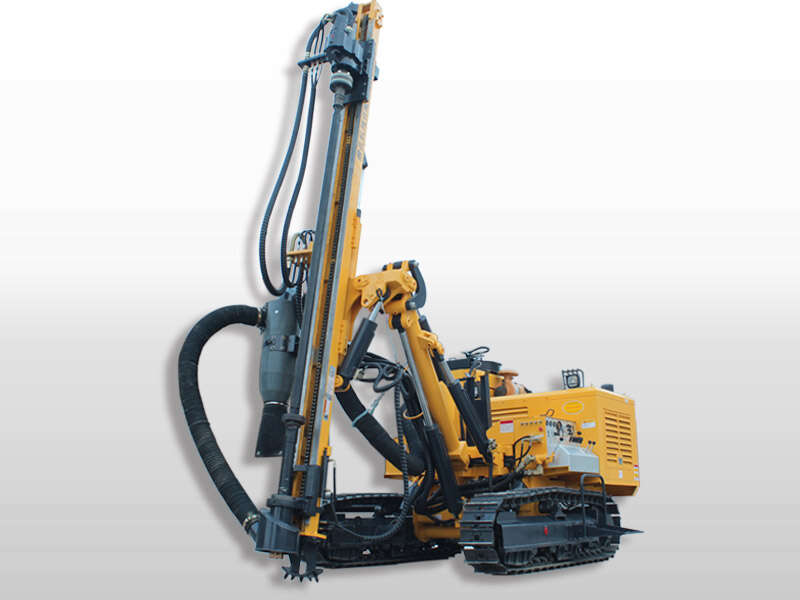

GD-370 hydraulic drilling machine is equipped with powerful hydraulic turret and propulsion system, for manufacturing high performance standard drilling rig with low cost.

Drilling rig is widely used in metallurgy, mining, railway, hydro-power construction, national defense construction and outdoor engineering blasting hole drilling(such as earthwork) and underwater drilling blasting for reef blasting engineering.

1. Equipped with new and powerful hydraulic turret and propulsion system
2. Strong chassis and reliable breaking system
3. Simple operation and safety
4. Excellent power performance
5. Perfect environmental solutions

Model	GD-370
Working pressure(Mpa)	1.05-2.46
Drilling diameter(mm)	90-165
Drilling depth(m)	3.38
Grade ability(°)	30
One time pushing forward(m)	3
Rotary speed(rpm)	0-76
Compensation length(mm)	1200
Pothook height(kw)	570
Whole machine power(kw)	70 /82
Whole machine weight(kg)	6400
Overall dimension(mm)	5750×2170×2300
Carriage swing(°)	Left 50/Right 35
Drilling boom swing(°)	Left Right 45
Drilling boom pitching(°)	Horizontal 60/19
Carriage pitching(°)	135
Turning torque(Nm)	3000
