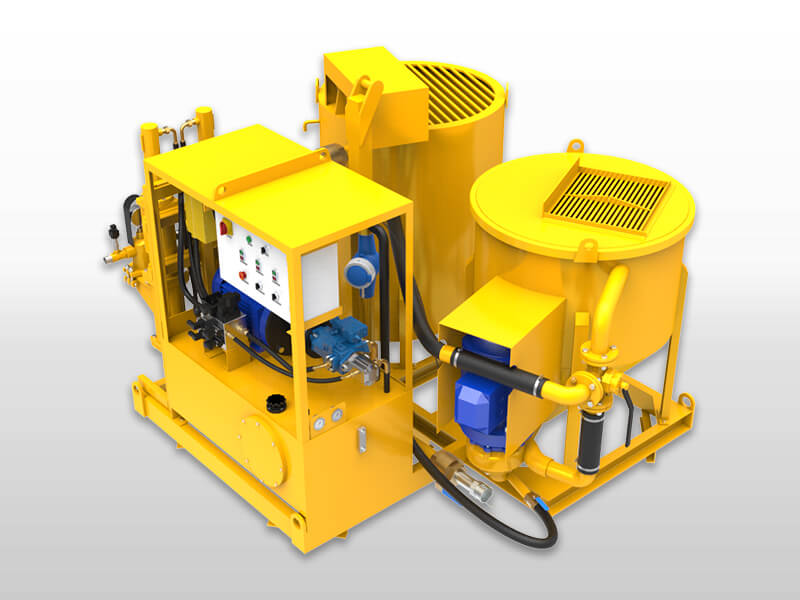

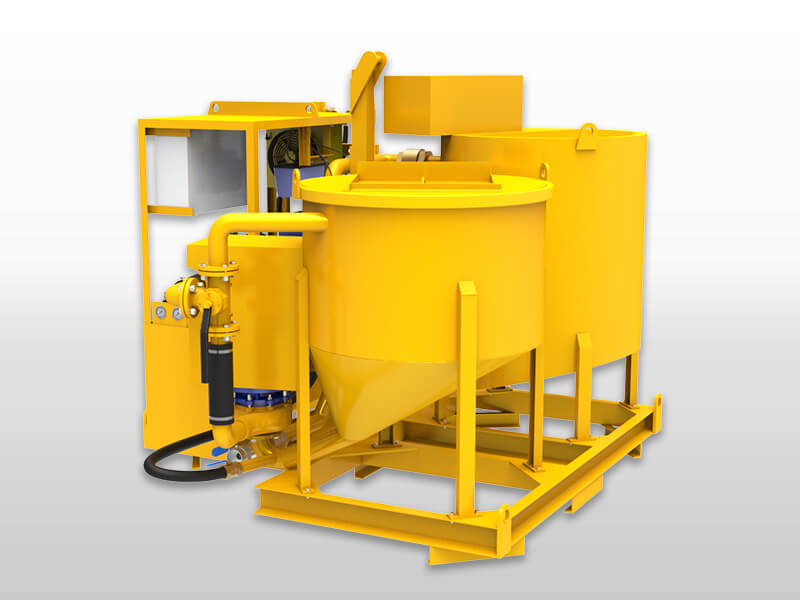

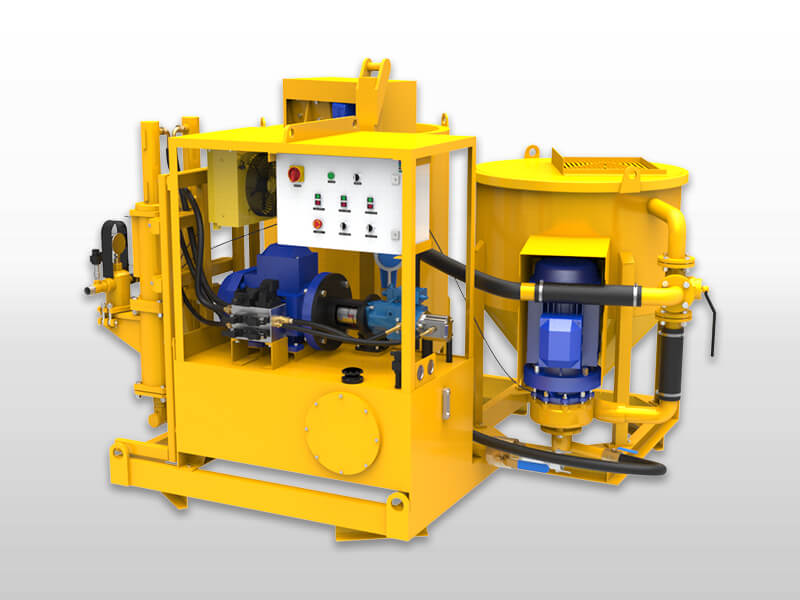

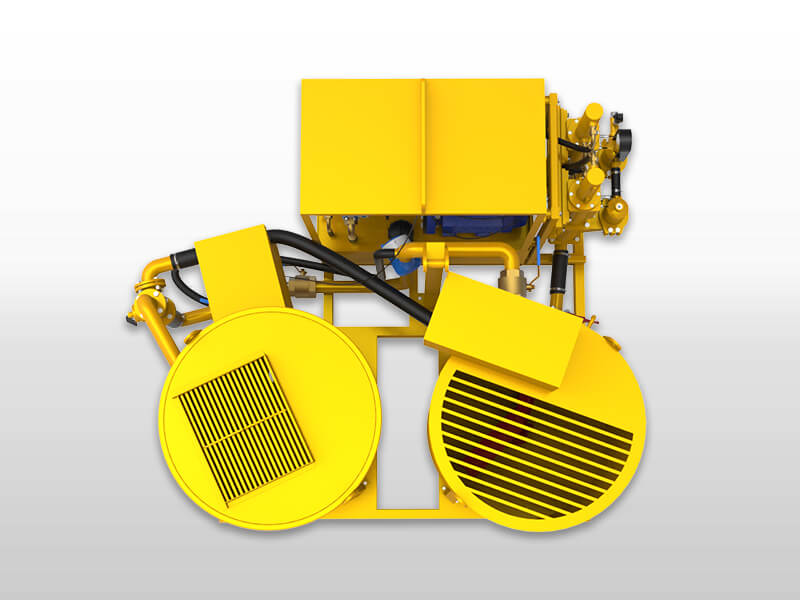

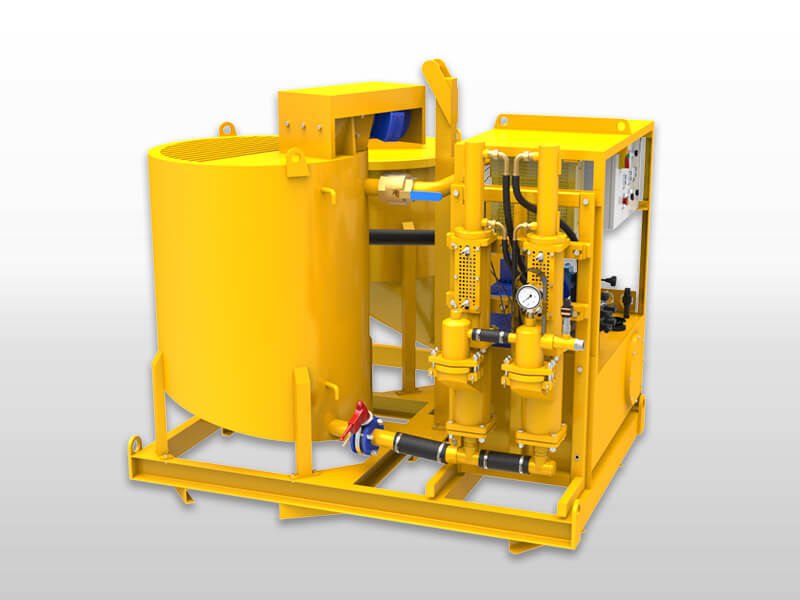

GGP550/800/150/70DPL-E Compact grout plants consist of a mixer, agitator, and grout pump. This setup is suitable for a wide range of applications such as anchoring, sleeve pipe and backfill grouting. For higher outputs and increased quality control, the grout plants are also available in semi-automated and fully automated versions.

Gaodetec compact grout plant unit is the widest selection of grouting equipment in the world, with a range of machines with integrated mixing and pumping capability. Robust and ideal for use in underground situations, tunnel construction or civil engineering.

Control:
PLC with stroke counter
Lockable main switch, emergency stop
Mixer ON-OFF
Grout Pump ON-OFF

Optional:
Auxiliary mixing unit
Automatic water meter
Remote control with 50m cable, ON-OFF

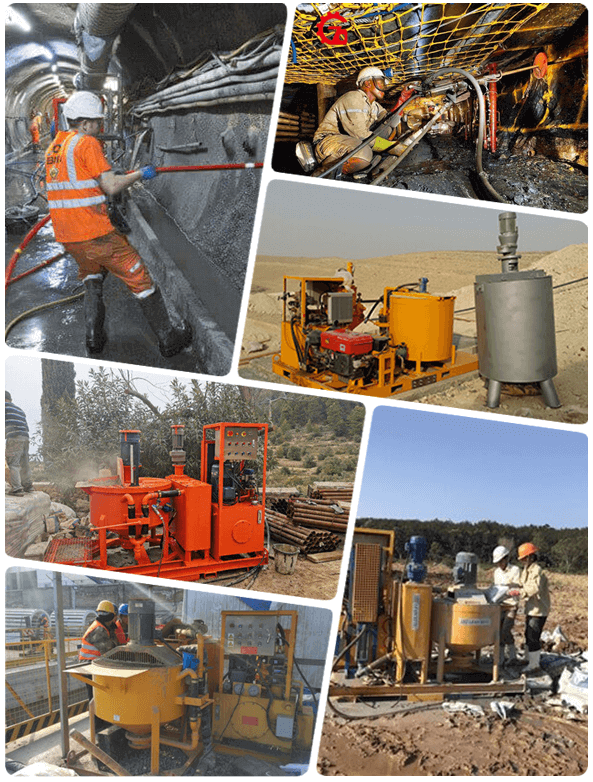

1. Compact grout plant for sale is used for grouting of anchors, soil nails, tension cable as well as for sleeve pipe, rock and contact injections.
2. Compact grout plant unit is used for preparation and pumping of bentonite suspensions or pipe jacking and microtunneling.

1. Extremely compact mixing and injection system with central lifting point for easy transport and minimum installation time.
2. High productivity due to ergonomically positioned operating elements.
3. High reliability and low-maintenance operation with good accessibility to the wear parts.

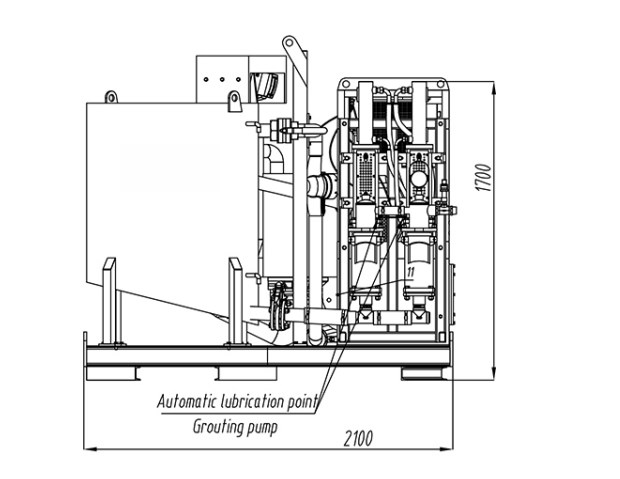

4. Automatically to lubricate the seals of grout pump plungers and mixer centrifugal pump.



Name	GGP550/800/150/70DPL-E Compact Grout Plant
Grouting Pump	Output Capacity	9m3/h

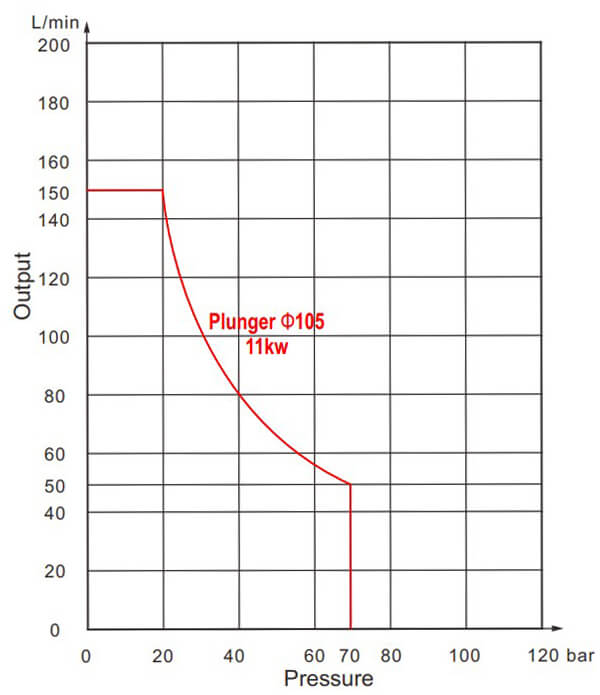

	Pressure and Output	70bar, 50L/min
		20bar, 150L/min
	Max. Aggregate Size	8mm
	Motor Power	11Kw
	Voltage	380V, 50HZ, 3phase
	Hydraulic Tank	140L
	Pump Module	Double
	Cooling Water Flow Rate	5~6L/min
	Cooling Water Connection	BSP1/2”
	Pressure Connection	BSP2”
	Suction Connection	BSP2 1/2”
Mixer	Volume	600L
	Circulation Capacity	1400L/min
	Motor Power	11Kw
	W/C	>0.5
	Water Connection	BSP1”
Agitator	Volume	800L
	Power	2.2Kw

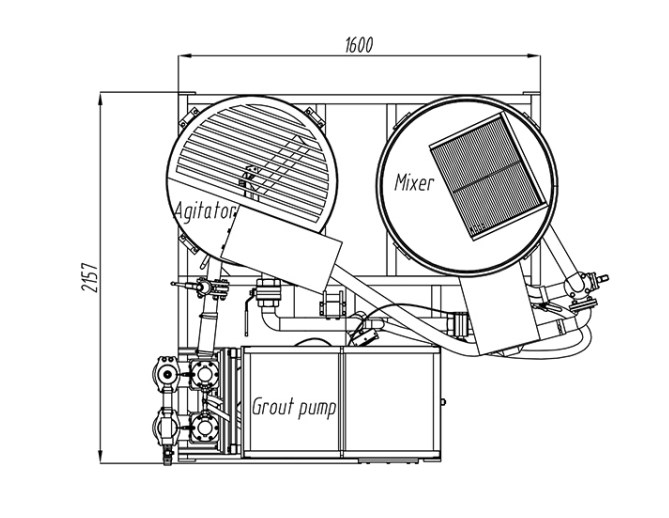

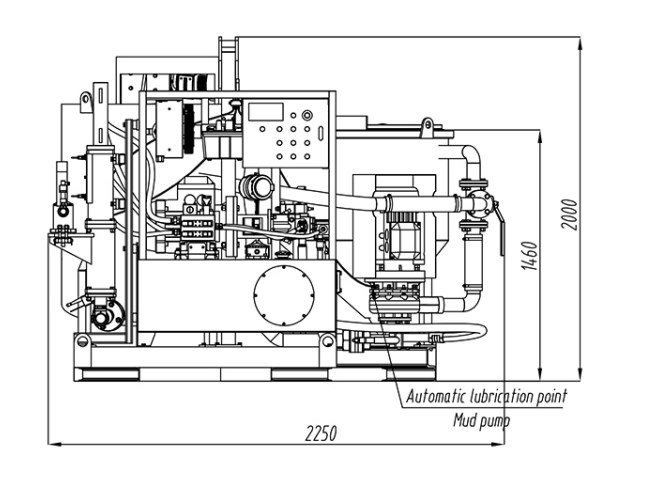

Dimension	2100x2100x2250mm
Weight	1650Kg
