GF35A foaming cement machine puts cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; According to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline.

1. Foaming cement machine is applied for insulating layer in floor heating constructions:the surface will flow smooth naturally and is an essential advanced equipment for floor heating construction;
2. Foaming cement machine is applied for roof insulation constructions: The foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30 times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer;
3. Foaming cement machine can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material;
4. Foaming cement machine can be used in filling tunnel and mine internal voids, etc. And applied for insulation of low temperature cold store and refrigerated depot section;
5. Foaming cement machine is applied in freezing prevention and temperature maintenance of pipeline;
6. Cellular grouting is used for filling voids, pipe abandonment, voided slab fill, decommissioning and abandonment of underground tanks and structures, mine stabilization and abandonment, and annular space grouting.

1. Adopting double cylinder hydraulic push mechanism to pump lightweight concrete, flux is stable, and wave is small;
2. Proportion of mixture is controlled automatically, so the density of lightweight concrete can be adjusted easily;
3. Adopting selected matching components, it also has reliable quality and good after-sales service;
4. We can also use good domestic foaming agent to reduce the construction cost;
5. With road wheel and universal wheel, the machine is flexible with moving and positioning;
6. Hydraulic system cooling use air cooling instead of water cooling, this make it more convenient as there’s no need to drain pipe;

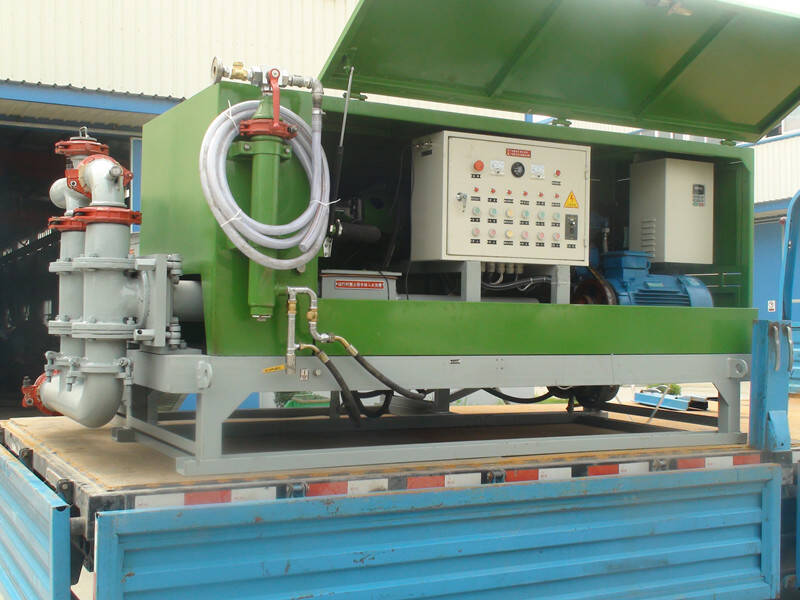

7. Electrical appliance box is equipped with remote control handle; all functions can be operated by remote control handle;
8. It can be used in vehicle.

Model	GF35A Foaming cement machine
Max.Output	35m3/h
Max.Conveying Pressure	4MPa
Max.Horizontal Transporting Range	400m
Max. Vertical Transporting Height	150m
Acceptable Max. Aggregates size	8mm
Power	34.5kw
Dimension	3800*1500*1500mm
Weight	1760kg
