GCP15H-E/D hose type concrete pump was designed based on the squeeze hose pump, the concrete pump uses high pressure, wear resisting extruded tubes. More widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory materials.

More widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory materials.

1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. Installation of frequency control, stepless output.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Imported special concrete squeeze tubes, pressure, wear, long life.
5. Reversible work, facilitate the removal of plugging failure.
6. Clean on the line, sample, convenient.

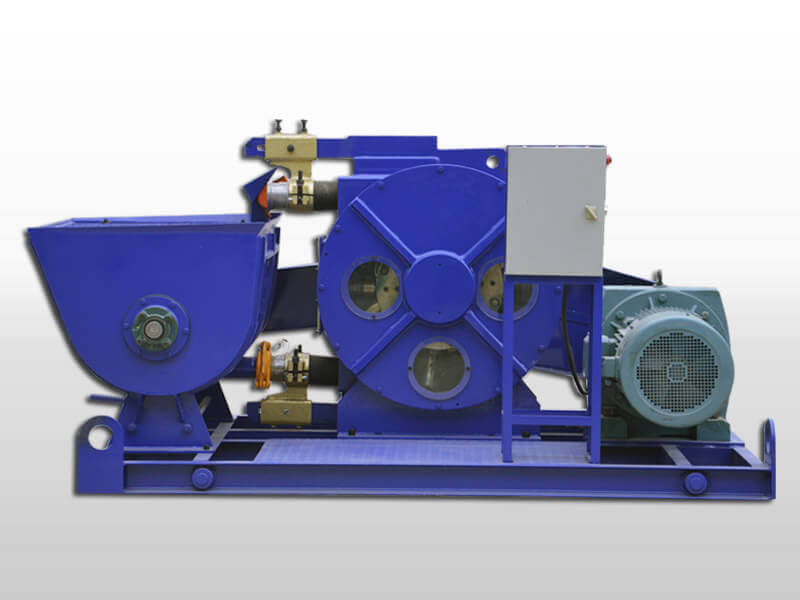

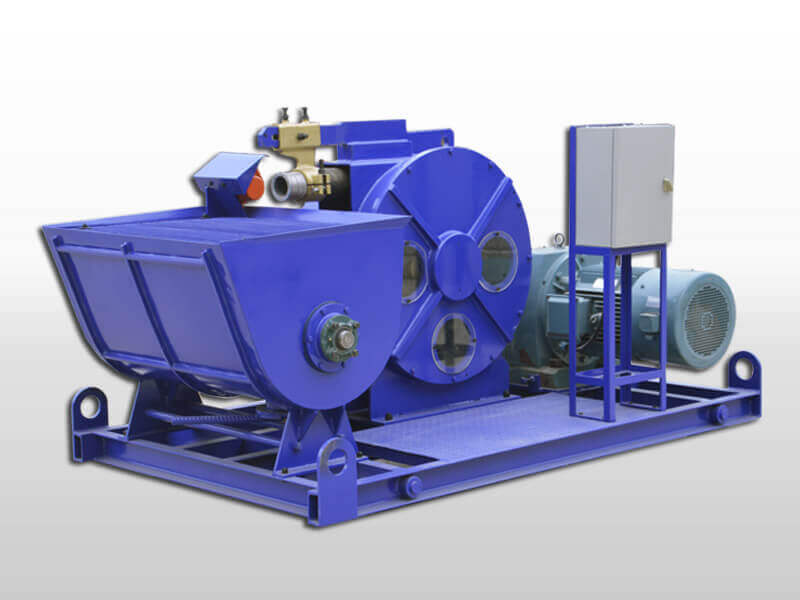

GCP15H-E Hose Type Concrete Pump

Description	parameter
Squeeze Pump	GH76-610
Hose ID	76mm (Trelleborg Squeeze hose)
Speed	37rpm
Output	15m3/h
Pressure	3Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Hopper Capacity	350L
Stirring speed	37rpm
Reducer Model	NR137
Voltage	22KW  50HZ  IP55  3~380V
Overall Dimension	2400x1300x1200mm
Weight	1560kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar

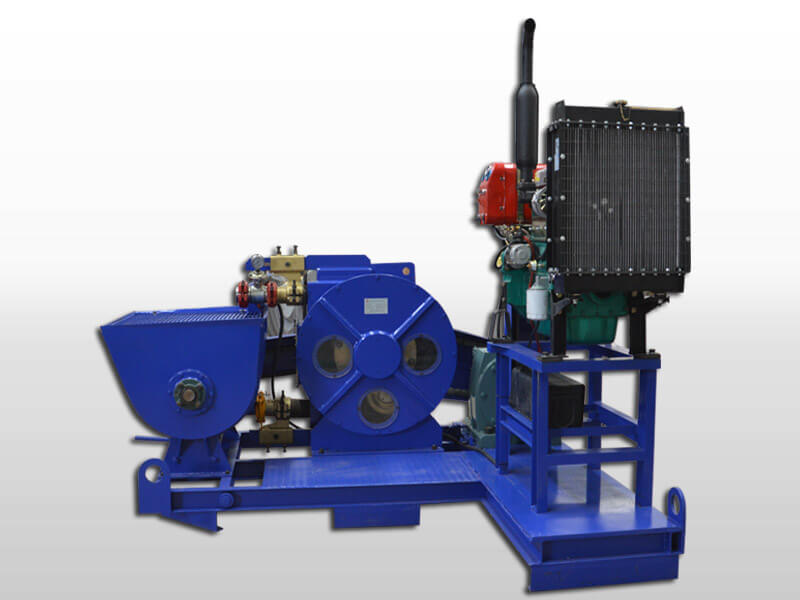

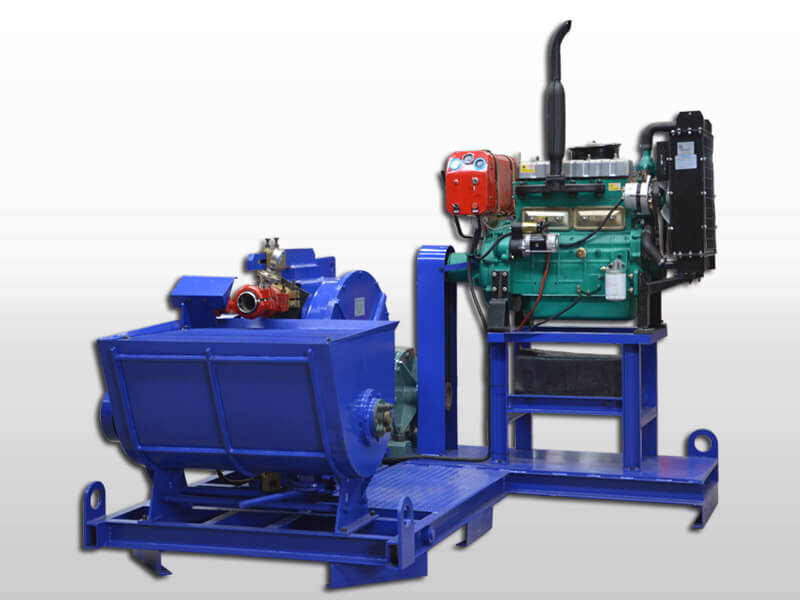

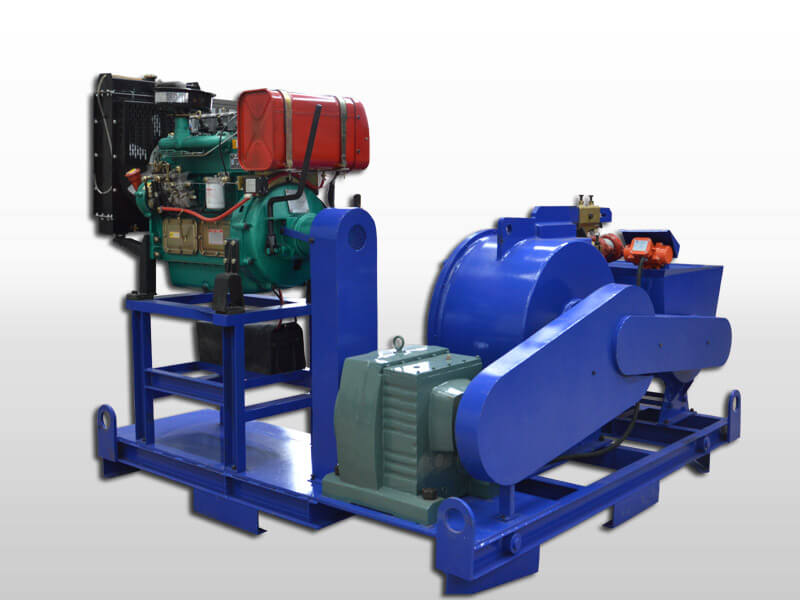

GCP15H-D Hose Type Concrete Pump

Description	parameter
Squeeze Pump	GH76-610
Hose ID	76mm (Trelleborg Squeeze hose)
Speed	37rpm
Output	15m3/h
Pressure	2.5Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Hopper Capacity	350L
Stirring speed	37rpm
Diesel engine power	30KW
Overall Dimension	2400x2100x1800mm
Weight	2300kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar
