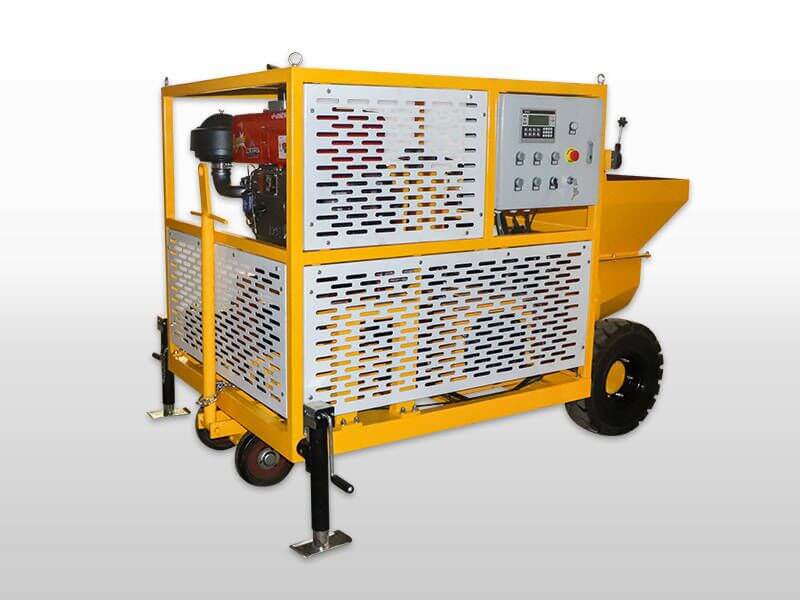

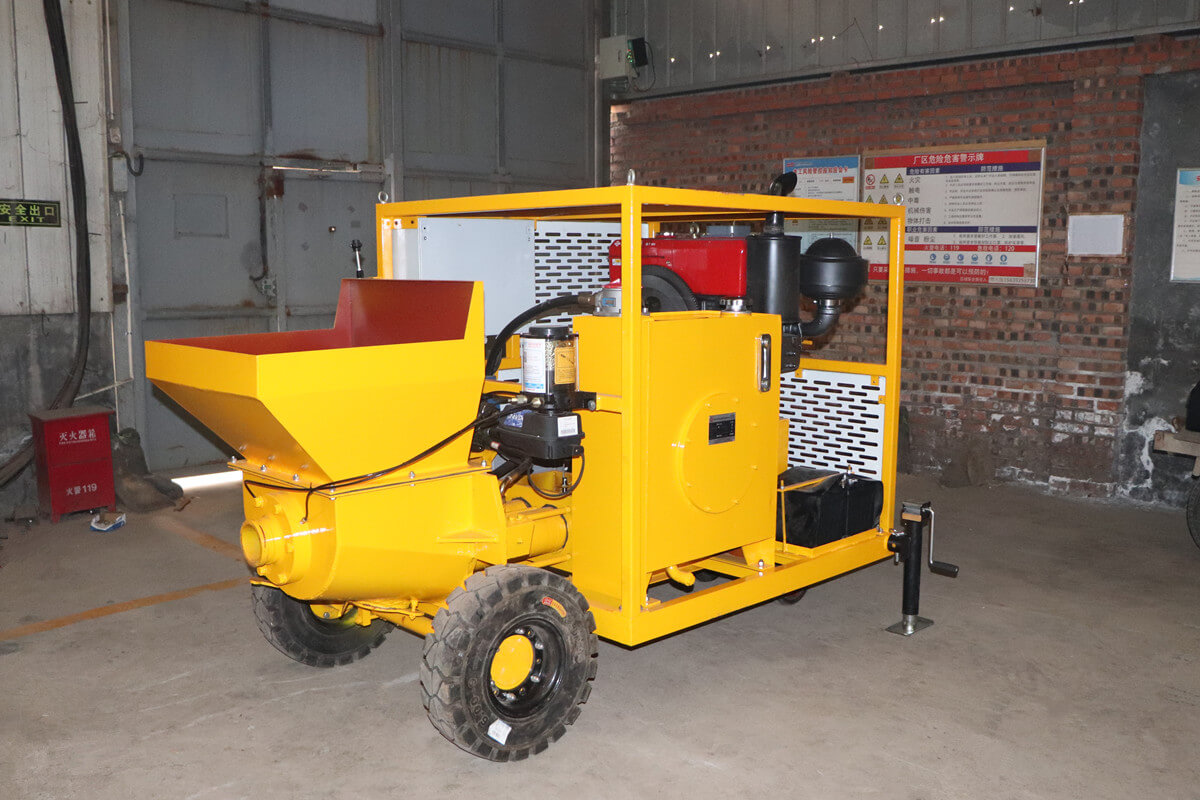

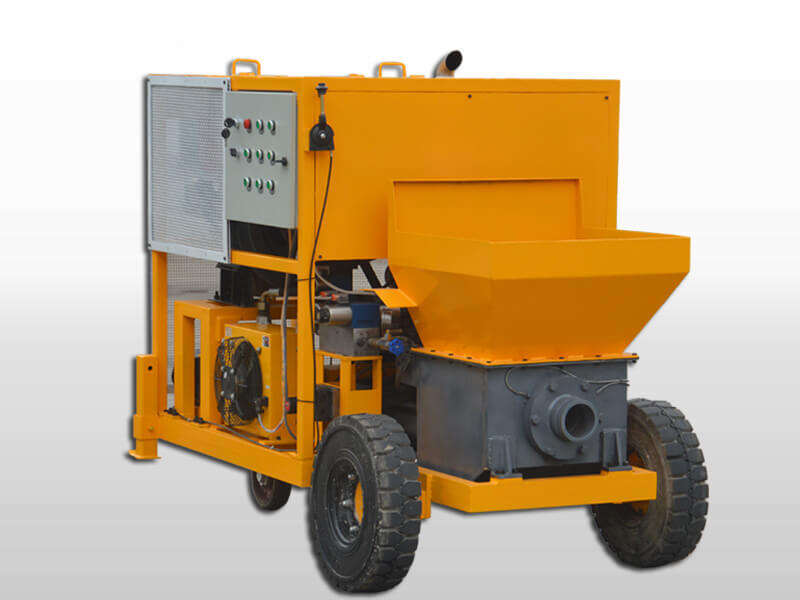

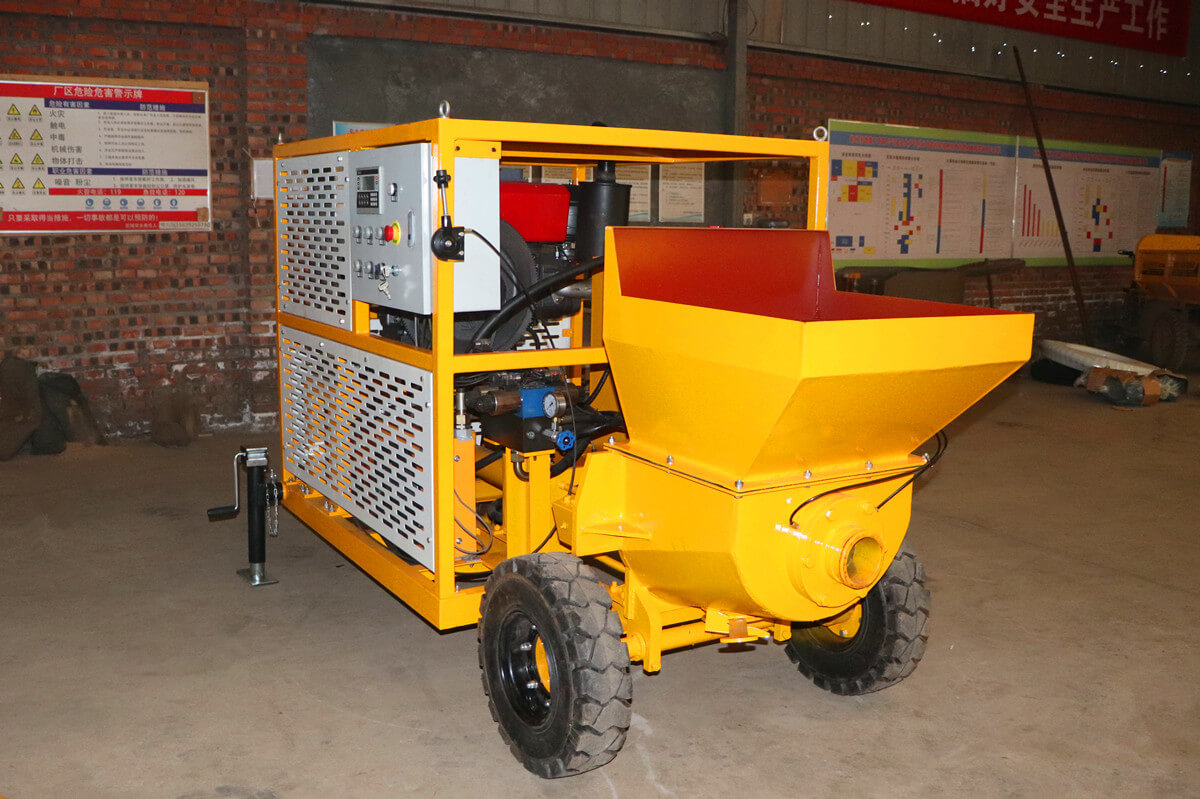

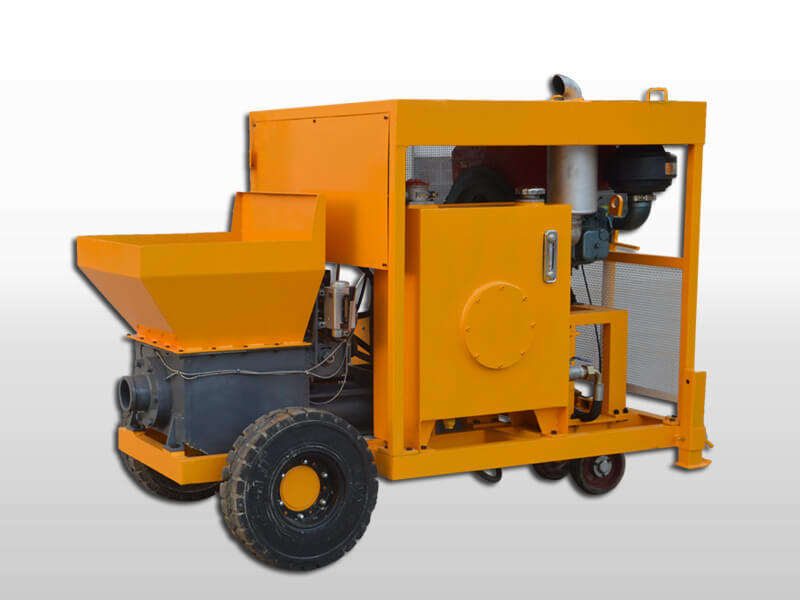

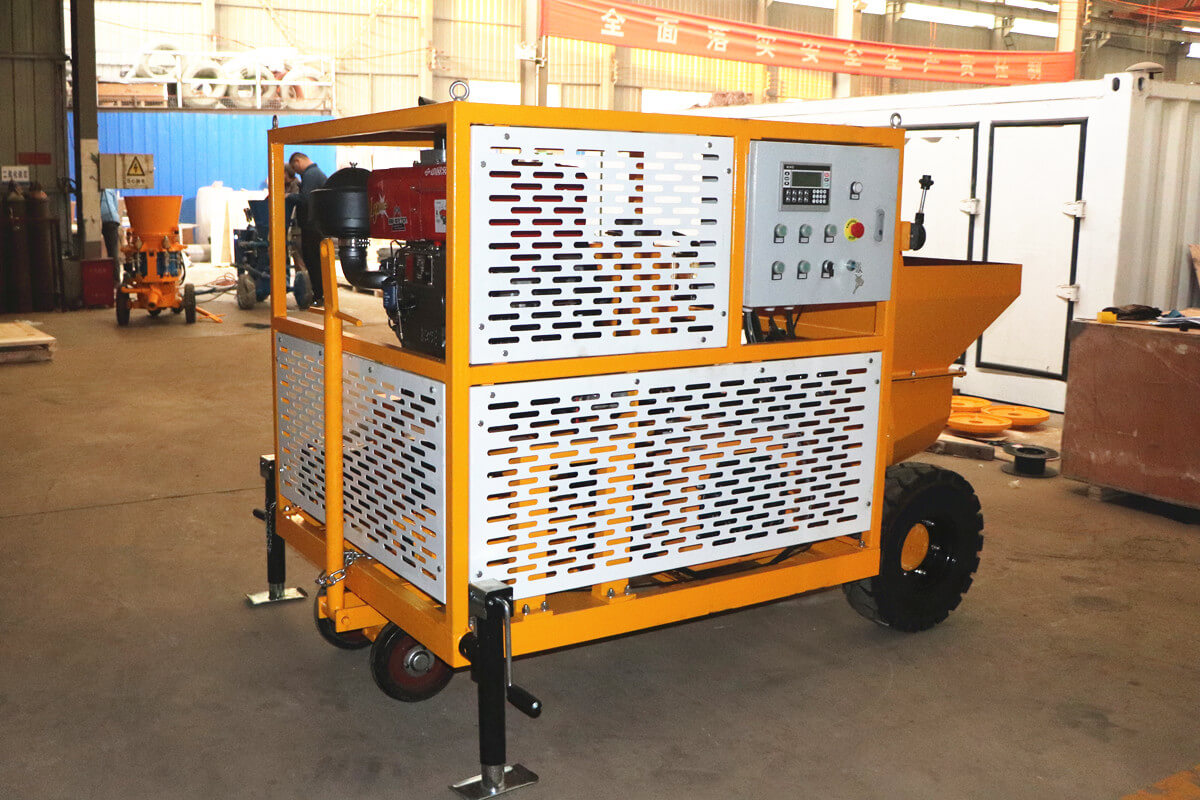

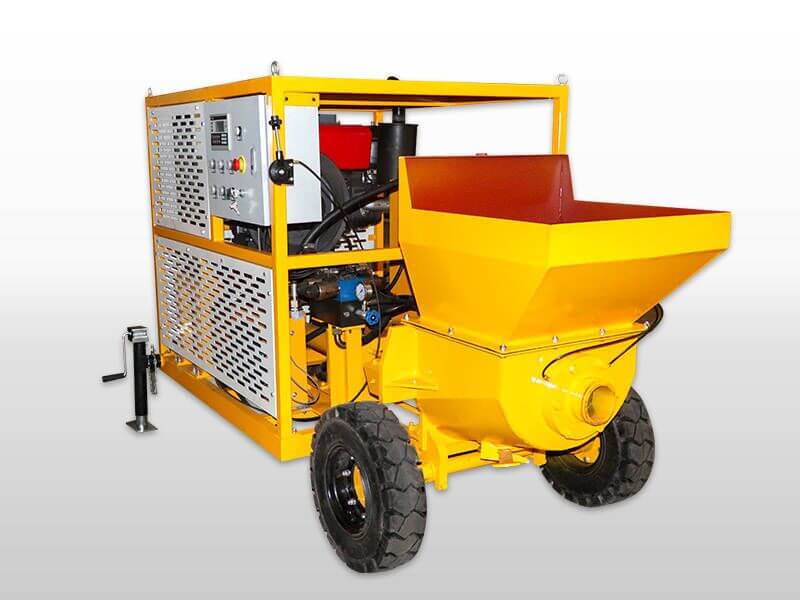

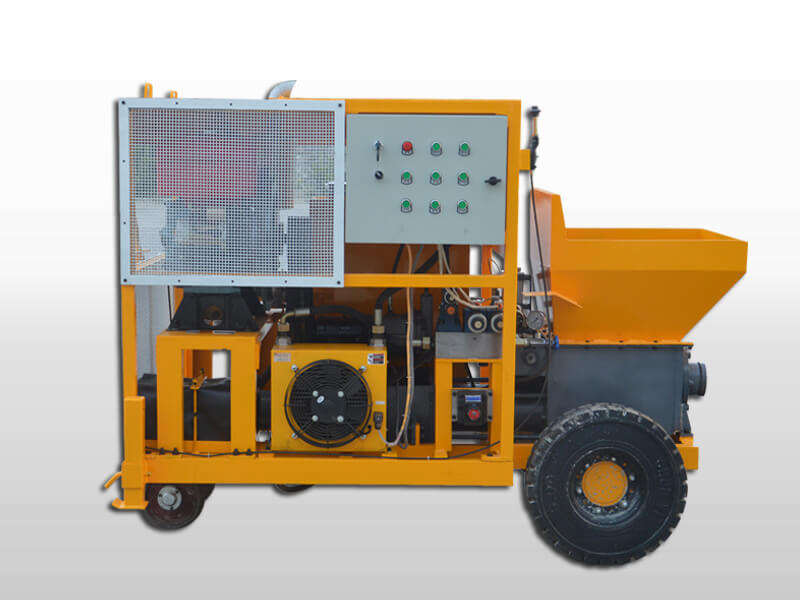

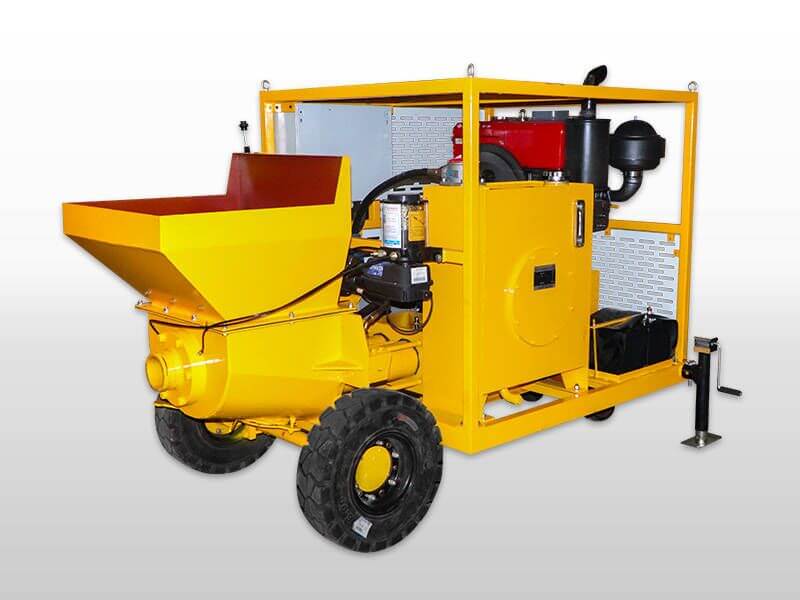

GMP7/35D Small Concrete Pump is one multi-purpose industrial pump developed by absorbing advanced technology from abroad, driven by diesel engine, max. output could be arrive to 7m3/h, working pressure is 35Bar, so widely used for concrete pumping or grouting and shotcreting work.

Application of GMP7/35D Small Concrete Pump with Diesel Engine:
1. Concrete wall construction;
2. Masonry block filling;
3. Concrete wall grouting;
4. Concrete sidewalk;
5. Patio slab pumping;
6. Low-volume shotcrete;
7.Tunneling construction;
8. Excavation-protection.
9. Swimming pool (sprayed concrete shells);
10. Mining support (sprayed concrete walls and ceilings).

If for shotcreting, need work with dosing pump and air compressor.

1. Solid tyres, feel free to move;
2. Independent electric control cabinet;
3. Convenient for operation and longevity of service;
4. Changchai L32 diesel engine
    Electric-start, with peed-regulating handle, quality guarantee, easy to operate;
5. Output 3-7m3/h, stepless adjustable, more widely application for grouting and spraying work;
6. Specially design spraying nozzle, spraying flow is even, continuous and steady.

Rated Output	3-7m3/h
Pump Work Pressure	35Bar
Acceptable Max. Aggregate Size	20mm
Cylinder Diameter	Ø120mm
Cylinder Stroke	360mm
Pump Valve	S Valve
Max. Horizontal Conveying Distance	90m
Max. Vertical Conveying Distance	30m
Concrete Slump	15-25cm
Conveying Hose Inner Diameter	80/100mm
Diesel	23kw/2200rpm single cylinder, water cooling
Dimension(L × W × H)	2200*1250*1600mm
Net Weight	1190kg
