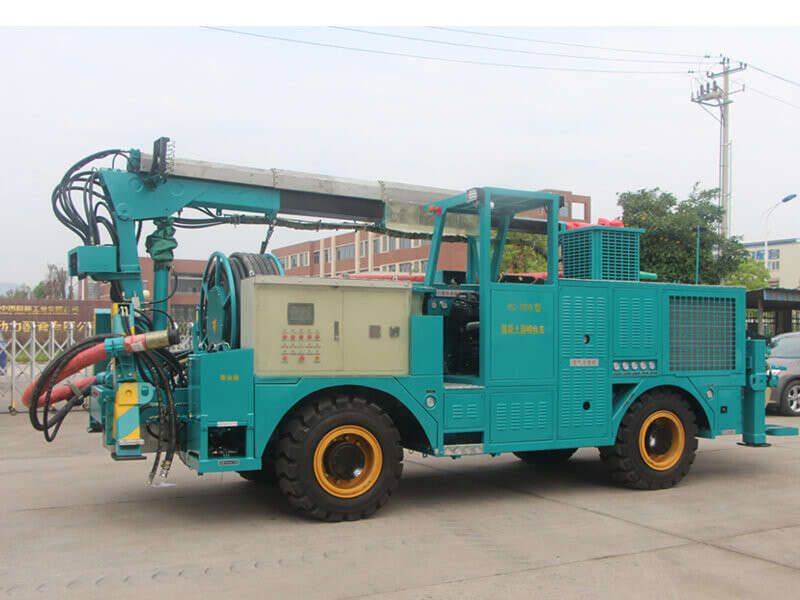

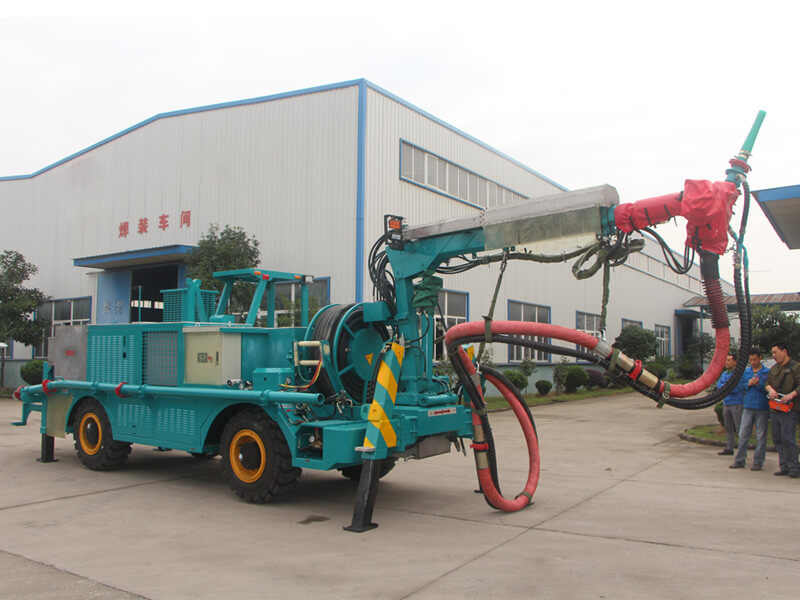

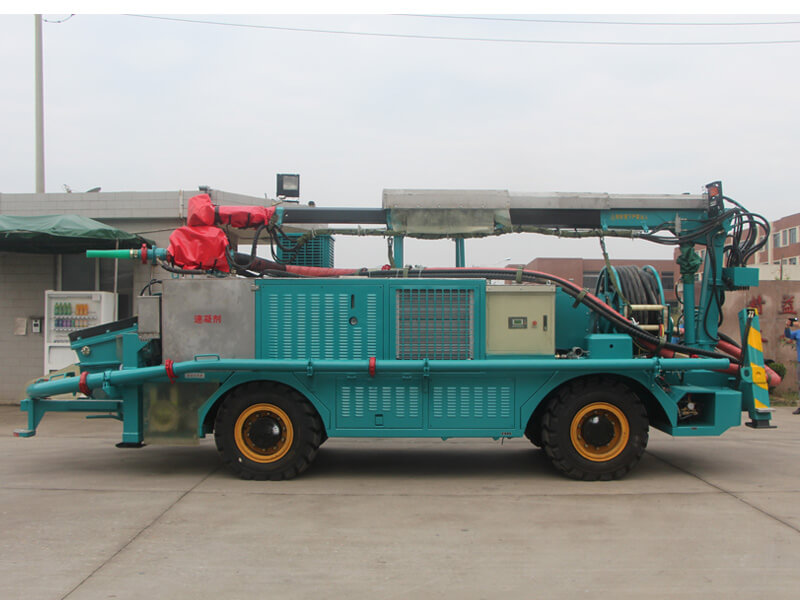

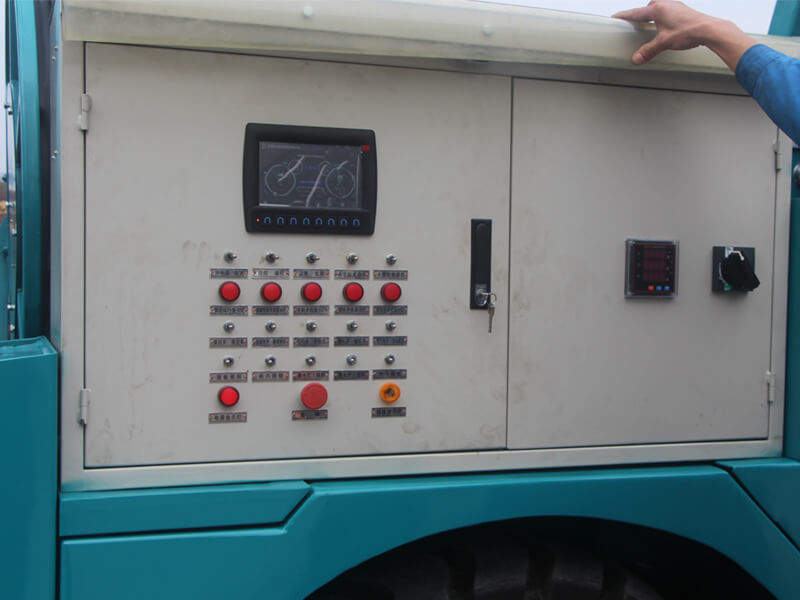

HSC-2008 wet shotcrete system with spray arm equipments have multi-function and can be applied widely.

HSC-2008 shotcrete machine with spray arm is suitable for roadway tunnels, railway tunnels, smaller tunnel section, smaller shotcrete amount, hydro-power tunnels and underground metal mines, perfect in spraying efficiency and performance.

1. HSC-2008 adopts arm structure of small size straight arm. Both two models shotcrete system can be used in small tunnel section and rotate the arm to spraying position.
2. The joints and freedom of motion can meet the requirement of spraying concrete. It’s reliable, stable and convenient. There are flood lights on both two sides of arm for spraying.
3. HSC-2008 shotcrete system equipped with hinge type chassis and diesel engine. We also adopted hydraulic torque converter and gearbox transmission, four-wheel drive, hinge hydraulic rotation, four-wheel hydraulic service brake, transmission shaft mechanical parking brake.
4. Transversal arrangement cab which makes it’s easy to operate without turning around. There are forward and reverse gears, high speed and low speed gears.
5. There are hydraulic support arm at the both sides of spray arm base, which ensure the stability of arm stretch.
6. There is diesel engine which ensures the arms can be folded and cleaned when electric power is off.

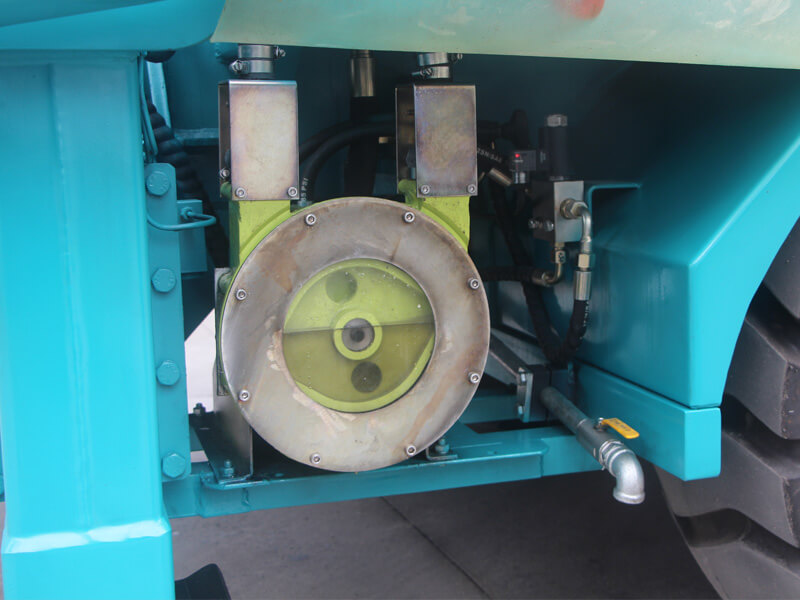

7. Reliable hydraulic pump and hydraulic valves adopted to ensure the whole pump reliable.

Item		unit	HSC-2008	HSC-2008K
Unity machine parameter	L×W×H	mm	7100×2150×2700
	Weight	kg	9000	10000
Arm and Leg parameter
	Max. Spray height	m	8	8
	Max. Spray width	m	12	12
	Max. Spray depth	m	2	2
	big arm pitching angle	degree	-30º~+65º	-30º~+65º
	small arm pitching angle	degree	-	-
	nozzle rotary angle	degree	360º	360º
	nozzle swing angle	degree	240º	240º
	drive mode	-	electric motor work
	electric motor rated power	kW	45	45
	electric motor working voltage	V/Hz	380/50	380/50
	diesel engine rated power	kW	55	55
Pump parameter	rated output	m3/h	20	20
	rated reversing time	/min	21	21
	system pressure	Mpa	20	20
	outlet pressure	Mpa	6	6
	convey cylinder inner diameter	mm	Φ160	Φ160
	convey cylinder stroke	mm	800	800
	nozzle diameter	mm	Φ40	Φ40
Chassis parameter	wheel base	mm	3000	3000
	front and rear axle drive mode	-	4×4	4×4
	hydraulic oil tank volume	L	530	530
	fuel tank capacity	L	90	70
	max. running speed	Km/h	22	22
	max. gradeability	%	40	40
	min. ground clearance	mm	400	400
	min. turning radius	m	7.0	7.0
	braking distance	m	≤10	≤10
Auxiliary system parameter	cable	100	100	100
	air compressor power	kW	-	55
	air compressor output	m3/min	-	12
	air compressor working pressure	Mpa	-	0.5
	additive output	L/h	800	800
	additive system pressure	Mpa	1.0	1.0
	coagulant tank capacity	L	500	500
