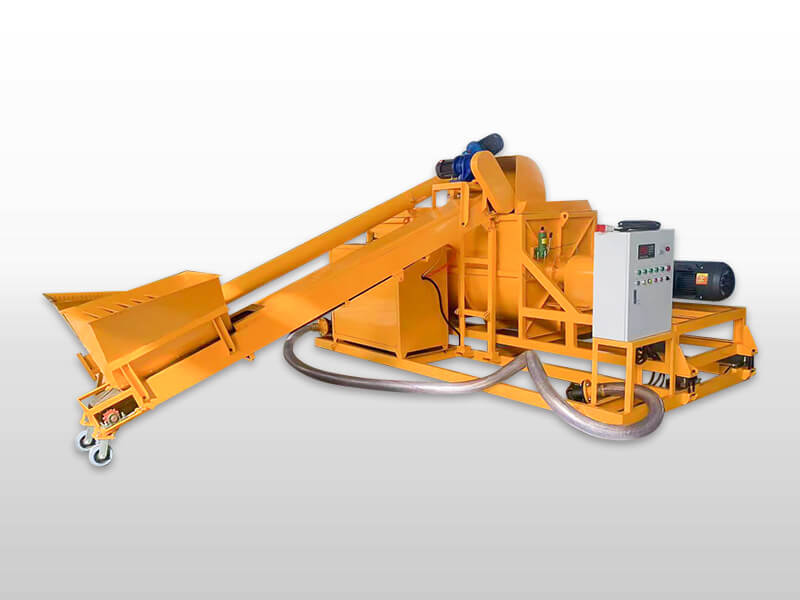

GM2000 Foam concrete mixer machine includes feeding system-screw & belt conveyor, foaming system-foam generator, mixing system-foam concrete mixer, controlling system-control panel and weighing system-load cells.

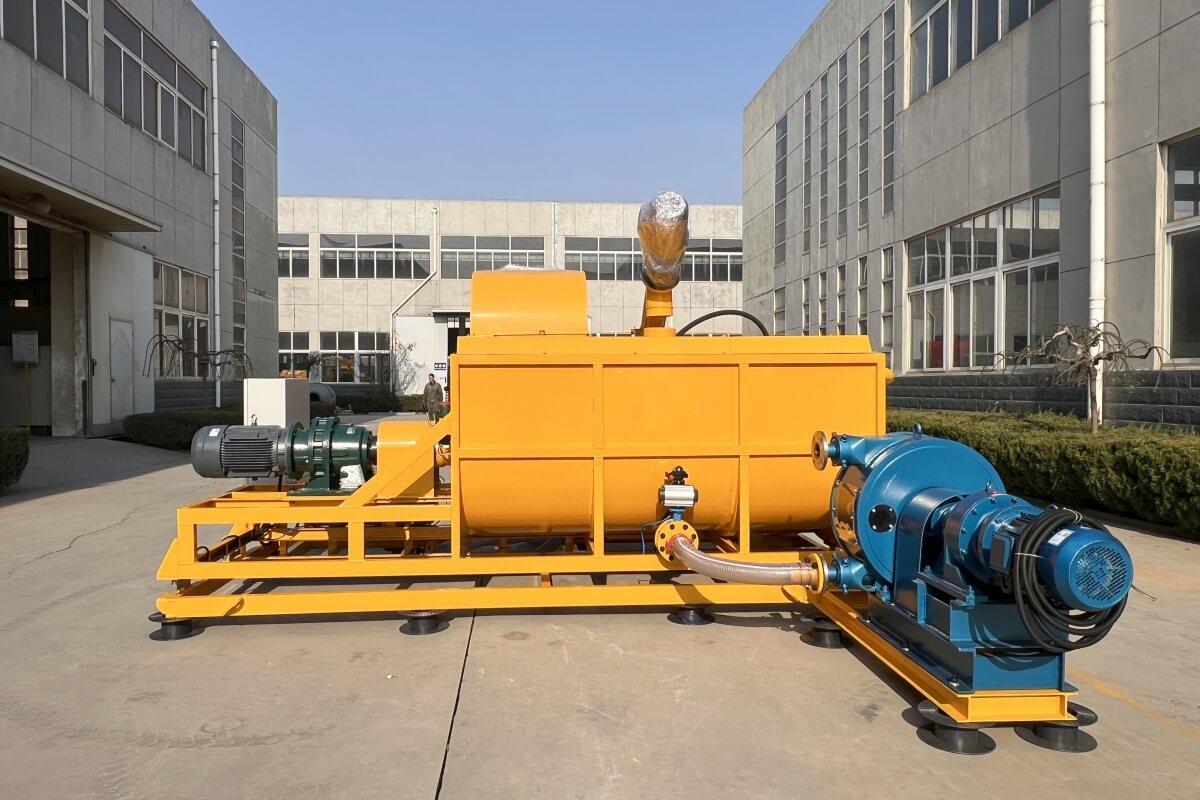

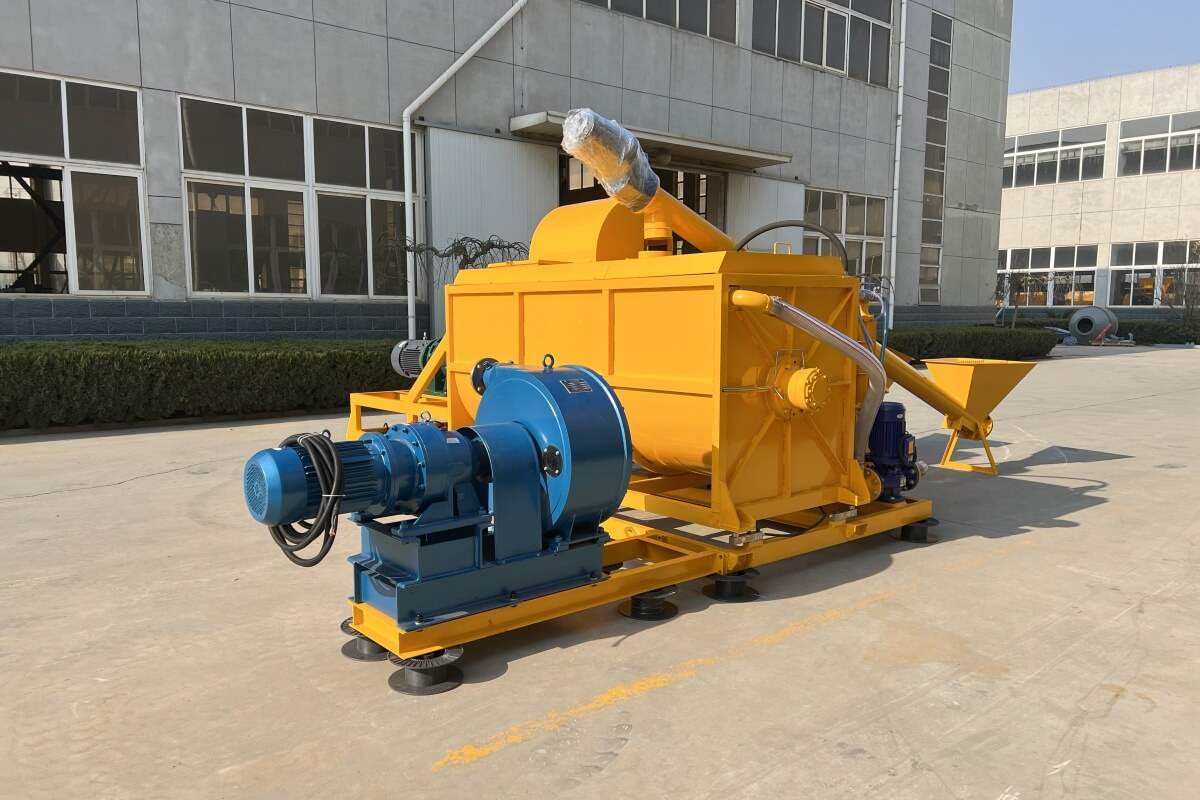

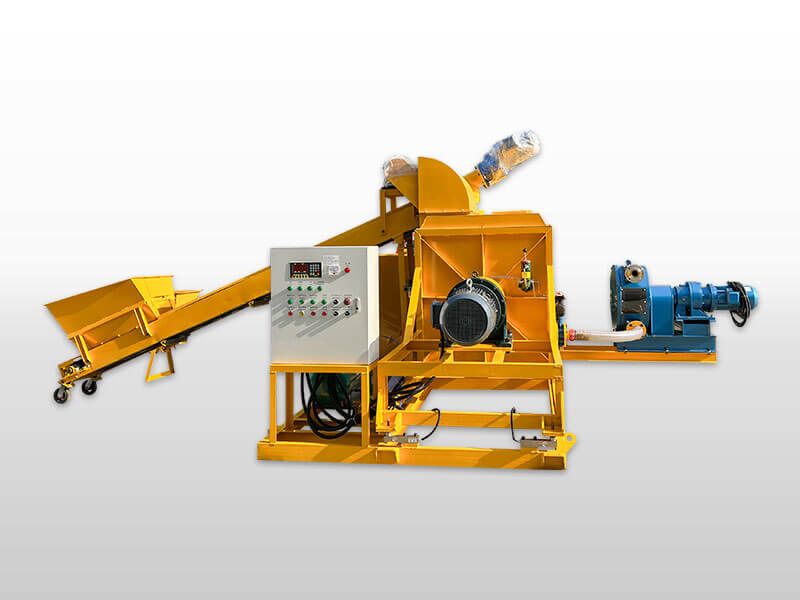

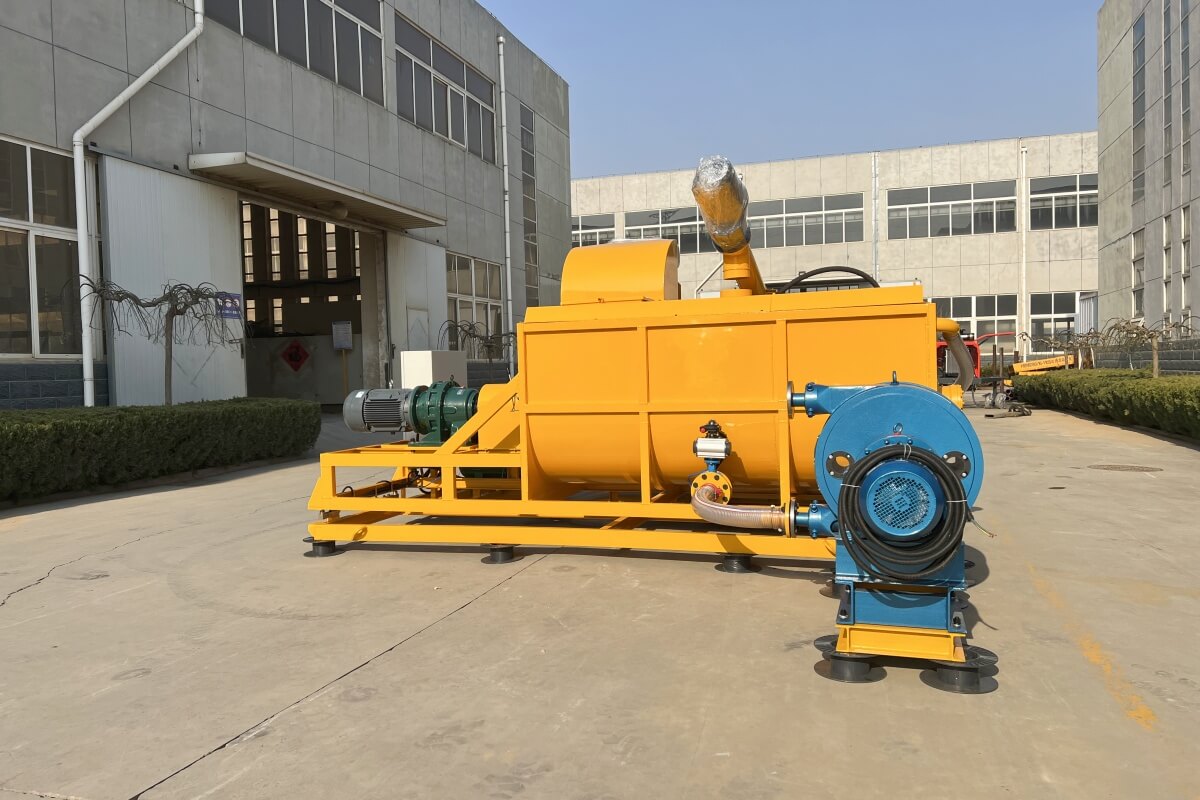

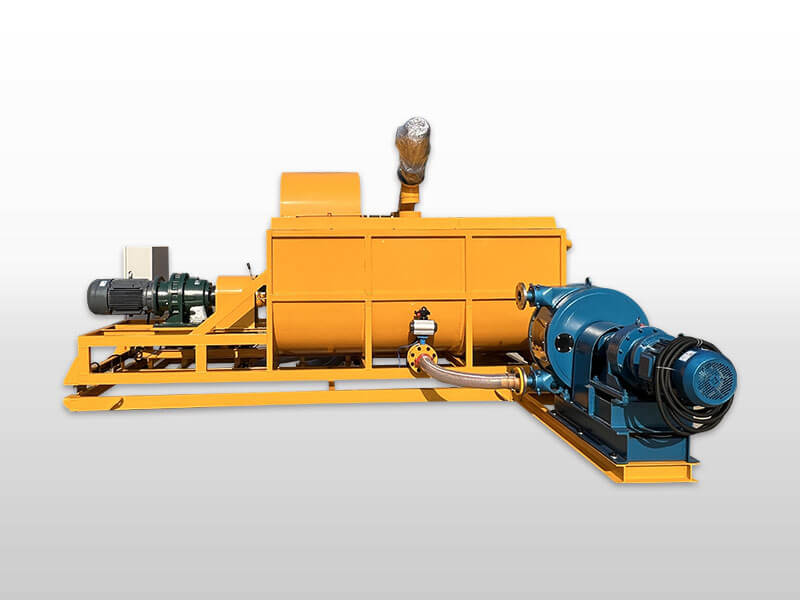

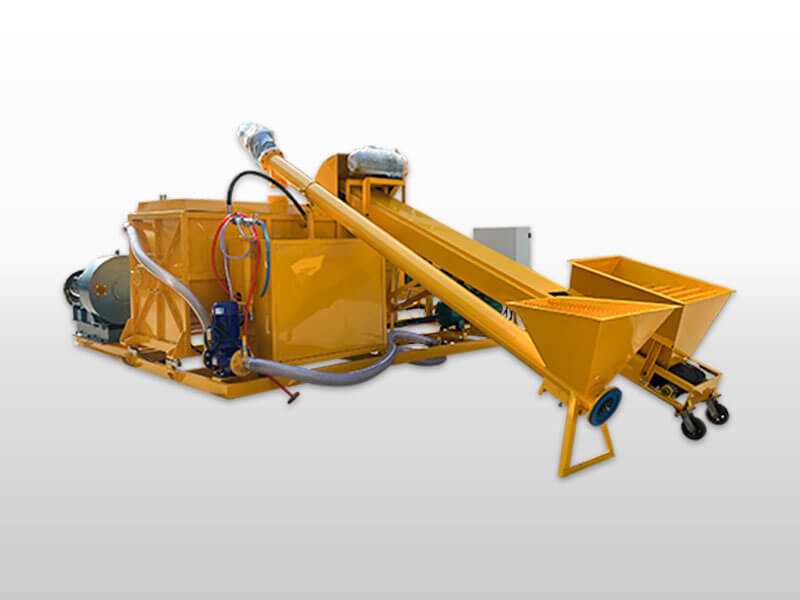

Fully automatic foam concrete system, GM2000 Foam concrete mixer equipped with hose pump:

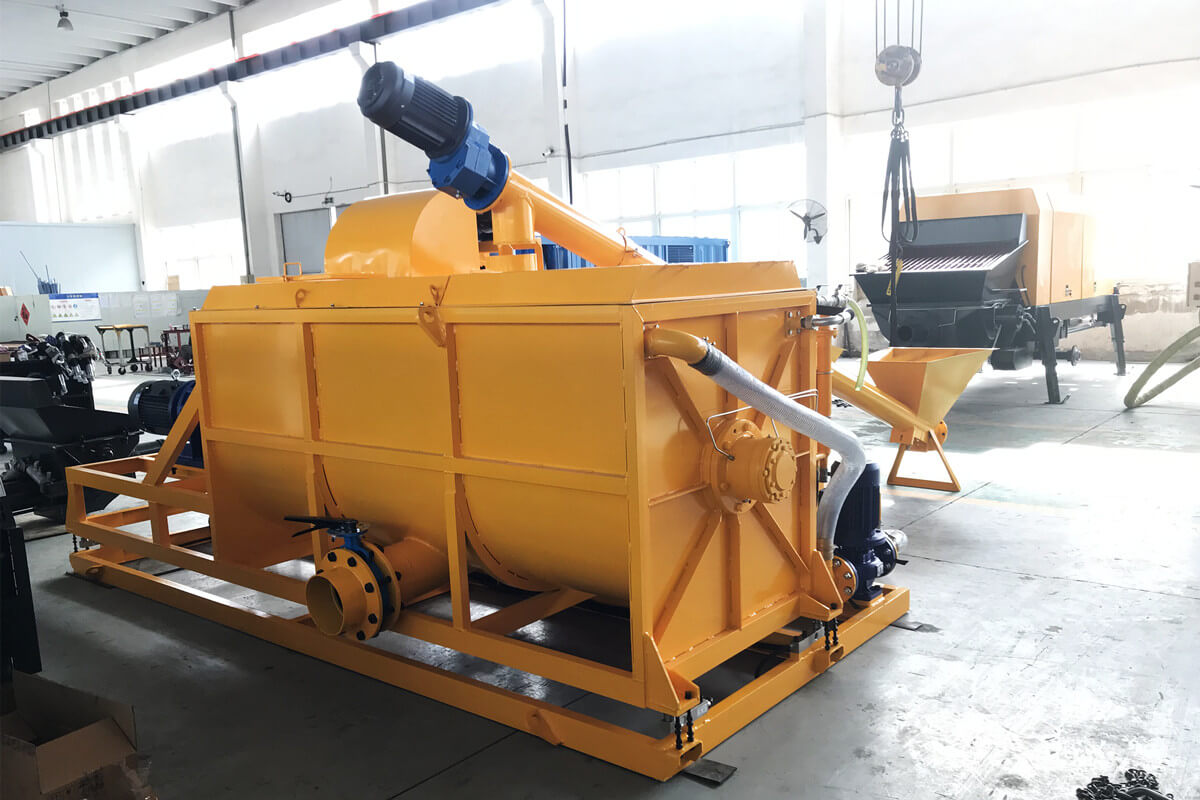

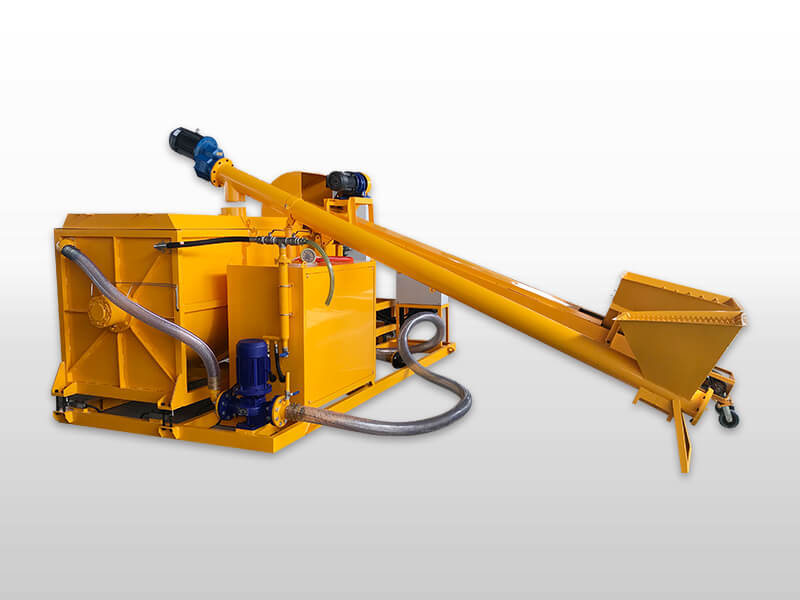

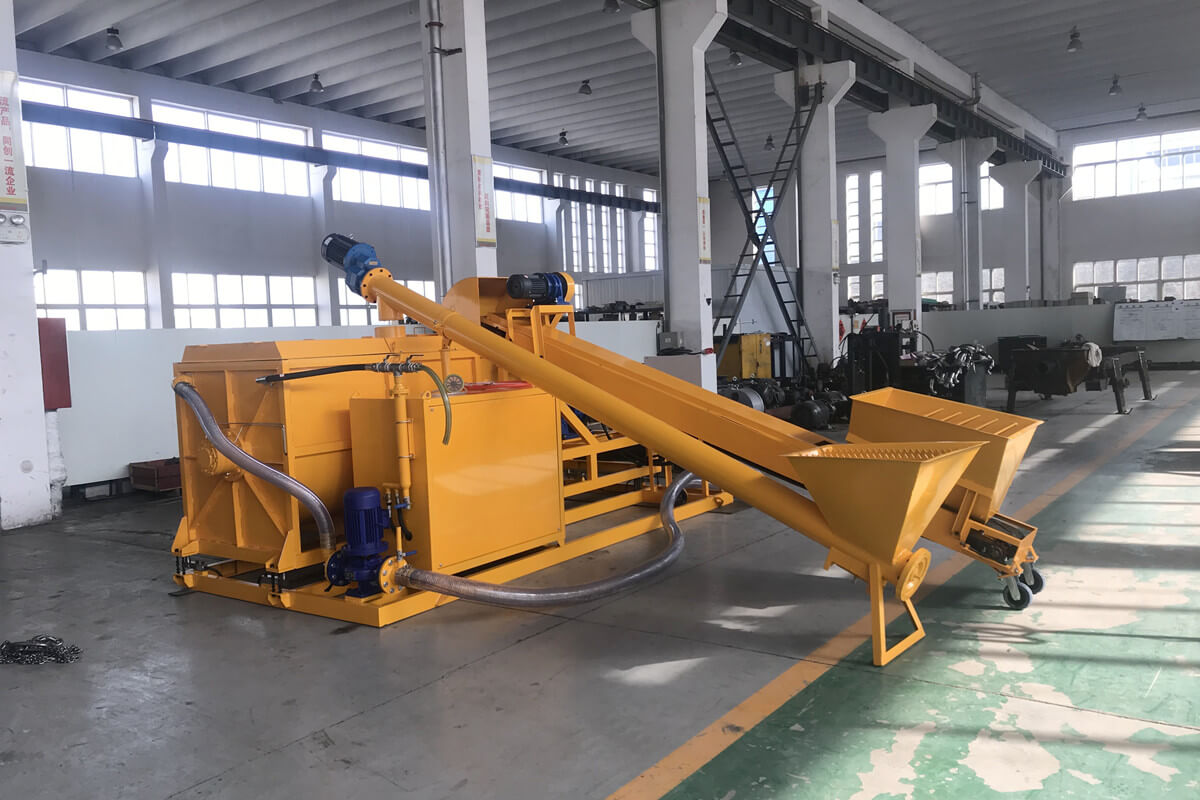

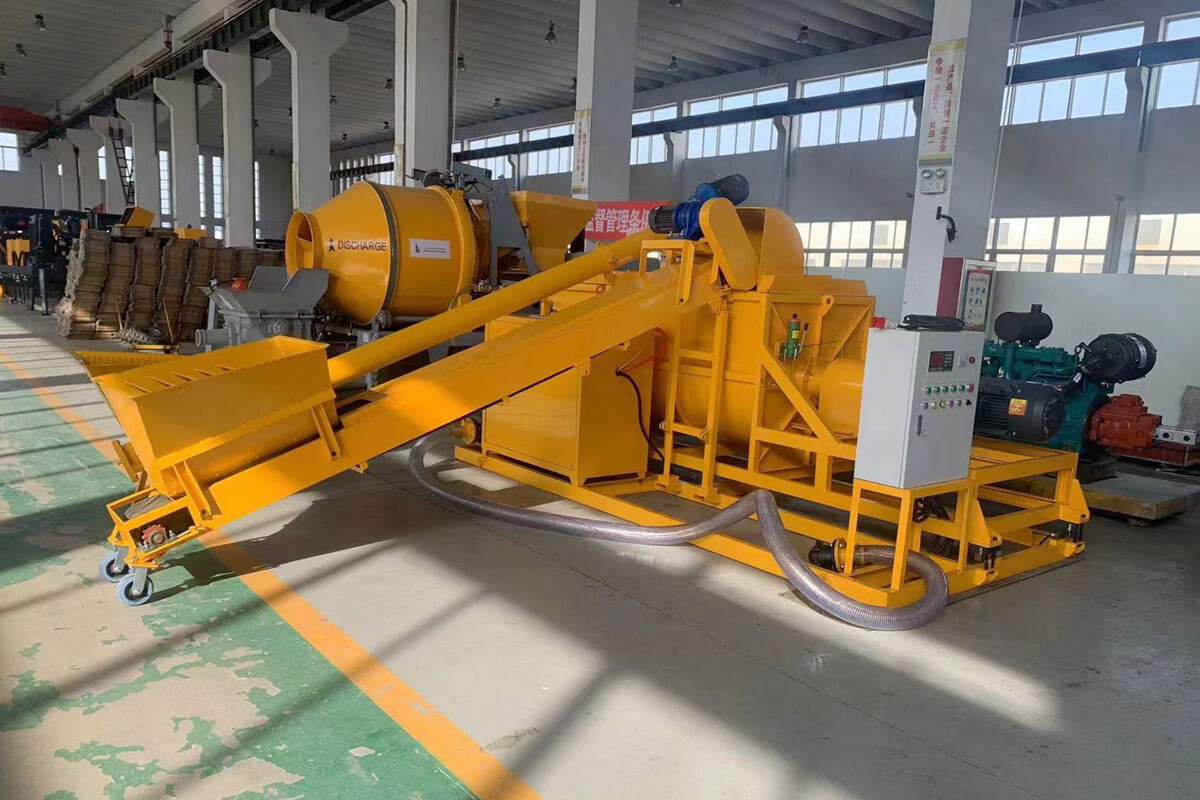

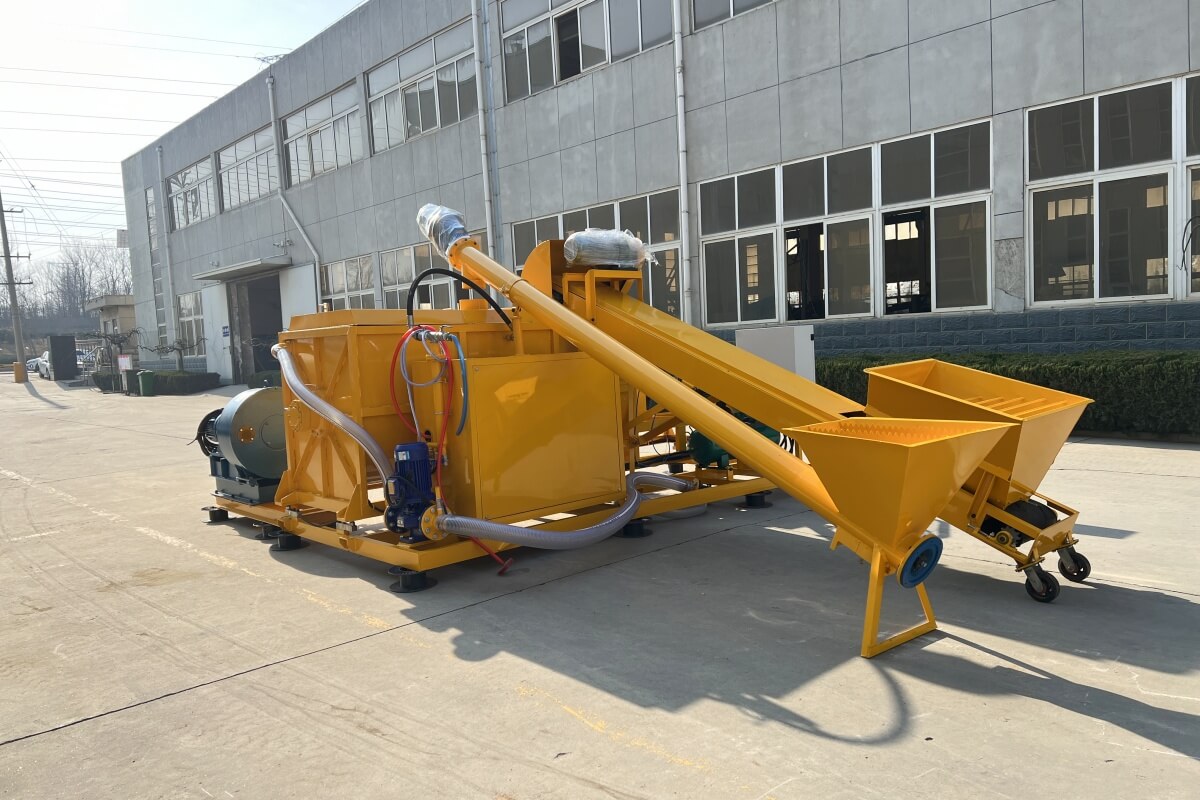

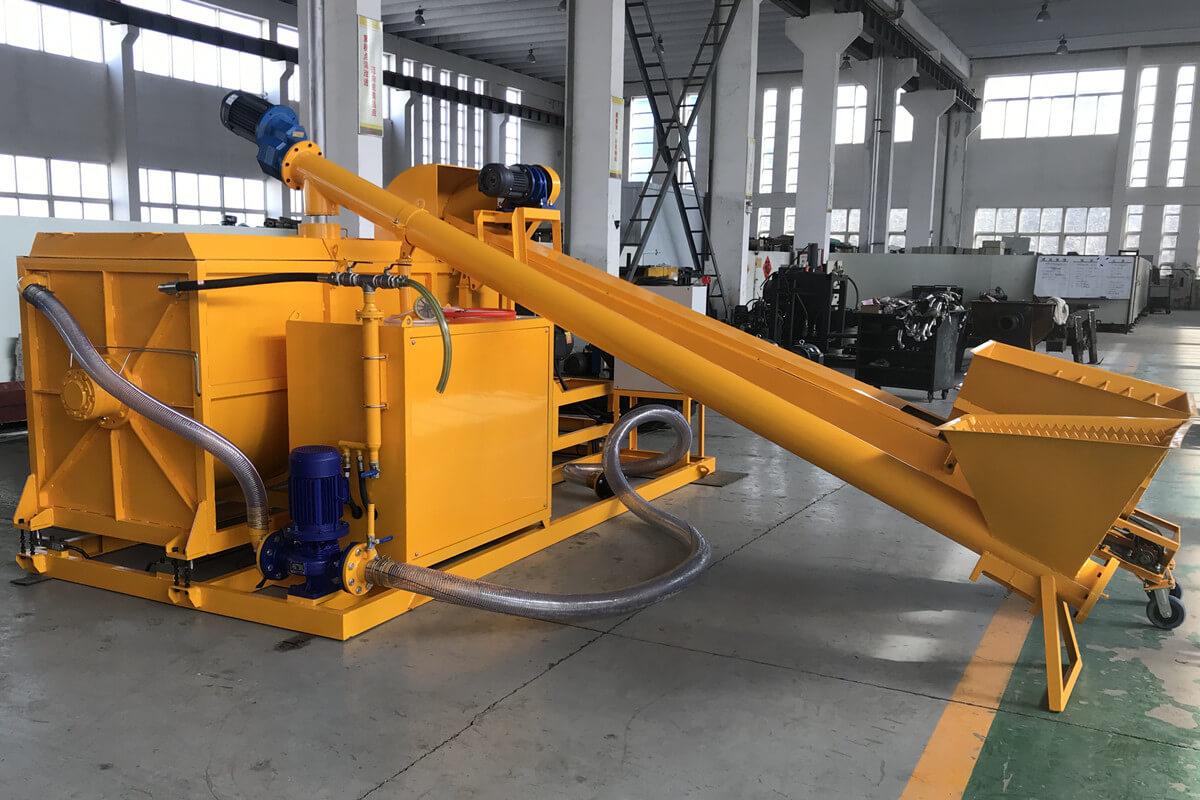

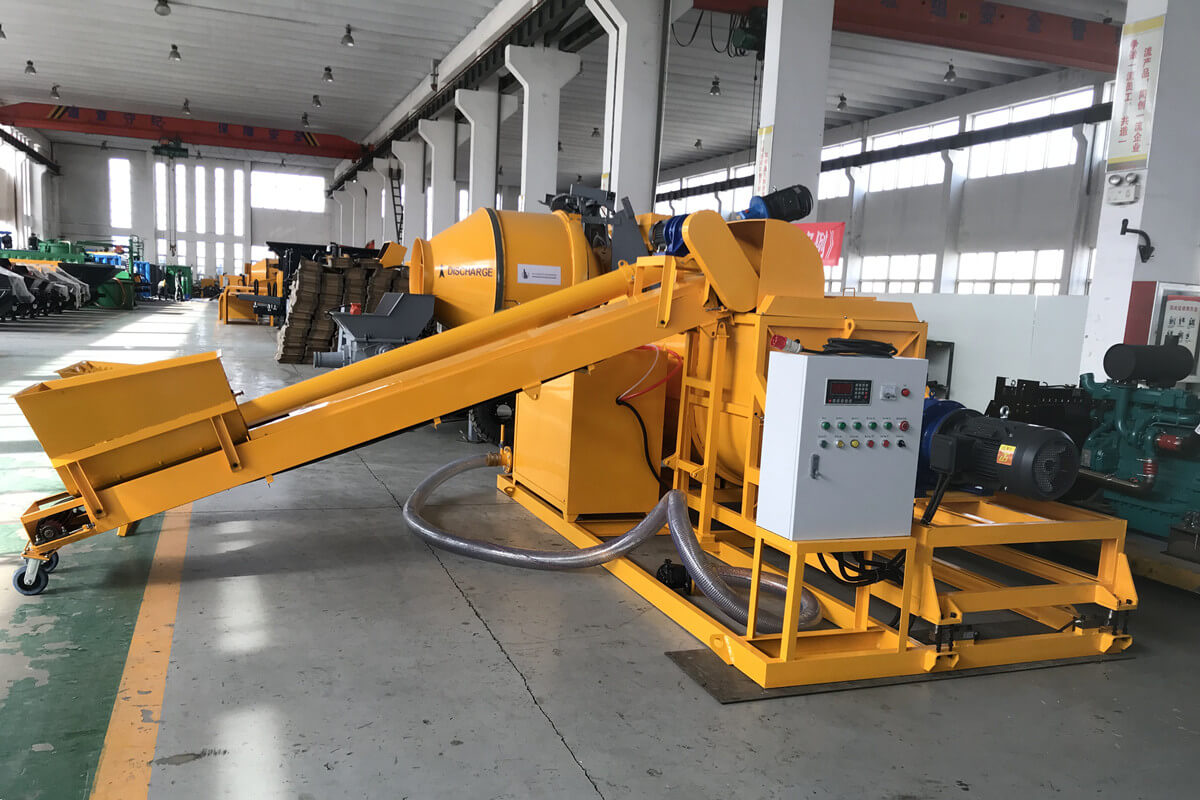

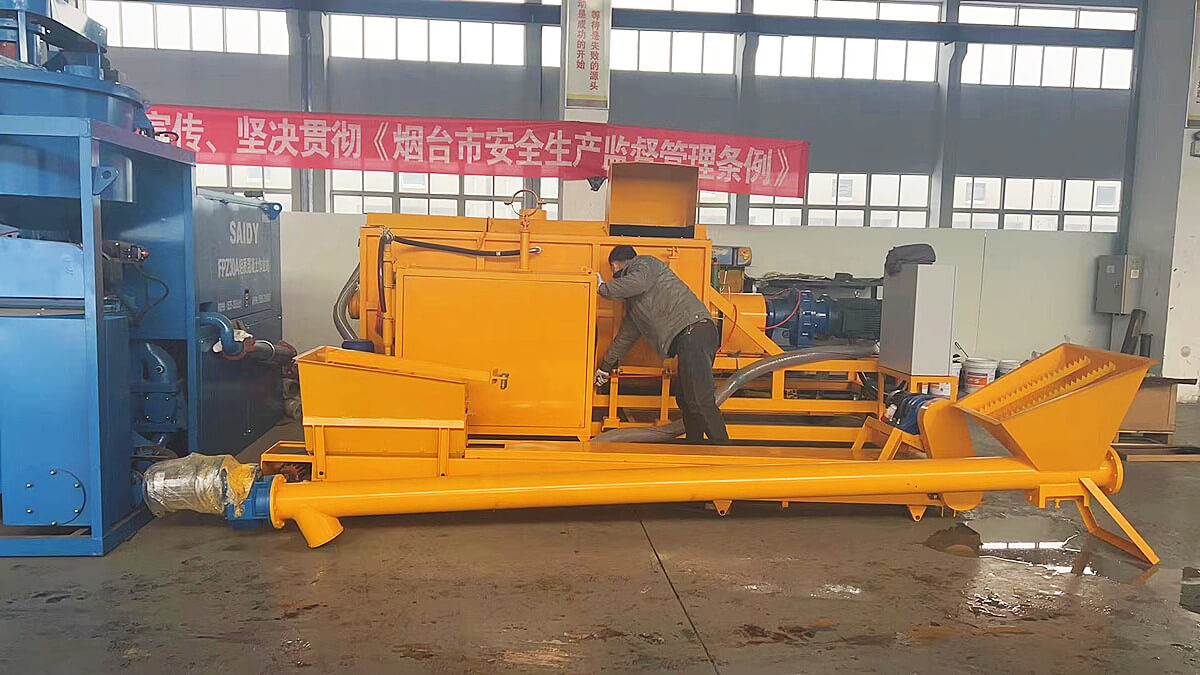

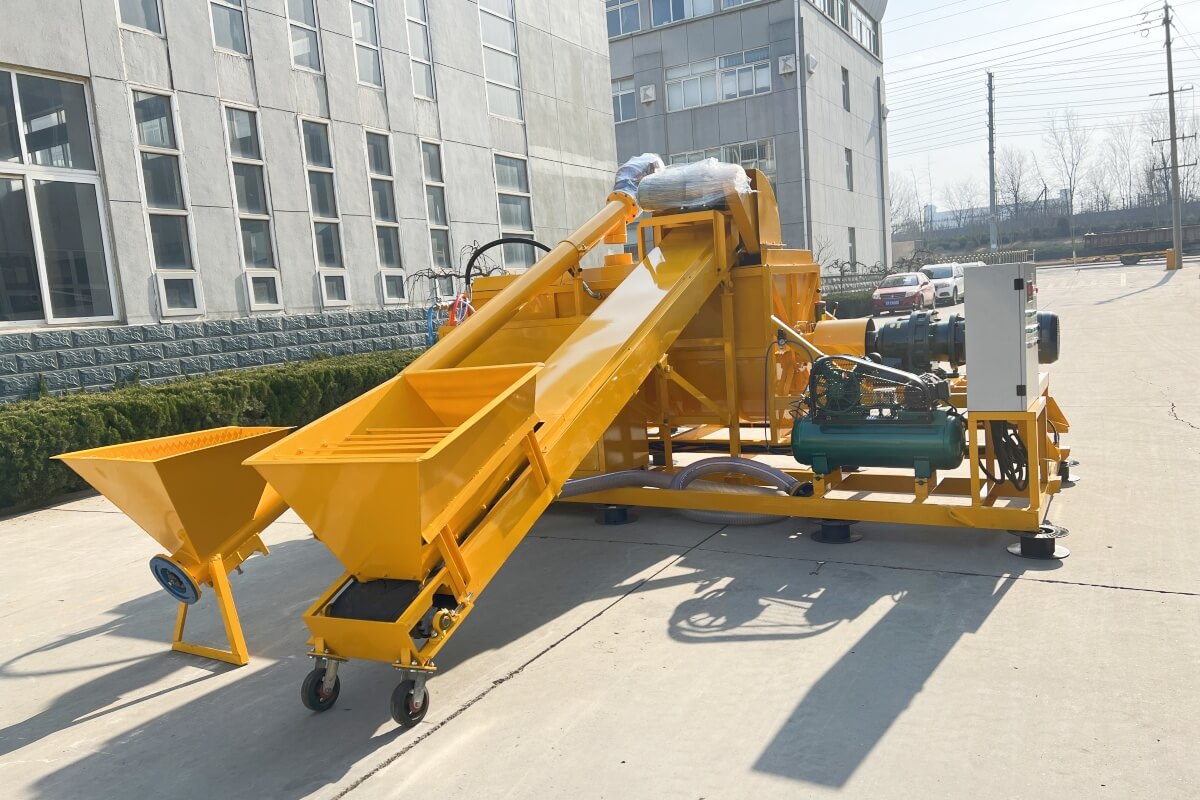

GM2000 Foam concrete mixer machine display pictures in our factory:

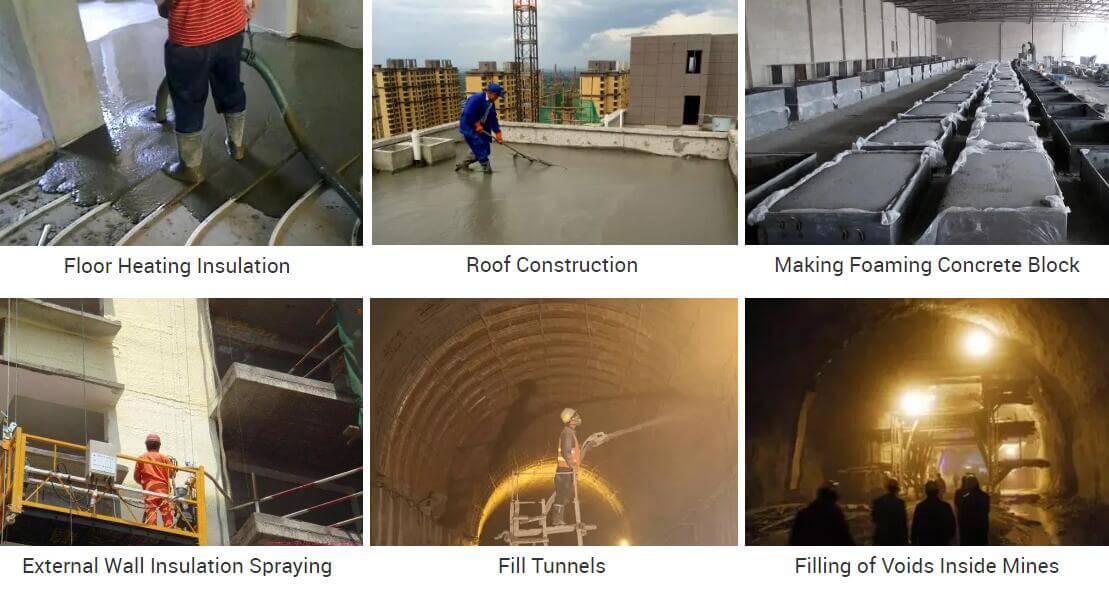

GM2000 foam concrete mixer is used to mix cement, sand, water, foam, etc. raw materials into fluid foam concrete, and the finished foam concrete can be used for floor heating, roof insulation, CLC blocks, cast in-situ walls, foundation filling, tunnel filling, etc.

Complete foam concrete production line:

1. Feeding system: screw conveyor for feeding cement, belt conveyor for feeding sand.
2. Auto-weighing system: weight each material automatically, time and labor saving.
3. Mixer system: big capacity, 2000L per batch, more efficiency.
4. Adding foam to mixer, foam concrete mixing more even.
5. Lubrication system: make the machine more durable.
6. Control system: concentrated control, easy to operate.

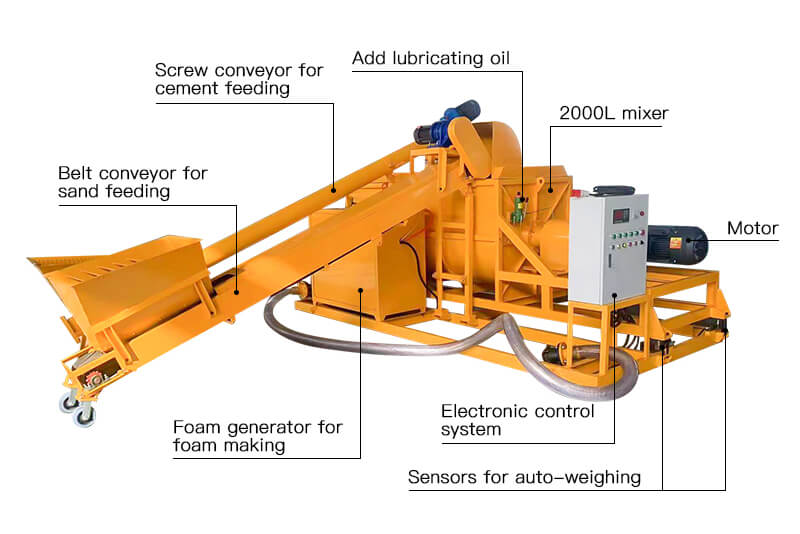

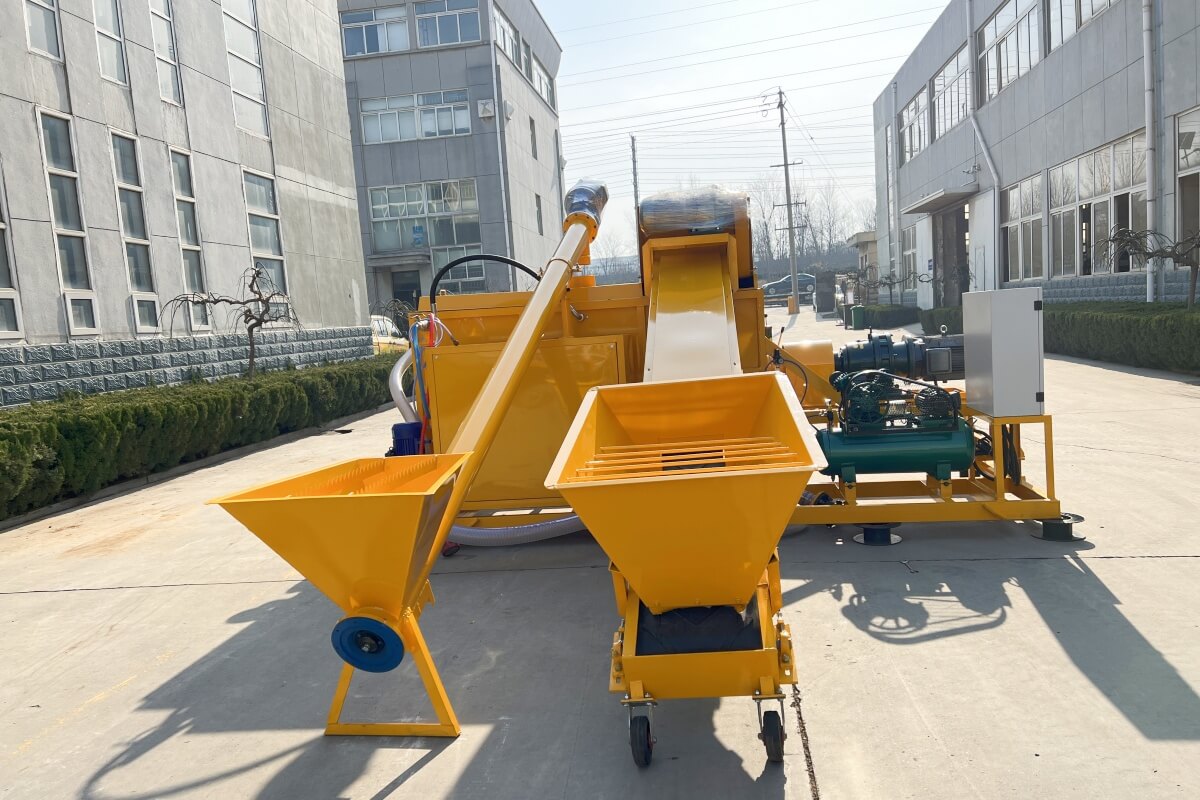

Details pictures of CLC foam concrete mixer:

Model	GM2000 Foam concrete mixer with auto-weighing system
Capacity	20-30m3/h
Power	30Kw
Voltage	3 phase, 380V, 50Hz
Mixer volume	2000L
Water pump	50m3/h
Foam generator	30m3/h
Measurement method	Cumulative measurement
Discharge method	Manual discharge
Belt conveyor	300*3800mm
Screw conveyor	φ165*4000mm
Main part dimension	4000*2050*1900mm
Weight	1500kg

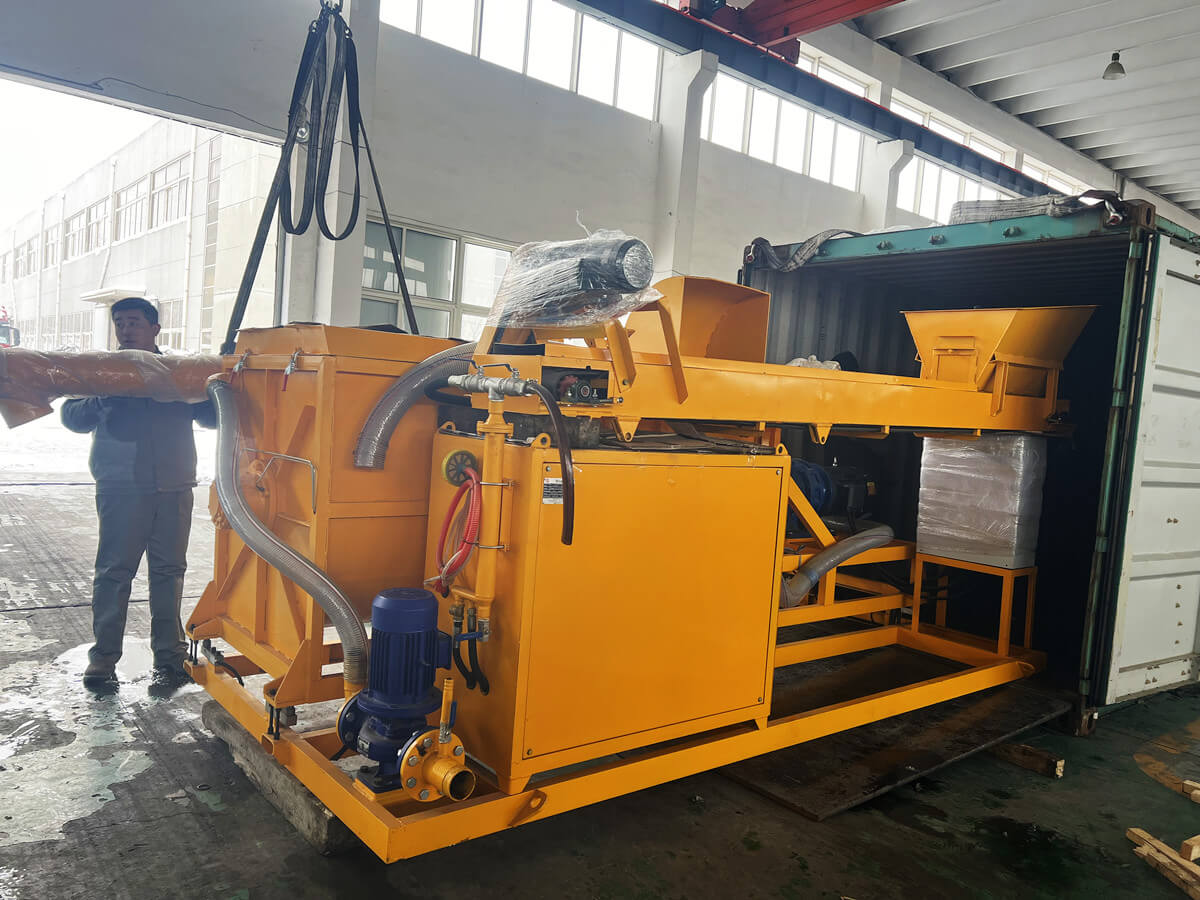

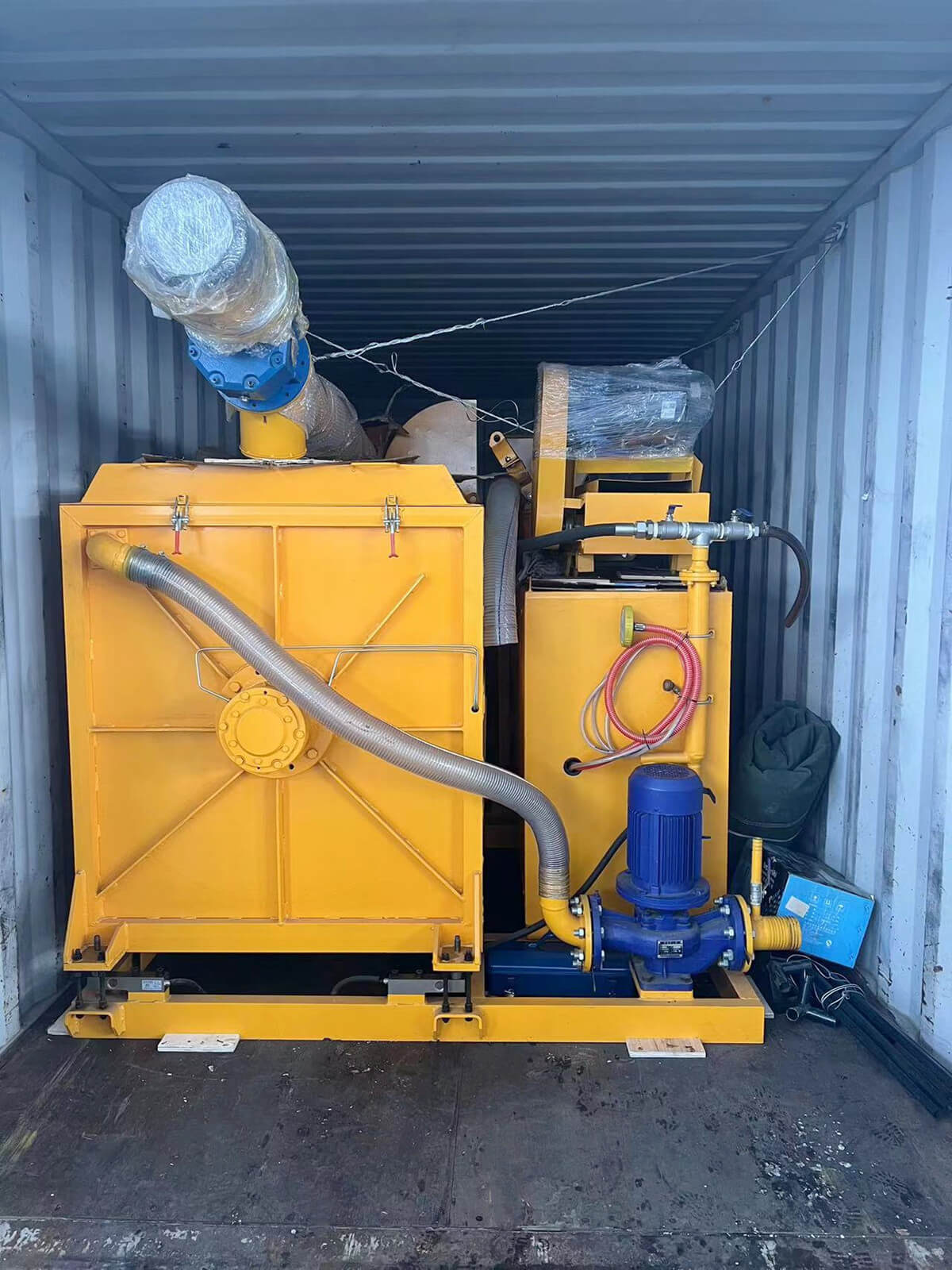

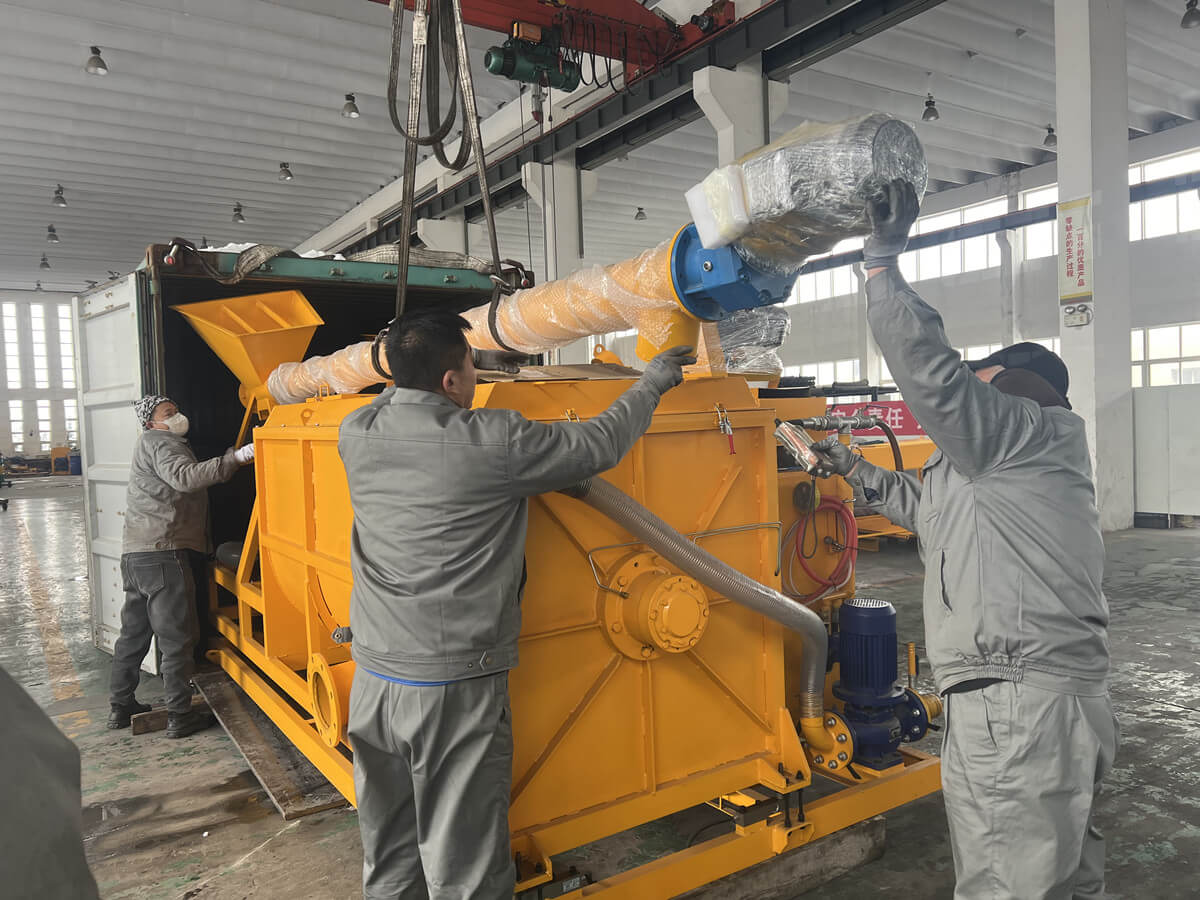

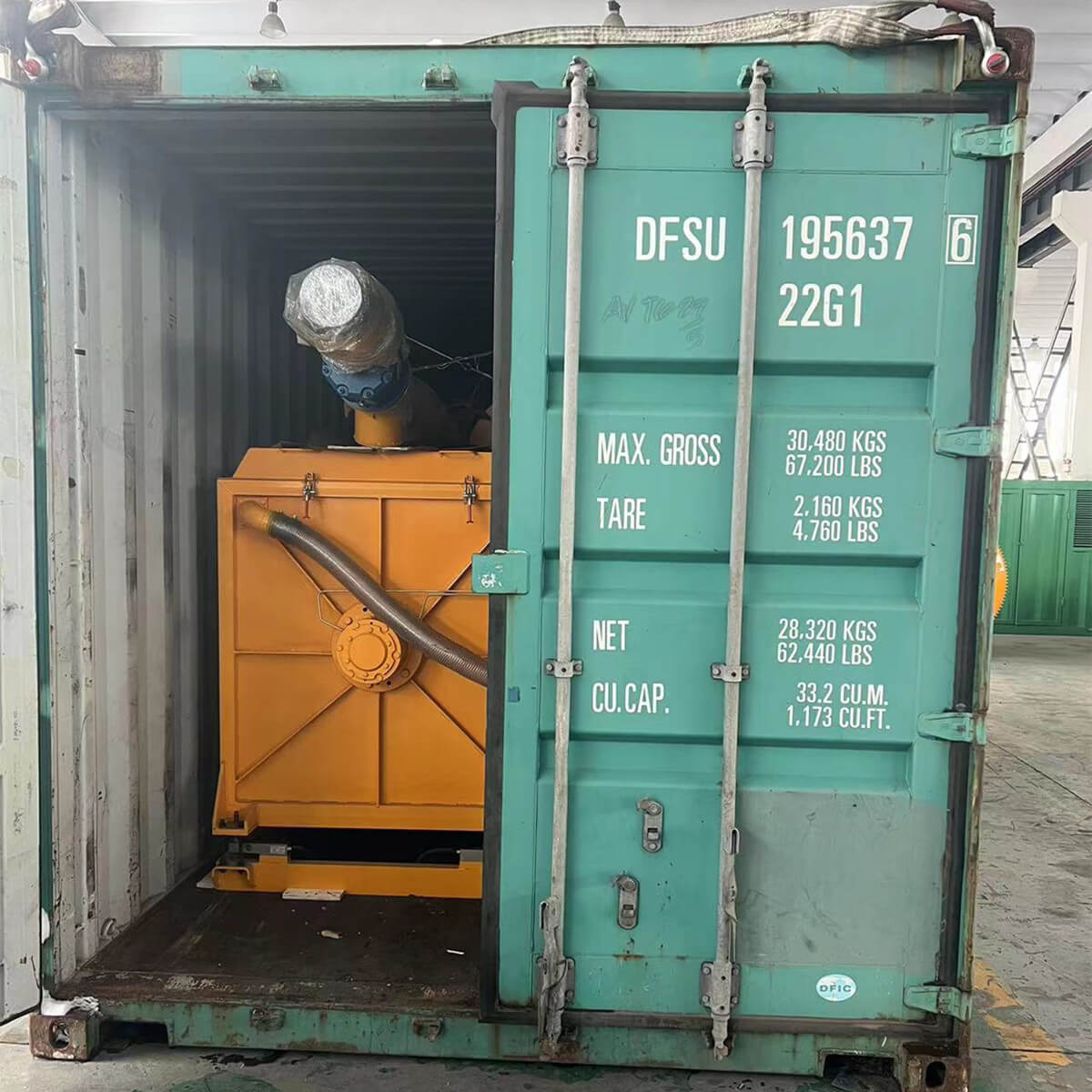

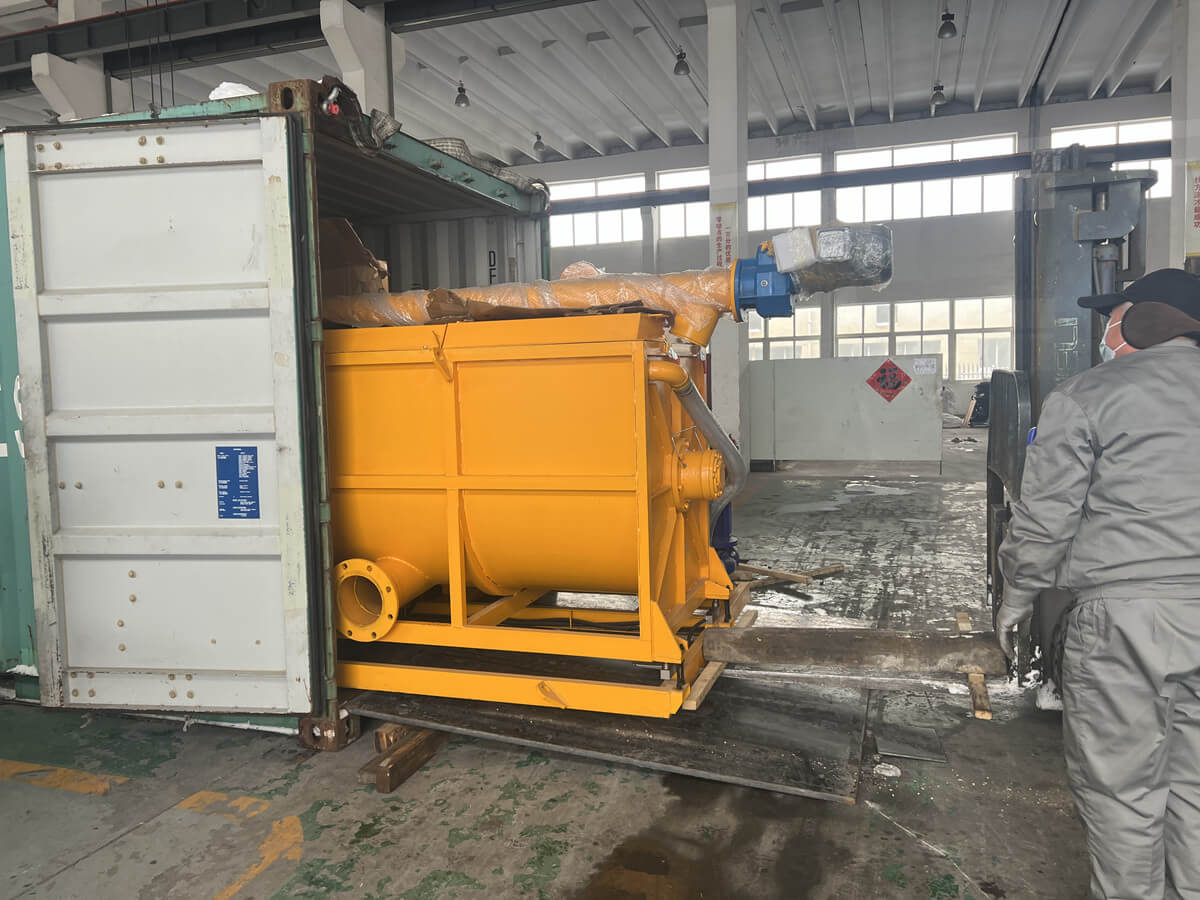

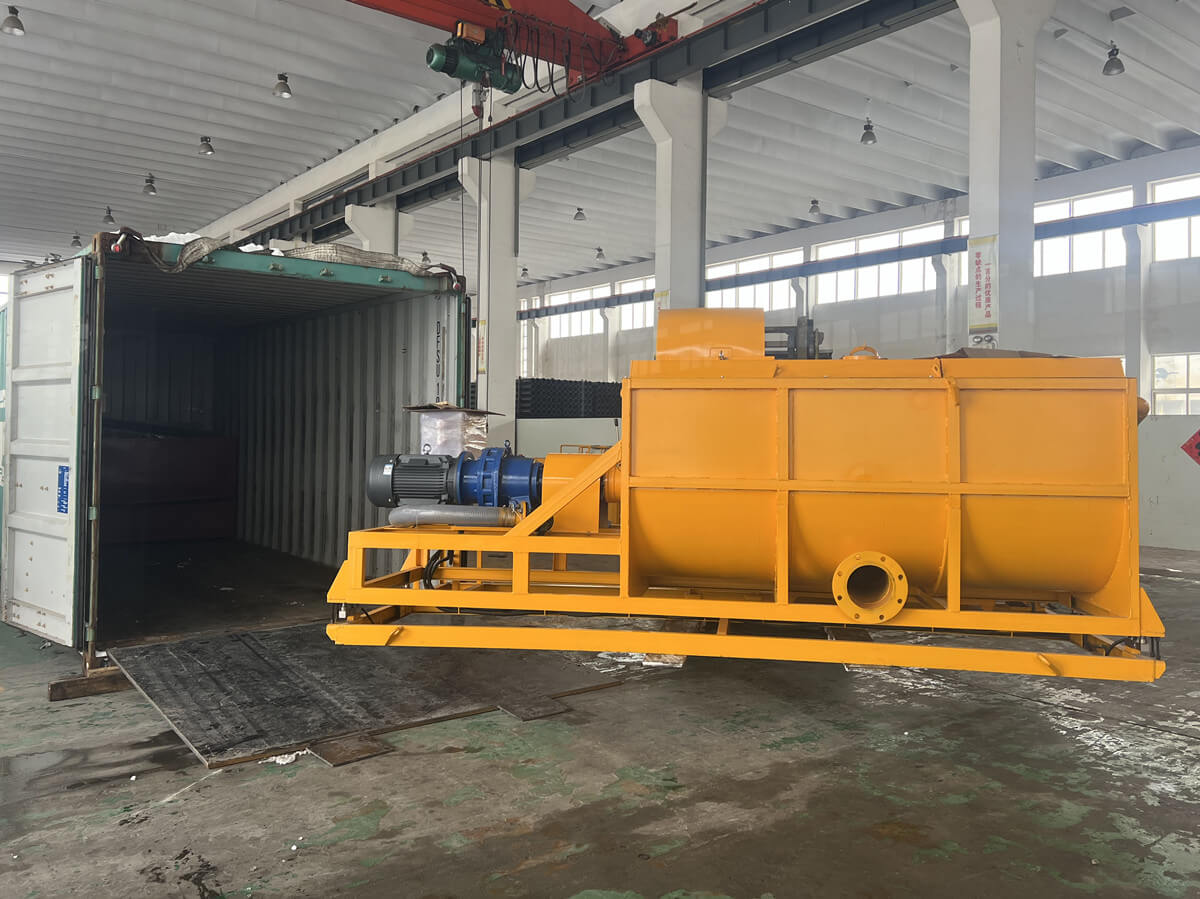

GM2000 Foam concrete mixer with auto-weighing system package and shippment:
