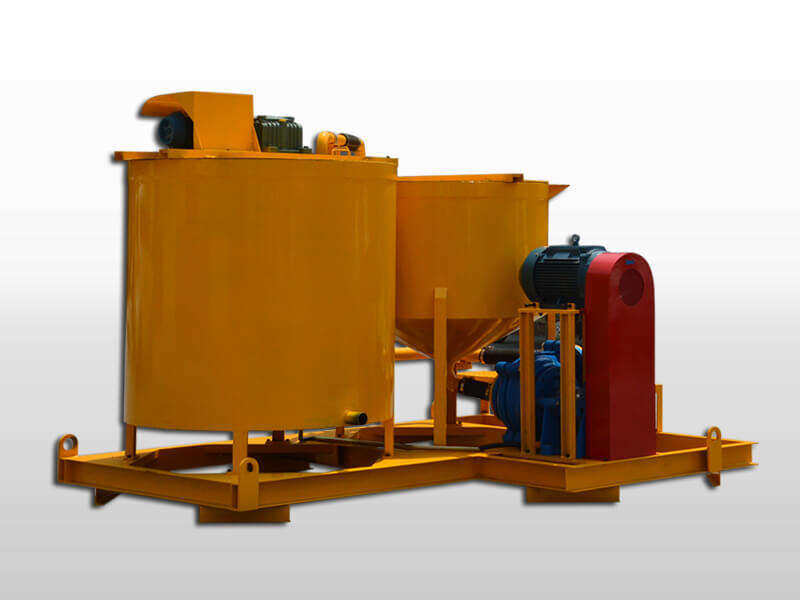

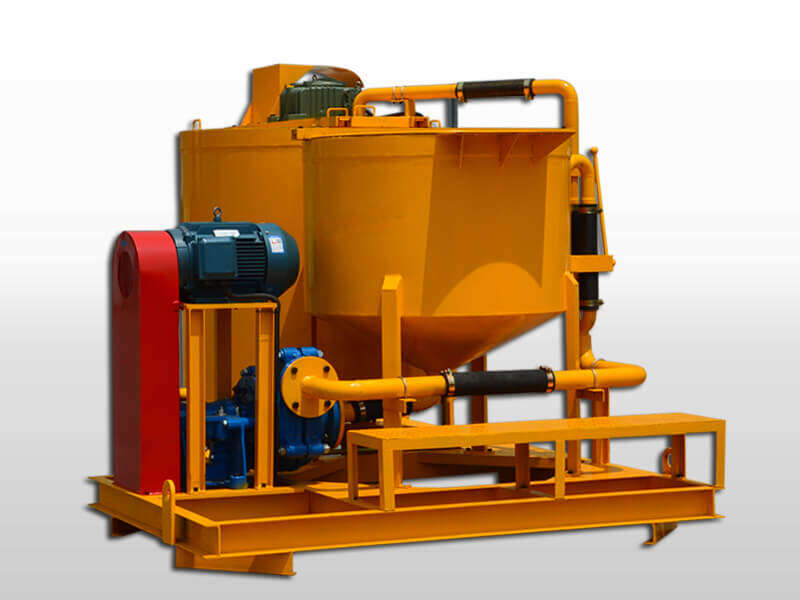

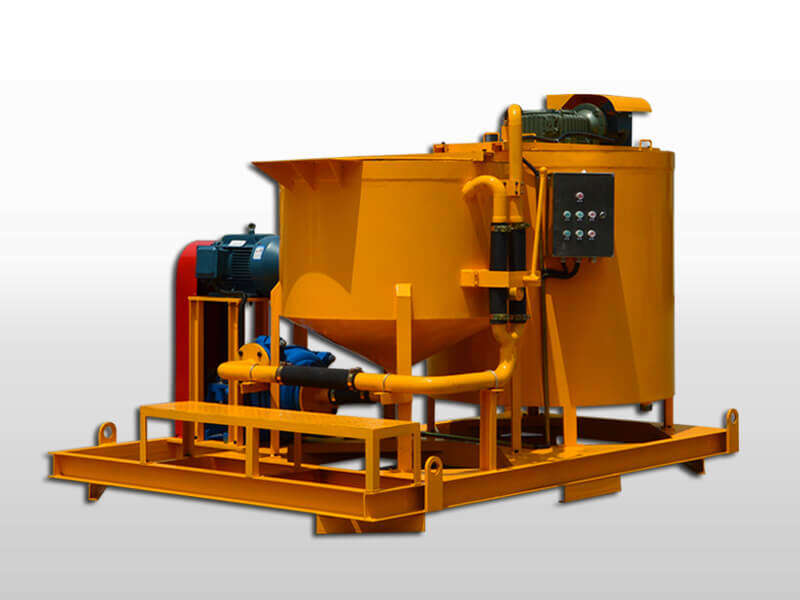

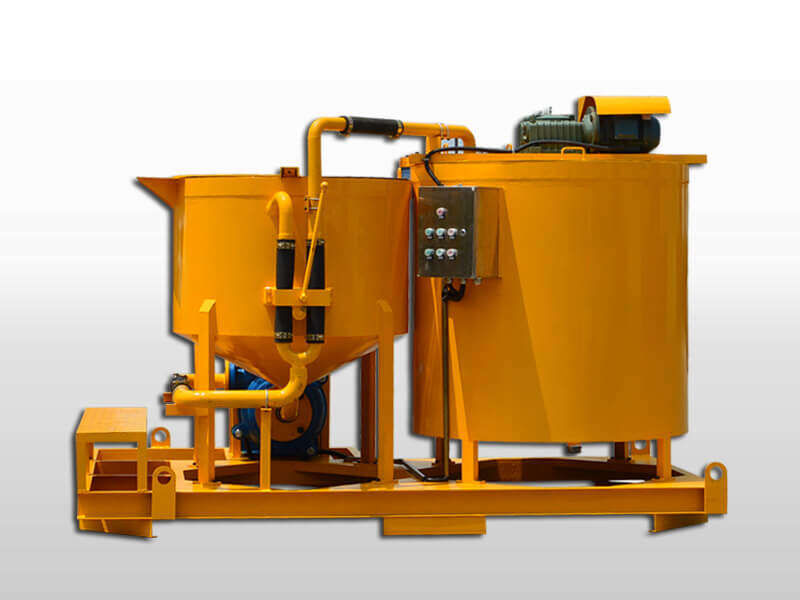

GMA750-1500E Grout turbo mixer with agitator

  • Output: 11~14m3/h
  • Mixer Volume: 750L
  • Agitator Volume: 1500L
  • Pump delivery output: 700L/min
  • Motor Power: 11+3 Kw
  • Overall dimension: 2850*2150*1970mm

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message
download:Catalogue
  • Grout turbo mixer agitator
  • grout turbo mixer with agitator
  • turbo grout mixer with agitator
  • grout cement slurry turbo mixer
  • cement slurry grout mixer
■ Description

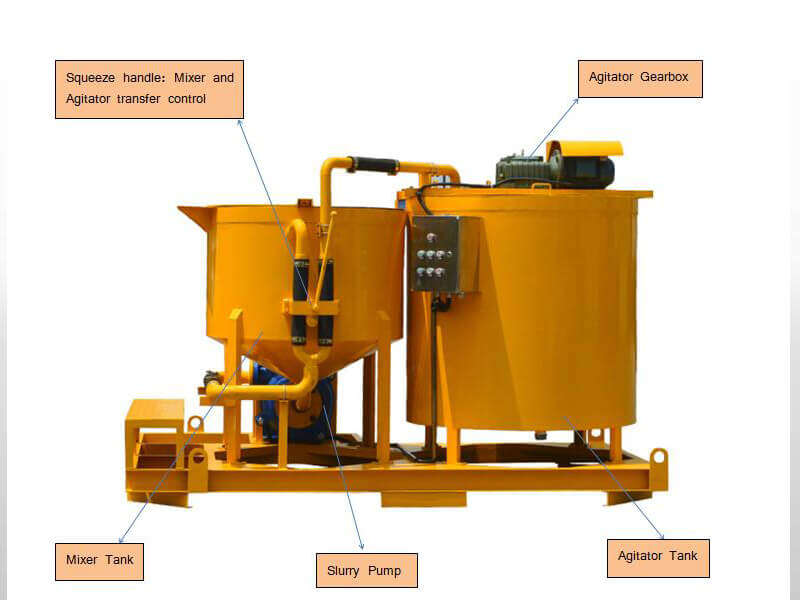

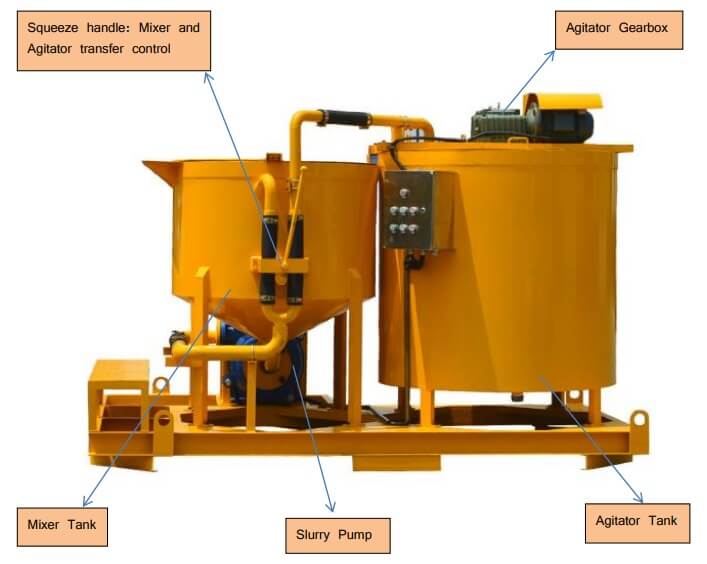

GMA750-1500E Grout turbo mixer with agitator is a combination consist of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame. The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time.
After mixing, this mixtures are pumped into the agitator tank with slow speed mixing paddles by the above same pump.

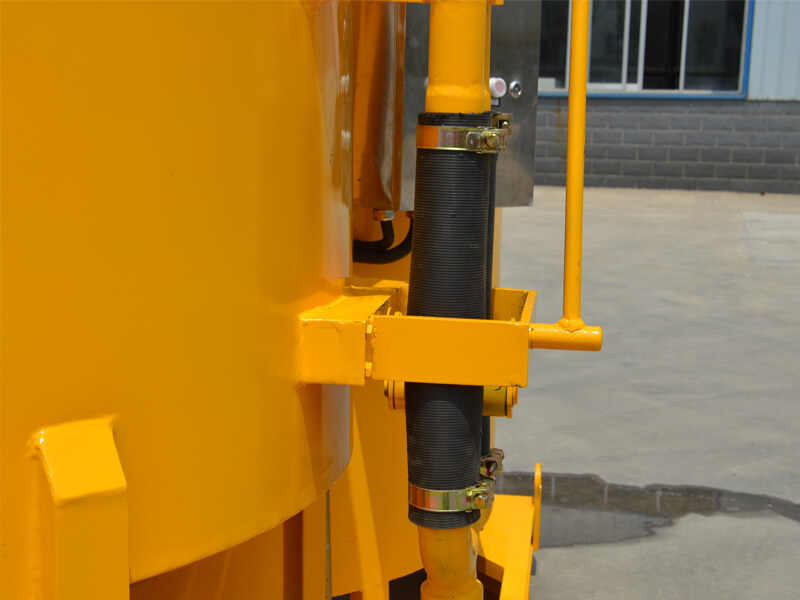

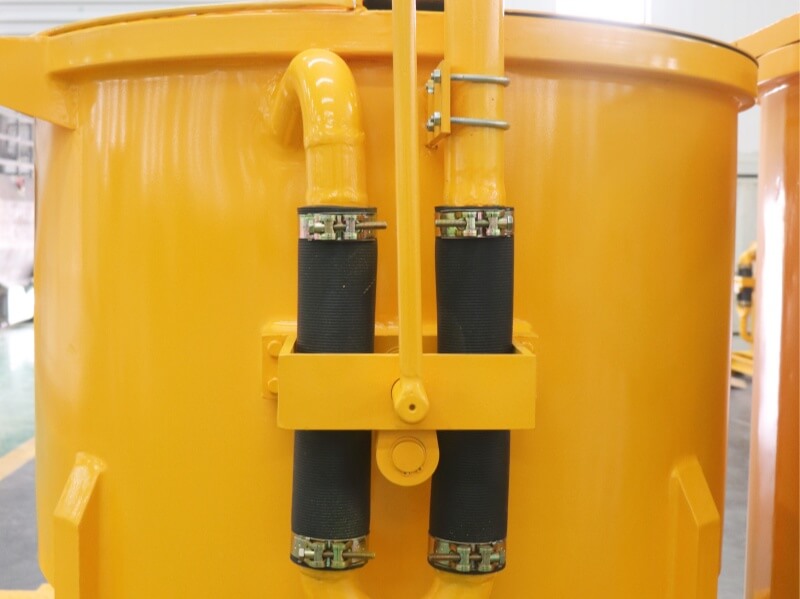

When the mixtures in mixer tank are completely pumped out, to shift the specially design handle valve to continue to mix the next cycle slurry.

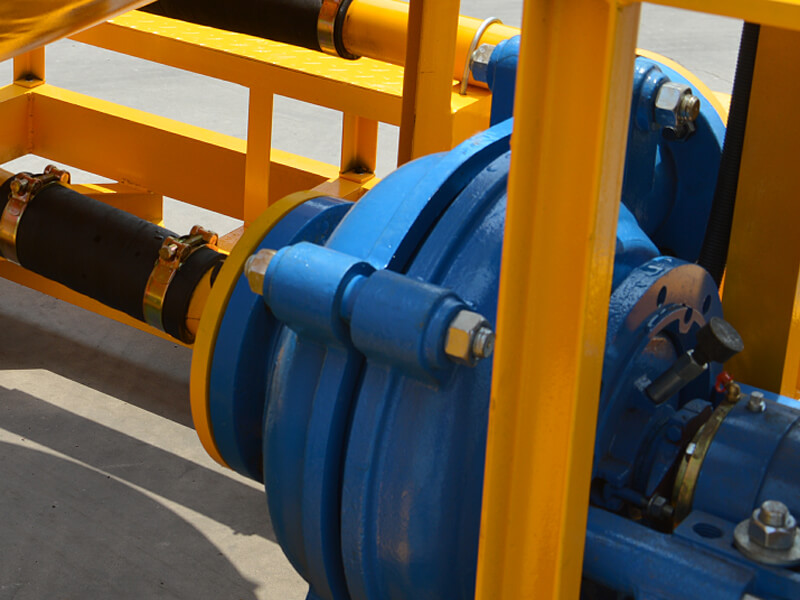

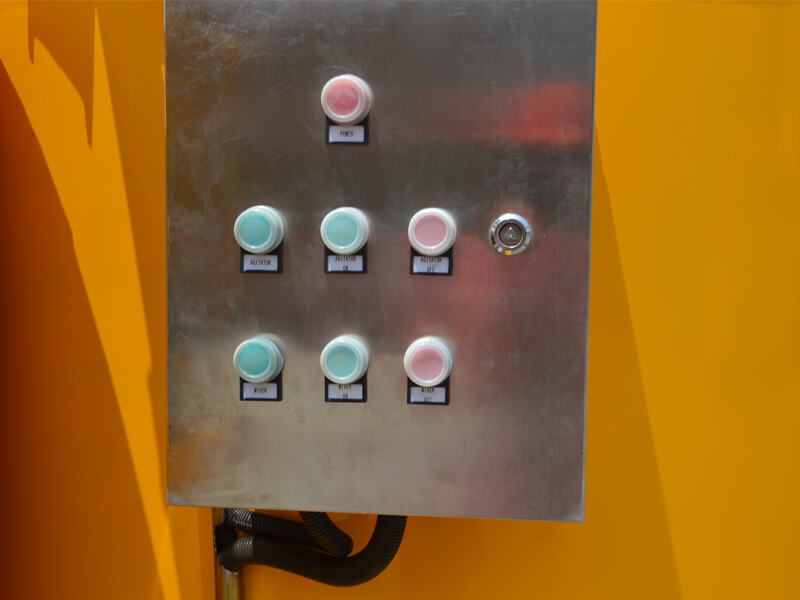

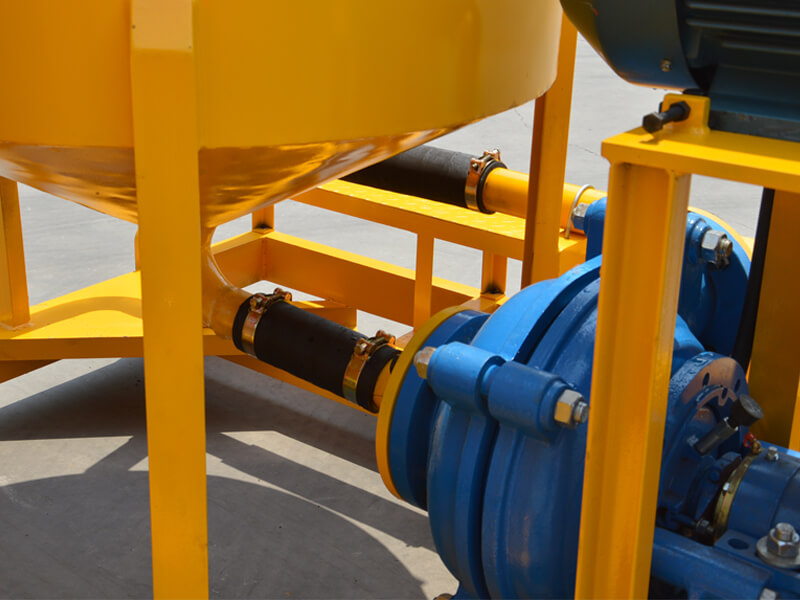

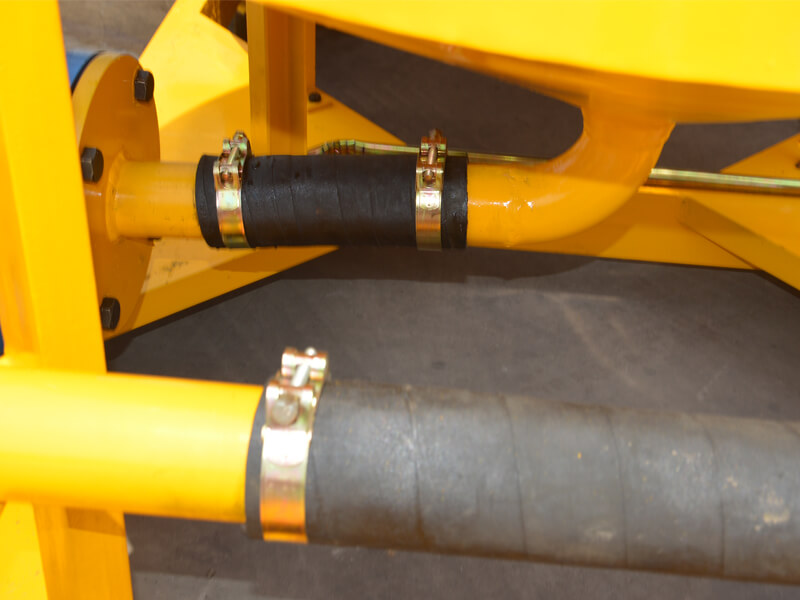

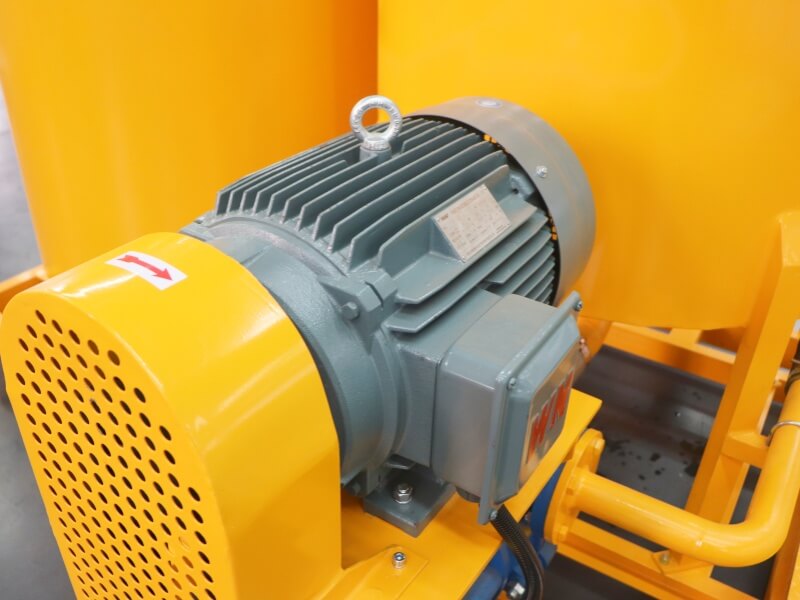

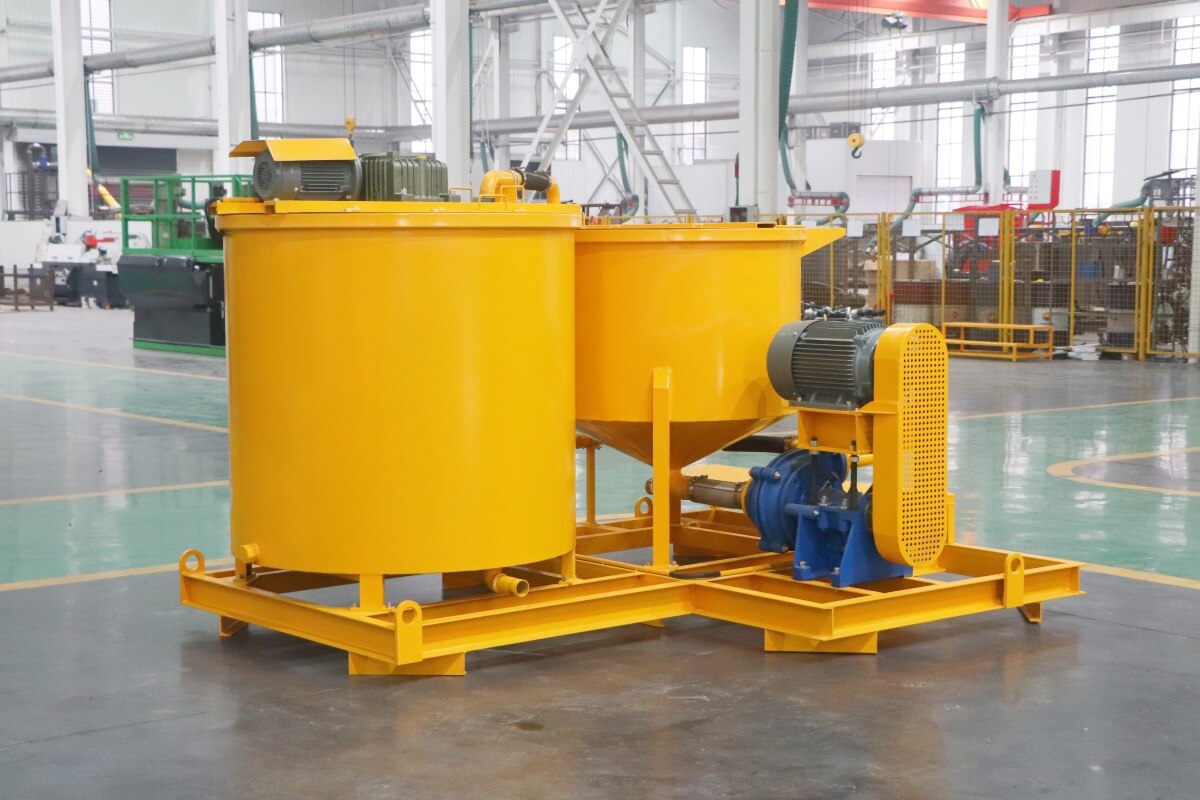

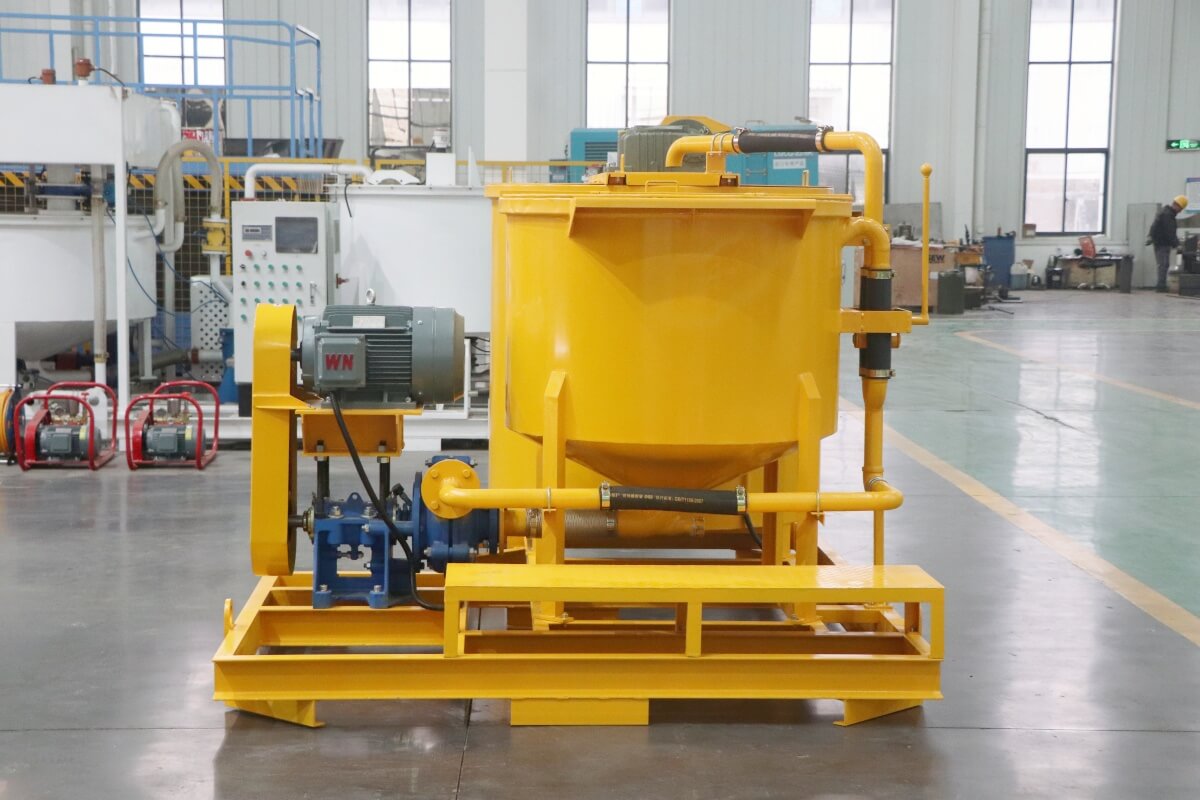

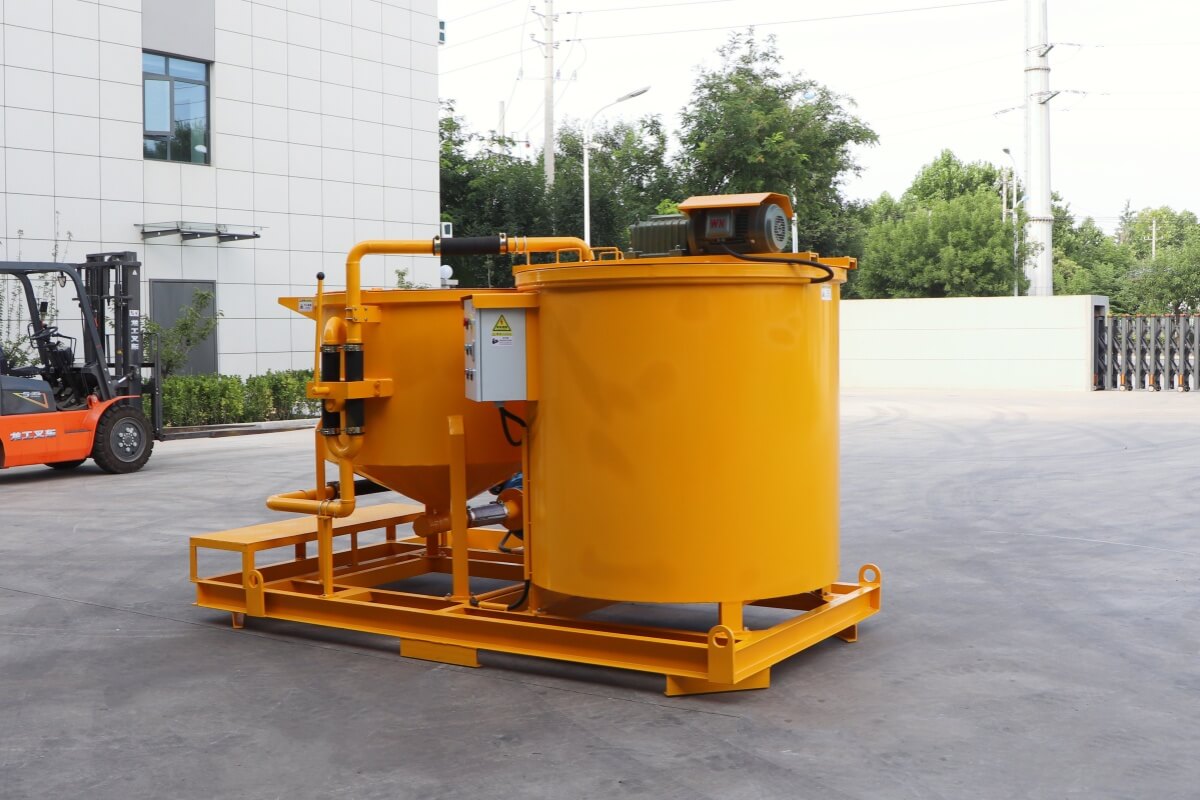

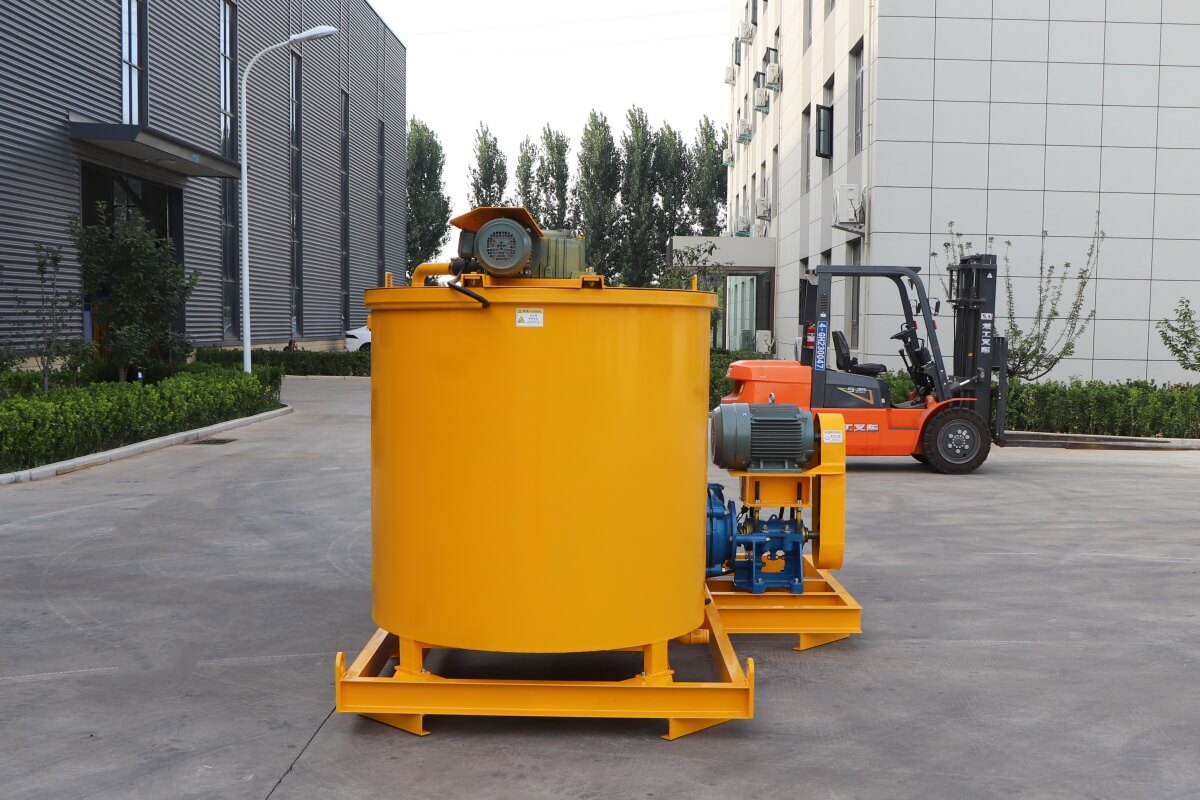

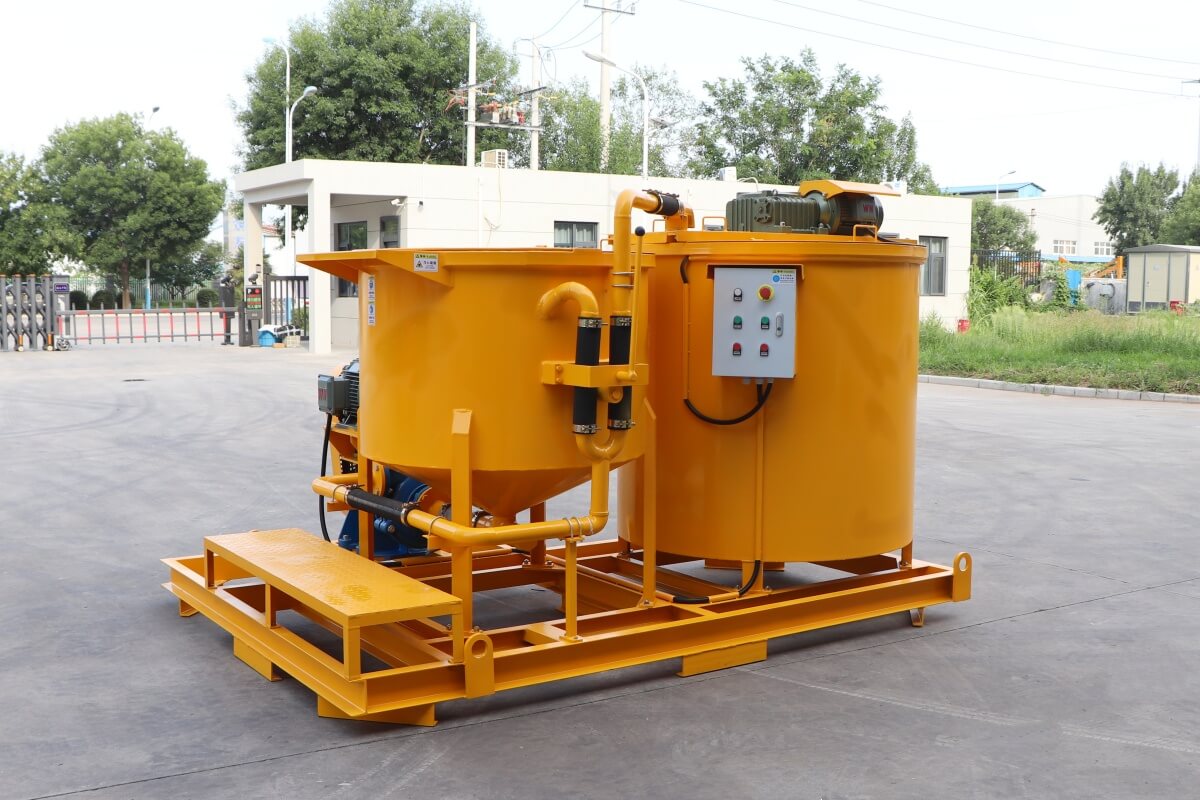

Details of GMA750-1500E Grout turbo mixer with agitator:

details of grout turbo mixer with agitator

continuous cement mixing and grouting pump

cement grout turbo mixer with agitator

cement grout turbo mixer

turbo cement grout mixer

electric grout turbo mixer
