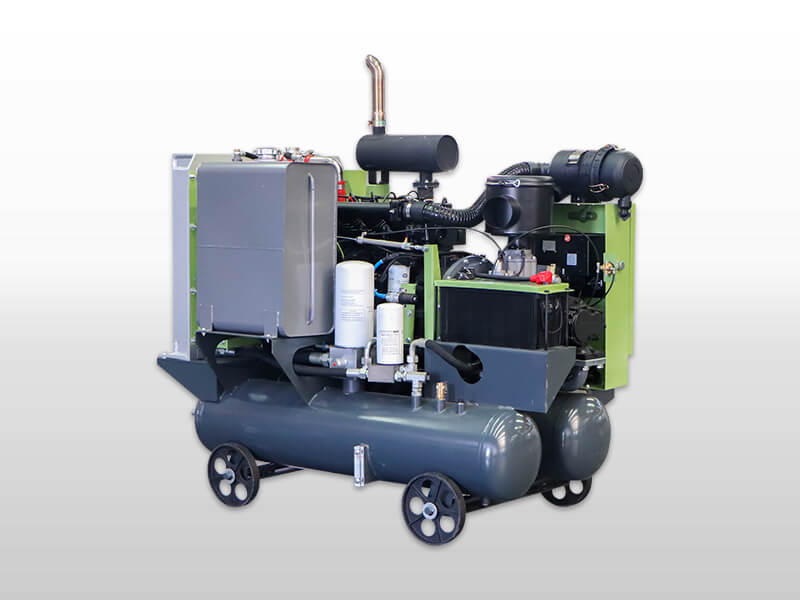

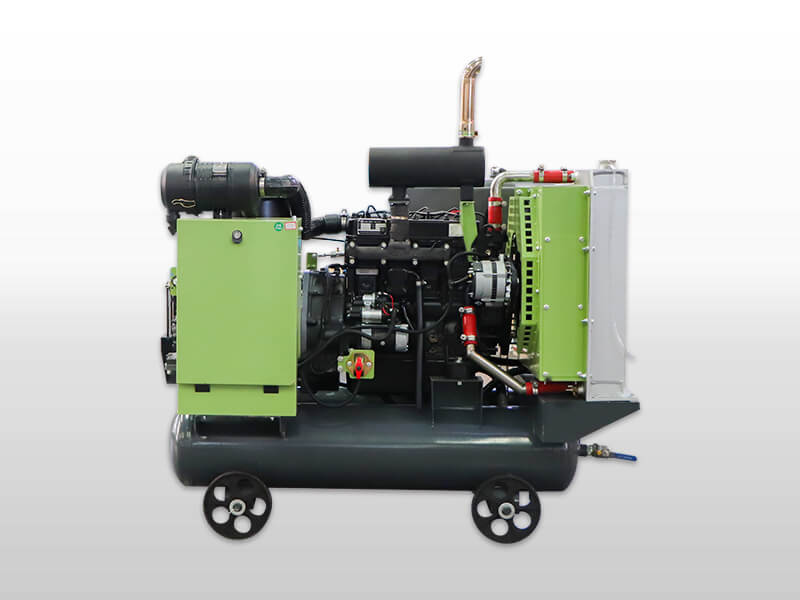

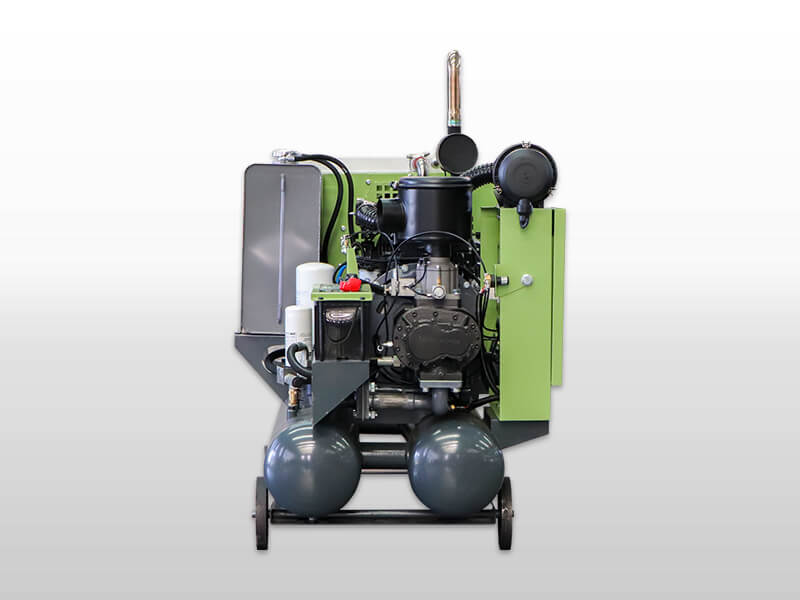

The 5 m³/min 8 bar diesel air compressor is a compact compressed air unit powered by a Chinese-made diesel engine. Delivering approximately 177 CFM at 116 PSI, it provides an independent air source for compatible pneumatic tools, surface preparation equipment, and construction machinery where electrical power is unavailable.

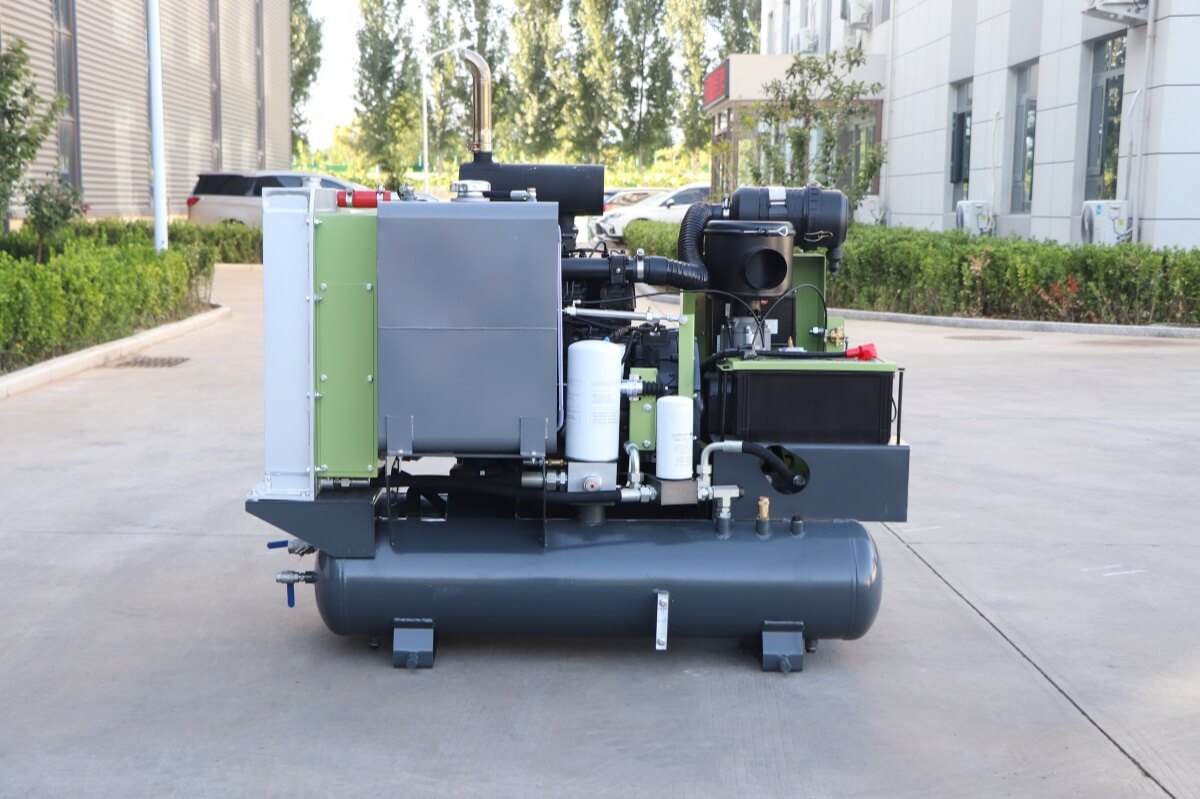

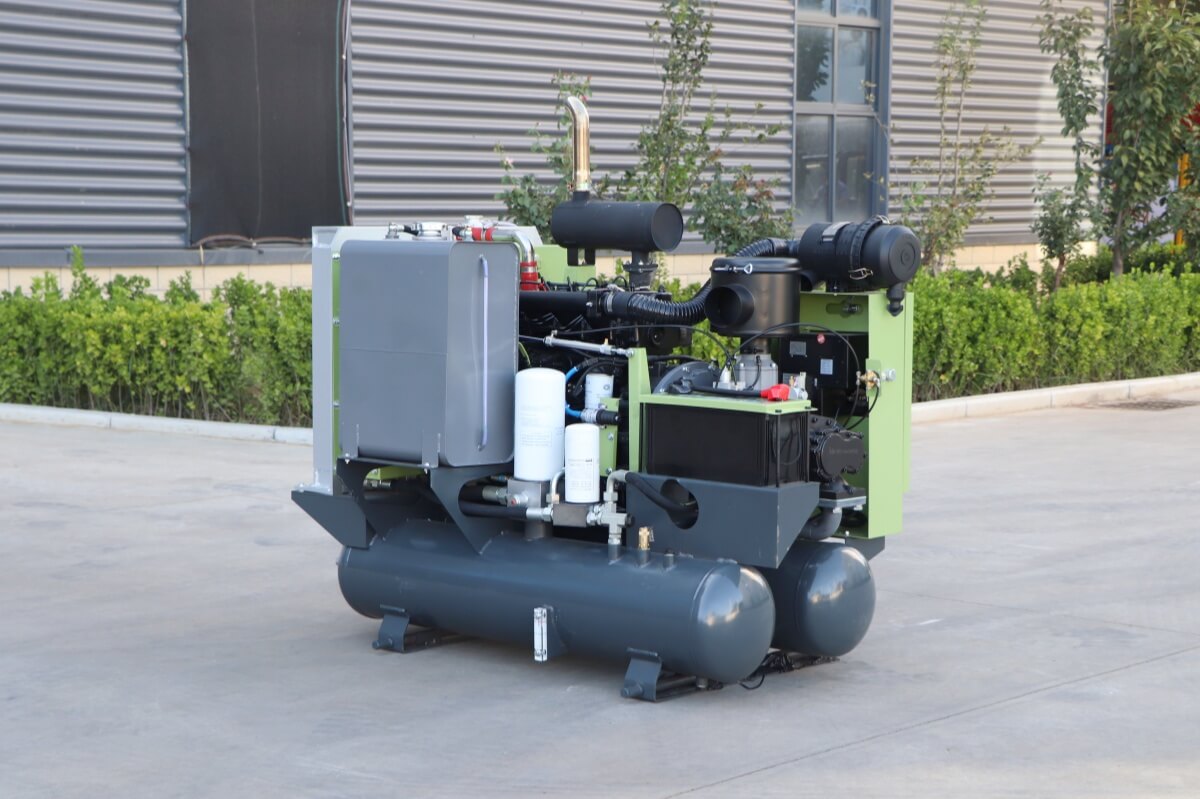

The open-frame design keeps key components accessible for inspection and routine maintenance. A wheeled base allows repositioning over firm, level surfaces, while the integrated layout brings the engine, compressor components, cooling assembly, and pipework together in one unit.



Measuring 1700 × 1120 × 1600 mm with a net weight of 505 kg, this diesel engine air compressor is suitable for contractors seeking a compact air supply for outdoor construction, equipment maintenance, and small-scale pneumatic operations.

1. Pneumatic Construction Tools: Supplies compatible jackhammers, chipping hammers, and other air-powered tools for concrete repair and general construction work.



2. Small-Scale Abrasive Blasting: Provides compressed air for compatible blasting equipment used in rust removal and surface preparation. Nozzle size and pressure requirements determine suitability.

3. Pneumatic Rock Drilling: Supports compatible air-powered rock drills within the available airflow and pressure range.



4. Small Shotcrete and Refractory Gunning Equipment: Can serve as an air source where the machine’s specified air consumption and pressure requirements match the compressor output.



5. Outdoor Maintenance Work: Provides compressed air for pneumatic maintenance tools at sites without a convenient electrical supply.



For equipment matching, consider total air consumption, simultaneous tool use, hose length, and pressure losses.

Powered by a Chinese-made diesel engine, the compressor operates without an external electrical connection. It is suitable for outdoor worksites and projects where grid power is limited.





The specified airflow and working pressure provide an air source for compatible pneumatic equipment. Approximately 177 CFM of air delivery supports tool selection based on actual consumption and operating pressure.

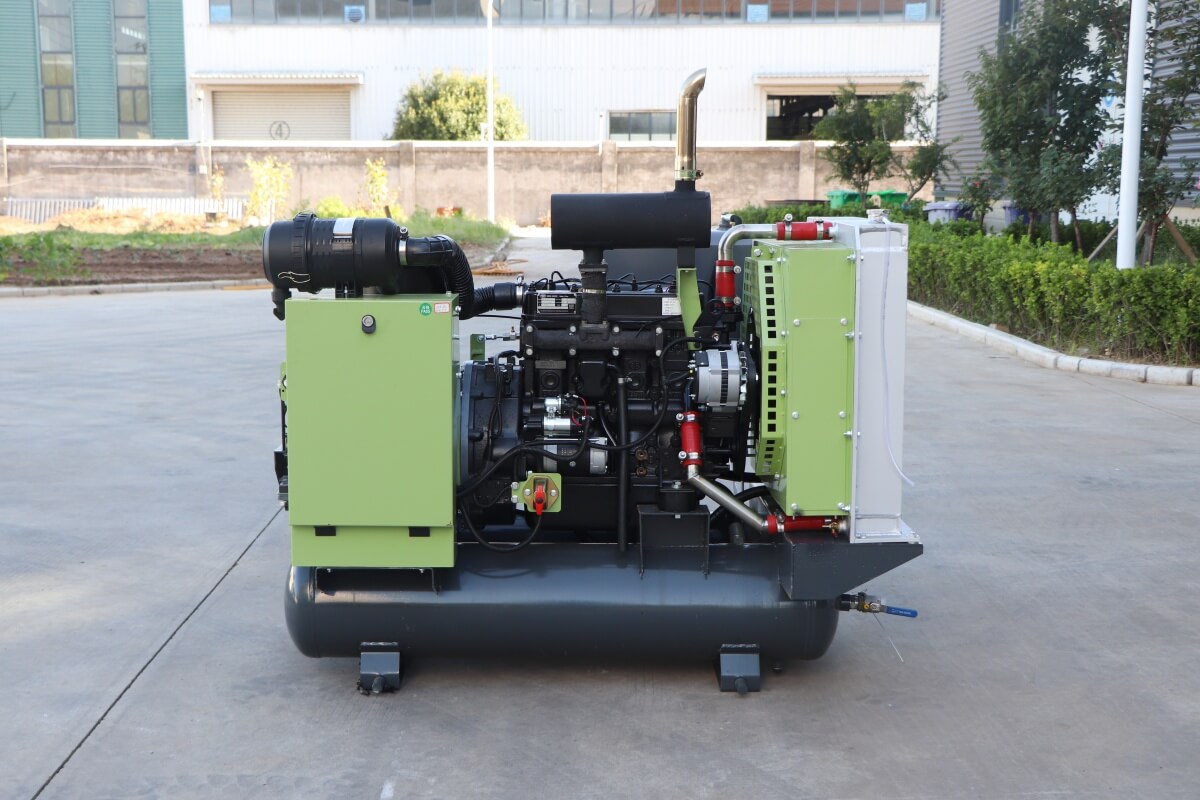

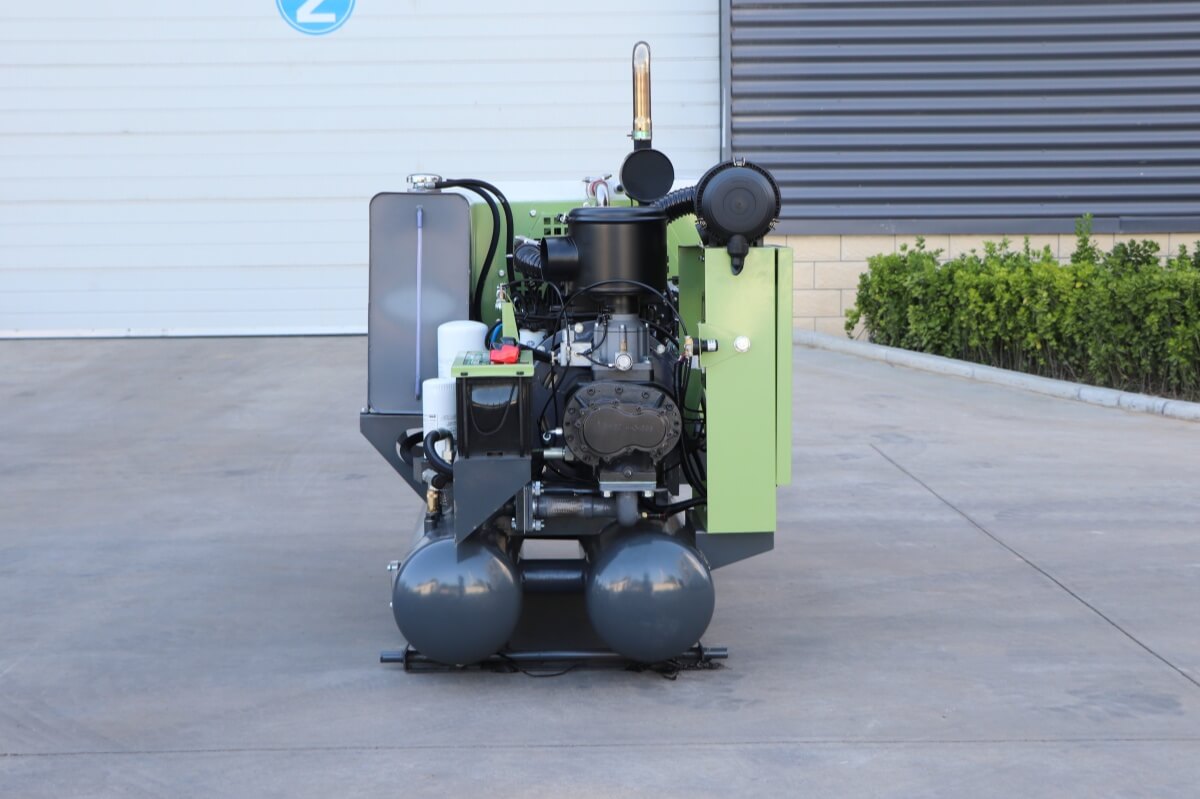

The exposed component layout provides access to filters, hoses, pipe connections, and engine components. This arrangement helps operators carry out visual inspections and routine servicing.

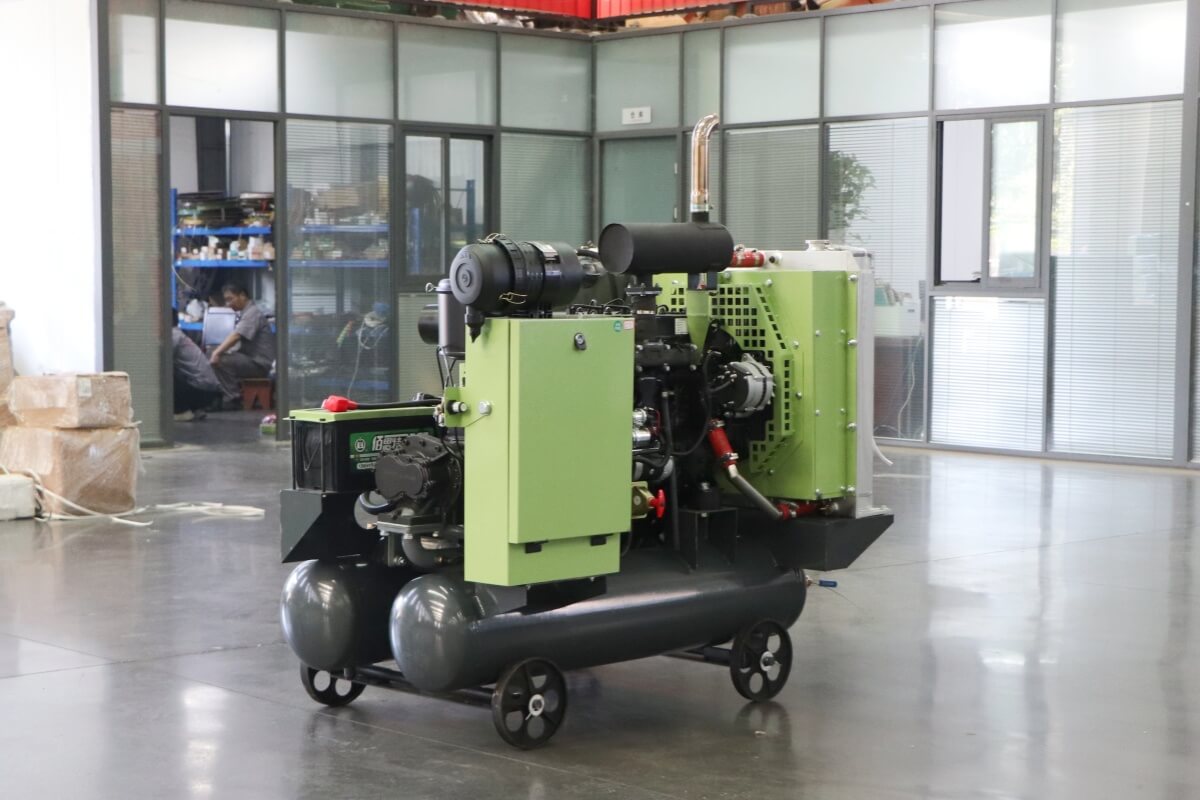

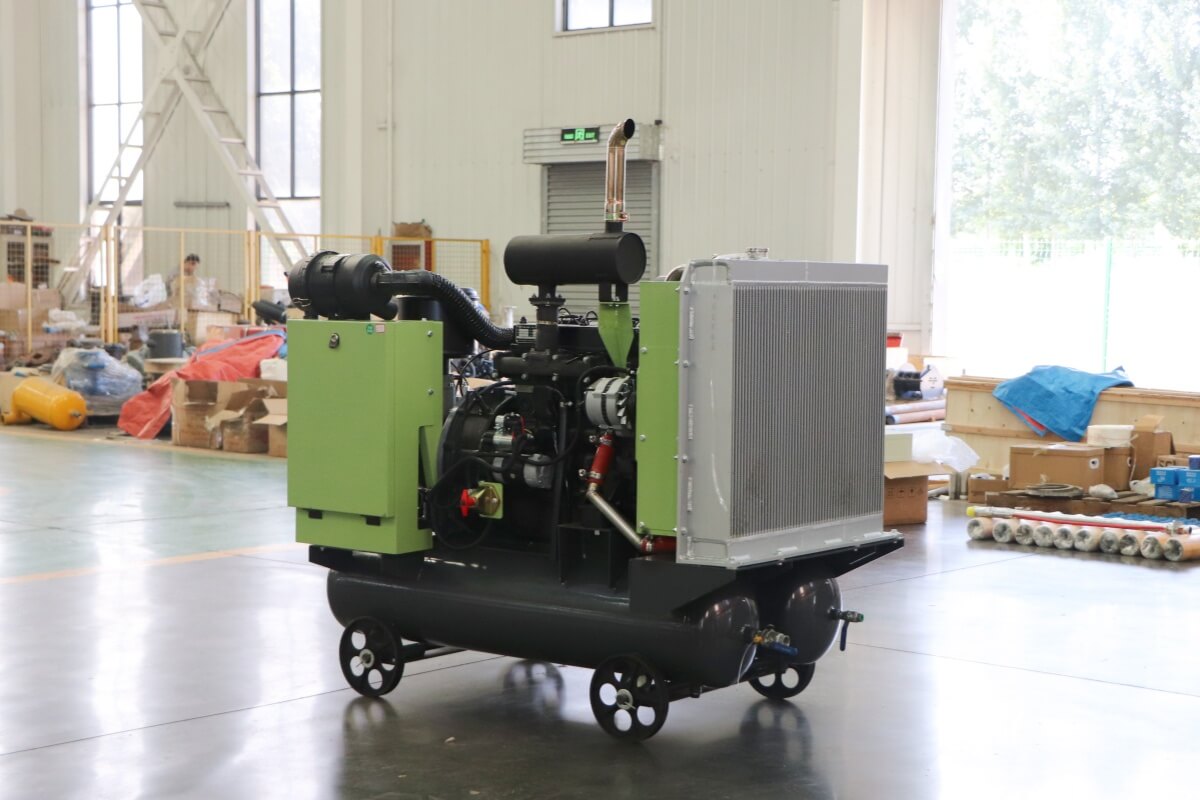

Small wheels support local repositioning on firm, level ground, making it easier to adjust the equipment location within a suitable work area.

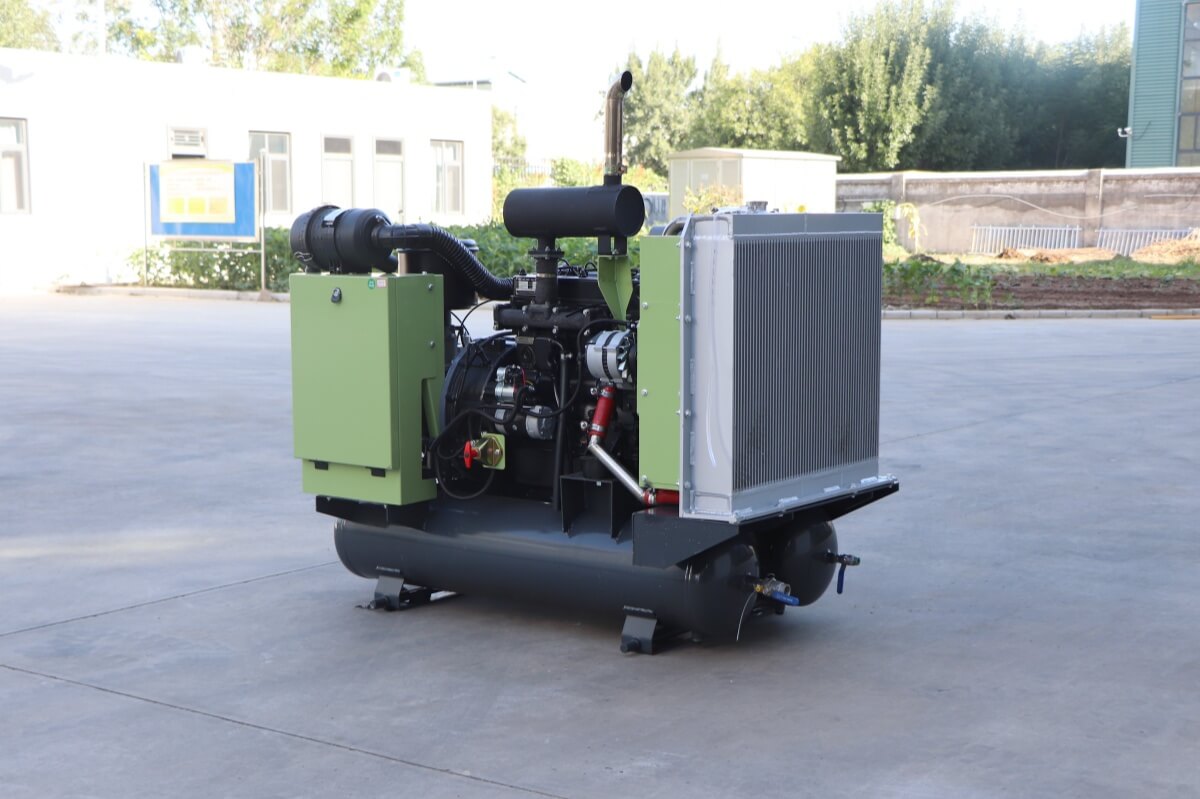

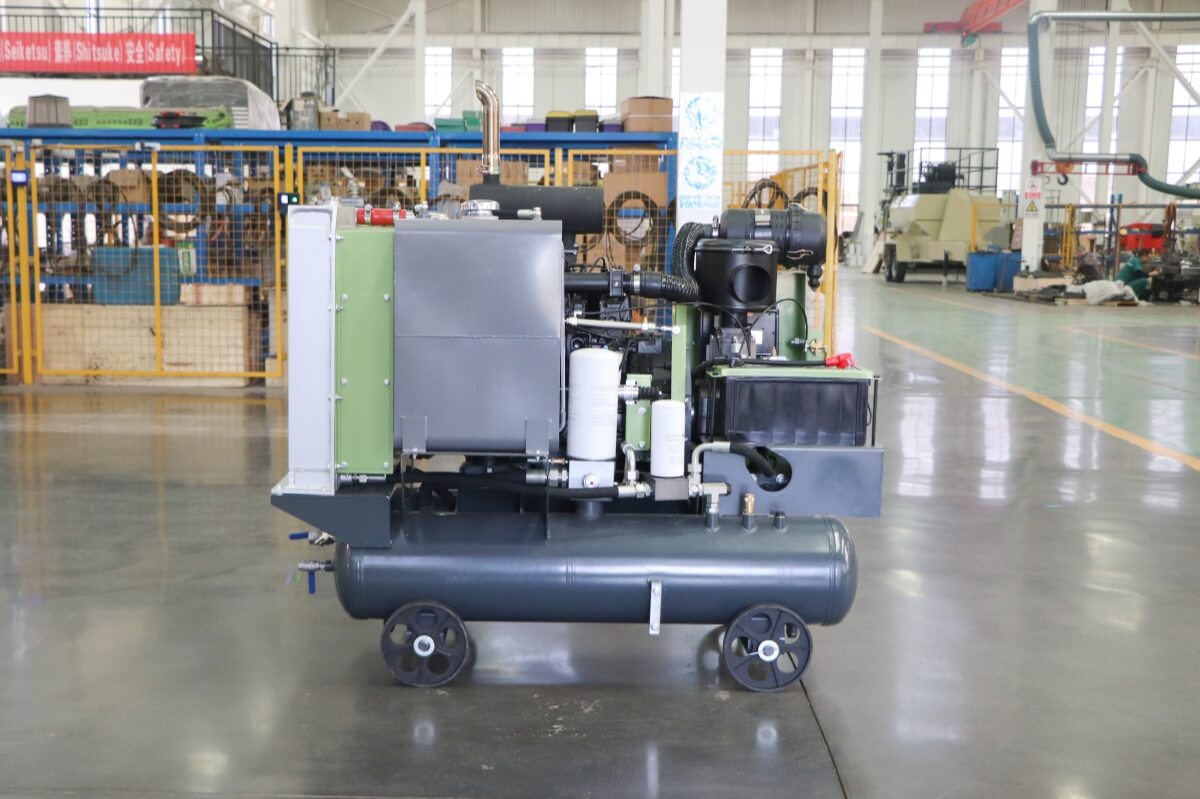

The engine, cooling assembly, and compressor components are arranged within a single frame. Overall dimensions of 1700 × 1120 × 1600 mm help simplify equipment placement and transport planning.

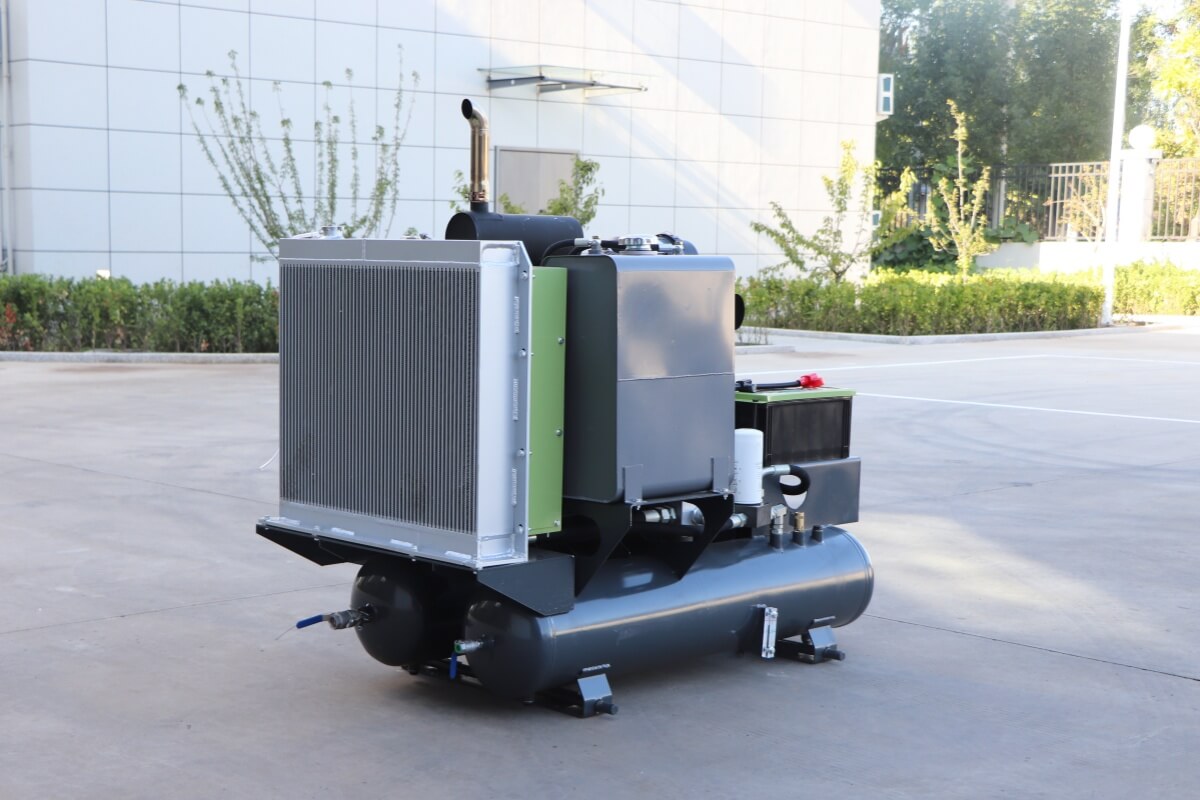

The externally accessible radiator and cooling surfaces can be inspected and cleaned as part of routine maintenance. Clear airflow around the unit should be maintained during operation.

Parameter	Specification
Product Name	Diesel Air Compressor
Drive Type	Diesel Engine Driven
Engine	Chinese-Made Diesel Engine
Air Delivery	5 m³/min
Equivalent Air Delivery	Approximately 177 CFM
Working Pressure	8 bar / 0.8 MPa
Equivalent Working Pressure	Approximately 116 PSI
Structural Design	Open Frame
Base Configuration	Wheeled Base
Overall Dimensions (L × W × H)	1700 × 1120 × 1600 mm
Net Weight	505 kg
