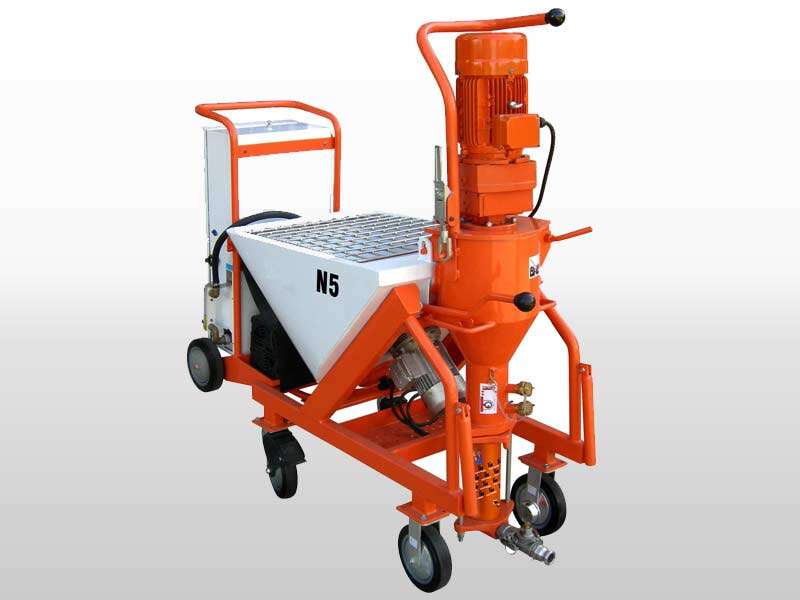

GD-N5 plastering machine is a small-size, dry-mixed mortar transfer pump, which is suitable for materials less than 5mm, such as ready-mixed dry mortar that can be pumped. GD-N5 can be your spraying machine if it is equipped with our small-size air compressor, spray gun or relative accessories.

Suitable for materials less than 3mm, such as mortar that can be pumped, putty, paint, coating material and similar materials.

GD-N5 is composed of many independent components. The volume and handy design facilitate the transportation of the machine.

Voltage	380V 3 Phases
Pump motor	4kw,400rpm/min
Star wheel motor	0.75kw,28rpm/min
Conveying pressure	30bar
Conveying distance	0-50m
Conveying capacity	6-85L/min
Compressor capacity	1.5kw,0.25Nm3/min
Max. aggregate	3mm
Hopper capacity	85L
Net weight	380kg
Total weight	460kg
