Portable wire-line core drilling rig for sale

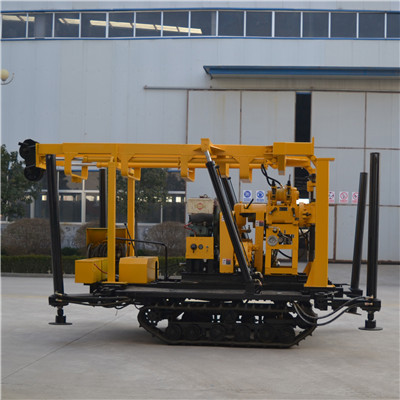

XYD-130 portable wire-line core drilling rig drilling depth can reach to 130m, and max. drilling diameter is 220mm. The final drilling diameter is 75mm. is equipped with crawler chassis device, easy to move with fast speed. And the crawler has two types for option: steel crawler and rubber crawler. Chassis with rubber track, it is light weight, and low life- cycle costs. It can reduce the noise of the vehicle walking agencies, reduce body vibration, also it can significantly reduce fuel consumption, walking in the city road does not hurt the road.

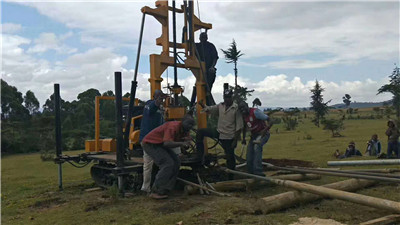

XYD-130 wire-line core drilling rig can be used for sampling of soil for investigating soil contamination. XYD-130 portable core drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in the concrete structure, river levees, subgrade grouting hole, drilling and direct grouting, civil well sand earth temperature central air-conditioner, etc.

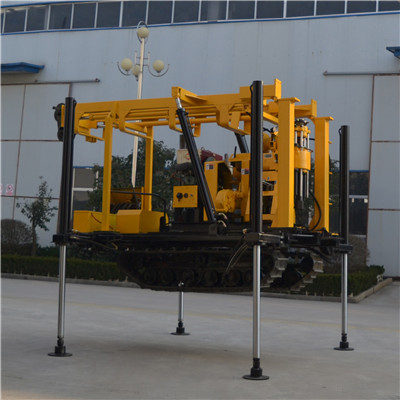

XYD-130 core drilling rig has a group of hydraulic valve control drilling tower supine, it saves time and effort, safe and reliable. Four high-strength threaded legs (or hydraulic high leg), it is fast and convenient to installation adjustment.

Gaodetec is the professional drilling rig and drilling tools supplier. If you want to know the portable wire-line core drilling rig for sale, please email us: info@gaodetec.com
