Shotcrete machine in Philippines

2018-04-18 17:59:26

Shotcrete machine for sale in Philippines is a kindly of spraying concrete machine, widely used for slope-protection, swimming pool etc. project. Accodrding to different to process, shotcrete machine philippines is divided into dry mix shotcrete machine and wet mix shotcrete machine.

For dry mix shotcrete machine, dry mix components (not including water) according to the design ratio ---directly feed the mix into hopper (by hand or by feeder)---compressed air introduced through air compressor conveys the mix to the nozzle through delivery hose---water is added to the mix at the nozzle—project the mix onto the sprayed surface under high velocity.

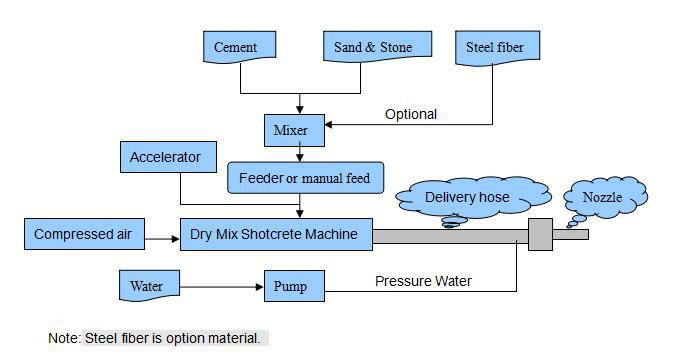

dry mix shotcrete machine process

Dry mix shotcrete machine process

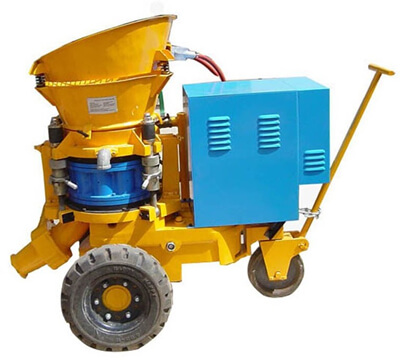

Dry mix shotcrete machine

For wet mix shotcrete machine Philippines, shotcrete components (including water) according to the design ratio ---directly feed the mix into hopper (by hand or by feeder)---compressed air introduced through air compressor conveys the mix to the nozzle through delivery hose---accelerator is added to the mix at the nozzle—project the mix onto the sprayed surface under high velocity.

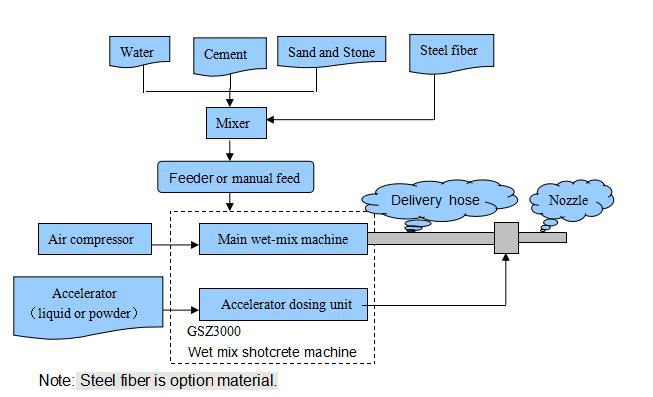

wet mix shotcrete machine process

Wet mix shotcrete machine process

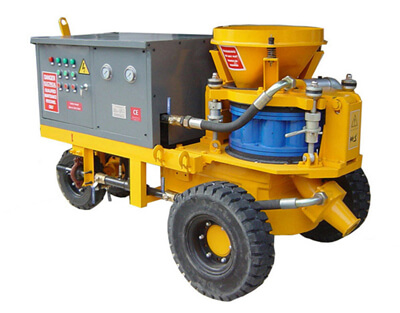

Wet mix shotcrete machine

According to working conditions, electric motor, air motor, and diesel engine shotcrete machine is provided for client. For some remote project, inconvenient to receive the electric supply, client could choose air motor and diesel engine for project. Gaode shotcrete machine belong to thin flow type shotcrete machine, only add compressed air in the cyclone, have better spraying effect.
