Mud pump for well drilling for lifting drill cuttings

2021-12-27 17:13:00

Characteristics of mud pump for well drilling for lifting drill cuttings:

Mud pump for lifting drill cutting, two-cylinder, double-acting, drive with built-in gear reducer and are designed to discharge washing liquid (water, mud) in the hole in exploration and stratigraphic drilling for oil and gas. Mud pumps are also widely used in the food, chemical, and construction industries for pumping various non-aggressive liquids.

mud pump for lifting drill cuttings


When drilling, use mud pump for well drilling for supplying washing liquid. To operate this pump may be at different temperatures (from-50 C to +40 C). The washing liquid may be water or various emulsion, a basic requirement for which is: Density, viscosity, the amount of sand, the number of cuttings.
Mud pump for well drilling for lifting drill cuttings is equipped with ball valves pump well drilling used mud pump can be used for pumping a variety of complex solutions, which must have certain parameters: Density, viscosity, solid particles in the composition.
Mud pump for well drilling deep hole drilling hydraulic plunger triplex heavy duty slurry pump

Mud pump for lifting drill cuttings is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide a coat to the wall, to lubricate the drilling tools, and to carry the rock debris up to the ground.

Well drilling used mud pumps are mainly used for irrigation agricultural machinery. the main character is the high pressure, lift much, less energy consumption, easy operation, high quality and durable, easy to move, especially for mountain terraces of irrigation.

Mud pump for lifting drill cuttings is a horizontal triplex single-acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application, the deepest can be used with an 1800meters drilling rig, it also can be used cement perfusion.

They are also the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid(mud or water), making it circulate during drilling and carry rock waste back to the ground, in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

Specification of mud pump for well drilling for lifting drill cuttings:
Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engineer

specification of mud pump

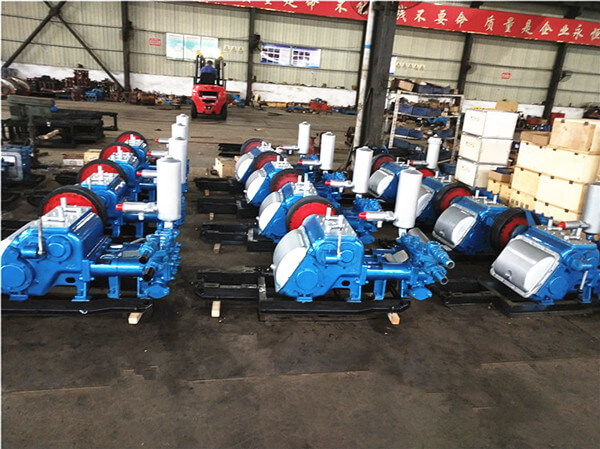

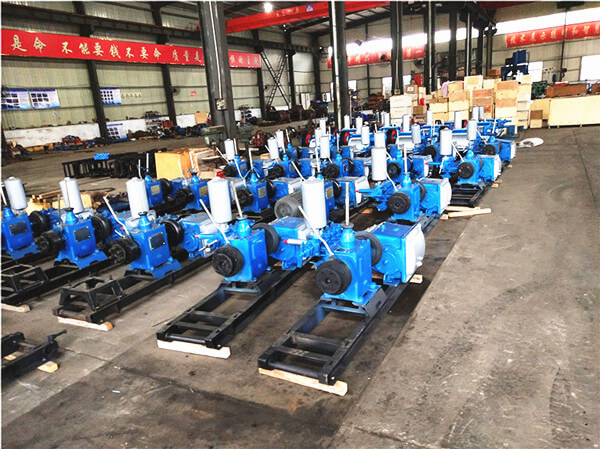

Packing & Delivery of mud pumps:


mud pump for well drilling


In our after-sales service system, We establish a perfect control system strictly according to the ISO-9000 series, in this system, technology date, and problem solving solutions and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after-sales service begins from the order confirmation, last for the working life of the equipment.
