Foam concrete machine for ground heating backfilling

2022-01-23 10:44:15

We are a foam concrete machine for ground heating backfilling manufacturer. We are engaged in the research and development, production and sales of foam concrete machine. After years of technological development, we have developed the different models of foam concrete machine. If customers have any special needs, we can provide customized services.

Take GF10 foam cement machine for ground heating backfilling as an example:
GF10 is a middle-size foam concrete machine for ground heating backfilling which is simple in operations, low cost, mobile, integrated system for mixing, foam-generating and pumping. It has the features of continuous feeding of material, water supply system, low power requirement and higher pumping height.

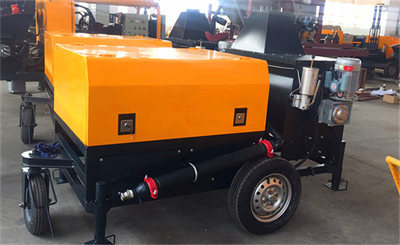

foam cement device for floor heating backfilling


Technical data of GF10 foam cement machine:
1. The max theoretical output of GF10 foam cement machine for ground heating backfilling is 10m3/h.
2. The mixer tank capacity of GF10 foam cement machine is 350L.
3. Its motor power is 7.7Kw.
4. Its theoretical vertical conveying is 40m, and its level transmission is 300m.

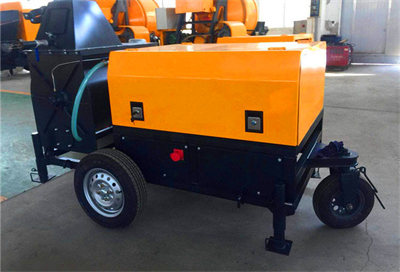

foam cement machine for floor heating and insulation


Working principle of GF10 foam cement machine:
There are two necessary factors for the formation of foam, one is the foaming agent solution, and the other is air, both of which are indispensable. Without the blowing agent solution, the liquid film surrounding the gas would not form, and there would be no bubbles. And without gas, foaming agent solution alone will not form bubbles.
In the bubble formation system, the foaming agent solution is the dispersion medium, the gas is the dispersed phase, and the gas is dispersed in the liquid to form bubbles, and then the foam is composed of numerous bubbles. In addition to the important factor of blowing agent performance, the introduction of gas into the blowing agent solution is another important factor. The introduction of gas into liquid must be done by a high quality foam concrete block production machine.

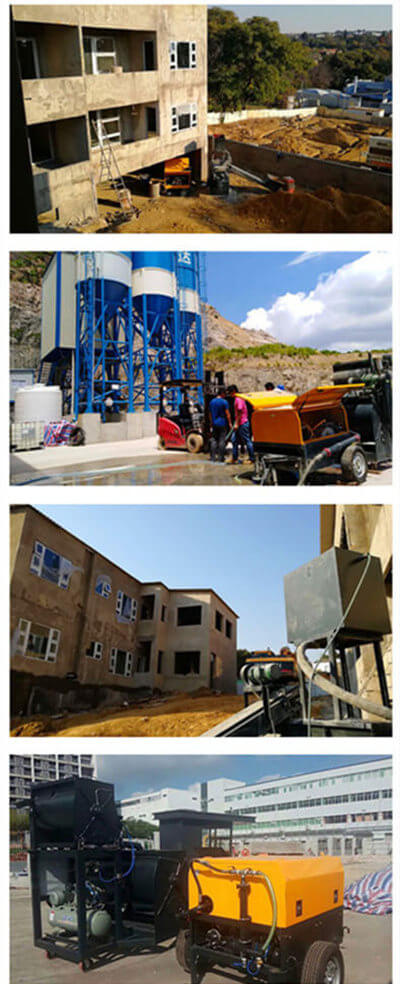

foam cement machine for ground heating backfilling


Features of GF10 foam cement machine:
1. Mixing system, foaming system and pump are designed as a whole body, it is easy to move.
2. It can automatically adjust the foam density.
3. Easy to control and operate.
4. Almost no wearing parts. Maintenance costs and usage costs are much lower.

Foam cement machine for ground heating backfilling is widely used in many industries, such as: small crafts casting, fire door core prefabrication, ground heating mortar filling construction, concrete foam insulation piecemeal engineering, cellular lightweight concrete machine cast-in-place, cement foaming machine for wall casting, wall filled foam concrete processing, etc.

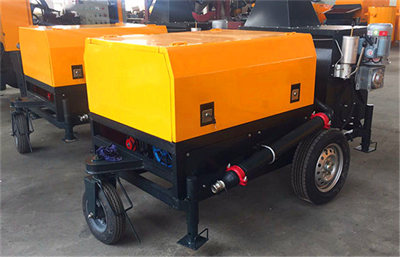

foam cement machine for backfilling


Contact us for foam concrete machine for ground heating backfilling price:
If you are interested in our foam concrete machine, we will recommend a suitable foam concrete machine for you. Please help us to confirm the following points:
1. What project you will use the machine do? Wall, floor, roof, or others?
2. What capacity do you need? 5m3/h, 10m3/h, 20m3/h or other?
3. What materials do you use to make foam concrete? Cement, foam agent, water?
4. What is the voltage at the construction site? 3phase, 380V, 50Hz are OK for you?

You can send your demands to our email, email address: info@gaodetec.com
