The high-pressure jet grouting pump is an innovative technology used for soil stabilization, foundation repair, and tunneling. It works by using ultra-high pressure fluids or binders, which are injected into the soil at high velocities, resulting in complete soil structure breakdown. This process then creates a homogeneous mass by mixing soil particles in situ, followed by solidification.

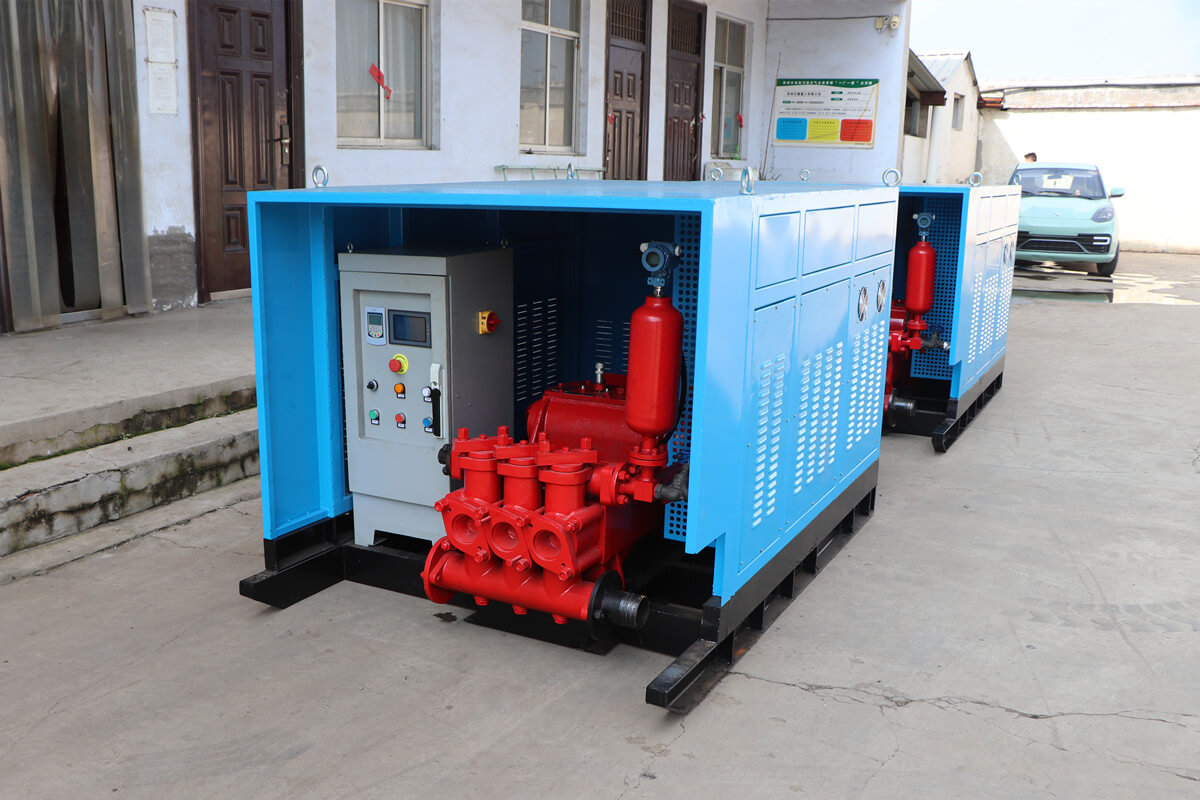

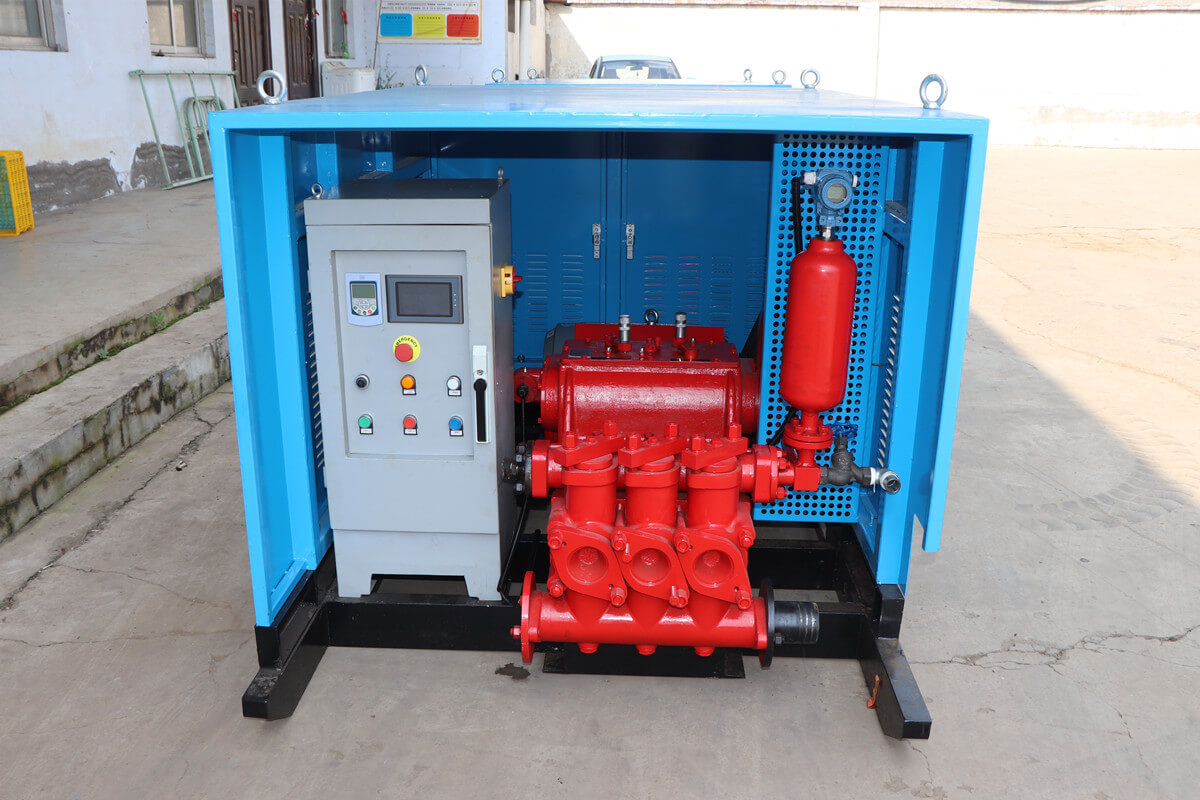

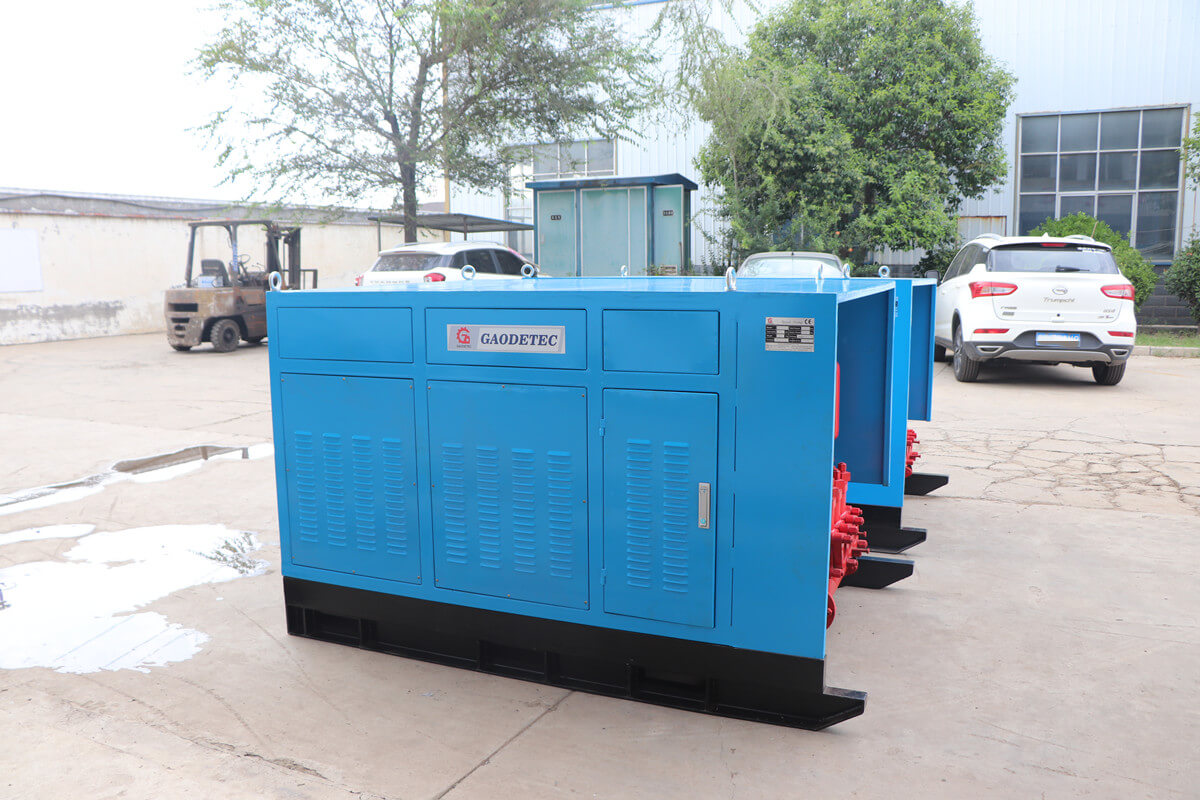

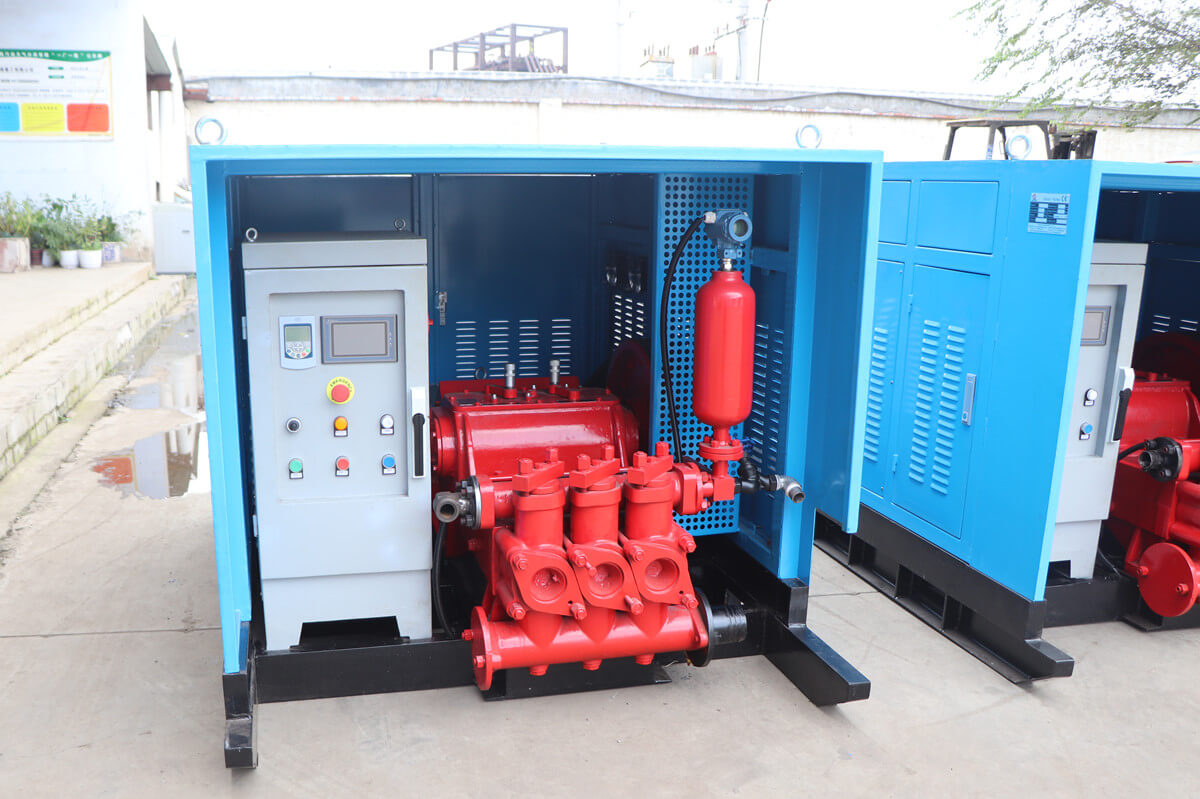

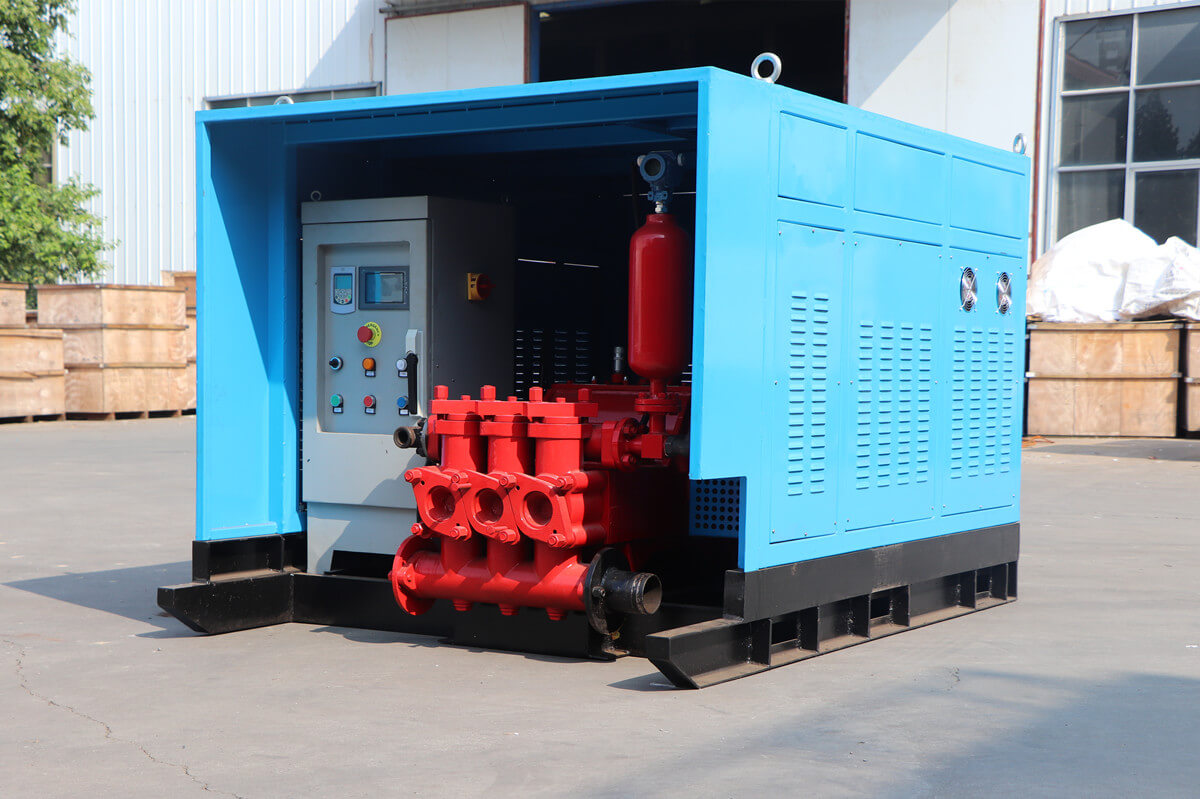

GGP440/50PI-22E High-pressure jet grouting pump for sale:

Model		GGP440/50PI-22E
Output capacity		440L/min
Rated Pressure		50bar
Motor Power		22Kw
Voltage		3 phase, 400 V, 50HZ
Weight		1365Kg
Dimension		2050x1370x1310mm

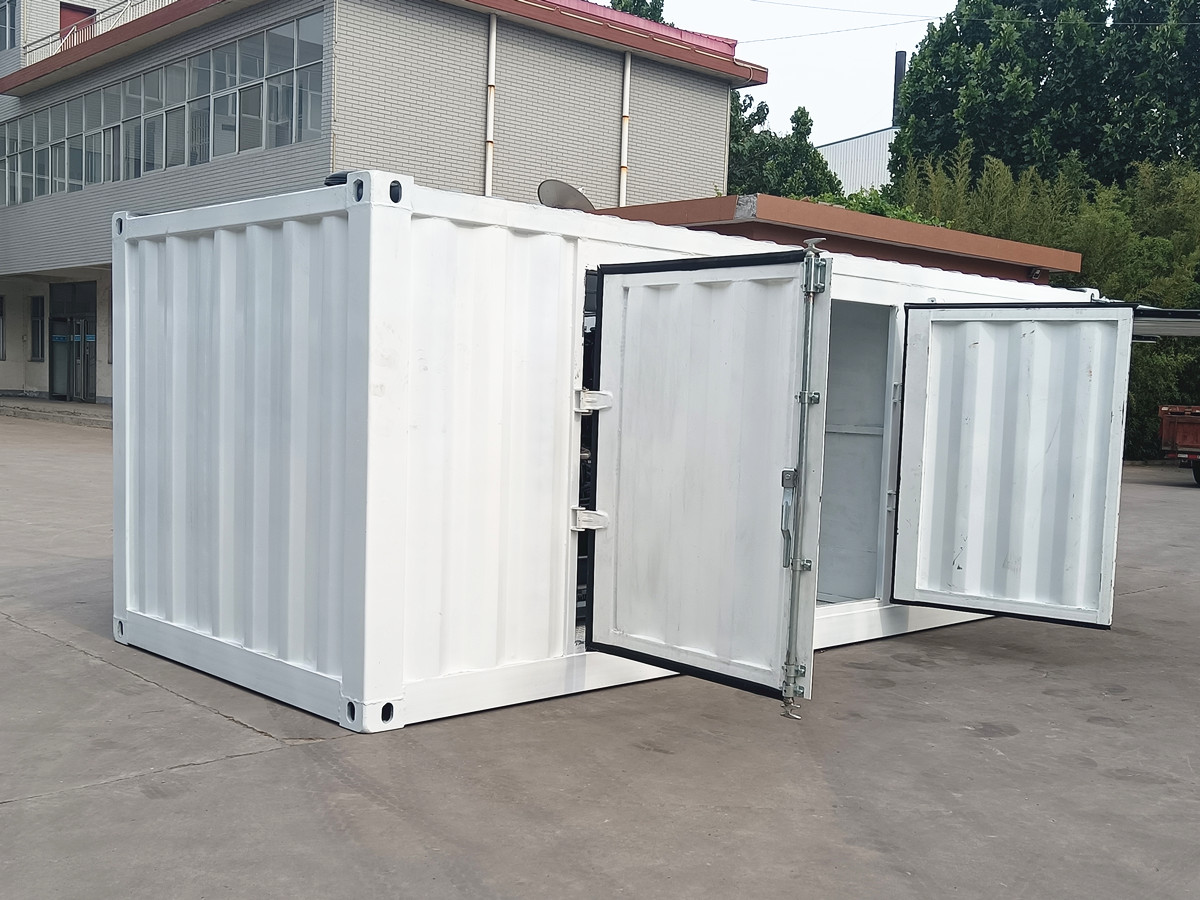

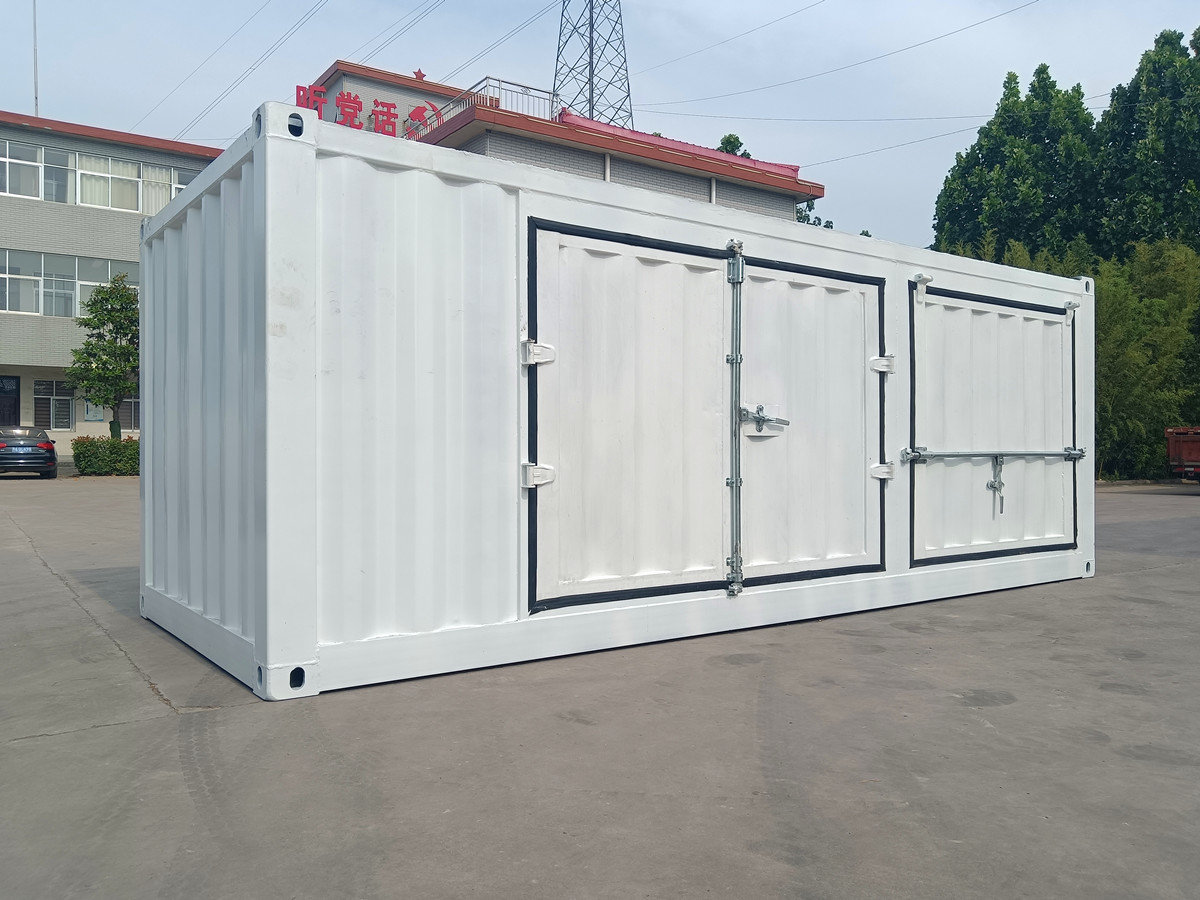

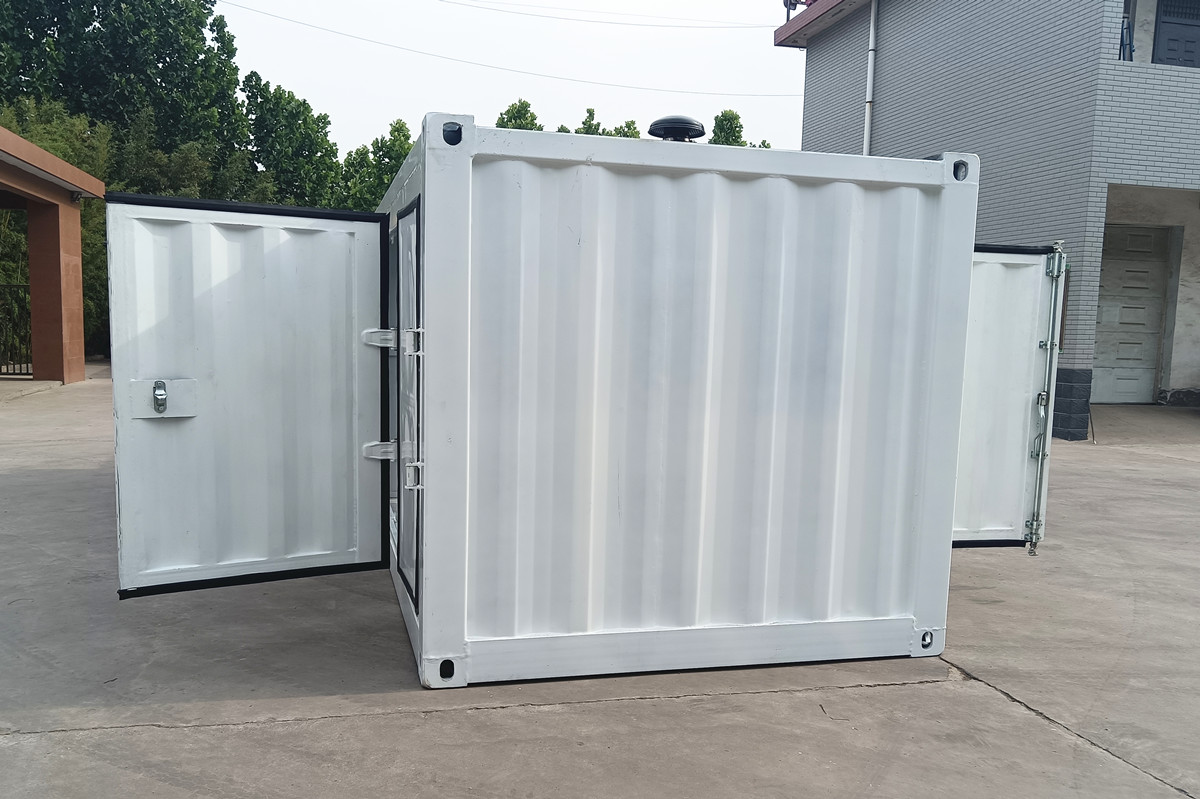

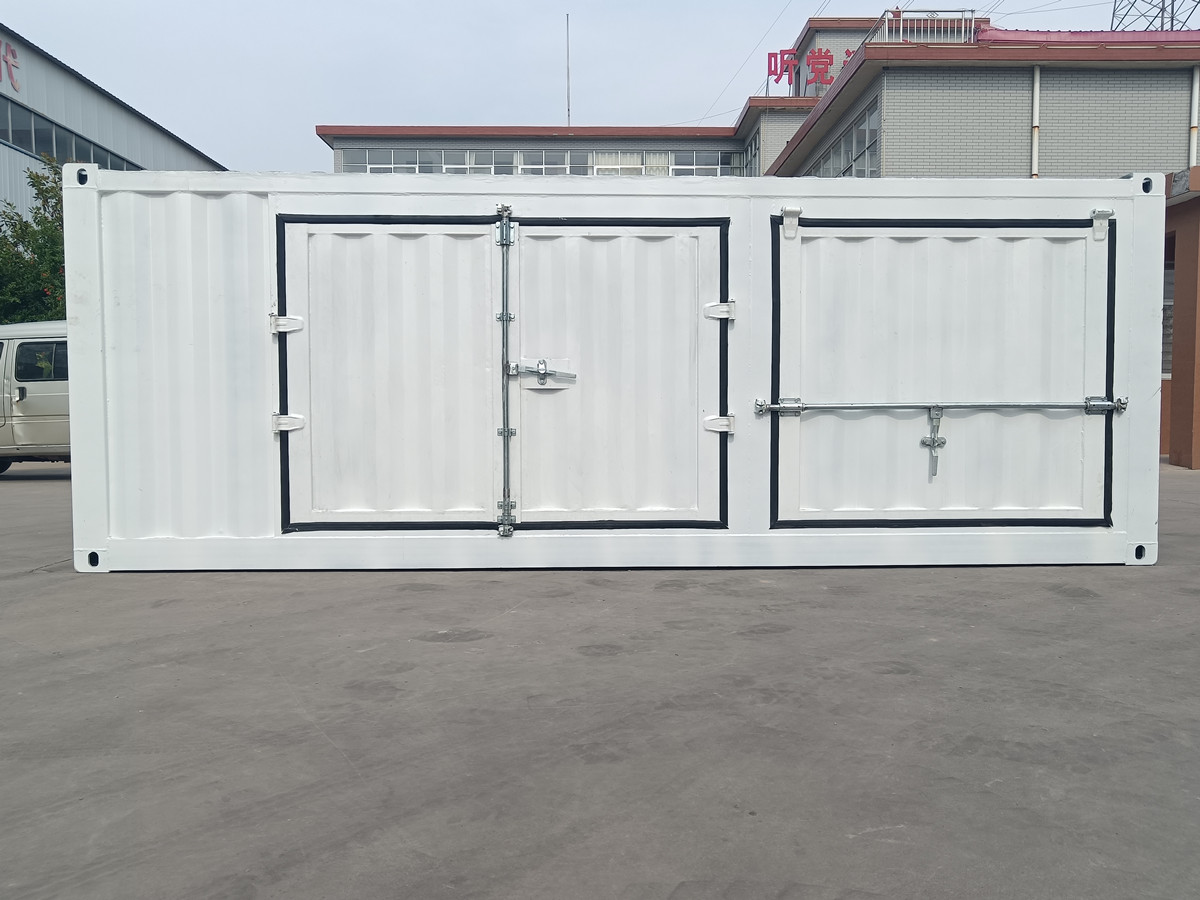

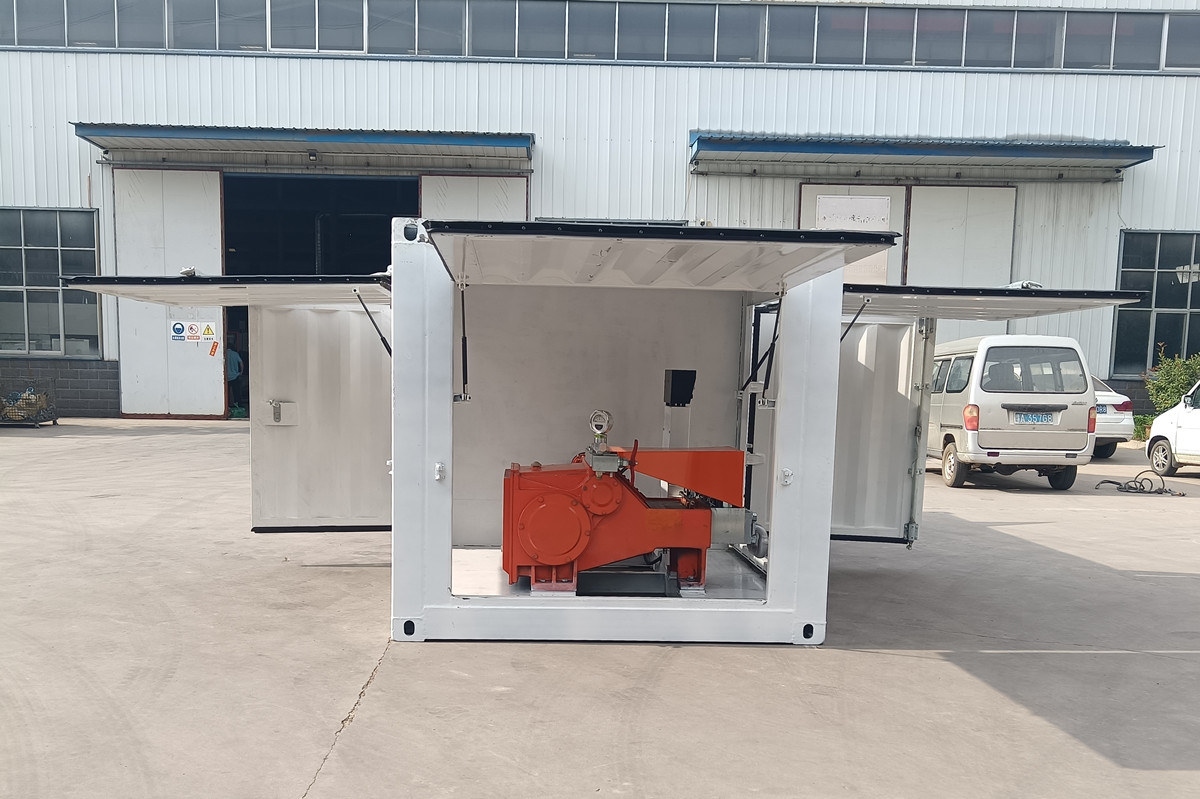

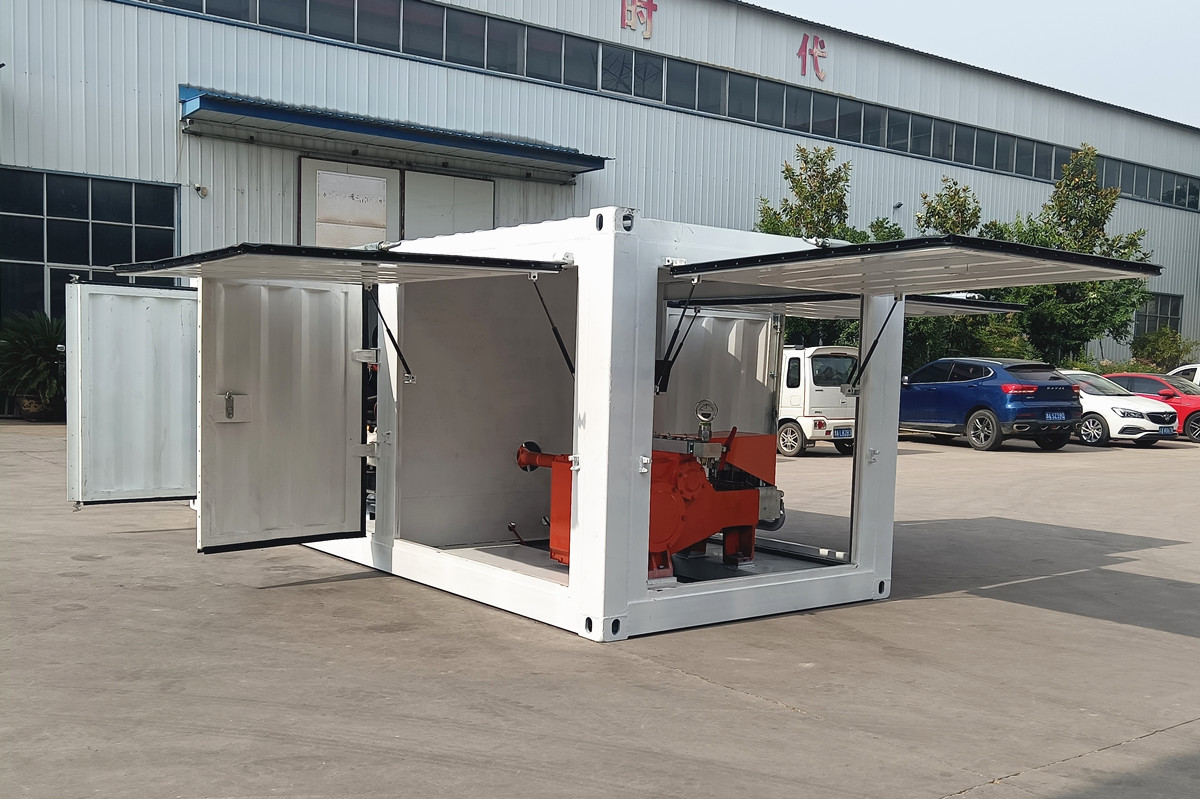

GGP114/500-120D High-pressure triplex pump for jet grouting for sale:

Model		GGP114/500-120D jet grouting pump in container
	Type	QSF4.5 Cummins
Diesel engine	Power	Kw	120
	Max. speed	r/min	2200
	Type	EATON FASE
Gear-box	Speed	4
	Control	Level
	Type	GP380/55
Main pump	Form of action	Reciprocating single acting plunger type
	Number of Plungers	Piece	3
	Plungers	mm	Φ55mm-80mm
	Output @ pressure	L/min@bar	114@500
	Inlet Dia.	mm	64
	Outlet Dia.	mm	24

The selection of a high-quality high-pressure jet grouting pump is imperative for maximum efficiency and safety during ground improvement tasks. The application of this technology is especially important in dealing with load-bearing soils under new and existing buildings, seepage resistance in water-bearing soils, during tunnel construction, and mitigation of movement of affected soil and groundwater.
The working principle of the high-pressure jet grouting pump system is unique, as it differs substantially from other ground improvement or ground modification techniques. It provides deep soil mixing and can be used regardless of soil permeability, or grain size distribution. The jet grouting technique is capable of improving most soils, from soft clays and silts to sands and gravels. The commonly used binder is water-cement mixtures, and for impermeabilization, water-cement-bentonite mixtures are used.
In conclusion, choosing a high-quality high-pressure jet grouting pump is crucial for any ground improvement task. The utilization of this technology provides an efficient solution for soil stabilization, foundation repair, and tunneling. Its unique working principle is what sets it apart from other methods of ground improvement or ground modification techniques, making it a valuable asset to any building project.
Gaodetec Equipment is a leading manufacturer and supplier of high-pressure jet grouting pumps, with many years of experience in the production and manufacturing of this essential construction equipment. Our team is dedicated to delivering the highest quality products to our customers and providing customized services to meet their unique needs.
In addition to our standard selection of high-pressure jet grouting pumps, we offer custom design and manufacturing services to create a tailored solution for your application. Our team of experts works closely with you to understand your project requirements and design a pump system that meets your specific needs.
We use only the latest technology and the highest quality materials in the production of our pumps, which ensures reliability, durability, and long service life. With our extensive experience and commitment to quality, you can trust Gaodetec Equipment to provide you with the best high-pressure jet grouting pump solution for your construction project. Email address: info@gaodetec.com
