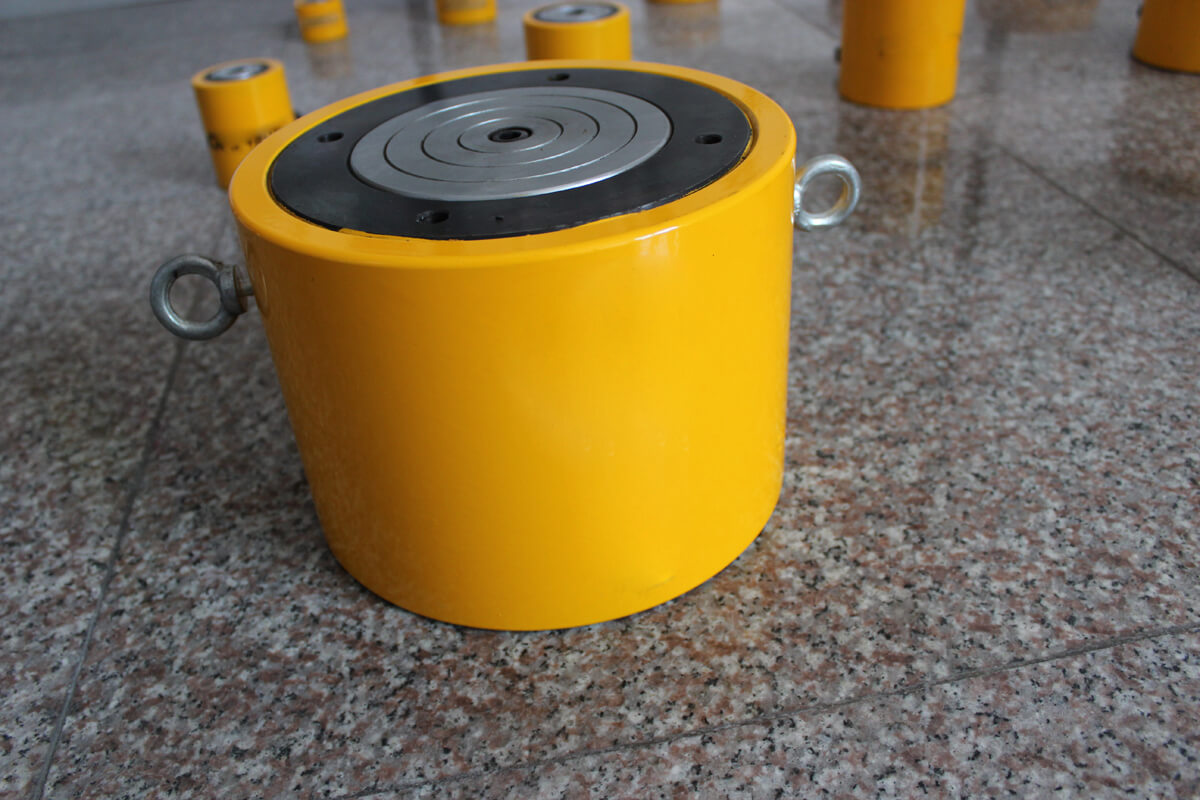

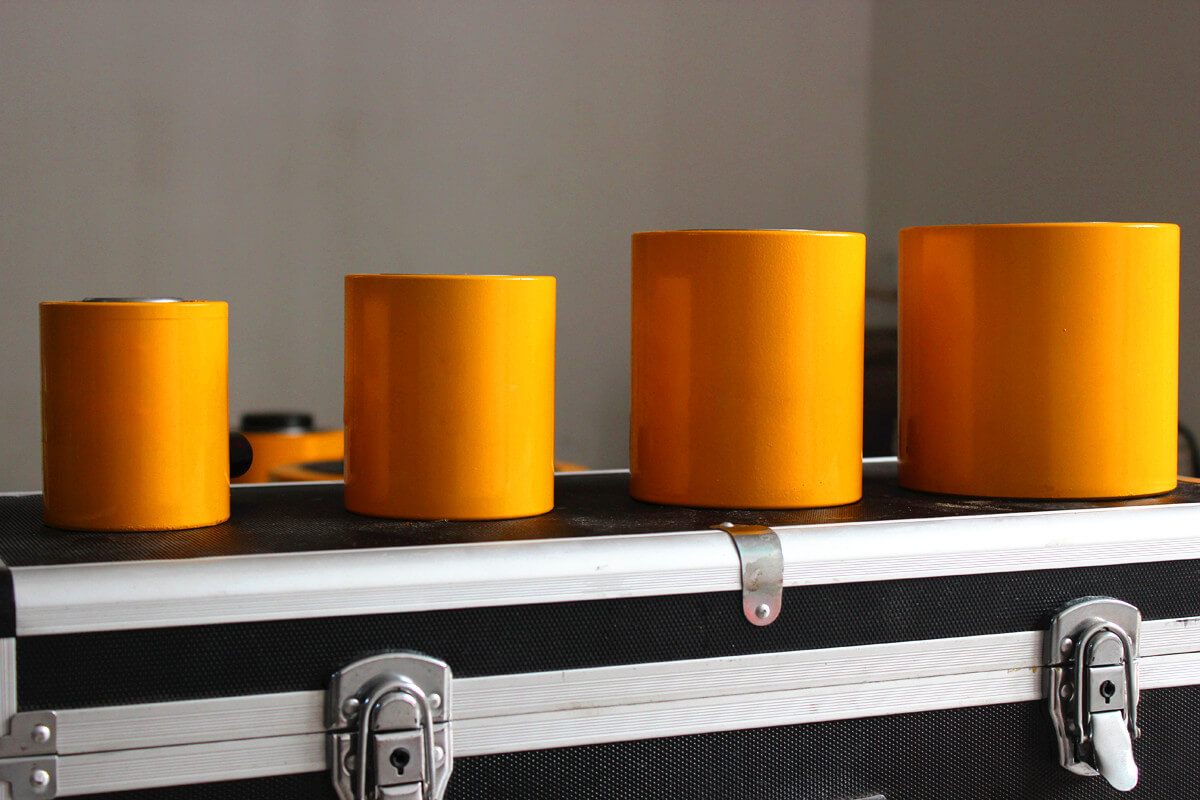

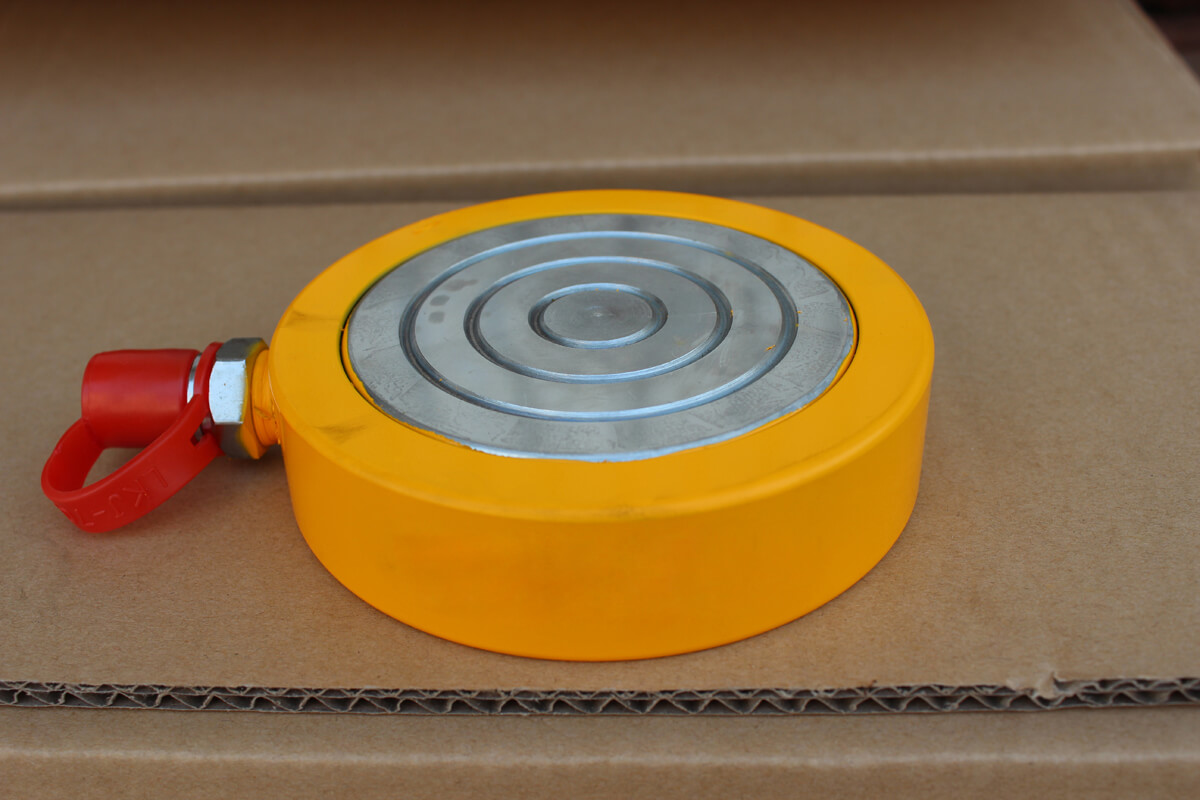

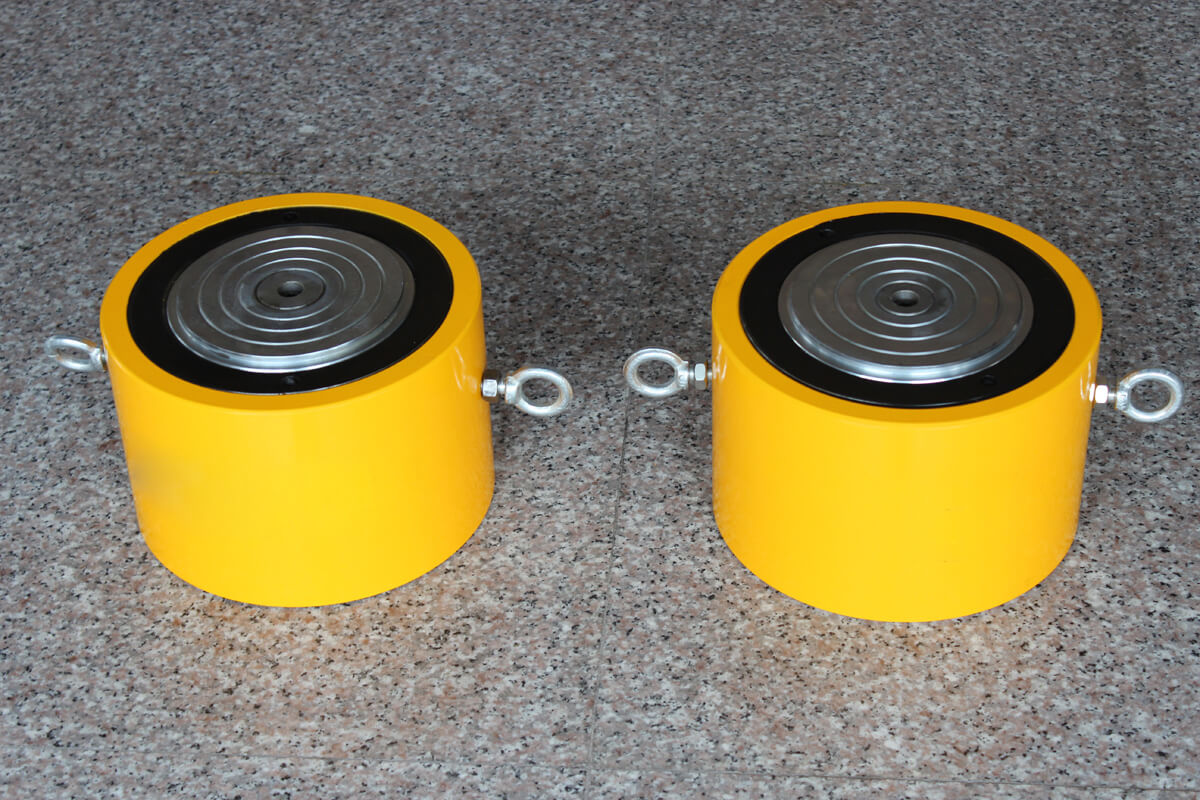

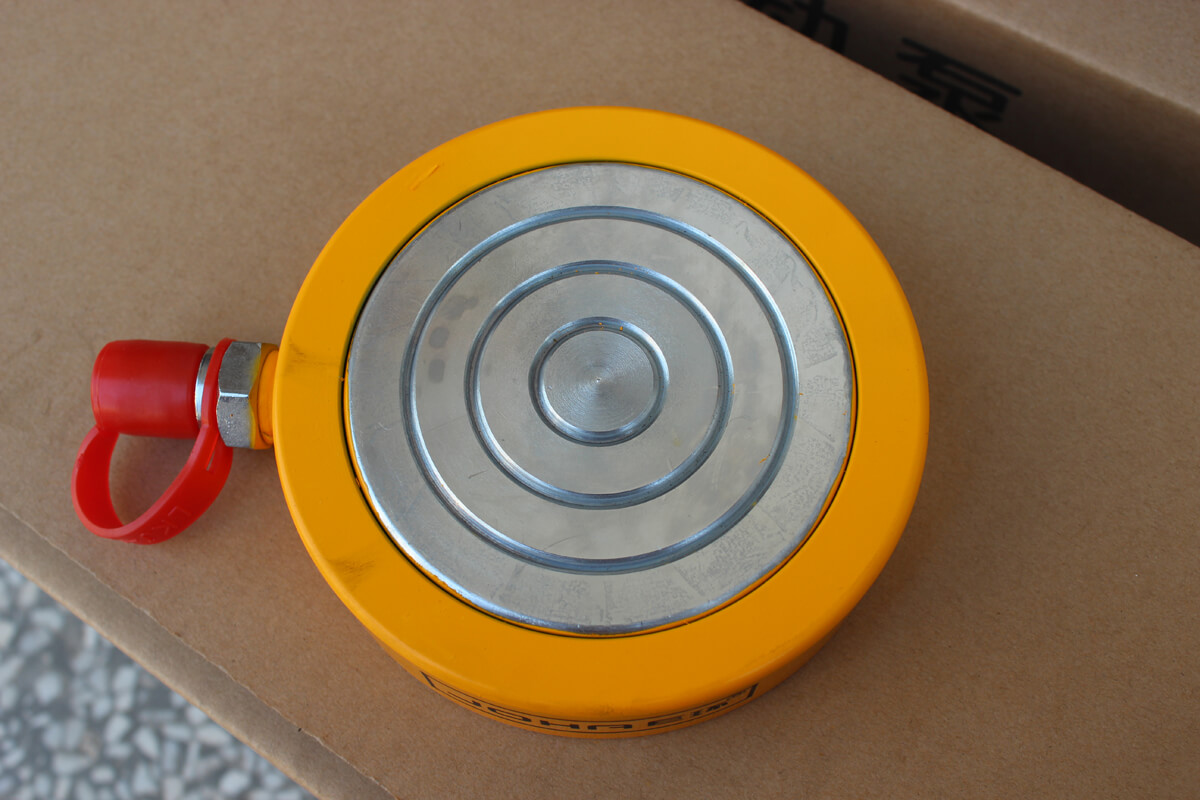

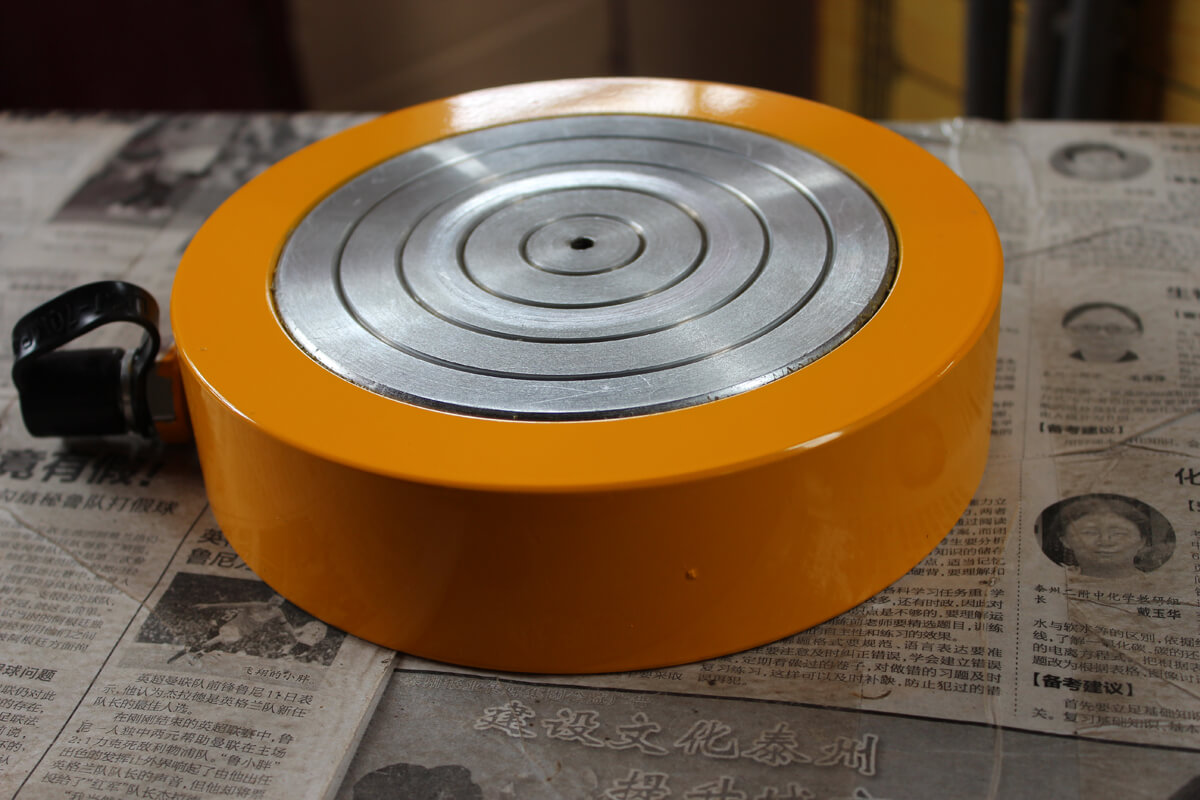

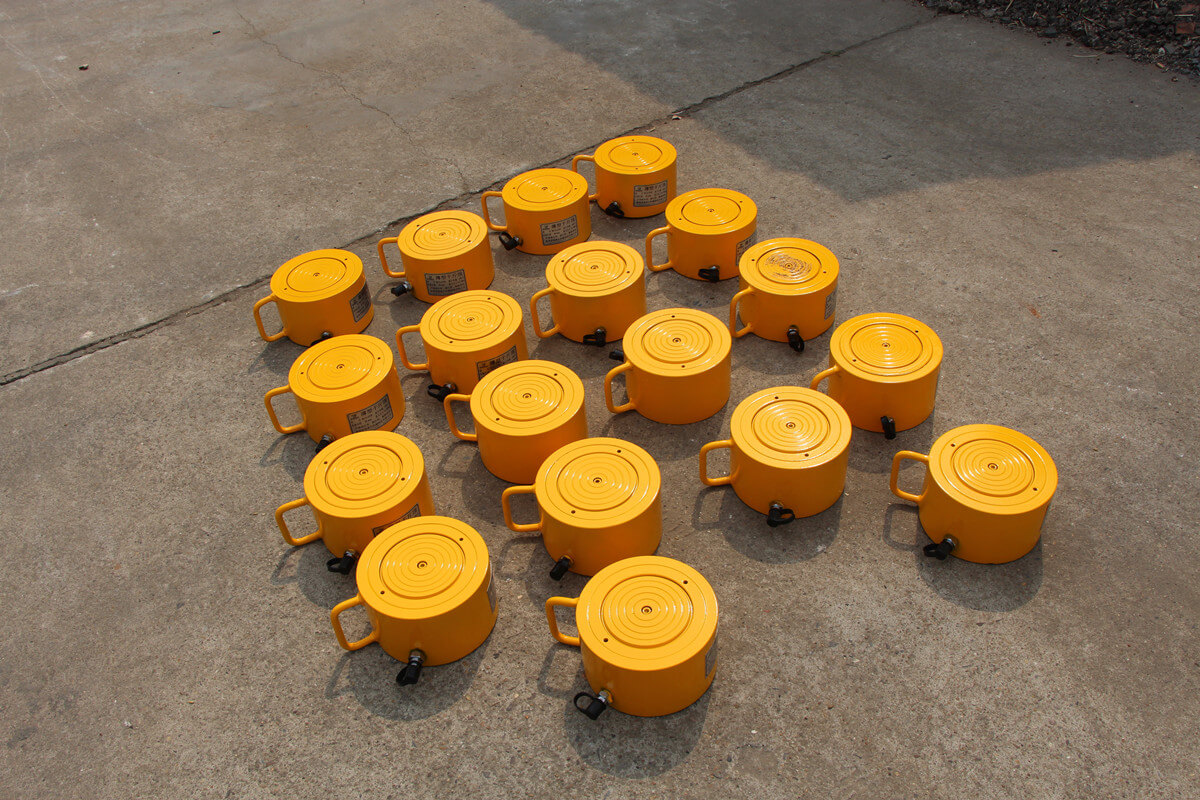

The super thin single hydraulic jack cylinder belongs to the separate jack, mainly adopts a thin, single-acting design, spring reset, easy to use, the surface of the baking paint makes the corrosion resistance stronger, the mounting hole design makes it easier to fix, and some models have a handle, which is convenient Mobile, suitable for narrow working space, used in tunnel jacking, bridge, heavy equipment installation, heavy equipment debugging, bridge jacking, bridge support, ship hull jacking, propeller loading and unloading or main engine installation and other occasions.
In terms of use, if several super thin single hydraulic jack cylinders are required to lift at the same time, in addition to placing the jacks correctly, multi-jack diverter valves should be used, and the load of each jack should be balanced, and attention should be paid to keep the lifting speed synchronous. It is also necessary to consider the possible subsidence of the ground due to uneven weight, so as to prevent the danger of being tilted due to the weight being lifted.

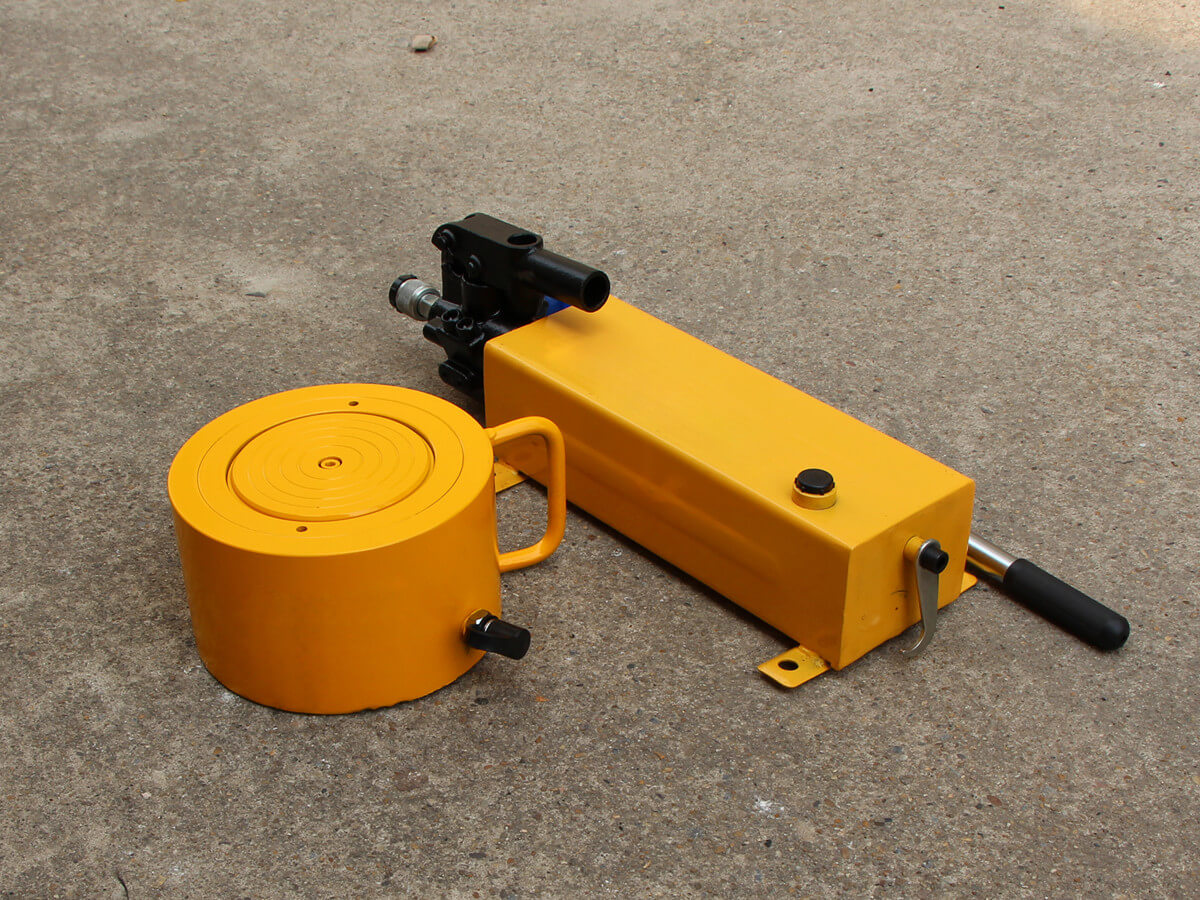

When using the super thin single hydraulic jack cylinder, first connect the quick connector of the manual hydraulic oil pump to the top, then select the position, and tighten the oil drain screw on the oil pump to start working. To lower the piston rod, turn the manual oil pump hand Unscrew the wheel slightly counterclockwise, unload the cylinder, and the piston rod will gradually descend. Otherwise, falling too fast will be dangerous.
The super thin single hydraulic jack cylinder is a spring return structure, after lifting, it can be taken out quickly, but the connected hose cannot be used to pull the jack, because the lifting stroke of the jack is small, the user must not exceed the rated stroke when using it. so as not to damage the jack.
The above is the relevant information about super thin single hydraulic jack cylinder, if you want to know more about the jack cylinder, please contact us directly, email: info@gaodetec.com
