Grouting mixer pump for building grouting

2018-10-13 09:53:36

The grouting mixer pump were made by GAODE Equipment were widely used for mixing and grouting cement slurry when build high building.

The grout mixer pump was one high shear grout mixer, agitator, grout pump all-in-one.

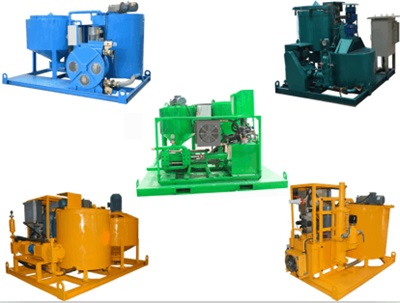

Gaodetec has many types grout mixer pump were used for building grouting.

Grouting mixer


The most popular is GGP300/300/75PI-E, the high shear grout mixer volume is 300L, agitator volume is 300L, there are two stages for pressure, that’s low pressure and high pressure, when at low pressure stage, the pressure is 0-50 bar, grout flow is 0-75L/min, when at high pressure stage, the pressure is 0-100 bar, flow is 0-38L/min.

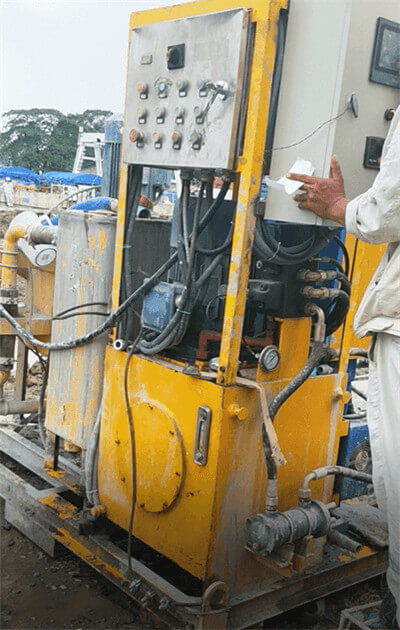

Grouting mixer pump


The grout mixer pump for mixing and pumping cement slurry has following advantages:

1. Continuous output with small pulse or kicks or jerks

2. Grouting pressure and flow both could be adjust step-less.

3. High speed vortex mixers ensure mixing evenly and quickly.

4. Grout mixer and agitator switch by using squeeze handle, easy to operate, safe and reliable.

5. The motors with overload protection function,

6. The hydraulic system with oil temperature overheating protection.

7. Les spare parts make sure the machine with low maintenance costs.

In one word, the grout mixer pump with simple structure, compact size, light weight, easy maintenance etc. features in one.
So please contact us now for one suitable grout mixer pump to mixing and pumping cement slurry for building grouting.

If you don’t know which type grout mixer pump is suitable for your project, please help us to confirm the following points:

1. What is the pressure do you demands?

2. What is the flow do you demands?

3. Would you like the grout mixer pump with electric motor or diesel engine If want the grout mixer pump wok with electric motor; also please confirm the voltage at the worksite.

Send your answers and demands to info@gaodetec.com for more suitable type and the best price.
Of course, any question or any demands on the grout mixer pump please contact us without any hesitation, once confirm the detailed needs on the grout mixer pump, better solution will be offered to you at first time.
Contact us now for more information for your building grouting business now!!!
