2018-10-15 10:23:23

Gaodetec ceramic grout pump is driven by hydraulic double cylinders and double function, the alumina cylinder and combined seals are used very well.

So the hydraulic ceramic grout pumps were widely used to feeding material for filter press.

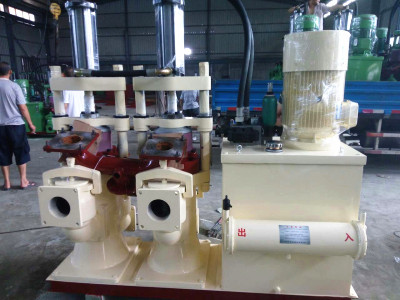

Hydraulic Ceramic Grout Pump


The hydraulic ceramic grout pump with following features:

1. High work pressure with little undulate/jerks/kicks.

2. Simple structure, steady running, lowing noisy, reliable work.

3. Easy to operate with long work life, and low maintenance cost.

4. Compact size, suitable for harsh environ.

Gaodetec Equipment as one professional grouting pump factory, make many types with different pressure and flow for different feeding demands for filter press.

Type

Flow Range

M3/h

Pressure range

Bar

Stroke

MM

Oil Pump Type

Motor

Power KW

Dimension

L*H*W

mm

Weight

YB50-07

0-0.8

0-23

170

GBG-2016

2.2

1200*850*1200

160

YB85-2.5

0-2.5

0-23

170

GBG-2016

4.0

1300*850*1200

280

YB120-7.1

0-7.2

0-25

220

GBG-2050

7.5

1630*1070*1860

750

YB140-10

0-10.5

0-25

230

GBG-2063

11

1630*1120*1900

850

YB200-20

0-22

0-20

240

GBG-2080

18.5

1820*1280*2100

1250

YB250-30

0-32.4

0-20

250

GBG-2080

22

1950*1480*2250

1500

YB300-40

0-42

0-20

250

CEF-F690

30

2150*1650*2450

2300


Hydraulic Ceramic Grout Pump for Filter Press

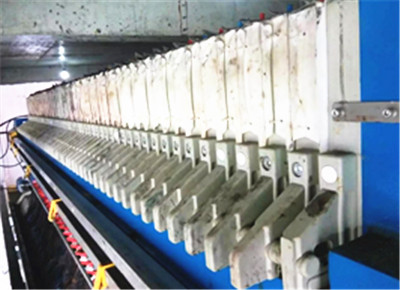

hydraulic ceramic grout pump feeding material for filter press
