Supply filter press feed ceramic piston pump

2022-08-02 10:45:07

The YB filter press feed ceramic piston pump is a pressure-sensitive variable pump specially designed for the feeding of the filter press. The pump is an adjustable constant pressure, automatic variable type. (This pump is not recommended for materials that are easy to handle)

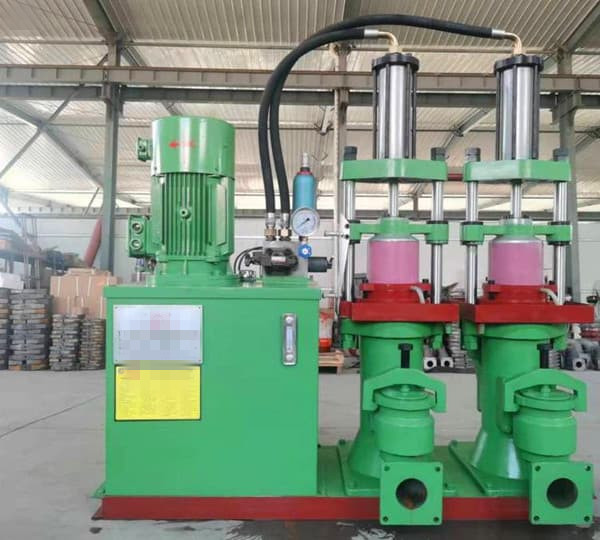

filter press feed ceramic piston pump


When the filter press feed pump starts feeding the filter press and low-pressure filtration, the high flow rate remains unchanged. As the pressure of the filter press cavity is filled with materials, the filtration capacity of the filter press begins to decrease. When the set value is reached, the hydraulic system controls the YBH feed ceramic piston pump. The operating speed is reduced and the output flow rate is reduced. The filtration energy of the filter press gradually decreases, the feed pressure gradually increases, and the feed flow of the pump automatically decreases, and the minimum flow rate is rated.

filter press feed ceramic plunger pump


20% of the flow rate, the output flow pressure curve of the pump is basically consistent with the filter curve of the filter press. Therefore, the whole process saves energy, which is more than 60% energy saving than ordinary pumps.

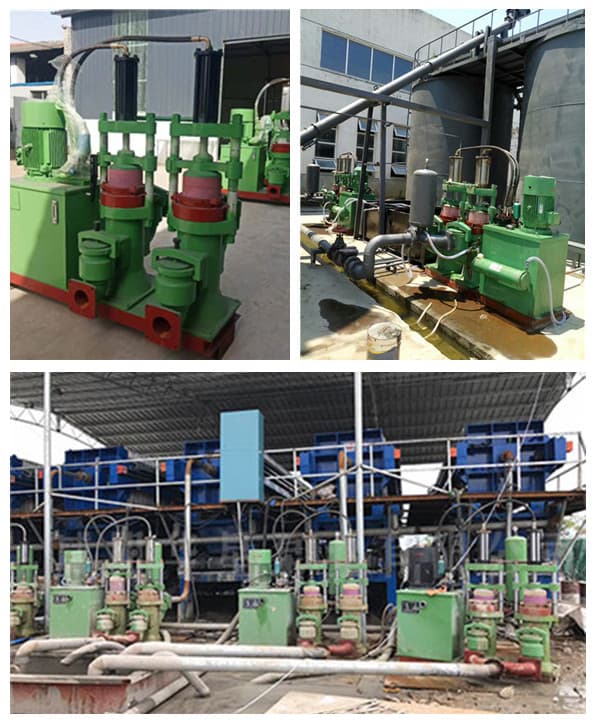

supply feed ceramic piston pump


YB200 type ceramic piston pump is equipped with a filter press, one can replace 3-4 old-fashioned diaphragm pumps, which not only reduces the floor space, but also reduces maintenance costs and electricity consumption for users. It is a product of technical transformation for users.

If you need a ceramic piston pump for feeding filter press , please contact us directly, email: [email protected]

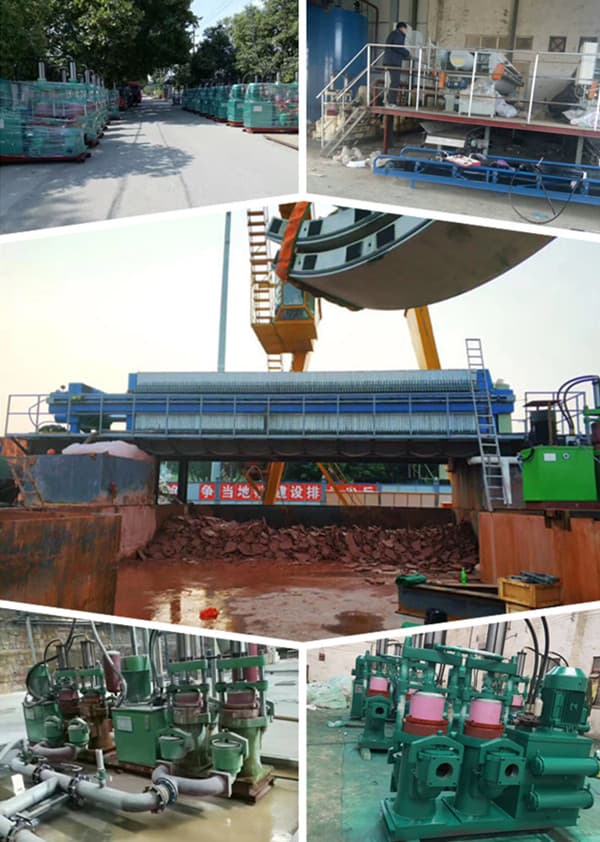

filter press piston pump for ceramic slurry
