Gaodetec ceramic grout pump is driven by hydraulic double cylinders and double function, the flow very stable, so be widely used for environmental protect projects, such as Printing and dyeing industry wastewater, sewage wastewater treatment, mechanical processing industry wastewater, electroplating industry waste water, the chemical industry wastewater treatment.

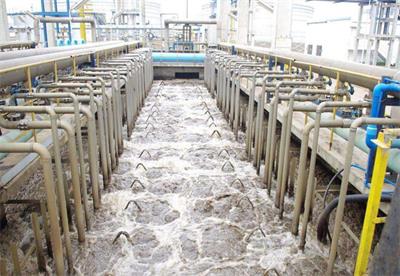

ceramic grout pump to treat waste water

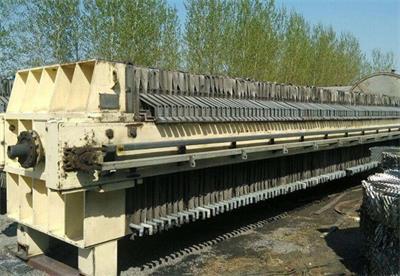

ceramic grout pump with filter press deal with waste water

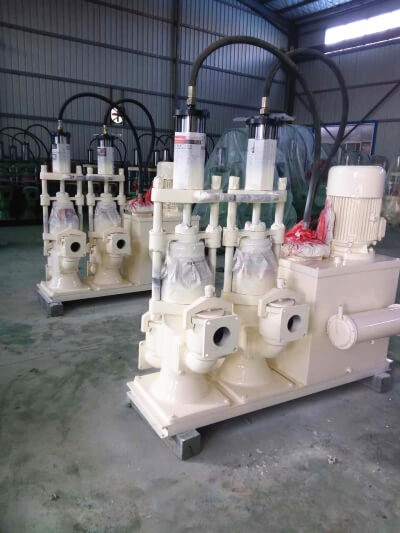

The Ceramic Grout Pump with following features:
1. High work pressure with little undulate/jerks/kicks.
2. Simple structure, steady running, lowing noisy, reliable work.
3. Easy to operate with long work life, and low maintenance cost.
4. Compact size, suitable for harsh environ.
According to pressure and flow difference, Gaodetec ceramic grout pump has many types for option:
|
Type |
Flow Range M3/h |
Pressure range Bar |
Stroke MM |
Oil Pump Type |
Motor Power KW |
Dimension L*H*W mm |
Weight |
|
YB50-07 |
0-0.8 |
0-23 |
170 |
GBG-2016 |
2.2 |
1200*850*1200 |
160 |
|
YB85-2.5 |
0-2.5 |
0-23 |
170 |
GBG-2016 |
4.0 |
1300*850*1200 |
280 |
| YB120-7.1 |
0-7.2 |
0-25 |
220 |
GBG-2050 |
7.5 |
1630*1070*1860 |
750 |
|
YB140-10 |
0-10.5 |
0-25 |
230 |
GBG-2063 |
11 |
1630*1120*1900 |
850 |
|
YB200-20 |
0-22 |
0-20 |
240 |
GBG-2080 |
18.5 |
1820*1280*2100 |
1250 |
|
YB250-30 |
0-32.4 |
0-20 |
250 |
GBG-2080 |
22 |
1950*1480*2250 |
1500 |
|
YB300-40 |
0-42 |
0-20 |
250 |
CEF-F690 |
30 |
2150*1650*2450 |
2300 |
If have industry wastewater need to be treated, send your inquiry and demands to info@gaodetec.com for more suitable type and the best price.
Of course, if have any question on the ceramic grout pump, also please contact us without any hesitation, because we are professional on ceramic grout pump, more better solution will be offered to you at first time.
Contact us now for more information for your grouting business now!!!
