Underground mining grouting plant

2019-09-09 18:28:13

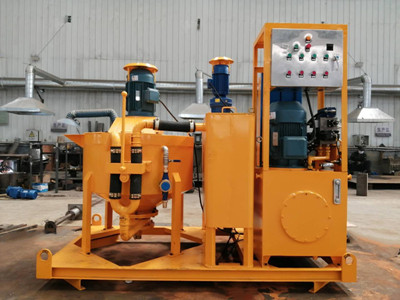

GGP300/300/75 PI-E underground mining grouting plant is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

1. Hydraulic reversing and Hydraulic drive for vertical grouting pump;
2. Grouting pressure and output are step-less adjustable;
3. Using rectangular agitator, makes the plant has compact structure, small size;
4. With high speed and low speed, by rotating ball valve switch;
5. With function of record and display grouting pump reciprocating times by a counter;
6. High speed vortex mixer ensures mix quickly and evenly;
7. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;
8. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection underground grouting plant.

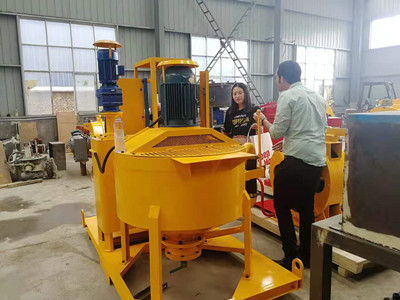

Underground mining grouting plant

Mining grouting plant is with special squeeze hose of resistance to more than 50000times extrusion, no valve switch device. Pressure regulating valve, adjust the grouting pressure, Clockwise increase and counterclockwise reduce. Speed control valve, Adjust the grouting displacement, Clockwise reduce and counterclockwise increase. Relief valve, it is set well in the factory and do not turn. Mine application is suitable for roadway reinforcement, backfill, waterproof grouting. Wherever mud injection is made, our machine can be used. Water/cement ratio is more than 0.5. If you want to know more about our this machine, please contact us timely. We will contact you at the first time. Hope to do business with you in the near future.

mining grouting plant
