Synchronous control Hydraulic Jacks

2018-06-01 14:16:12

1. Synchronous control hydraulic jacks describe:

High pressure hydraulic jack is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, synchronous control hydraulic jacks is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect cylinder. Hydraulic cylinder can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.

2.
Synchronous control hydraulic jacks picture:

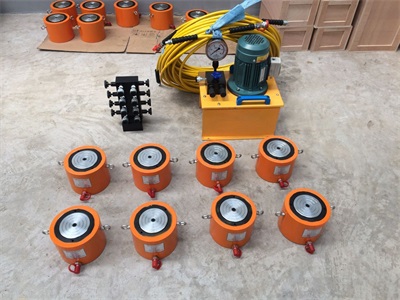

Synchronous control hydraulic jacks

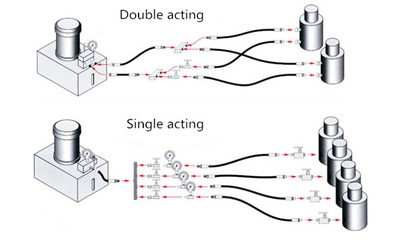

double acting hydraulic jack



3. Synchronous control applications

1. Lifting Bridge, pushing tunnel;
2. Installing and debugging heavy equipment;
3. Lifting ship body, install or disassemble propeller, and install main machine;
4. Lifting or moving existing buildings;
5. Lifting and measuring drilling platform;
6. The synchronous press machine, horizontally move load etc;
Specification: one pump with two jacks, one pump with four jacks, one pump with six jacks, one pump with eight jacks, one pump with ten jacks, one pump with twelve jacks, one pump with fourteen jacks, one pump with sixteen jacks;
Tonnage: 10tons、20 tons、30 tons、50 tons、100 tons、150 tons、200 tons、320 tons、500 tons、630 tons、800 tons、1000 tons;
Power of pump station: 1.5kw、3kw、4kw、5.5kw、7.5kw、11kw、13kw.

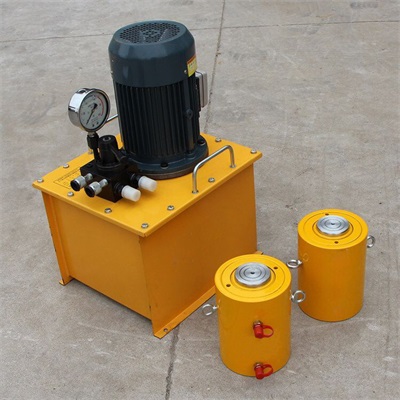

One pump with two hyfraulic jack for lift

One pump with two hyfraulic jack for lift

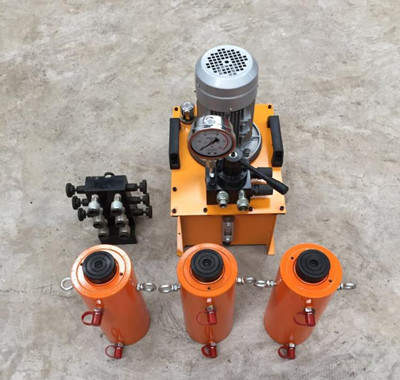

One pump with three double acting hydraulic jacks

 One pump with three double acting hydraulic jacks

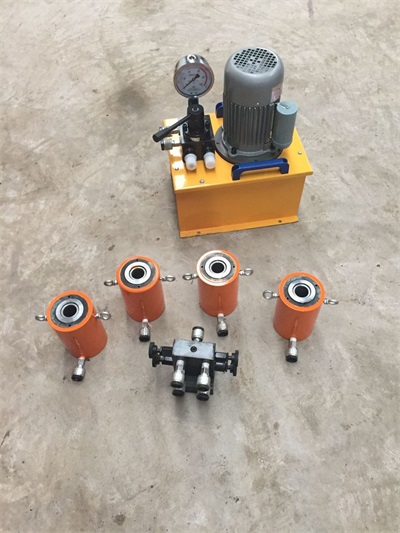

One pump with four single acting hollow hydraulic jack


 One pump with four single acting hollow hydraulic jack

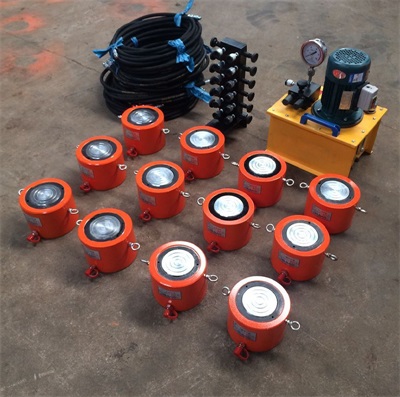

One pump with twelve single acting hydraulic cylinders

 One pump with twelve single acting hydraulic cylinders

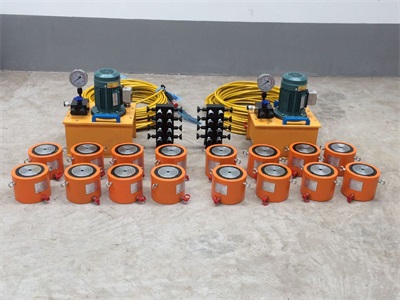

Two pump with sixteen hydraulic jacks


Two pump with sixteen hydraulic jacks


4. Synchronous control hydraulic jacks application

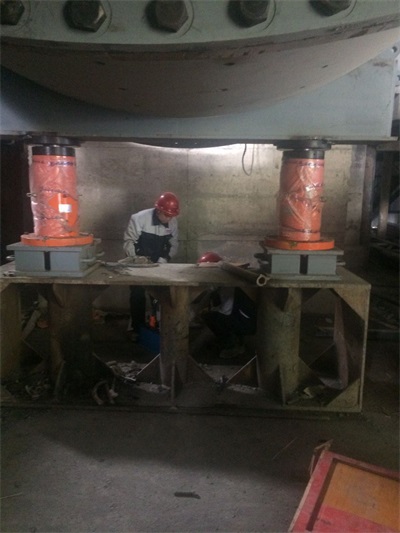

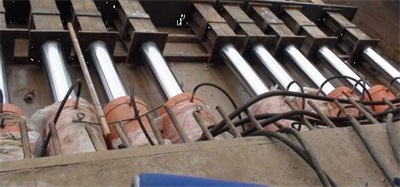

synchronous control hydraulic jacks for synchronous moving

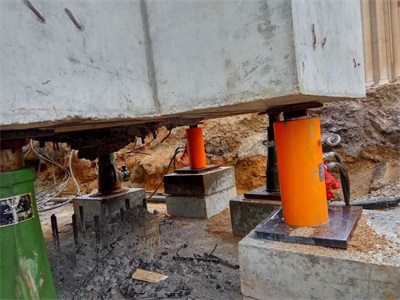

synchronous control hydraulic jacks for translation  Bridges

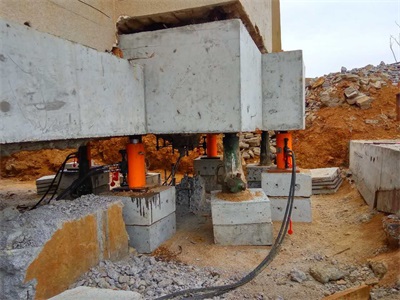

synchronous control hydraulic jacks for synchronous moving of bridges

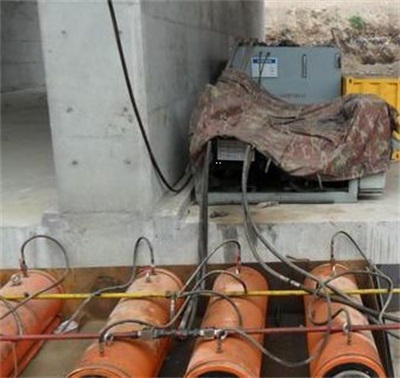

sync lifting support construction for a long time

Synchronous lifting
