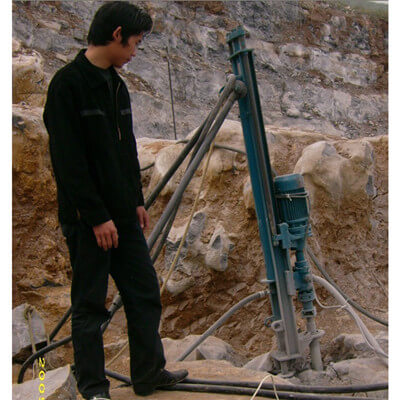

Small portable DTH rock mine drilling rig for quarrying

2020-02-05 14:37:08

Down the hole drilling rigs are not the same as rock drill rigs which the energy loss increases with the increase in the number of joints. Because its drill pipe does not transmit impact energy, the impact energy loss is small, so it can drill deeper holes.

rock driling rig


Small DTH drilling rig is used in the construction industry to produce piles into rock, also water wells in some small diameter with not deep hole, and drilling bores for geothermal ground source heat pumps. Oil & Gas- Deepwell Bore Holes : Air hammers can be used as long as cutting uplift and borehole stability are ensured.

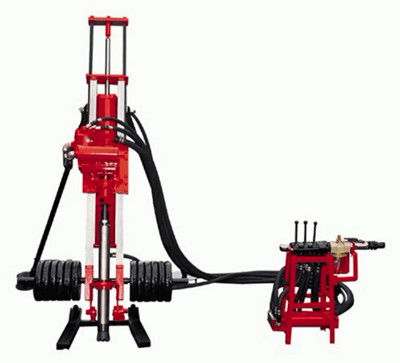

small DTH drilling

Mine drilling rigs are widely used in drilling construction of rock anchor cable holes, anchor holes, blast holes, grouting holes and other projects in urban construction, railway, highway, river, hydropower and other projects.


small DTH drilling


1. The rock driling rig uses a motor as the turning power through a high-performance reducer; the cylinder uses the propulsion power. The hydraulic system is omitted, so the mechanical efficiency is high, the cost is low, and the performance is stable.
2, with anti-card protection, when the drilling tool is stuck, the motor is not easy to burn, the reducer is not easy to damage. 3. Light and easy to move, the weight of the DTH rig is less than 500Kg, and it can be decomposed into three pieces.
4. The rolling carriage is adopted, and the track is not easy to wear.
5. The down-the-hole drilling rig adopts semi-automatic dismantling drill pipe, with high working efficiency
Our company has specialized in drilling rig for more than 10 years, if you are interested in our rock mine drilling rig, please tell us freely, please send email to us without hesitate: info@gaodetec.com
