Shotcrete machine for spraying refractory materials

2022-02-25 14:03:11

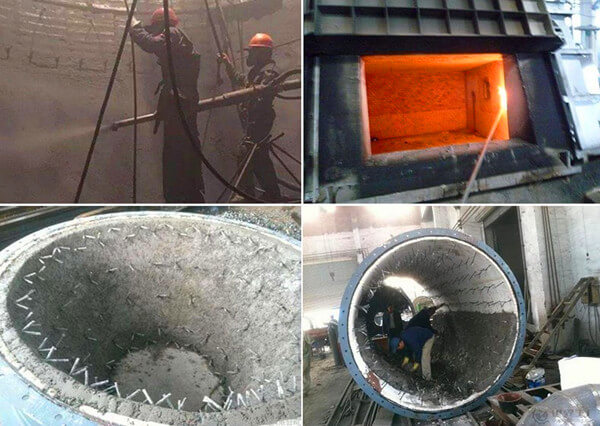

Shotcrete machine for spraying refractory materials could be used in follow fields: Steel and iron industry, Iron making industry, power generation industry, ceramics industry, cement industry, metals and mining industry, maintenance and repair of refractory furnace lining, refractory installation.

shotcrete machine for spraying refractory materials for steel and iron industry

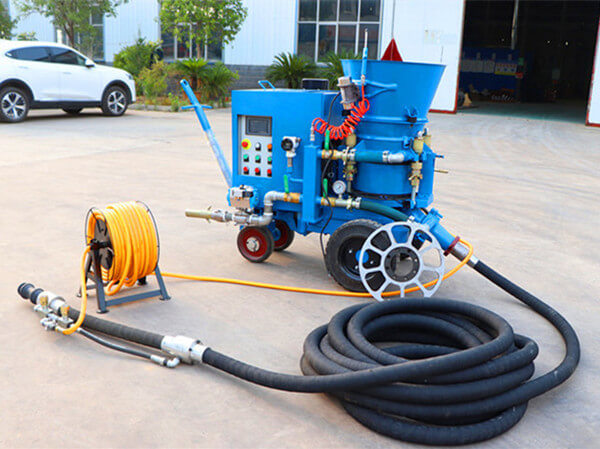

We are a manufacturer and supplier of shotcrete machine for spraying refractory materials. We have developed GZ series refractory shotcrete machine, its output range is from 1m3/h to 5m3/h, and electric engine and air motor can be customized according to your requirements. For example:

manufacturer and supplier of shotcrete machine for spraying refractory materials


The rated output of GZ-3ER is 3m3/h, its electric engine power is 4Kw, its operating air pressure is range from 2-4bar, its local voltage are respectively 3phase, 380V, 50Hz, and its max horizontal conveying distance is 100m.

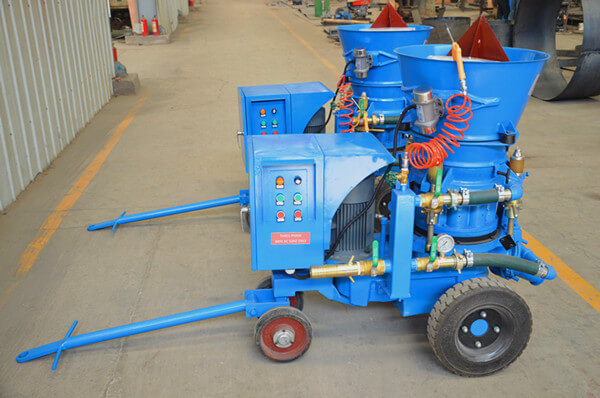

LZ-3ER/S is an upgraded version of LZ-3ER refractory materials spraying pump. Its rated output is range from 1.5-3m3/h, its electric engine power is 4Kw, its operating air pressure is range from 2-4bar, its local voltage are respectively 3phase, 380V, 50Hz, and its max horizontal conveying distance is 200m.

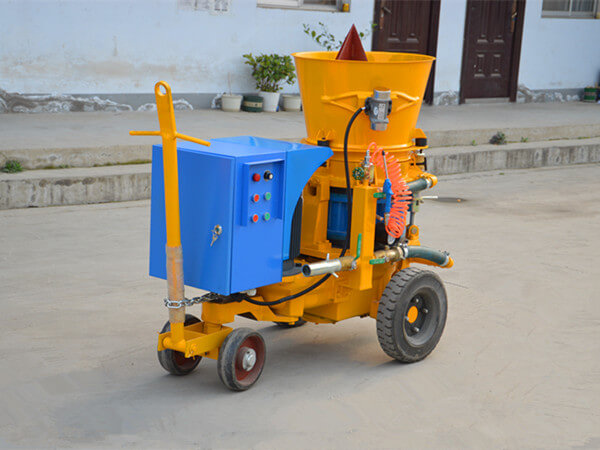

The rated output of GZ-5ER is 5m3/h, its electric engine power is 5.5Kw, its operating air pressure is range from 2-4bar, its local voltage are respectively 3phase, 380V, 50Hz, and its max horizontal conveying distance is 100m.

5m3h shotcrete machine for spraying refractory materials


In order to make water spraying evenly and achieve atomization effect in nozzle water ring,  refractory materials spraying pump need be equipped with high pressure water pump, rather than ordinary pumps, because high pressure water pump could provide pressure water.
Besides, in order to accurately adjust the amount of water, our nozzle is equipped with needle valve, rather than ball valve. Needle valve can accurately adjust the amount of water, don’t need skilled operator could control the added amount of water.

How to maintenance the refractory materials spraying pump:
1. In order to prevent the remaining material from condensing in the hopper, hose and nozzle, blocking the hose and nozzle, affecting the service life of the equipment. After the work is completed, immediately drain the remaining material in the hopper, and pour enough clean water into the hopper to thoroughly clean the hopper, and then start the machine to pump the water out to clean the hoses and nozzles until all clean water is pumped out.
2. Adjusting and homing: After the shotcrete machine has been working for a period of time, the rubber plate, steel lining plate and other parts will inevitably produce a kind of friction and form a gap. At this time, you need to manually adjust to return to the original position.

Contact us for details of refractory shotcrete machine:
If you want us to recommend a suitable refractory shotcrete machine for you, please help us confirm the following questions:
1. What's the project you will use the machine do?
2. Could you please tell us more information on the application?
3. What is the output do you need, 3m3/h, 5m3/h?
4. Drive type mode? Do you want electric or air motor?
5. Do you have any other special requirements for this machine?

We will offer solution according to your demands to you, then amend, confirm, so any question or any demands on the shotcrete machine for spraying refractory materials, please contact us without any hesitation, once confirm the detailed needs on the refractory gunning machine, more better solution will be offered to you at first time. Contact us now for more information and price for shotcrete machine for spraying refractory materials now!!! Email address: [email protected]
