Refractory gunning machine for boiler

2020-05-14 17:24:10

Refractory gunning machine for boiler
Refractory gunning machine is a special equipment for spraying refractory materials, mainly composed of hopper, stirring device, discharge elbow, rotor and other parts. The motor drives the rotor to rotate through the reducer. Load the agitated material into the rotor, and send it out of the discharge elbow by the gas pipeline in the gas system, and then by the assistance of the auxiliary air inlet pipeline in the air system, the mixed material will pass through the feed pipe, Spray head, spray to the sprayed surface.

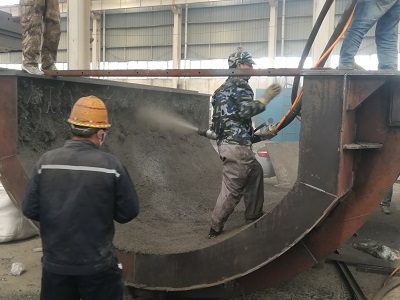

Refractory gunning machine for boiler widely used for spraying refractory materials, also can used for castable in refinery and petrochemical plants. Our refractory gunning machine is mainly divided into electric and pneumatic drives, and the displacement can also be customized. The output of the main hot sale is 3m3/h, 5m3/h, 7m3/h.

refractory gunning machine for boiler

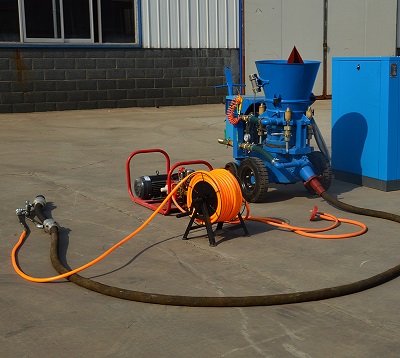

GZ-5ER refractory gunite machine rated output is 5m3 / h, electric motor driven, max. Horizontal conveying distance is 100m, max. Aggregate size is 15mm. With this GZ-5ER, you can get low dust and high performance spraying flow in nozzle.

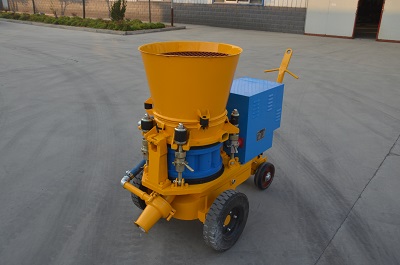

GZ-3ER refractory gunning machine for boiler, rated output is 3m3/h, electric motor driven, max. Horizontal conveying distance is 100m, max. Aggregate size is 10mm. Equipped with ABB frequency converter, could control rotor body rotate speed and achieve variable output from 1m3/h to 3m3/h.

refractory gunite machine for boiler


The main advantages of GZ-3ER Refractory gunning machine for boiler: four-point elastic compensation and compaction, good sealing effect, less dust next to the machine, and long life of wearing parts: the low-speed high-speed vortex air flow is used in the mine spraying machine to overcome the stickiness Problems such as knots, pipe blockages and pulse breaks, the material flow is uniform and continuous and stable: a new type of nozzle, discharge elbow device to improve the spraying effect, less rebound of the mine spraying machine, and high spray layer quality. The machine chassis can be assembled into tire type, skid type and various wheel gauge type.

 boiler refractory gunite machine


Our refractory gunite machine for boiler is also equipped with corresponding accessories to facilitate on-site construction applications. High pressure water pump is used for providing high pressure water for refractory gunite machine, and make water atomize through water ring hole. Equipped with New pre-dampening nozzle assy, providing high pressure water through two waterways with needle valve control. Make water mixed even with water and achieve best spraying effect. Refractory gunning machine hopper also equipped with OLI vibrate motor, higher exciting force and better vibration effect than common air vibrator.
We also have boiler refractory gunite machine used for refinery and petrochemical plants, output can be customized. If you are interested in our refractory gunning machine products, you can contact us at any time, we will recommend the most suitable product for you.
