Peristaltic pump used for filtration equipment

2021-12-31 13:31:34

Our peristaltic pump used for filtration equipment have a very wide range of uses. It could pumping corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, and mainly applied in follow fields:
1. Construction
Pumping fine grained concrete, foamed concrete and mortar.
2. Water treatment
The peristaltic pump used for filtration equipment can be used to pump water or waste water.
3. Paper industry
It can be used for pumping pulp, color and glue in the paper making process.
4. Food items
It is used for pumping beer, wine, milk, juice, etc.
5. Mining
It can be used to transport mineral waste residues.
6. Underground works
It can be used for pumping bentonite etc.

Peristaltic pump used for filtration equipment


GH32-330B peristaltic pump for filter press working pressure is 0.5Mpa, its maximum output is 2m3/h, and its power unit are respectively 1.5Kw, 380V, 50Hz. According to the customer's project needs, explosion-proof electrical motors, controls and inverters have been added.

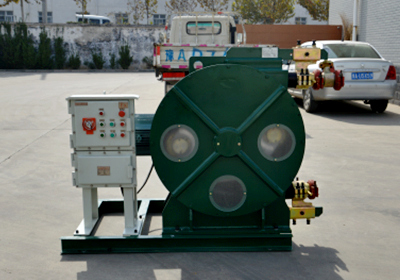

GH76-770B(green appearance) peristaltic pump for filter press working pressure is 1.5Mpa, it’s output capacity is 18m3/h, and its power unit are respectively 18.5Kw, 380V, 50Hz.

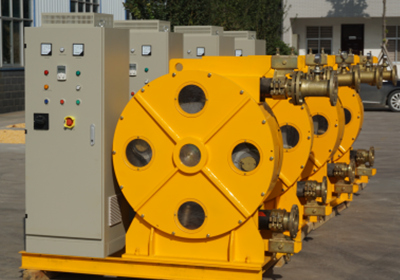

GH100-915B(yellow appearance) peristaltic pump used for filtration equipment adopts special process squeeze hose, the working pressure can reach 2.6Mpa. It’s max output is 30m3/h, its power is 45Kw.

hose pump for filtration equipment


hose squeeze pump for filtration equipment


peristaltic hose pump for filtration equipment

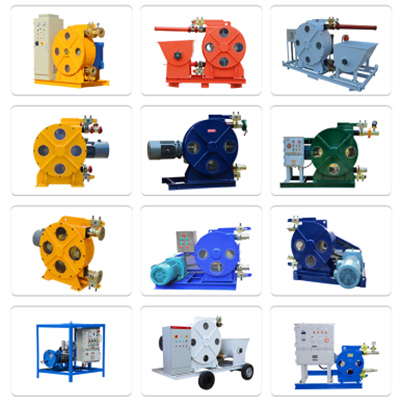

We have peristaltic pump for filter press machine with different working pressure and output. The working pressure is from 1Mpa to 2.6Mpa, and the output is from 14m3/h to 54m3/h. If customers have any demands, we could provide customized service.

peristaltic pump for filter press

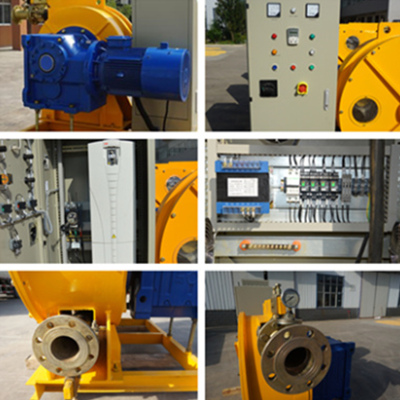

details of peristaltic pump for filter press

1. The hose pump can transport high-concentration ore slurry without mixing and irrigation to reduce the concentration.
2. Quantitatively convey the slurry, which greatly improves the working efficiency of the filter press machine.
3. Absolutely no leakage. All the medium flows inside the hose. The hoses are made of NR, NBR, EPDM and other materials to meet the transportation needs of various highly corrosive and highly abrasive media.
4. It can guarantee pumping without clogging.
5. Convenient maintenance, greatly reducing operating costs. The only vulnerable part of the hose pump is the hose, and it is easy to replace.

Maintenance of peristaltic pump for filter press:
The rubber hose should be replaced in time according to the frequency of use of the specific pump during use. When the hose breaks and the liquid seeps from the hose and flows into the roller of the pump head, the pump head should be disassembled and cleaned in time to avoid weathering and solidification in the gap of the roller to avoid jamming of the pump head. If the liquid is highly corrosive, please choose a corrosion-resistant hose to avoid damage to the pump.

Contact us for peristaltic pump details:
If you are interested in our peristaltic pump, we will recommend a suitable peristaltic pump for you. Please help us to confirm the following points:
1. What is the project with our peristaltic pump, is it for pumping concrete or others?
2. What pressure and output do you need?
3. What is the local voltage you require? Is 380V, 50Hz OK for you?
4. What is max aggregate size in the slurry?
