PC strand for bridge constructions

2018-07-05 16:35:42

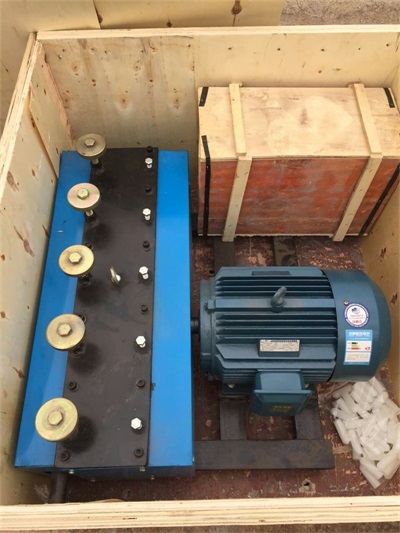

Gaode equipment LS steel strand pusher machine can pusher steel strand continuously. The pusher machine has the features of easy operation, reliable performance, efficiency significantly. The machine reduces the labour, and widely used for large-scale bridges, and constitutive objects. High performance with good quality.

Steel strand use for bridge. The PC strand pusher machine the main tool of through strand in building bridges and large building with prestressing work.

Steel strand pusher machine is also called: steel stranding machine, pc stranding machine, steel stranding pusher machine. PC Steel stranding machine (prestressed steel stranding hole is referred to as threading) is a mechanical transmission, the roller clamps the steel strand for transmission, can enter, retreat, can be continuously transmitted, or can be transmitted by jog. It conveys the speed of steel strands with stepless speed regulation, convenient operation, reliable performance and remarkable efficiency. The prestressed steel stranding machine greatly reduces the labor intensity. The prestressed steel stranding machine is widely used in large bridges and box girder.

PC wire pusher machine



 PC strand


PC strand for bridge constructions


Our steel strand pusher machine feature:

1. PC strand pusher machine is a equipment used for pushing pc strand through into metal duct(or plastic ducts) in bridges, buildings construction.

2. For pushing through 15.24mm, 12.7mm, 12.5mm, 15.7mm pc strand.

3. Pushing capacity(distance): we have 60m machine, 100m machine, 150m machine and 210 machine.

4. Maximum pushing distance: 210m, minimum 60m. 210m machine widely used in bridges beams cast-in-site, and 60m machine widely used in precast factory.

5. Machine motor options: 2.2kw, 5kw, 7.5kw.

6. Features: fast speed, saving labour(need only two worker can pushing all pc strand in site), easy operation and maintenance.

7. With full complete accessories, wear-out parts.

8. We also supply mono jack, multi-jacks, duct making machine, flat oval duct machine, stressed pump, and prestressing materials such as pc strand, mono anchor, multi-strands anchor, flat anchor, ducts.



PC strand for bridge

PC strand used for bridge
