Mono strand jack for sale

2020-06-25 18:08:41

Mono strand jack for sale
Mono strand jack is a kind of general purpose for prestressing applied for pre-tension and post-tension of various steel strand anchors. Mono single strand jack is a multi-functional pre-stress tensioning device, it is easy to operate. Mono strand jack is mainly used for single-hole tension. QYC mono strand jack for sale is used to apply stress to the monotwisted, including high tension wire with dia. from 5mm to 10mm, strand with dia. less than 15.24mm, mono-strand stressing for group anchor, trouble clearing, quit of anchor and additional stressing. It is suitable for working in high spaces, small spaces. Also it is used for porous pretension, tension inglision and troubleshooting, can be used in a variety of sizes of high-strength steel and steel strands. Mono strand jack is especially suitable for high-altitude operation, easy to carry. The stock ingenuation length of 200 mm allows for tension, saving pre-stressed rib material. We can supply mono strand jack price for you.

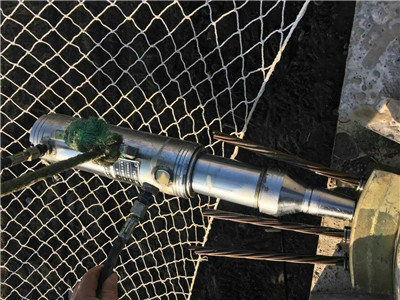

mono single strand jack


Single strand jacks are widely used in prefabricated structures such as pre-stressed bridge beams and bridge surface units, rock anchoring structures, hydraulic structures and other major projects. Hydraulic pre-stressed mono strand jacks are also easy to hang, easy to operate and maintain, with high pollution resistance and durability.

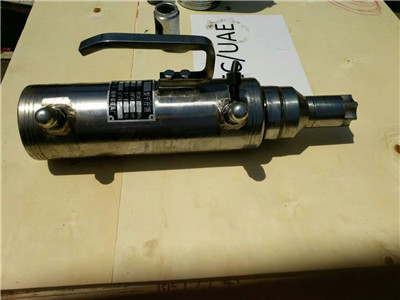

mono strand jack


Tension mono strand jack after construction:
♦ QYC series of light mono strand jacks are divided into 6 models: 27, 100, 150, 200, 250, 400 and 500 (x 10Kn), the stroke is 200mm.
♦ Different accessories can be used when tensioning different models and different types of anchor solid sass. Depending on the needs of our customers, we also offer 60, 120, 300, 350, 600, 650 and 900 six light jack models.

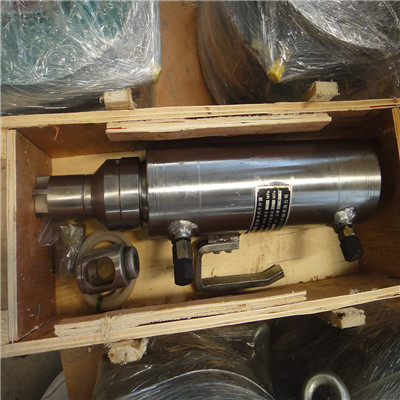

single strand jack


Characteristics of single strand jack:
1. Save a lot of pre-stressed pc shares and is easy to operate.
2. Special alloy steel is heat-treated, which reduces the expansion ratio of the cylinder. The tensioning process extends the life of the seal.
3. Resign with high-strength steel.
4. Perfect performance, easy to use and repair.
5. Operation is safer, faster and more efficient.

The QYC series jacks are cost-effective:
1. Mono single strand jack is for single-strand tension or multi-share stress.
2. Mono single strand jack is suitable for high-strength steel strands of various sizes.
3. Mono single strand jack is suitable for single-strand stress, specifications of s15.24 and s12.7.

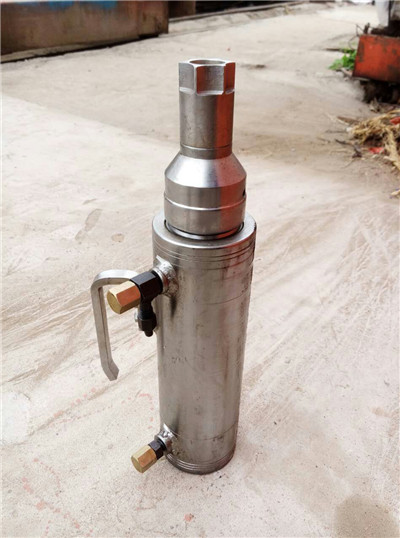

mono hydraulic jacks


Application of mono strand jack for sale:
The front-end type of hydraulic jack matches the pre-stressed anchoring and is widely used in the construction.
1. Bridge and construction projects.
2. Railway and subway construction.
3. Water conservancy and hydropower projects.

Notice: According to users' requirement, prestressed concrete jack for achors and pc strand can be configured

   Parameter table of QYC mono strand hydraulic jack

Model

Nominal
tensionin

Diameter of
minimum
centre hole

Area of
stressing
cylinder

Stroke of
stressing

Rated oil pressure

Overall
dimension

Minimum
working
space(mm)

The reserved
length
of strand

KN

mm

mm²

mm

Mpa

out dianeter(mm)

length(mm)

L

E

mm

QYC70

74

10

1437

150

50

63

296

616

54

120

QYC240

240

18

4009

200

60

102

425

825

86.7

200

QYC270

270

18

4415

200

61

105

427

827

89

200

QYC1100

1100



22619

200

49

265

336







QYC2000

2000



42332

200

48

355

386







QYC3000

3000



61575

180

49

415

402
