Hydraulic hydroseeder spraying soil hydroseeding machine for grass

2019-09-05 17:04:36

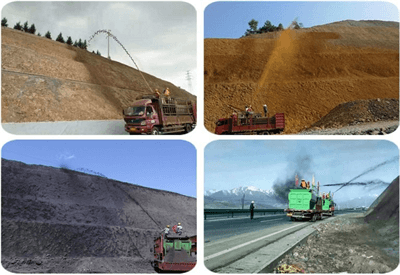

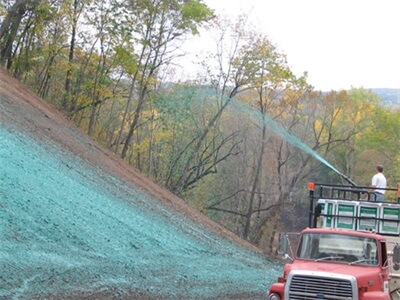

The Hydraulic hydroseeder spraying soil hydroseeding machine is a mobile wet spray device for field construction, which can be driven by vehicles. After the hydraulic spray planting grass machine is towed to the construction site, the organic mixing material is continuously filled into the feeding hopper at the rear of the hydraulic spraying grass planter. The organic mixture material is first sieved and mixed with water to form slurry, mud. The material then flows into the stirred tank and is evenly stirred and stored, and then sucked into the mud pump. The impeller of the mud pump is continuously squeezed during the rotation process, and the slurry material is squeezed from the pipe inlet to the pipe outlet, and then passed through the output. The pipe is conveyed to the slope construction surface, and the spray gun at the end of the output pipe is sprayed at a high speed to the surface of the slope to form a guest soil layer.

 hydroseeding machine


hydroseeding machine for grass

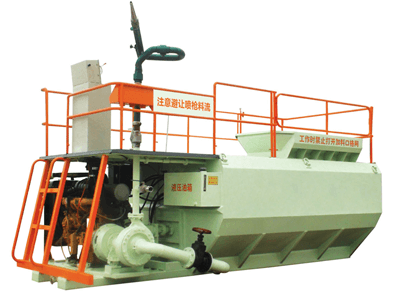

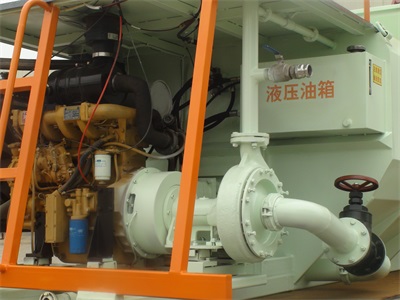

The hydraulic spray planting grass machine is a movable vehicle-mounted slope greening wet spray machine, which is widely used in road and railway construction, geotechnical engineering, municipal engineering and other fields. A power device, a mud pump and a stirring tank are arranged on the frame body, and a feeding port is arranged on the stirring tank, and the outlet of the stirring tank is connected to the mud pump through a pipeline. One end of the diesel engine is connected to the stirring shaft of the stirring tank through a speed reduction mechanism, and the other end is connected to the mud pump through a clutch and a speed reducing mechanism. The material is first sieved and mixed with water to form slurry, then flowed into the stirred tank and stirred for storage. The material is transported by the mud pump.

hydroseeder spray grass seed


Hydro-spraying machine
