Hose type concrete pump was used for concrete grouting

2018-08-22 10:20:30

Gaodetec hose type concrete pumps with big capacity were widely used for short distance concrete grouting.

hose type concrete pump


Gaodetec Equipment hose type concrete pump was build based on hose pump.

The hose type concrete pump uses high pressure, resisting wear squeeze hose with steel wire reinforcement layers; the working pressure is up to 25 bars.

And max. Capacity could arrive to 40m3/h, most import, the hose type concrete pump compared to common concrete pump, with following advantages:

1. Compact size: hopper with agitator, hose pump, power combined in a base frame. Smaller volume;

2. Soft start designed to start electric motor smoothly and protect the motor

3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly

4. Because the hose type concrete pump with simple structure, so very quiet when pumping.

6. The hose type concrete pump could be forwards and reverse, easily to removal the block.

7. The hose type concrete pump could be clean quick and easily, because whole clean on the line, no residual concrete remains in the system.

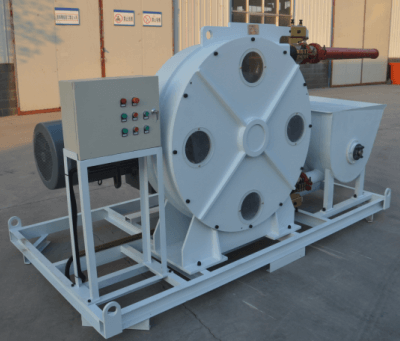

concrete pump hose type


The hose type
concrete pumps with so many features, so it was widely used for masonry block filling, wall grouting, hoisting mortar for masonry wall construction; concrete sidewalk and patio slab pumping, pumping foam concrete, lightweight foam concrete, mortar and refractory materials etc.

Usually we make the hose type concrete pump with electric motor, and the voltage is 3 phase, 380v, 50HZ, if the voltage is not ok for you, we also could customized the voltage according to your work site.

Of course, we also could make the mini concrete pump with diesel engine.

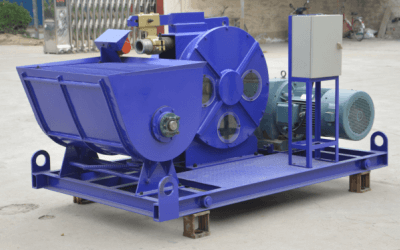

electric hose type concrete pump


According to output difference, we also have several types for option, so if you want one hose type concrete pump for concrete pumping or concrete grouting or mortar pumping or grouting work, please contact
info@gaodetec.com.

diesel hose type concrete pump
