High shear mixer for sale

2020-05-03 18:17:28

High shear mixer for sale
High shear cement mixer is a special pulping equipment developed for grouting materials with low water-cement ratio. When grouting or grouting agent is mixed, cement and water can be quickly made into slurry. Compared with the ordinary blade mixer, it has the characteristics of high pulping efficiency, simple operation, uniform slurry and short distance transportation.
The grout mixer and agitator can be used together or separately. We have grouting mixers and agitator with different displacements. Power transmission is mainly divided into electric and diesel. Of course, it can also be customized according to your needs.

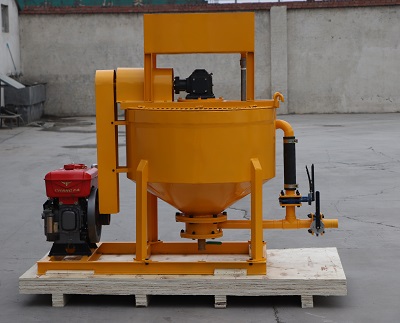

high shear mixer


Our high shear mixer is mainly used in the construction of hydropower, railway, highway, construction, mining and other industries. In the construction industry, mixing cement-based grouting with other materials can produce a very stable mixture. The grouting mixer will quickly and efficiently mix various types of grouting, including cement, bentonite and sand, which are widely used in civil engineering.
The high shear mixer can be used in conjunction with the traditional paddle mixer and pump, or it can be used as an independent mixer through its own built-in impeller pump.

high shear mixer for sale

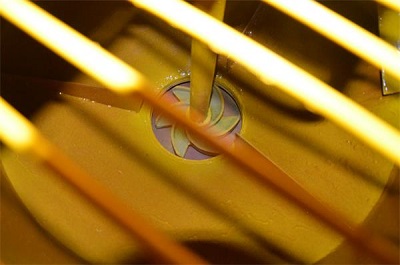

Working principle: The motor drives a high-speed turbo pump. The slurry is drawn into the vortex from the bottom and ejected from the upper end of the barrel to produce a high-speed liquid flow. A strong vortex is formed in the barrel, and the dry powder and water are fully and uniformly mixed to achieve the purpose of preparing a lower water glue than the slurry.

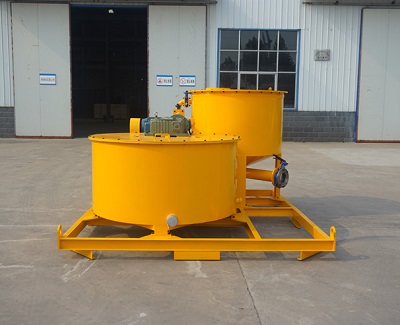

In addition, we also have high shear mixer and agitator, which is a combination of mixer and agitator, designed for continuous mixing and grouting of cement in ground / underground projects. The mixing system is designed to provide continuous mixing operation. It consists of a steel plate cylindrical mixing tank, a heavy-duty slurry pump and a mixing tank, and is mounted on a solid chassis. Water, cement and bentonite are mixed by a high-speed vortex produced by a special pump. Once the mixing process is over, the mixing is transferred to the blender. The slow stirring paddle prevents the slurry from settling out of the suspension and removes any air bubbles in the mixture. The mixer and agitator are switched by a butterfly valve.

high shear cement mixer


GMA850-1500E high shear mixer and agitator model products: the volume of the mixer is 850L, and the volume of the agitator is 1500L.
Feature of GMA850-1500E high shear mixer and agitator :
1. Extremely fast mixing, mixing time just about 1-2 minutes;
2. Simple structure, easy assemble;
3. Less spare parts, low maintenance,Lower using cost;
4. Mixer and agitator switch by using squeeze handle, great reliability and simple to operate.
We are a factory for grouting equipment, and the output and power of mixers and agitators can be customized. Welcome your inquiry, we will answer your question in detail.
