high output grout injection plant with diesel engine to Singapore

2018-08-13 18:03:58

Gaodetec deliver diesel engine drive high output grout injection plant.
GGP800/1200/200PI-D grout injection plant to Singapore in March.

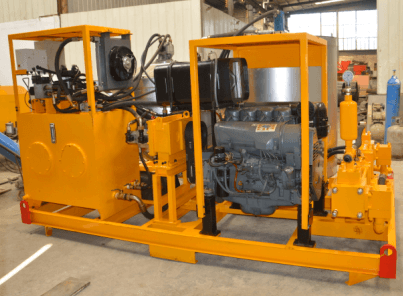

high output grout injection plant with diesel engine to Singapore

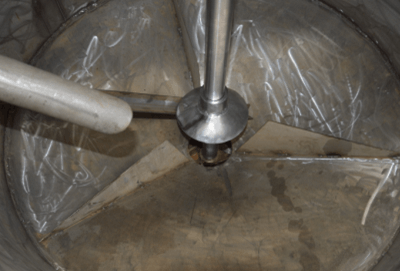

For the GGP800/1200/200PI-D diesel engine drive high output grout injection plant, it with high shear high speed grout mixer volume is 800L, agitator volume is 1200L, grout pressure is 0-50Bar, grout flow is 0-200L/min, the mixer is one vortex mixer could make sure mix cement slurry evenly and more quickly.

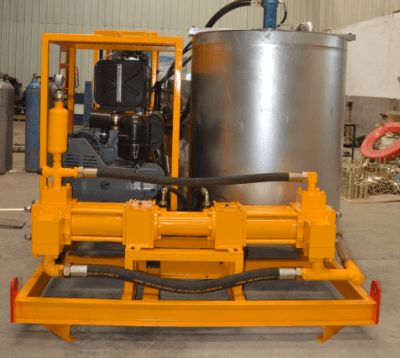

high output grout injection plant  to Singapore


The GGP800/1200/200PI-D diesel engine drive high output grout injection plant with following features:

Ø  Power source is 55KW air cooling diesel engine, air cooling technology, very suitable for field construction.

Ø  The Pump pressure is 0-50 Bar. pump output is 0-200L/min. both could be adjustable step-less.

Ø  Double-cylinder and single-acting grouting pump to ensure grouting continuous and no kicks.

Ø  quickly convenient cleaning valve chamber.

Ø  Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations.

Ø  Delivery with special tools to ensure change the pistons rapidly, reduce replacing time.

Ø  Less spare parts ensure low maintenance costs.

Ø  Mixer and agitator use Stainless steel material.

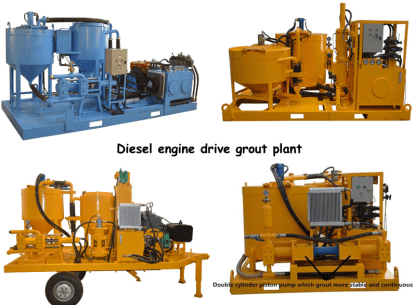

Diesel engine high output grout injection plant to Singapore


The diesel engine drive high output grout injection plant was used for:

1. Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;

2. Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting;

3. Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement;

4. Mine application - roadway reinforcement, backfill, waterproof grouting.

So would you want one so high output grout injection plant?

If yes, how to find one high output grout injection plant in China?

Please collect https://www.gaodetec.com/grout-pump-and-mixer into your favorite. Any time when you want high output grout injection plant, you could find the China high output grout injection plant in first time.

Of course, please send email to info@gaodetec.com for more information and without any hesitation.

In order to recommend one suitable type and the best price more quickly,


Please help us to confirm the following points:

1. What project will use the grout machine for, dam grouting, tunnel grouting or other?

2. What is the pressure do you need?

3. What is the output do you need?

4. Would you like the grout injection plant with electric motor or diesel engine? If want the grout injection plant wok with electric motor, also please confirm the voltage in the worksite.

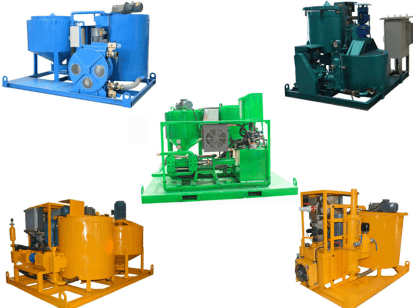

high output grout injection plants


high output grout injection plant Singapore


If you don’t know the answers, it is also no problem, Gaodetec also has its own technical team and with research and development ability, please send your requirements on the grout injection plant, we will offer solution according to your demands to you for discuss like our Singapore grout injection plant client.

So any question or any demands on grout injection plant, please contact us without any hesitation, once confirm the detailed needs on the grout injection plant, more better solution will be offered to you at first time. Contact us now for more information for your grouting business now!!!
