Grouting injection unit diesel driven

2020-10-04 11:20:37

Grouting injection unit diesel driven

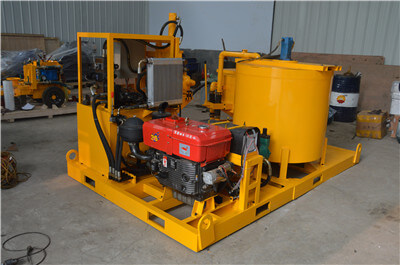

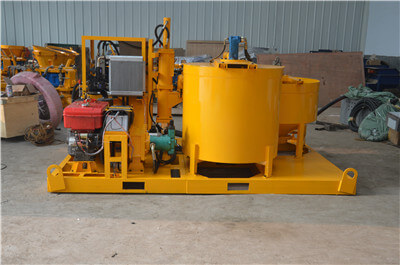

GGP500/700/100 PI-D diesel driven grouting injection unit is a combination of the agitator, the mixer and a grouting pump. The diesel engine grouting injection unit is mainly used for the construction of roads, railways, hydropower, construction, mines and other ground and underground projects. The more special is the power unit of this grouting pump station. The grouting pump is a unit, and the grouting station is an independent unit, which is convenient for installation and transportation. When in use, we can connect the two parts with bolts.

grouting injection unit diesel driven


The working process of diesel engine grouting injection unit is as follows: The high speed mixer machine uses eddy current pulping to diesel engine grouting injection unit quickly and evenly mix water, cement and other media into uniform grout; the mixed slurry is then transferred to the mixing tank. The grouting pump sucks the slurry away from the mixing tank (the storage tank), The grout will be transported to the ground or the cracks in the rock. If it is cement slurry, you need to wait for 4-5 hours for the slurry to solidify. If it is cement slurry with thickeners such as betonies, you need to wait longer. The diesel engine grouting unit is used in underground buildings; it will greatly improve work efficiency and reduce labor cost.


diesel driven grouting injection unit


The grouting injection unit diesel driven can be used for ground grouting. Ground grouting usually refers to :Ground improvement is usually compaction grouting, which refers to pressure grouting of reinforcement materials through a casing. The principle is to form dense soil by injecting a low-flow grout. This can enhance the load-bearing capacity of the ground surface, and can effectively prevent the sinking of the ground load-bearing structure. If you feel that the ground grouting pump station is not convenient to move, we also have the wheeled diesel engine grouting injection unit for your choice.

diesel engine grouting injection unit

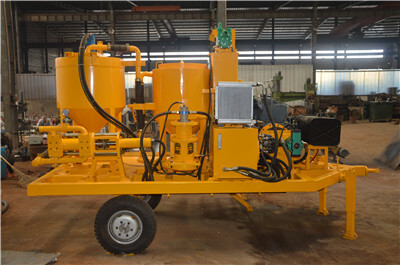

The GGP200/300/100PI-D diesel engine grouting injection unit consists of a movable chassis, diesel engine, operating table, extrusion handle, pulping machine, mixer, LGH90 pump, fuel tank, etc. The diesel driven grouting injection unit adopts full hydraulic drive. Compared with other driving methods, this will reduce the quality of the machine itself, reduce material consumption, reduce manufacturing costs, and improve work efficiency and work reliability. The diesel engine grouting unit is also equipped with a retractable bearing platform for stacking materials. It should be noted that the towing speed is no more than 15km/h on the second-class road and no more than 8km/h on the third-class road, otherwise accidents will easily occur.

If you are interested in our products, please answer the following questions before buying.
1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?

Send your answers and demands to info@gaodetec.com for more suitable type and the best price.
