China manufacturer of foam concrete machine

2019-10-24 10:37:12

China manufacturer of foam concrete machine
Gaodetec is a foam concrete machine manufacturer of China, has 10 years of development, production and sale of the foam concrete machine experience. Our foam concrete machine has sold to in Malaysia, the United States, Mexico, Singapore and other countries. As a professional foam concrete macine manufacturer, we simply to show you our foam concrete machine and its working principle.

manufacturer of foam concrete machine


First, let me show you the components of the foam concrete machine. It includes feeding system, foaming system, mixing system and pumping system. For the feeding system of foam coagulator, we designed a conveyor to transport raw materials, such as cement, sand, fly ash, slag and so on. We have designed two types of conveyors: screw conveyors and belt conveyors. The screw conveyor with dust cover can reduce the dust in the feeding process. About the foam system of foam coagulator, we design a kind of high tech foam generator, which can produce abundant foam automatically. In a foam generator, there is an air compressor to provide enough air to introduce the air into the foaming agent solution to produce a large amount of foam. As for the mixing system of foam concrete machine, we use the ordinary mixer to stir the slurry, and use the static mixer to stir the foam and slurry, so as to ensure the good performance of the final foam concrete product. As for the pumping system of foam coagulator, we adopt hose pump to pump fluid foam concrete, which will hardly damage the foam concrete. Compared with screw pump and piston pump, hose pump is the best pump for conveying foam concrete.

 China foam concrete machine

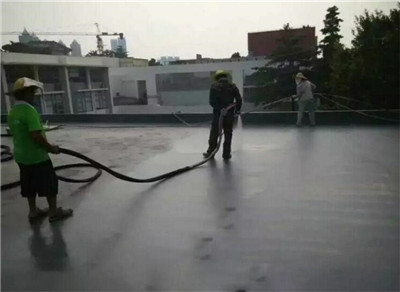

The foam concrete produced by the foam concrete machine from China can be used to make lightweight concrete bricks, fill gaps, insulation walls, cast-in-place projects and so on. Construction can be carried out in a narrow space because the production point of foamed concrete can be separated from the site construction site and the pouring point occupies very little building space. Combined with the self-leveling characteristics of foam concrete, it is filled with self-compacting, no vibration, no rolling, convenient and efficient construction, and is an excellent material for filling narrow space and underground karst caves.

 foam concrete machine from China

After making foam concrete, if you need to cut it into foam concrete bricks, we can also provide you with a professional foam concrete brick cutting machine. General foam concrete brick cutting machine has two kinds, one is the wire cutting machine, the other is the blade cutting machine. Compared to blade cutters, wire cutters are economical and can be used to cut foam concrete bricks, but not fibers. As the main materials of our foam concrete are cement and sand, so the wire cutting machine has been able to meet our requirements, which is our best choice.




As a manufacturer of foam concrete machine, we have a professional foam concrete machine factory, perfect facilities, first-class technology, from your selection of machinery to packaging transportation and then to the site construction we will continue to provide you with help, for you to answer all your construction problems, please do not hesitate, contact us directly, we will reply you in the first time. Our email:info@gaodetec.com
