250kg refractory concrete pan mixer

2022-02-21 14:17:50

250kg refractory concrete pan mixer are widely used in mixing refractory materials, castables, friction materials, chemical materials, precast concrete, mortar, aggregate mixing and glass materials, etc. Could work together with refractory wet shotcrete machine, used for refractory materials spraying project in the steel industry.

refractory concrete pan mixer

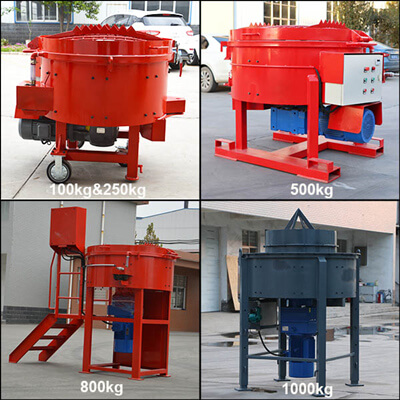

We have five different models of refractory concrete pan mixer to choose. Their mixing capacity are 100kg, 250kg, 500kg, 800kg and 1000kg respectively refractory pan concrete mixer.

500kg 800kg 1000kg refractory pan mixer


We could provide some services of personalized customization for customers. The mixing capacity and height of the refractory concrete pan mixer can be customized according to customer requirements.

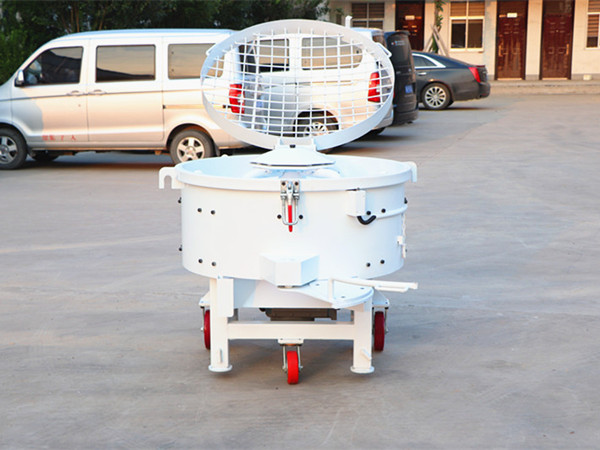

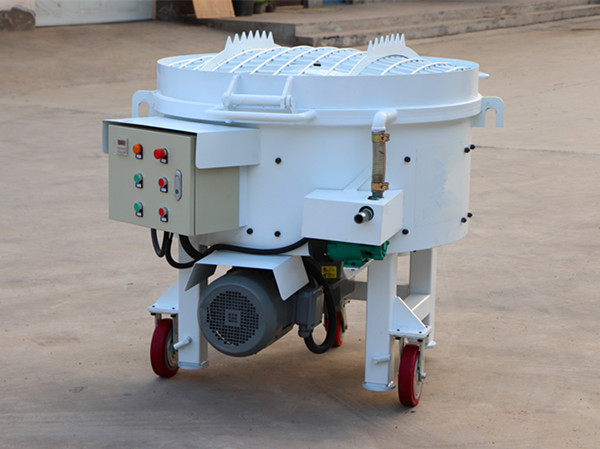

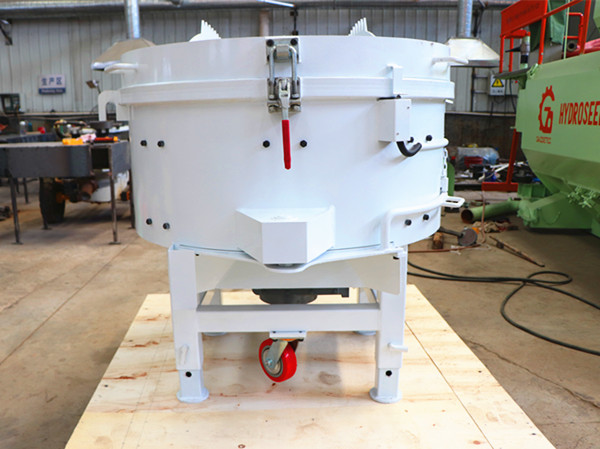

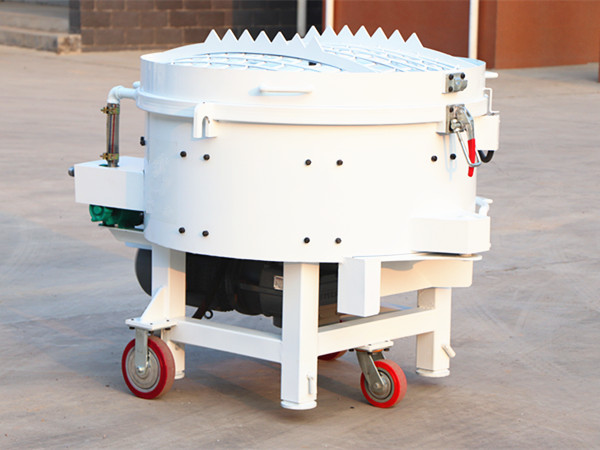

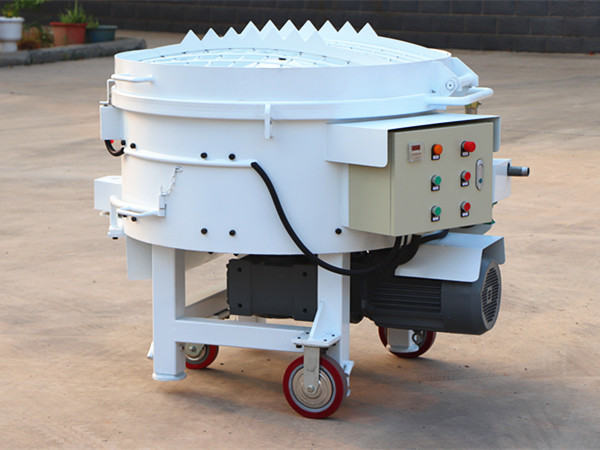

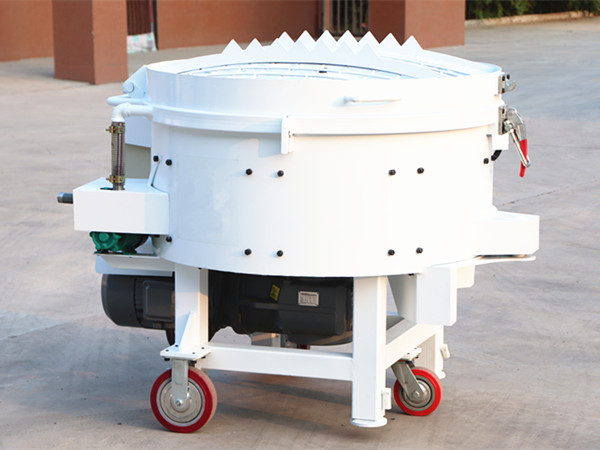

250kg refractory concrete pan mixer equipped with mobile device, so the operator can easily move the mixers on the construction site. It weighs up to 650Kg, dimensions is 1.02*1.02*1.12m. Its mixing capacity is 250Kg, and its motor power is 7.5Kw.

250kg refractory pan mixer


Besides, 100kg refractory concrete pan mixer also equipped with mobile device. so the operator can easily move the mixers on the construction site.

500kg, 800kg and 1000kg refractory concrete pan mixer is much heavier than 100kg and 250kg refractory concrete pan mixer. In order to keep the refractory concrete pan mixer steady, we did not equip these three refractory concrete pan mixer with mobile device, but adopted the method of adding forklift holes.

In order to protect the engines of 500kg, 800kg and 1000kg refractory concrete pan mixer, these three refractory concrete pan mixers are also equipped with a soft start device, which can start the engines smoothly.

For 800kg and 1000kg refractory concrete pan mixer, we have added ladders, operating platforms, and high-pressure water flushing devices.

Precautions for the use of 250kg refractory pan mixer:
1.Preparatory work before starting up: check whether there are sundries in the disk, check whether the bolts of various parts are loose or missing, whether the reducer oil is sufficient, check whether the scraper is loose, whether the angle is correct, and the power supply, and whether the power cord is leaking.
2.Turn on: clear all the data in the disk, make sure to restart after clearing. Turn on the power and start the machine, listen for abnormal sounds, and add materials according to regulations.
3.Turn off: after the materials in the refractory pan mixer are used up, the machine will be turn off and the remaining materials in the pan will be cleaned up.

250kg refractory mixer


Maintenance note of 250kg refractory pan mixer
1.When replacing the scraper, be sure to cut off the power supply and hang up a sign prohibiting starting. It is best if someone guards the power supply.
2.The staff should regularly change the oil for the machine and add grease to the motor bearings. To extend the service life of the machine.
Contact us for refractory concrete pan mixer details:
If you are interested in our 250kg refractory pan mixer, please help us confirm the following questions:
1.What is mixing materials with our machine, for mixing refractory, castable or others?
2.What is the mixer capacity you need, 100kg/batch, 250kg/batch, 500kg/batch, 800kg/batch, 1000kg/batch or others?
3. What is the voltage you need, here is 380V, 50HZ, 3 phase, is it OK for you?
We could customize according to your requirements, just tell us the application of the product or the parameter information you need.
