Build Concrete Swimming Pool


Gaode Equipment shotcrete machine and gunite machine were widely used to build swimming pools.

If you want one suitable type shotcrete machine or gunite machine to build desired swimming pools, please contact info@gaodetec.com for more information and without any hesitation.

swimming pool gaodetec

And in order to help you confirm which type more suitable for you quickly,

Please tell us the answers of the following questions:

1. Would you want one shotcrete machine or one gunite machine?

Shotcrete is poured the mixed concrete into the shotcrete machine and sprayed under pressure into place in layers through a back-and-forth motion of the nozzle. The shotcrete application continues until the designed wall thickness is achieved.

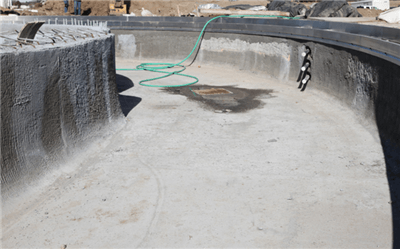

wet machine to build swimming pool

Gunite concrete is often times referred to as “dry gun” concrete. with gunite the dry portions of the concrete are mixed at a concrete plant, or at the jobsite, before being applied. There is no water added to the dry concrete mix until actual application from the gunite nozzle.

Gunite equipment forces the dry concrete mixture into a hose under air pressure. The dry mixture travels through the hose to a specialized nozzle that is also connected to a water source under pressure. The dry concrete is combined with the water and mixed through channels in the nozzle before being sprayed onto a preformed surface. The result is a concrete mixture that can be applied extremely dry with a high cement content to bind the aggregate with even greater strength. The gunite nozzle operator uses a back-and-forth motion to sculpt the pool walls to the shape and thicknesses designed.

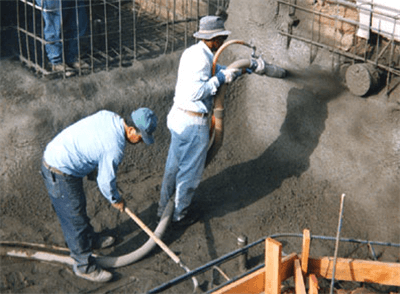

gunite machine to build swimming pool

2. Please confirm which type would you like?

For shotcrete machine, we have two types structure

One is rotor type shotcrete machine, we named it as wet mix shotcrete machine,

The model is GSZ3000, its output is 3-5m3/h, acceptable max. aggregate size is 15mm, max. horizontal conveying distance is 30m, max. vertical conveying distance is 10m, please check the link for more detailed.

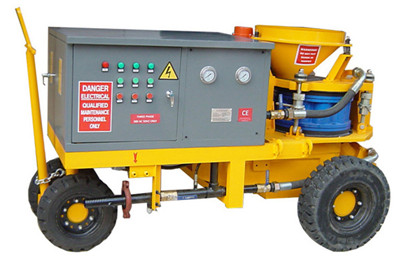

shotcrete machine for build swimming pool

Another is S valve type shotcrete pump, the model is GPS-7A. it output is 5-8m3/h, acceptable max. aggregate size is 20mm, max. horizontal conveying distance is 200m, max. vertical conveying distance is 60m, please check the link for more detailed

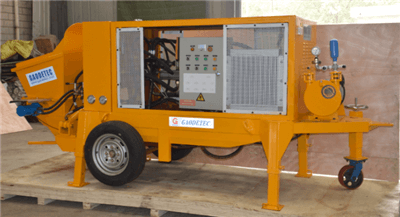

S valve type shotcrete machine to build swimming pool

For gunite machine, we have three output for option

For gunite machine, according to output difference, there is 3m3/h, 5m3/h, 9m3/h for choose, and according to the engine difference, except the electric motor drive, in order to meet jobsite demands which no electric source, Gaode Equipment also have air motor drive and diesel engine drive for choose.

So for dry mix gunite machine, total have 9 types for choose. Please check the following link for more detailed.

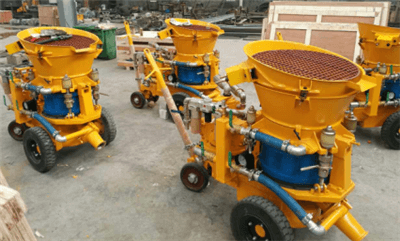

gunite machine for build swimming pool

How do you think of Gaode machine for building swimming pool? Gaodetec has its own technical team and research and development ability, has tens types for option, so could offer suitable type and best solution according to your demands. So please contact us for more information of build swimming pool machine for your business now!!!
