Slurry pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works. Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.

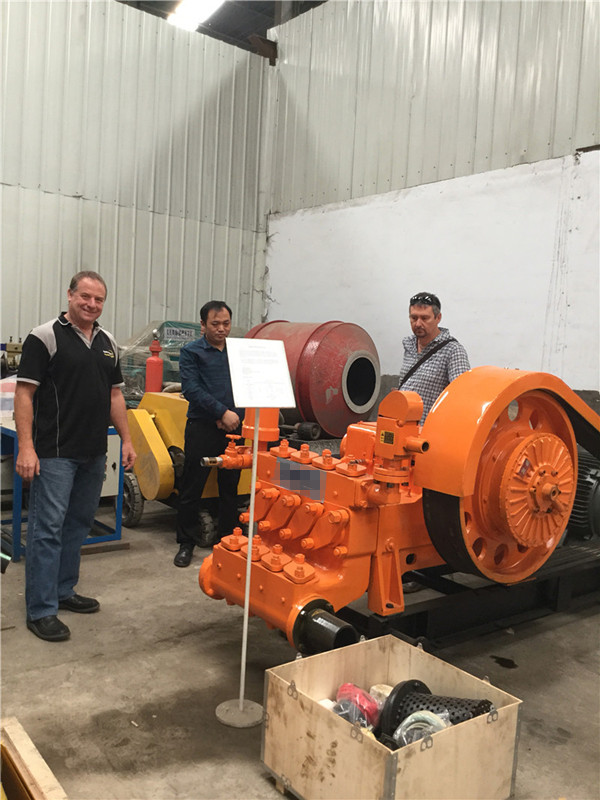

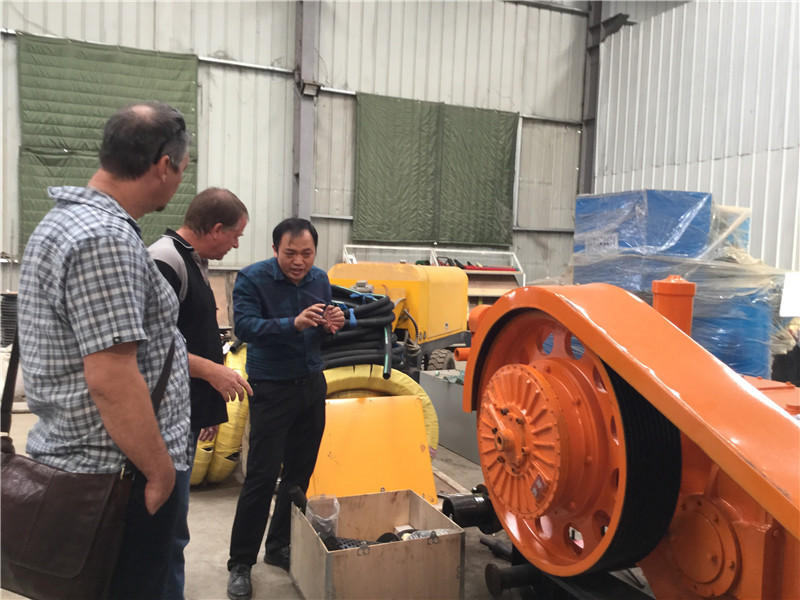

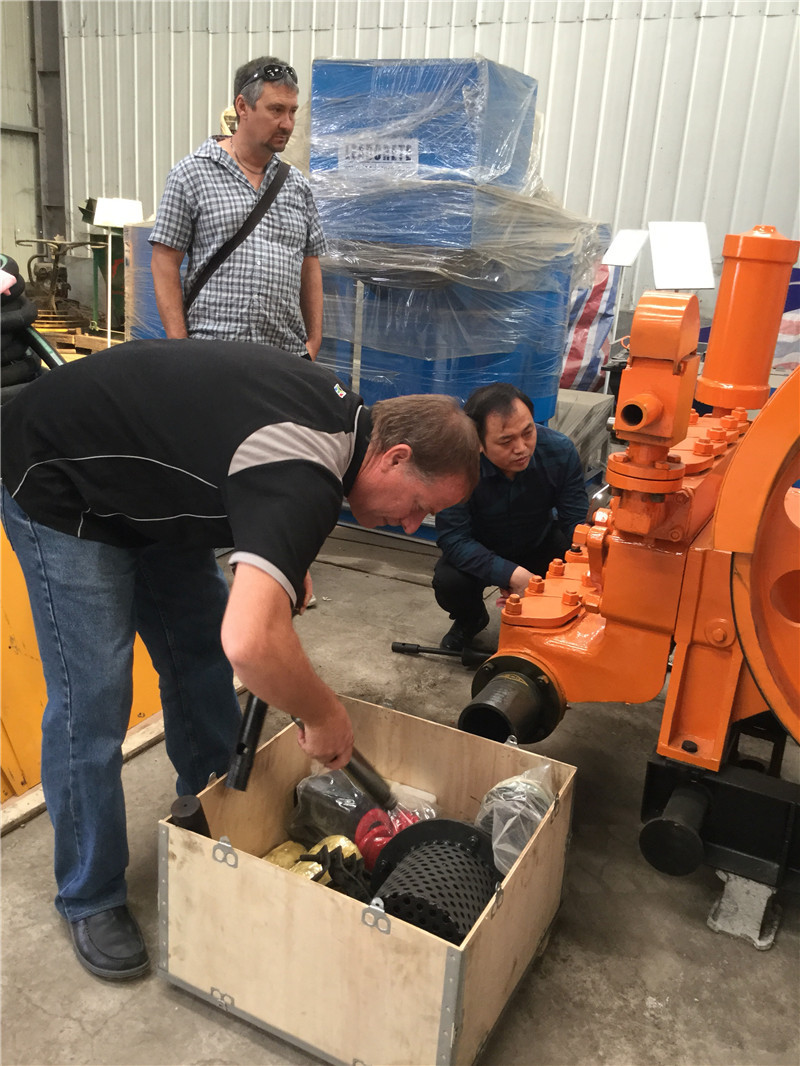

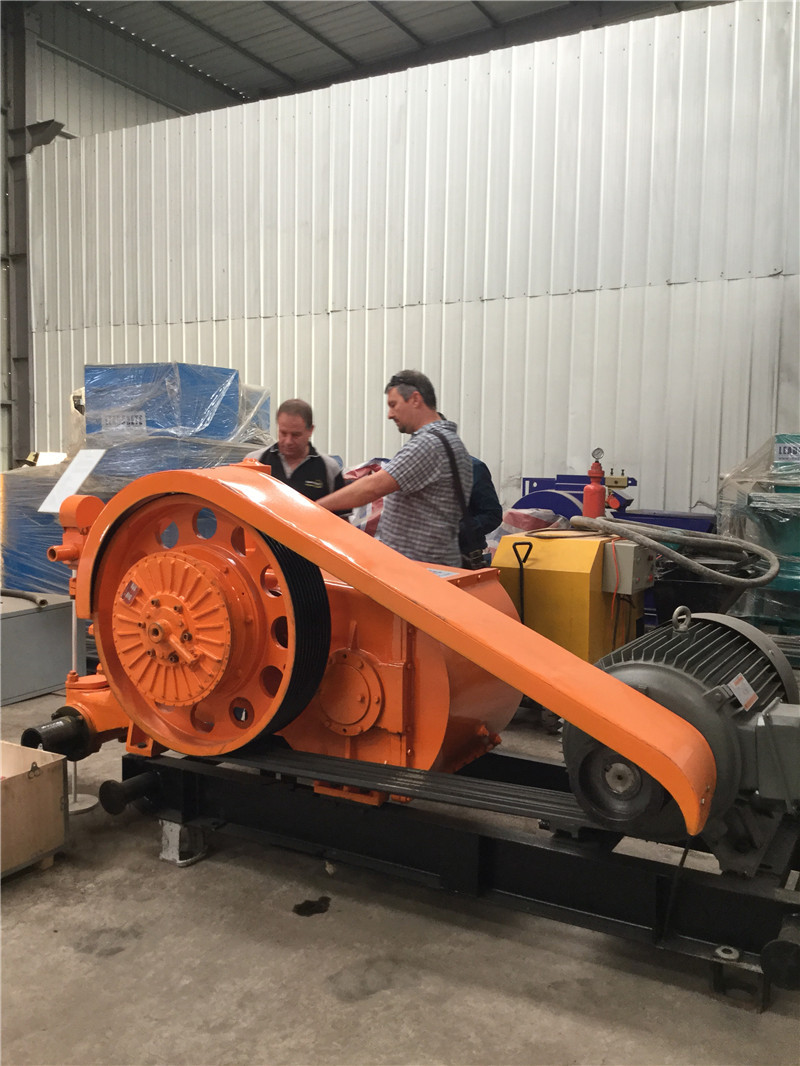

Recently Australia customer visits our factory. And they are interested in BW850/8 mud pump.
BW850/8 slurry pump is a horizontal four cylinder reciprocation single acting piston pump. Technical data information as the following:
|
Model |
BW850/8 mud pump |
|
Cylinder diameter (mm) |
105 |
|
Stroke (mm) |
125 |
|
Input speed (time/min) |
200 175 150 135 |
|
Flow (l/min) |
850 730 640 560 |
|
Pressure (Mpa) |
5 6 7 8 |
|
Power (Kw) |
90 |
|
Shape size (mm) |
1600*1100*1200 |
|
Weight (kg) |
1400 |
As one of slurry pump factory and slurry pump supplier, Gaode Equipment Co., ltd. offer mud pump flow from 80L/min to 1200L/min. For more information, please email us: info@gaodetec.com.
