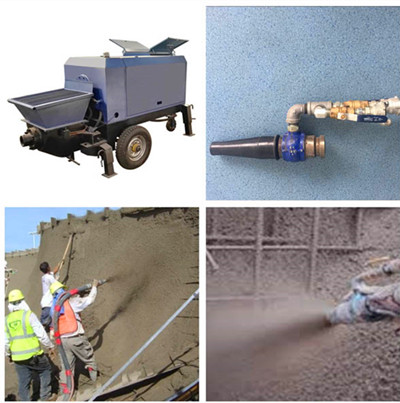

We are a wet mix shotcrete pump manufacturer and shotcrete pump supplier. Our shotcrete pump output is from 1.5m3/h to 10m3/h. Electric motor, diesel engine and gasoline engine are available options for customization for our costumers. Our shotcrete pump could be used for wet shotcrete spray, concrete slurry pumping, roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on projects. Gaodetec shotcrete pumps for sale:
| Item |
Description |
| Pressure |
1.5 Mpa ( Chinese squeeze hose )/3.5 Mpa ( Trelleborg squeeze hose ) |
| Output |
1.5-3m3/h |
| Max. Aggregate |
10mm |
| The Squeeze Hose |
ID 50mm |
| Conveying Hose |
ID 38mm |
| Pump head |
GH50-455 |
| Power |
Honda GX390 Gasoline engine |
| Overall Dimension |
1900x850x1250mm |
| Hopper volume |
200 Liter |
| Oil tank |
120 Liter |
| Weight |
610kg |
| Requested air compressor |
3m3/min, 0.5Mpa Pressure |
| Vertical Conveying Distance |
15 m ( Chinese squeeze hose )/30 m ( Trelleborg squeeze hose ) |
| Horizontal Conveying Distance |
40 m ( Chinese squeeze hose )/80 m ( Trelleborg squeeze hose ) |
| Item |
Description |
| Pressure |
1.5 Mpa (Chinese squeeze hose)/3.5 Mpa (Trelleborg squeeze hose) |
| Output |
1.5-3m3/h |
| Max. Aggregate |
8mm |
| The Squeeze Hose |
ID 50mm |
| Conveying Hose |
ID 38mm |
| Pump head |
GH50-455 |
| Power |
CFZ12 Diesel Engine, 10hp |
| Overall Dimension |
2150x1100x1150mm |
| Hopper volume |
130 Liter |
| Weight |
660kg |
| Requested air compressor |
3m3/min, 0.5Mpa Pressure |
| Vertical Conveying Distance |
15 m (Chinese squeeze hose)/30 m (Trelleborg Hose) |
| Horizontal Conveying Distance |
40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose) |
| Pressure |
1.5 Mpa (Chinese squeeze hose)/ 3.5 Mpa (Trelleborg squeeze hose) |
| Output |
1.5-3m3/h |
| Max. Aggregate |
8mm |
| The Squeeze Hose |
ID 50mm |
| Conveying Hose |
ID 38mm |
| Pump head |
GH50-455 |
| Power |
5.5kw, electric motor |
| Overall Dimension |
1900x850x1250mm |
| Hopper volume |
200 Liter |
| Weight |
610kg |
| Requested air compressor |
3m3/min, 0.5Mpa Pressure |
| Vertical Conveying Distance |
15 m (Chinese squeeze hose)/30 m (Trelleborg squeeze hose) |
| Horizontal Conveying Distance |
40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose) |
| Item |
Description |
| Working Pressure |
1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
| Output |
6-8m3/h |
| Max. Aggregate |
10mm |
| The Squeeze Hose |
ID 50mm |
| Conveying Hose |
ID 50mm |
| Pump head |
GH50-680 |
| Power |
Honda GX390 Gasoline Engine (low pressure) Honda GX630 Gasoline engine(high pressure) |
| Parameters |
GPS10/80 |
| The output |
5-10 m3/h(adjustable) |
| Output pressure |
80bar |
| Max. aggregate |
15-20mm |
| Motor power |
22kw |
| Dimension |
2800*1300*1500mm |
| Max. Vertical conveying distance |
40-45m |
| Max. horizontal conveying distance |
150m |
| Weight |
1100kg |
| Filling height |
950mm |
| Conveying hose diameter |
Φ75/80/100 |
