Refractory Shotcrete Machine Manufacturer

2016-03-17 18:26:18

Gaode Equipment Co., Ltd, is a professional refractory shotcrete machine manufacturer. We have developed full series of refractory shotcrete machine for sale.

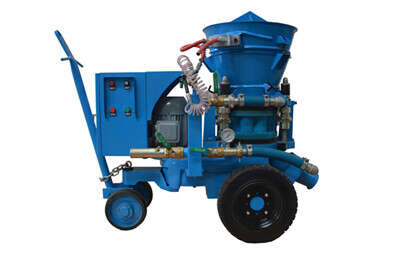

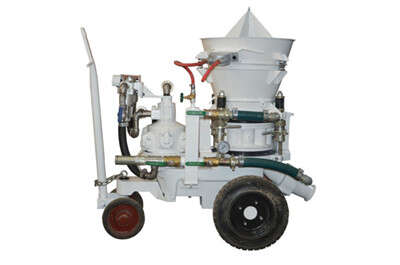

Refractory Shotcrete Machine





Specification

GZ-3ER refractory gunning machine

GZ-3AR refractory gunning machine

Drive mode

Electric motor

air motor

Rated Output

1-3m3 /h (2-6 ton/h)

1-3m3 /h (2-6 ton/h)

Max. Horizontal Conveying Distance

200m

200m

Max. Aggregate Size

Φ10 mm

Φ10 mm

Conveying Hose Inner Diameter

38mm

38mm

Operating air Pressure

0.2-0.4MPa(29-58PSI)

0.2-0.4MPa(29-58PSI)

Air Consumption

5~6m3/min

10-11m3/min

Engine

4kw(electric motor,3 phase380V50Hz)

4kw

Material Charging Height

1.1m

1.1m

Rotor Speed

13.2r/min

13.2r/min

Overall Dimension(L×W×H)

1.13×0.54×1.1m

1.13×0.54×1.1m

Weight

430kg

430kg

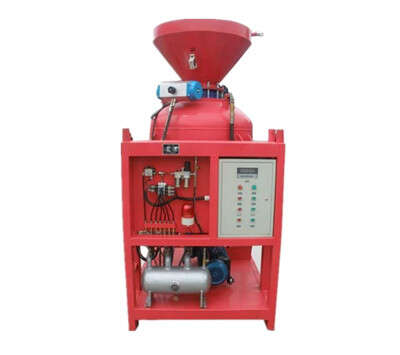

Switch-plate Type Refractory Gunning Machine

switch plate type refractory gunning machine


Model

tank capacity(m³)

charge amount(kg)

discharge amount(kg/min)

Max. aggregate(mm)

Conveying distance(m)

switch-plate diameter(mm)

C powder

gunning material

C powder

gunning material

Horizontal

Vertical

GD-BJ0.39

0.39

250

600

5~20

10~30

≤5

200

40

200,300

GD-BJ0.75

0.75

500

1200

5~30

10~50

≤5

200

40

300,400

GD-BJ1.0

1.0

650

1500

10~40

20~80

≤5

200

40

400,500

GD-BJ1.5

1.5

1000

2500

20~50

30~120

≤5

200

40

400,500

GD-BJ2.0

2.0

1300

3000

25~60

60~200

≤5

200

40

400,500

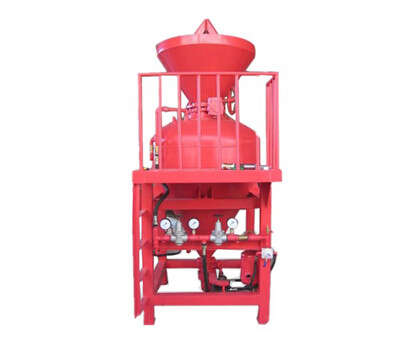

Fluidifying Semi-dry Refractory Concrete Spraying Machine

refractory concrete spraying machine



Model

tank capacity

(m³)

charge amount (kg)

discharge amount (kg/min)

Max. aggregate

(mm)

Conveying distance(m)

Horizontal

Vertical

GD-BP0.39

0.39

600

30~60

≤5

100

50

GD-BP0.75

0.75

1200

30~80

≤5

100

50

GD-BP1.0

1.0

1700

40~80

≤5

100

50

GD-BP1.5

1.5

2500

50~80

≤8

100

50

GD-BP2.0

2.0

3500

50~80

≤8

100

50

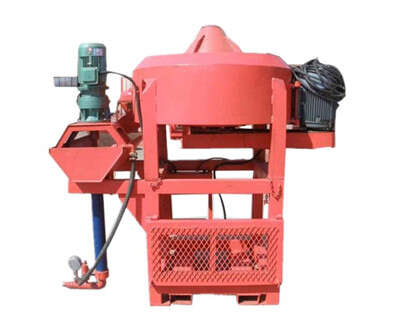

Metallurgical Furnace Used Screw Pump


refractory screw pump



Model

Working pressure (Mpa)

Discharge amount (L/min)

Max. aggregate

(mm)

Conveying distance(m)

Outlet pipe dia.(mm)

horizontal

vertical

GD-SL0.5

≤2

8

≤1

80

20

20

GD-SL1.0

≤2

16

≤2

80

20

25, 20

GD-SL2.0

≤2

32

≤3

80

20

32, 25

GD-SL3.0

≤2

50

≤3

80

20

32, 40

GD-SLT-3.0

≤1.8

30

≤1

80

20

25

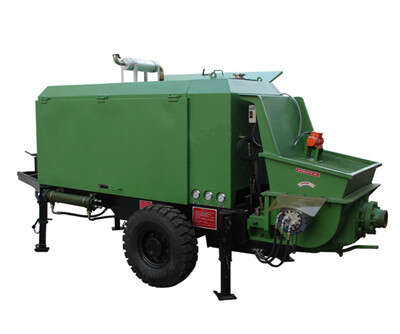

Wet gunning refractory pump


wet gunning machine

Parameter

Unit

GWR-15/11

GWR-25/14

Rated output

m³/h

3-15

3-25

Pressure

MPa

10

14

Distributing valve form



S tube valve

S tube valve

Max. aggregate particle

mm

30

30

Slump

cm

12~20

12~20

Rebound rate

%

15

15

Dust density (near machine)

mg/m³

10

10

Conveying cylinder ID *stroke

mm

Ф140*1000

Ф140*1000

Diesel engine model



R4105D2

R4105ZD7

Diesel engine power

kw

50.6

61.6

Rated rotation

rpm

1800

1500

Hydraulic oil tank volume

L

350

350

Fuel tank volume

L

60

60

Charging height

mm

1200

1200

Overall dimension

mm

4550*1680*1950

Weight

kg

2850

3000
























If you want to learn more, please contact with us. Email:
