2018-06-20 16:07:07

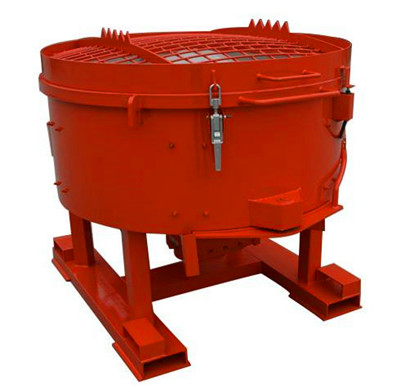

Refractory pan mixer is mainly used for mixing refractory materials, castable etc. in steel plant. According to customers’ different project demands, we have GRM100, GRM250 and GRM500 three different model for customers’ option.


GRM100 and GRM250


GRM500

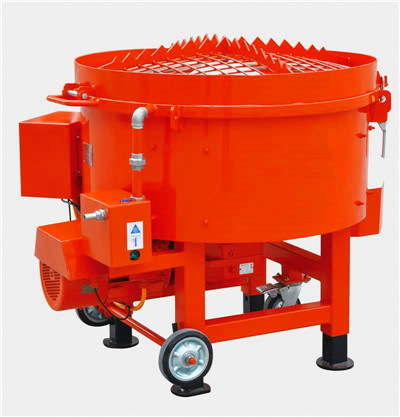

GRM100 and GRM250 refractory pan mixer could be equipped with walking wheels, which is easy to move in working site. GRM500 mixing capacity is 500kg, considering that machine stability during mixing, usually GRM500 refractory mixer is equipped with forklift hole in the frame, instead of walking wheels. Operator could transport freely GRM500 refractory mixer by forklift hole in working site. In order to protect operator and avoid injured in the use, our refractory pan mixer is equipped with a limit switch between the top lid door and the hopper, once the top lid is opened in the use, the power will cut off automatically and confirm the safety for operator. Mixing refractory machine is also equipped with small water pump, it could provide need water through three water line around mixer. Operator could control water pump and mixer begin and stop by electric control box button.

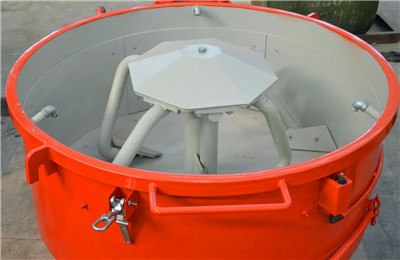

Water line and limit switch

In order to protect our machine in export and transport, usually we pack our machine using standard plywood boxes. want to know much more working information regards refractory pan mixer, please check the below link:

https://youtu.be/CjC4OSL2VHM

http://www.gaodetec.com/refractory-gunning-machine/refractory-pan-mixer.html
