Refractory gunning machine castable for radiant module

2021-03-10 16:57:05

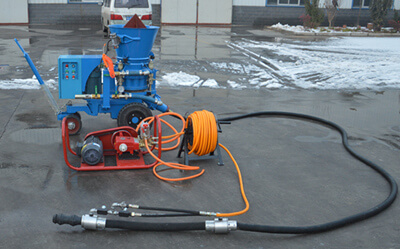

Refractory gunning machine castable for radiant module
Refractory gunning machine castable for radiant module is a new type of high-efficiency refractory shotcrete machine, which can be used for spray molding or repair of refractory materials in various types of industrial furnaces and linings: various slope protection and greening constructions, soil transportation and spraying. The refractory gunning machine for radiant module has reasonable structure, humanized design, reliable performance, convenient operation and maintenance, and long service life. No dust, low noise and low rebound rate when working. This refractory gunning machine castable greatly reduces the dust concentration near the machine and the nozzle, improves the working environment of workers, and reduces pneumoconiosis caused by dust.

refractory gunning machine castable for radiant module

The refractory gunning machine castable for radiant module is a continuous running rotor spray gun spraying machine, with a wide range of production capacity, and has been widely verified in the refractory industry. This refractory gunning machine castable for radiant module is used in places where high requirements are placed on the dust-free and low-wear spray gun mechanical technology of dry-process refractory concrete.

When the refractory spray gun is working, the spray gun material to be processed is fed into the rotor through the hopper and the star agitator. The rotor is fixed between two sealing discs and is driven by a rotating current or compressed air motor. The spray gun material is delivered to the discharge port by the so-called trickle method, where it is blown into a hose or pipe through air compressed.

refractory gunning machine castable


The refractory gunning machine castable for radiant module has the following characteristics:
1. Refractory gunning machine castable for radiant module has the functions of mixing, conveying and spraying.
2. The concrete pouring quality is good, the construction speed is fast, and the labor is saved.
3. Gunning metallurgy and industrial furnaces are widely used in steel mills.
4. The refractory gunning machine for radiant module is a stereotyped product with good quality and durability. The vulnerable parts, rotating plate, bonding plate, spray gun and other accessories are adequately stocked.

When we use the refractory gunning machine for radiant module, we should remember the following things:
1. In split spraying, the re-spraying should be carried out after the final concrete setting of the previous time. If there is over-excavation or cracks and low recesses, it should be sprayed and smoothed first, and then sprayed normally.
2. It is strictly forbidden to aim the nozzle at the personnel.
3. During the spraying process, in the event of pipe blockage, wind or power failure, etc., the water gate should be closed immediately, and the nozzle should be placed down to prevent the flow into the feed pipe; when handling the blocked pipe, the percussion method should be used to feed the feed pipe.
4. The sprayer must wear dust masks, latex gloves and glasses.
5. The air inlet of the refractory gunning machine castable is well sealed to prevent air leakage from blowing up dust; the air outlet is unobstructed and the exhaust gas discharges smoothly; the joints of the refractory gunning machine pipe are firm, well-sealed, and neatly placed.

If you are interested in
refractory gunning machine castable for radiant module, please contact us freely, [email protected].
