Plunger Mud Pump

2016-12-08 14:17:24

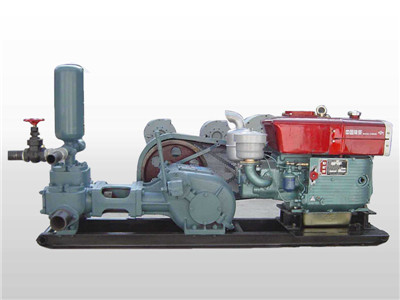

BW-200 Plunger Mud Pump is a horizontal, double cylinders, double acting reciprocating plunger pump. It work with drilling machine, mainly used in mine, geological drilling, coal mine, railway, high speed way, water conservancy and hydropower, bridge, high building, ground stabilization etc. projects.

It has two kinds of specifications of the inside cylinder - diameter 65mm and 80mm to adapt to different geological conditions. Its rated Flow is 125L/min and 200L/min. The corresponding pressure is 6Mpa and 4Mpa. Because of the compact structure, light weight, easy to move, it is easy to operation. So the pump gets much high praise from customers. Besides, the pump’s power unit can be electric motor or diesel engine according to the requirement of the customer.

plunger mud pump



                    mud pump
