Planetary mixer with pneumatic discharge door

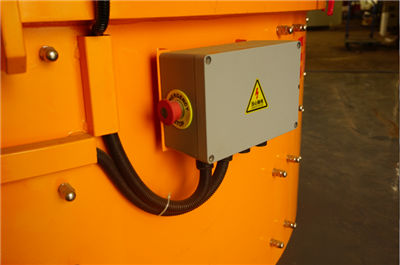

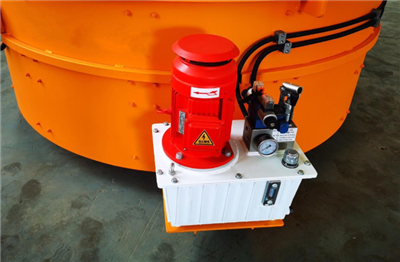

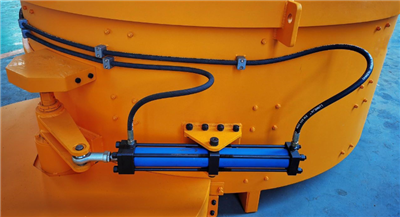

The high-efficiency uniform planetary mixer produced by Gaode equipment has advanced discharge gate equipment. Through the control of the electric control box, the safety during construction can be ensured and the personnel can be prevented from being injured. The planetary mixer is equipped with a pneumatic discharge door and a hydraulic discharge door. This function has been very mature after 5 years of technical experience precipitation. Welcome everyone's attention to Gaode equipment's planetary mixer with pneumatic discharge door, focusing on material mixing and mixing. Everyone is welcome to purchase. We are always at the forefront of the industry, and we have hydraulic unloading options to choose from. The discharge door of our hydraulic planetary mixer is controlled by the oil pump. There is also an emergency switch to force the discharge door to open.

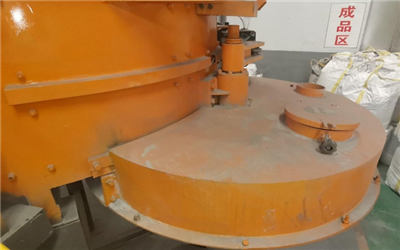

The discharge door structure of the vertical shaft planetary mixer includes a mixing drum. The bottom of the mixing drum is provided with a discharge port and a bottom lining plate of the mixing drum. The bottom lining of the mixing drum extends out of the bottom of the mixing drum, and the outer side wall of the mixing drum is provided there is a support plate, the shaft seat is fixed on the support plate, the shaft seat is equipped with a discharge door shaft, the discharge door shaft and the shaft seat are connected by a bearing, a gasket is arranged between the support plate and the shaft seat, and the discharge door the upper end of the shaft is provided with a bushing and a round nut; planetary concrete mixer with pneumatic discharge door rotating the round nut drives the discharge door shaft to move up and down, which is used to adjust the height difference between the bottom liner of the discharge door and the bottom liner of the mixing drum; by adjusting the thickness of the gasket To adjust the horizontal gap between the bottom lining plate of the discharge door and the bottom lining plate of the mixing drum. Planetary mixer with pneumatic discharge door, the bottom plate of the discharge door is fixed with a sealing plate. The outer side wall of the mixing drum is provided with a stepped slot, which forms three parts with the sealing plate. Level sealing so as to more effectively avoid the phenomenon of slurry leakage. When an accident occurs, the side emergency button can be used to discharge the door. It can save the waste caused by abnormal operation of materials.
Number of unloading doors of vertical shaft planetary mixer:
According to the production requirements, the number of unloading doors should be 1-3. The layout Angle is customized according to the layout of the production line. planetary concrete mixer with pneumatic discharge door. Generally, two discharge doors are set in the direction of 180°or 90°.
At present, many enterprises that manufacture prefabricated components require 2 discharge doors.
Is the discharge door hydraulic or pneumatic: the choice of hydraulic discharge or pneumatic discharge, this should be based on the actual requirements of customers, the difference between the discharge door hydraulic and pneumatic:
1. The price of hydraulic unloading is higher than that of pneumatic unloading under other unchanged conditions.
2. Hydraulic discharge is better than pneumatic discharge in terms of unloading, because pneumatic discharge will be stuck in the process of unloading due to insufficient pneumatic force.
The material door can be customized according to customer needs, take multiple doors and multiple ways for customers to choose. If you have more questions about the discharge door, please contact us in time.
