Piston Grout Pump Used for Dam Project

2017-01-18 15:43:00

Grouting work widely in Dam projects, Gaodetec grout pumps were widely used in the dam projects:

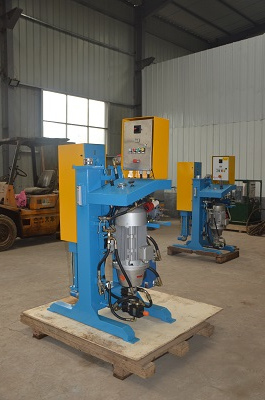

1. GDM130/20 medium grout pump:
GDM-130/20 Grouting Pump is a single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump. GDM-130/20 piston grout pump mainly features: Integrated valve house and ball valve, together with compact structure; Body of pump is made of aluminum casting, low weight is an advantage for transport. Rated flow: 130L/min, pressure 20Bar.

Piston Grout Pump Used for Dam Project

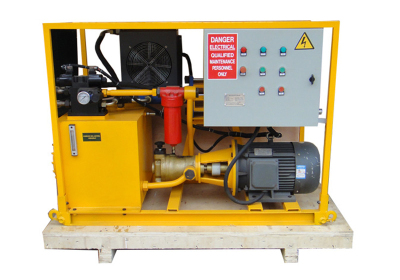

2. GDH70 and GDH90 high pressure grout pump:
GDH70 and GDH90 grout pump are two hydraulic drive high pressure pump which mainly features: single piston with double-acting; with hydraulic drive. Rated flow: 70L/min, 90L/min, pressure: 100Bar.

high preesure  grout pump


3. GDH 75/100 vertical grouting pump:
GDH 75/100 vertical grouting pump is one hydraulic drive high pressure grout pump which mainly features are: Compact structure, light weight, suitable for small work space; With digital display counter: it can display at any time, and can accumulate work times; 4. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;

vertical grout pump


You can contact +86-15903613994 info@gaodetec.com for more information.
